VPU Vaccine Storage Vaccum Insulated Shipping Box
|
SPECIFICATION
|
|
Model Number
|
VPU2-1586
|
|
External Cover
|
Polyester 1680D+8mm Foam+aluminum foiled liner
|
|
VPU Insulation
|
VPU high performance insulation pane
|
|
External Dimensions
|
660×660×660mm (158L)
|
|
Internal Dimensions
|
540×540×540mm
|
Container Capacity
|
158L
|
|
Usable Cold Space Capacity
|
122L
|
|
Cold source
|
Customize (PCM 5°C, 18°C, 25°C, -10°C, -18°C)
|
|
Cold life
|

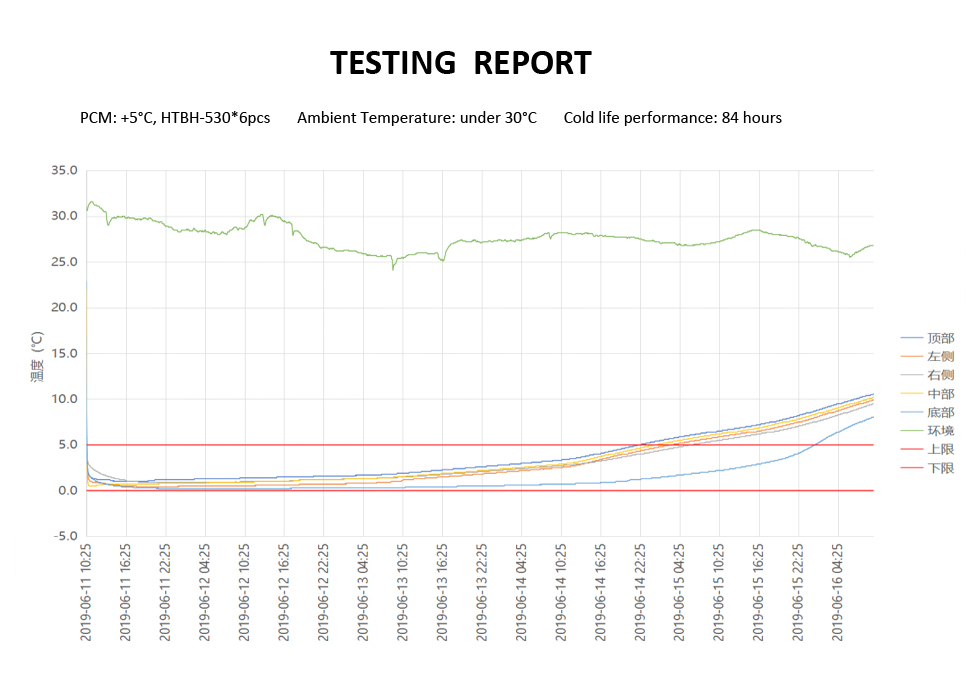

With 6pcs Pink PCM +5°C (HTBH-530) at 30°C, keep 2℃～8℃ for 84h
|
|
Optional Accessories
|
Temperature display, GPRS tracking system, etc.
|
PRODUCTION INSTRUCTION
Our vaccine transport Polar Box are available with a wide range of Phase Change Points, providing great flexibility from each box, and a wide choice of temperature limits and holding times, at any ambient temperature. Suitable for transporting high-end, high-value biomedical products. The advantages is as below:
1) Our controllable temperature range ：2-8℃ ,15-25℃ , -15~25℃ for 72~96 hours.
2) Repeated use, excellent performance, reduce transportation costs.
3) The temperature control is stable , the entire process is traceable.
4) Chilled, ambient and frozen temperature control options.
5) Easy to condition, assemble and clearn
|
MORE SERIES COLD CHAIN BOX
|
|
Model No.
|
Container Capacity
|
Usable
Cold Space Capacity
|
Cold Life
|
Internal Size
|
External Size
|
|
VPU2-126
|
12L
|
6.6L
|
40h
|
230×230×230mm
|
350×350×350mm
|
|
VPU2-586
|
58L
|
40L
|
48h
|
388×388×388mm
|
508×508×508mm
|
|
VPU2-606
|
60L
|
40L
|
50h
|
528×288×388mm
|
648×408×508mm
|
|
VPU2-786
|
78L
|
57L
|
72h
|
528×388×388mm
|
648×508×508mm
|
|
VPU2-1086
|
108L
|
74L
|
80h
|
618×488×358mm
|
738×608×478mm
|
|
VPU2-1586
|
158L
|
122L
|
84h
|
540×540×540mm
|
660×660×660mm
|
