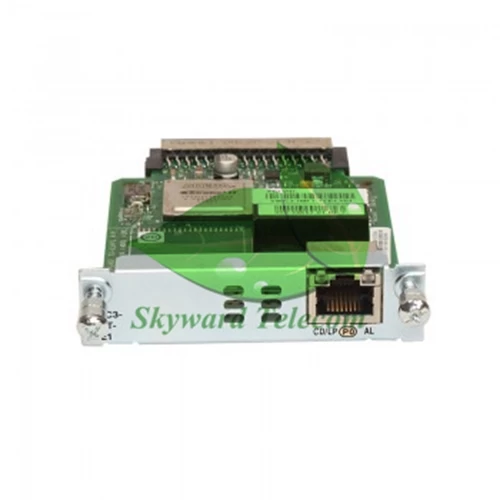

VWIC2-1MFT-T1/E1 Overview

The Cisco MFT VWIC2 interface cards add numerous improvements over the Cisco 1- and 2-port T1/E1 Multiflex Voice/WAN Interface Cards (MFT VWICs). The MFT VWIC2 cards have an onboard slot for a Cisco MFT Dedicated Echo Cancellation (ECAN) Module (part number EC-MFT-32 or EC-MFT-64), offering an enhanced echo-cancellation capability for demanding network conditions. The T1/E1 MFT VWIC2 cards support both T1 and E1, providing additional flexibility in configuring the Cisco MFT VWIC2s for supporting T1, fractional T1, E1, and fractional E1 for both voice and WAN applications. All MFT VWIC2 modules now include the drop-and-insert multiplexing capability, which eliminates costly external third-party channel service units/data service units (CSUs/DSUs) and drop-and-insert multiplexers. The Cisco 2-port MFT VWIC2s also can enable each port to be clocked from independent clock sources for data applications. This independent clocking capability is not supported for voice applications or with the Cisco ATM/Voice Advanced Integration Modules (part number AIM-ATM, AIM-VOICE-30, AIM-ATM-VOICE-30).

VWIC2-1MFT-T1/E1 Specification
