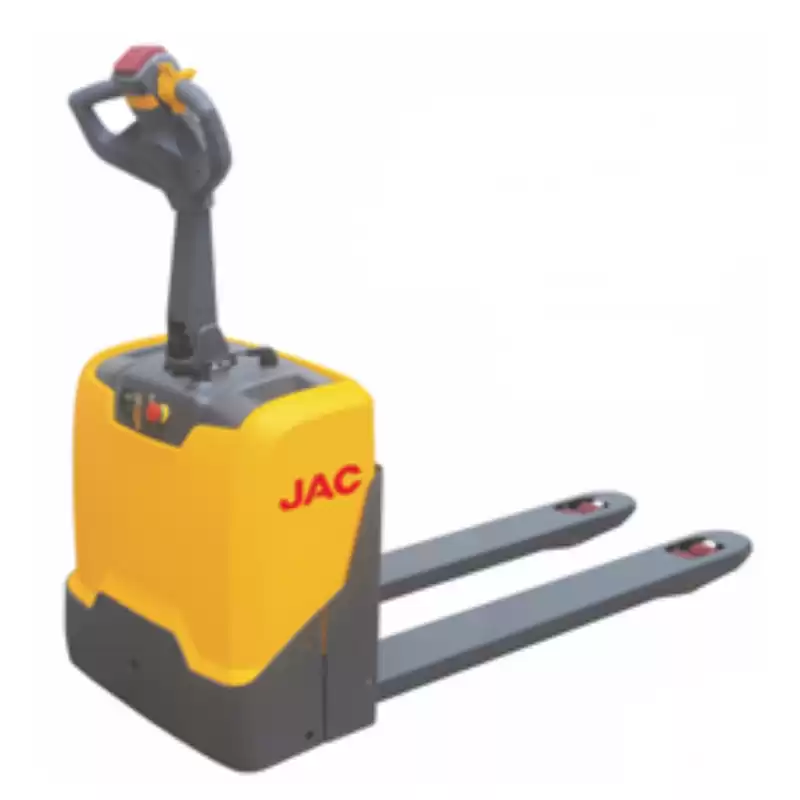

1. Advantages:
•With smallest turning radius 1320mm-1389mm (width 520mm/550mm/685mm).
•Brushless motor with high electric efficiency , maintenance free.
•Full sealed battery free to maintain, big capacity 80AH fit for high intensity use .
•Max speed limit button can release brake when handle under upright position, reduce turning space greatly. (option for frei handle)
•High travel speed is up to 5.3-5.8km/h, improve productive efficiency.
•Floating balance wheel is automatic adjust height, prevents shaking when unload.
•Horizontal drive wheel provides convenient replacement.
2. Standard Features:
•JAC new type Tiller Head with Max. speed limit button.
•Emergency stop & belly button.
•BDI and hour meter.
•Casters to balance stability.
•Sealed battery.
•Brush-less Horizontal motor.
•Built-in Charger.
•Exist roller.
3. Options:
•Germany FREI Tiller Head.
•Out side charger.
•Fork width and length (size).
•Load backrest.
4. Specification
|
Model
|
|
CBD15W
|
CBD18W
|
CBD20W
|
|
Load capacity
|
Q(kg)
|
1500
|
1800
|
2000
|
|
Fork height, lowered
|
h13(mm)
|
85/75
|
85/75
|
85/75
|
|
Tyre size, front
|
mm
|
Φ195×70
|
Φ195×70
|
Φ195×70
|
|
Tyre size, rear(single)
|
mm
|
Φ80×93/Φ74×93
|
Φ80×93/Φ74×93
|
Φ80×93/Φ74×93
|
|
Tyre size, rear(double)
|
mm
|
Φ80×70/Φ74×70
|
Φ80×70/Φ74×70
|
Φ80×70/Φ74×70
|
|
Wheels, number front rear(x = driven wheels)
|
|
1x-2/4
|
1x-2/4
|
1x-2/4
|
|
Max. lift height
|
h3(mm)
|
190/180
|
190/180
|
190/180
|
|
Height of tiller in drive position min./ max.
|
h14(mm)
|
950/1310
|
950/1310
|
950/1310
|
|
Overall length
|
l1(mm)
|
1525/1595
|
1525/1595
|
1525/1595
|
|
Length to face of forks
|
l2(mm)
|
375
|
375
|
375
|
|
Overall width
|
b1(mm)
|
685
|
685
|
685
|
|
Fork dimensions
|
s/e/l(mm)
|
53/160/1150(1220)
|
53/160/1150(1220)
|
53/160/1150(1220)
|
|
Width overall forks
|
b5(mm)
|
520/550/685
|
520/550/685
|
520/550/685
|
|
Aisle width for pallets 1000×1200 (1200 crossways)
|
Ast(mm)
|
1725/1795
|
1725/1795
|
1725/1795
|
|
Aisle width for pallets 800×1200 (1200 lengthways)
|
Ast(mm)
|
1775/1795
|
1775/1795
|
1775/1795
|
|
Turning radius
|
Wa(mm)
|
1347/1415
|
1347/1415
|
1335/1405
|
|
Travel speed, laden/ unladen
|
km/h
|
5.3/5.8
|
4.5/5
|
4/4.5
|
|
Battery voltage/nominal capacity
|
V/Ah
|
24/80
|
24/80
|
24/80
|
|
Battery dimensions l/w/h
|
mm
|
260/169/215
|
260/169/215
|
260/169/215
|
|
Battery weight
|
kg
|
49
|
49
|
49
|
|
Service weight (with battery)
|
kg
|
230
|
250
|
250
|
