Product Overview

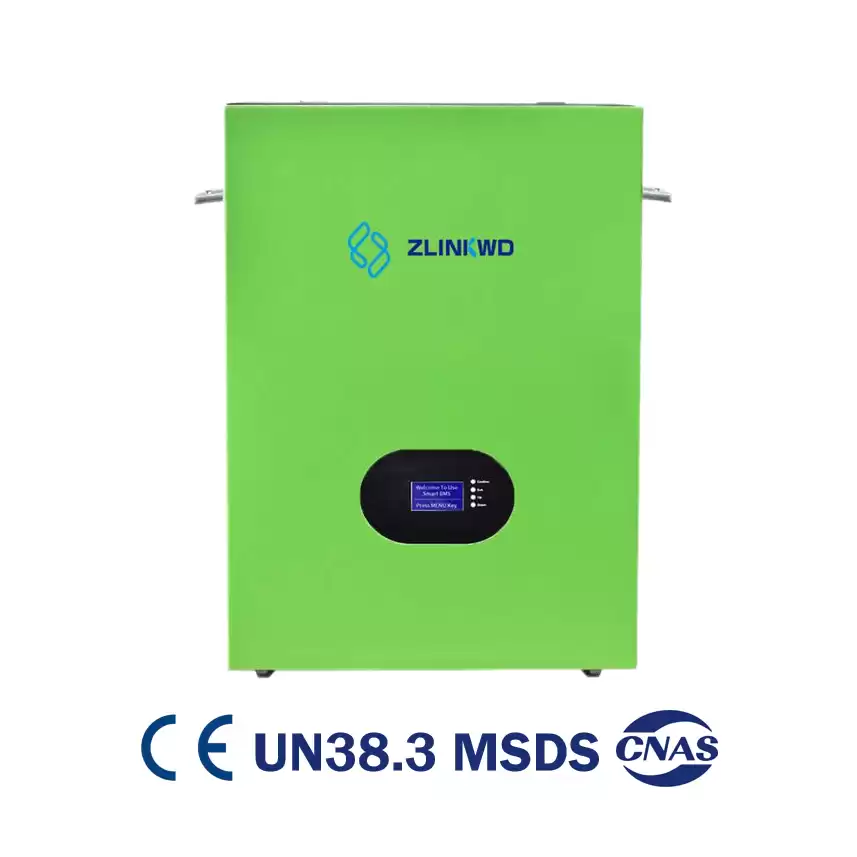

With CE UN38.3 MSDS CNAS and other professional identification certificates

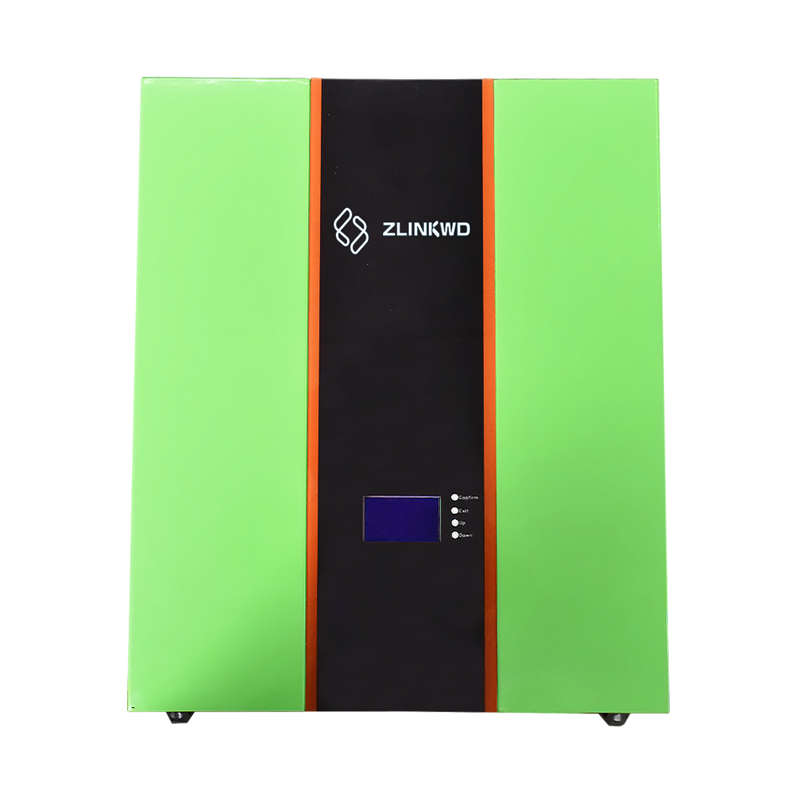

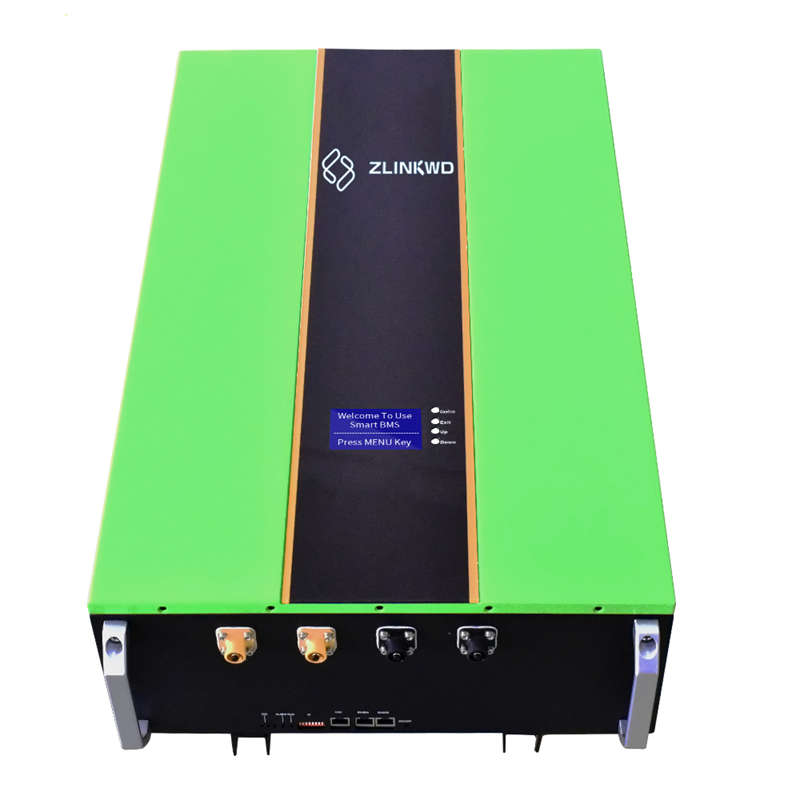

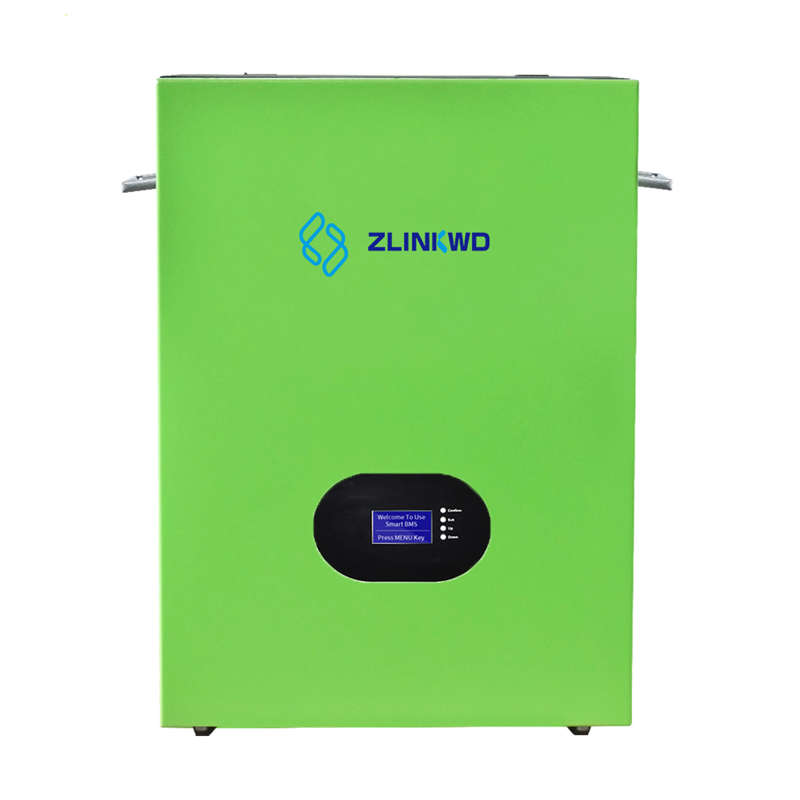

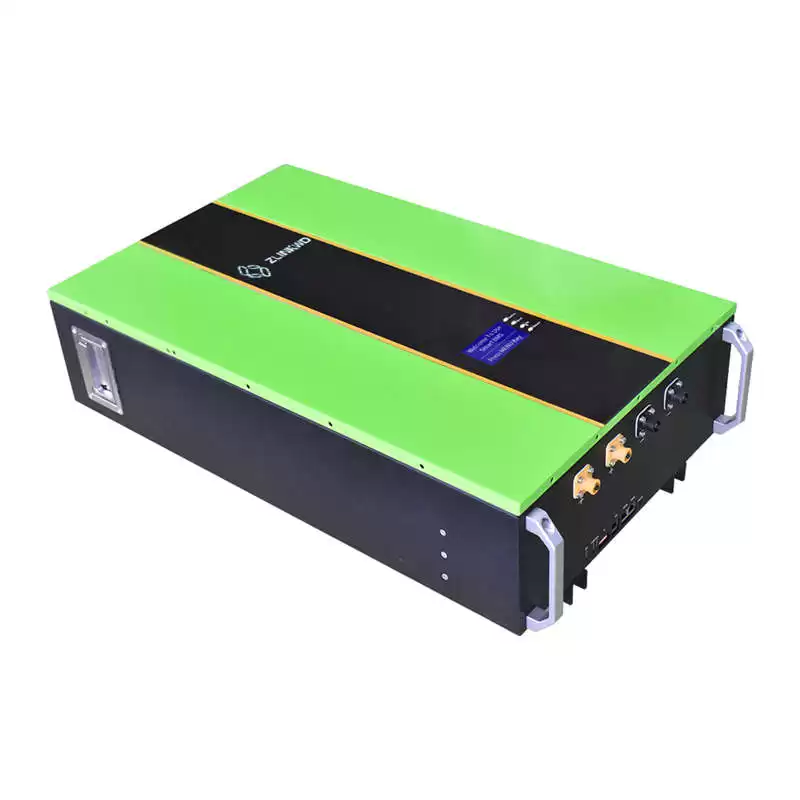

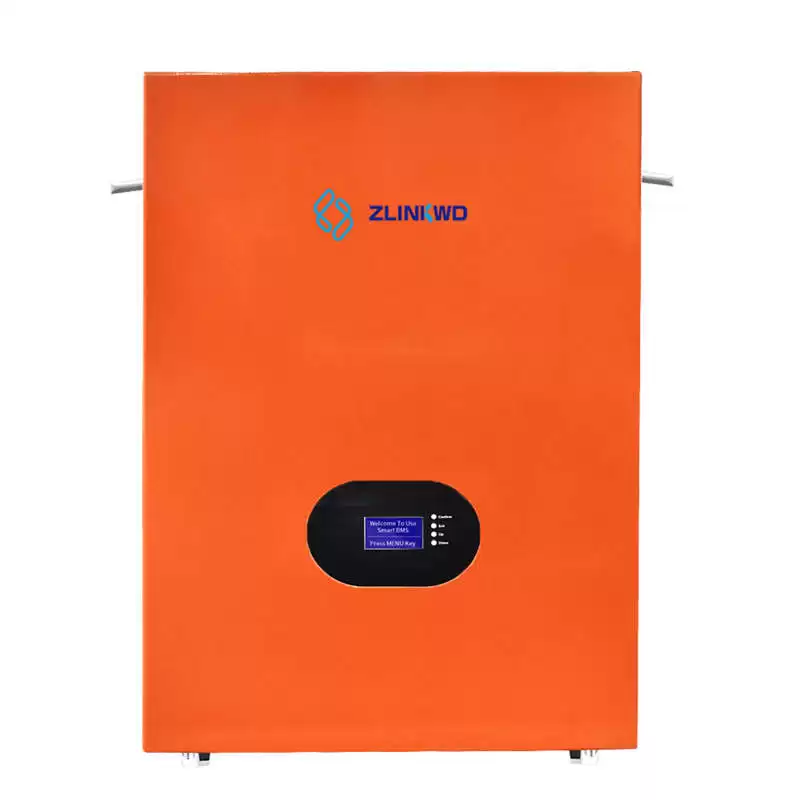

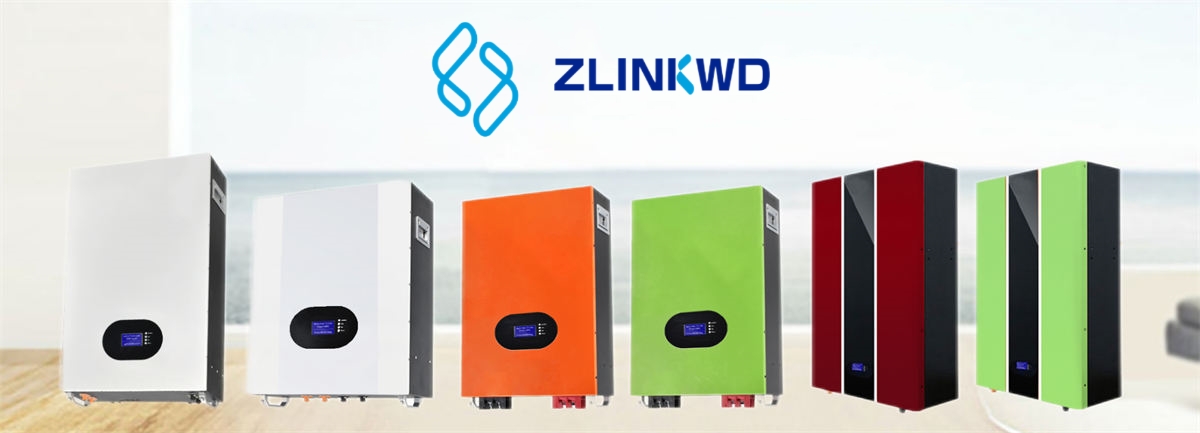

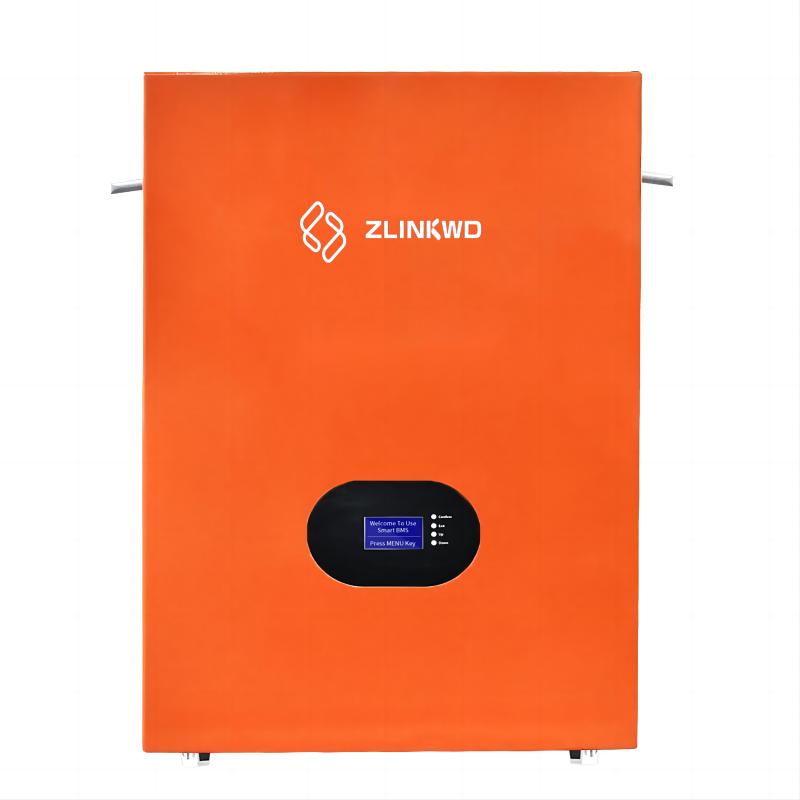

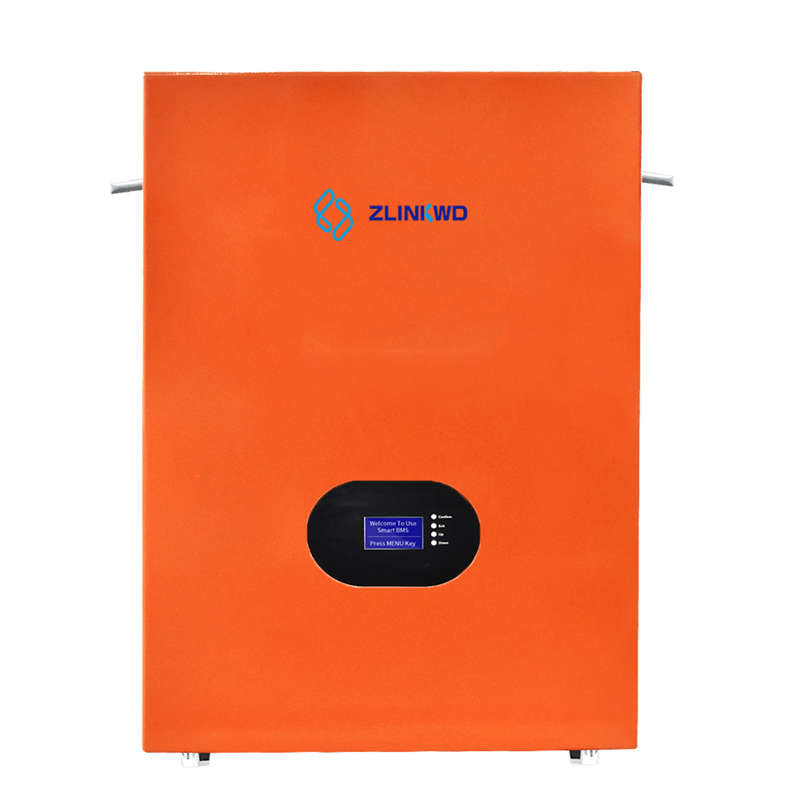

Zlinkwd Design Powerwall
Comprehensive BMS to Match all Hybrid Inverters
I Convenient RS485,CAN BUS Communication
Wide Application in Solar Home and industrial Projects
The cycle life of LiFePO4 battery can last 6000 times, has stable performance and high energy density, which greatly reduces the occurrence of hidden problems.
Application Scenarios
1. Off-grid residential homes
2. Emergency backup power
3. Electric vehicle charging
4. Smart home automation

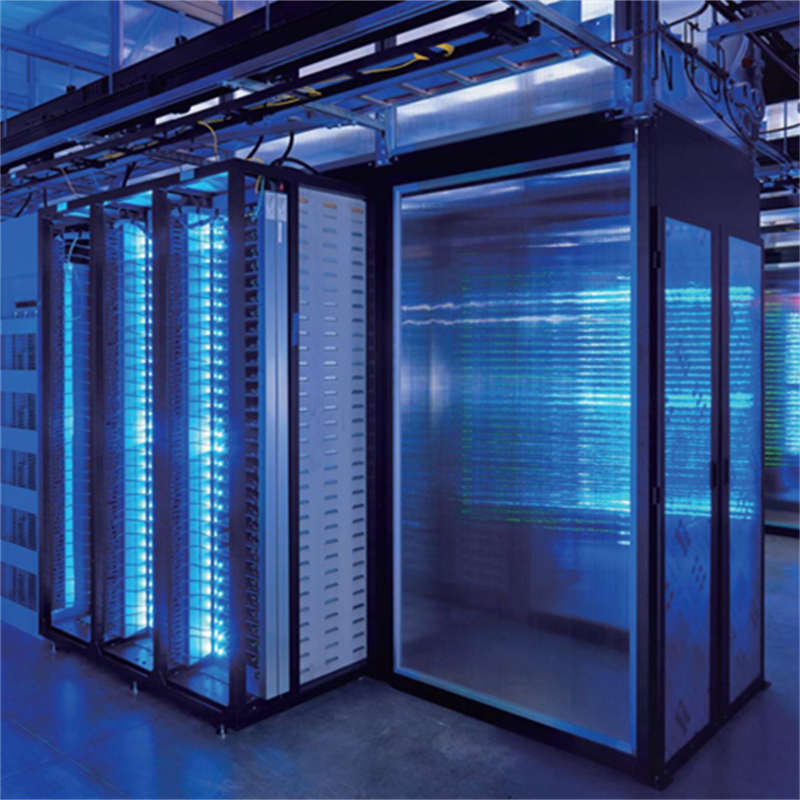

5. Commercial and industrial applications
-
-
-
-
Household New Energy Vehicles
Technical Parameter Table
| Capacity |
12V200Ah |
24V100Ah |
24V200Ah |
48V50Ah |
48V100Ah |
48V150Ah |
48V200Ah |
| Function |
Over-discharge, Overcharge, Shortcircuit Protection & Equalization Function |
| Nominal Volt |
12.8V |
25.6V |
48V/51.2V |
| Nominal Capacity |
2.56kwh |
2.56kwh |
5.12kwh |
2.4kwh/2.56kwh |
4.8kwh/5.12kwh |
7.2kwh/7.68kwh |
9.6kwh/10.24kwh |
| Recommend Cutoff volt |
10.8V |
21.6V |
40.5V/43.2V |
| Recommend Charging volt |
14.4V |
28.8V |
54V/57.6V |
| Max. Constant Charging Current |
50A/100A/150A/200A etc. Customized to your needs |
| Max. Discharging Current |
| Working Temperature |
-10℃~55℃ (Recommend10℃~40℃) |
| Storage Temperature |
-20℃~45℃ (Recommend10℃~35℃) |
| Allowable Humidity range |
0~85% RH |
| Cycle Life |
6000 Cycles(@50%DOD) |
| Communication |
RS485/CAN etc.
All can Customized to your needs |
Match with Most of Popular Inverters,
Growatt,Sofar, Deye, SMA, Goodwe, PYLONTECH, Solis, etc.
FAQ
Q. What's price?
A: We provide reasonable price and recommend suitable batteries to our customers.
Q. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q. Can I print my LOGO on it?
A: YES, LOGO/sticker/OEM/ODM welcomed
Q. Do you accept OEM/ODM?
A: Yes,it is available.We have OEM group to design battery case.
Q.Which certificates do you have?
A:We have CE/ROHS/FCC/SGS/UN38.3/MSDS ...etc.
Q. Can your battery be wired in series or parallel?
A: YES,YOU can connect up to ANY of these batteries in parallel. For series, suggest within 3 units.
Q. What is your Shipping way?
A: We suggest sample & small order to be shipped to destination through our shipper partner who has excellent UPS/DHL/FEDEX/TNT service.Big order to be shipped by sea .
