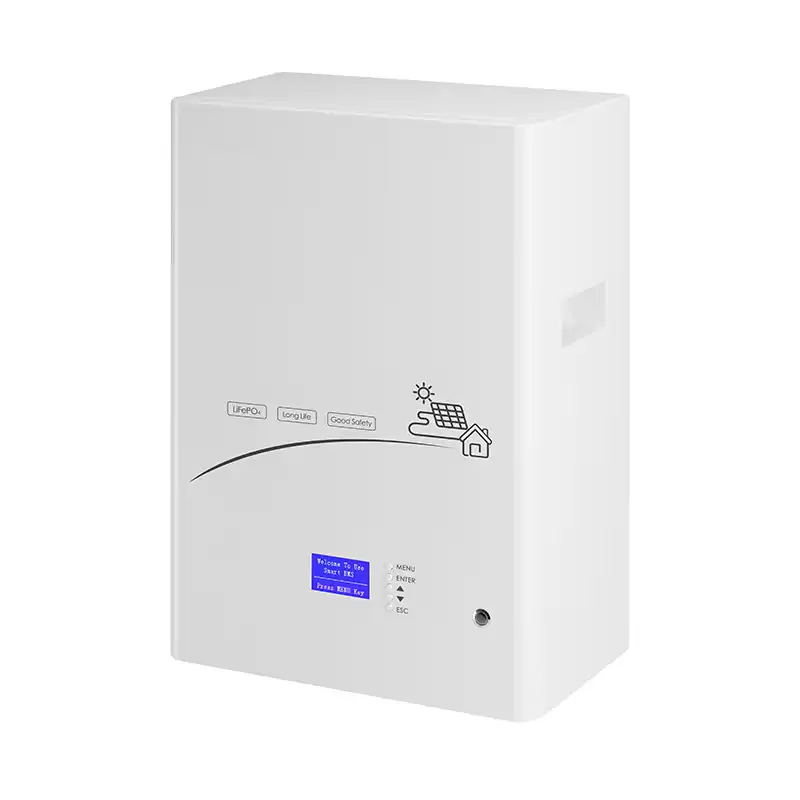

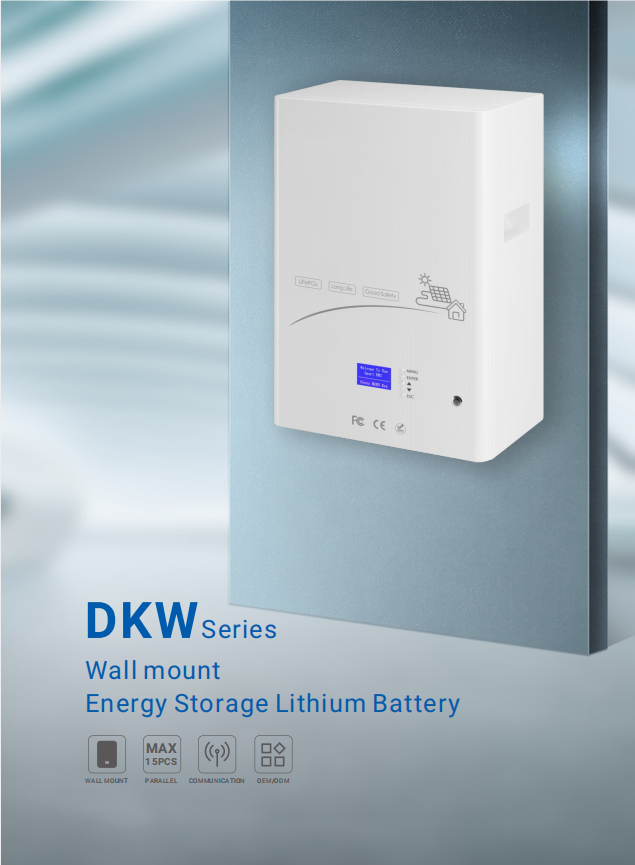

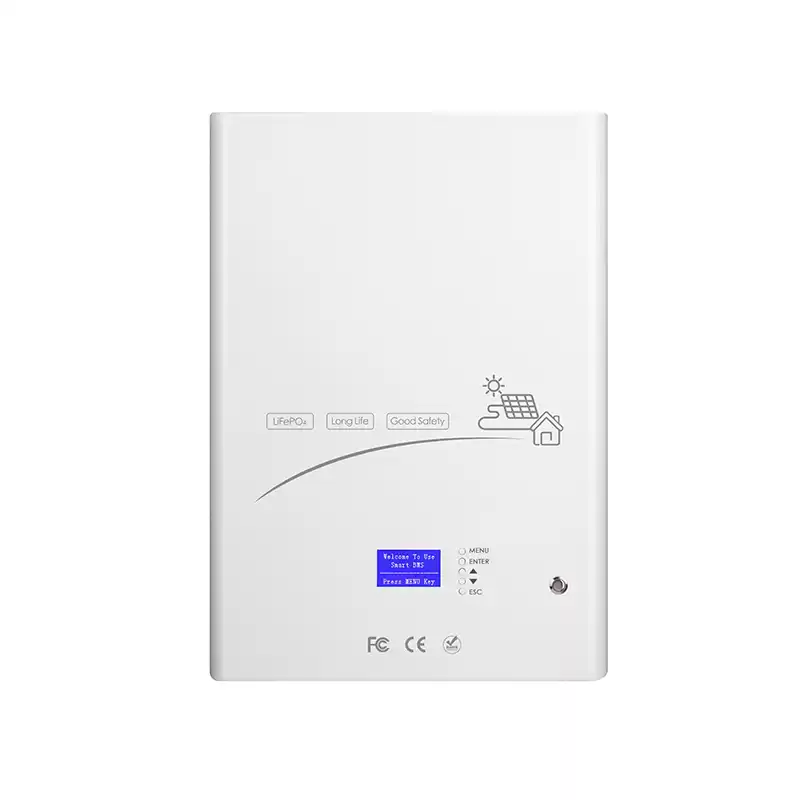

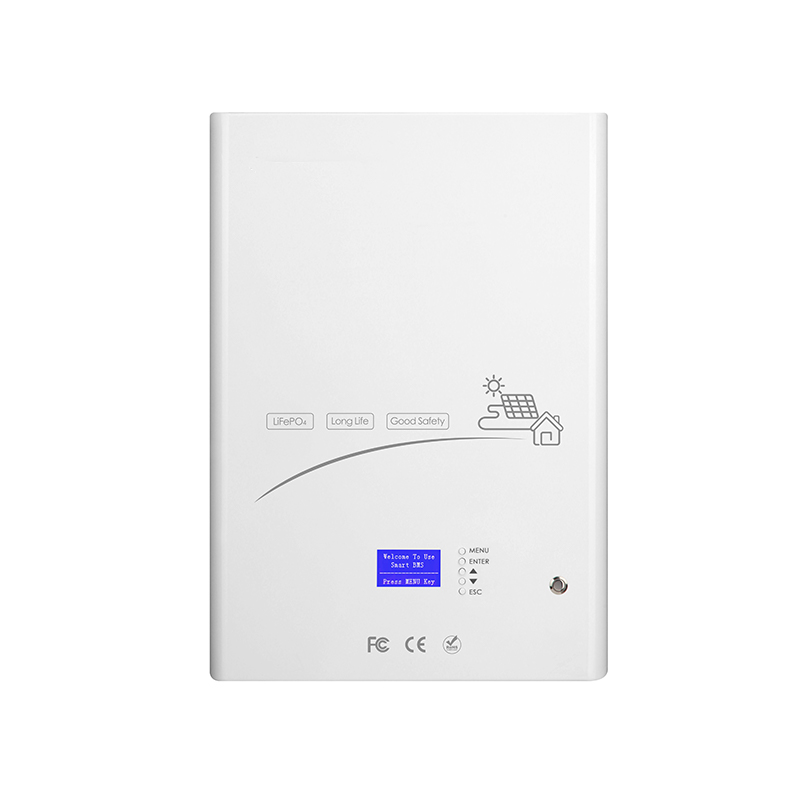

Wall mounted easy installation lithium ion battery 48v 200ah with RS485 SMART BMS

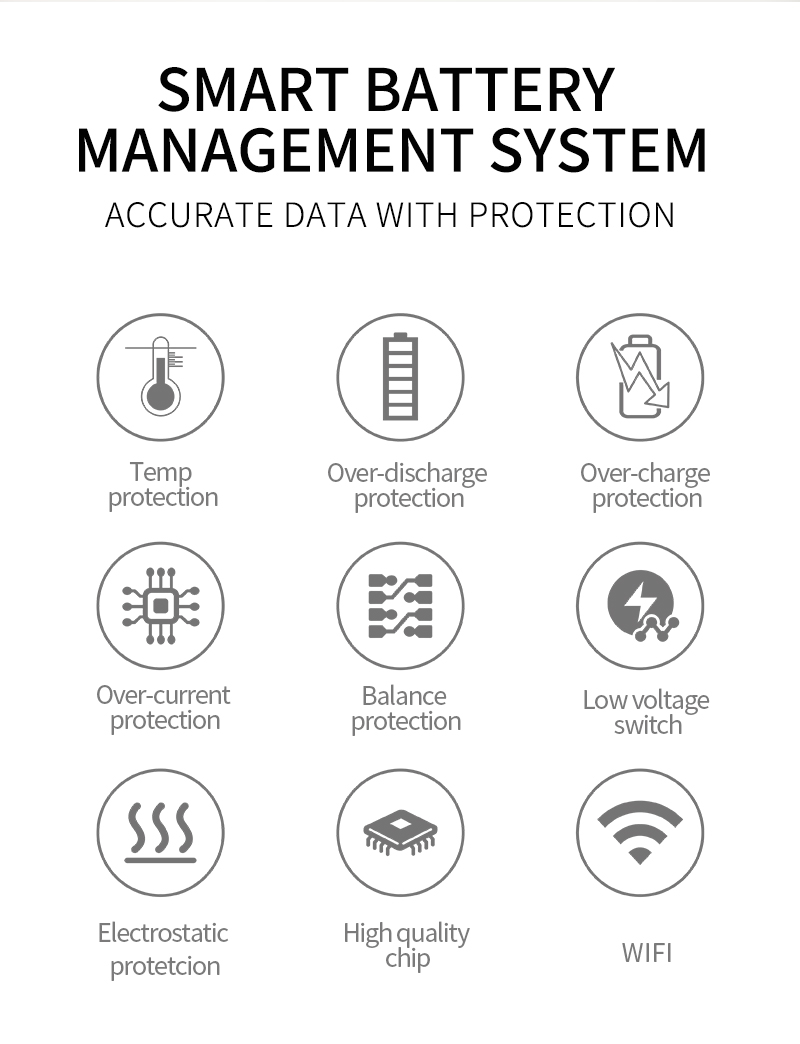

Wall mount series adopts high-quality lithium iron phosphate batteries, equipped with intelligent BMS battery management system, long cycle life, high safety performance, beautiful appearance, free combination and convenient installation. LCD display, visualization of battery operating data. Compatible with most solar inverters, providing efficient energy for photovoltaic off-grid households, commercial and other electrical equipment


  • CertificateCE FCC ROHS ISO9001
  • Warranty10 years

Details Images
Product Paramenters
Model
DKW4850
DKW48100
DKW48200
Specification
48V50Ah
51.2V50Ah
48V100Ah
51.2V100Ah
48V200Ah
51.2V200Ah
Combination
15S1P
16S1P
15S1P
16S1P
15S1P
16S1P
Capacity
2.4KWh
2.56KWh
4.8KWh
5.12KWh
9.6KWh
10.24KWh
Standard discharge current
50A
Max. discharge current
100A
Working voltage range
40.5-54VDC
43.2-57.6VDC
40.5-54VDC
43.2-57.6VDC
40.5-54VDC
43.2-57.6VDC
Standard Voltage
48VDC
51.2VDC
48VDC
51.2VDC
48VDC
51.2VDC
Max. charging current
50A
100A
Max. charging voltage
54V
57.6V
54V
57.6V
54V
57.6V
Cycle
3000~6000cycles @DOD 80%/25℃/0.5C
Working humidity
65±20%RH
Operating temperature
-10~+50℃
Working altitude
≤2500m
Cooling method
Natural cooling
Installation
Wall mount
Protection level
IP20
Max of parallel
15PCS
Warranty
5~10 Years
Communication

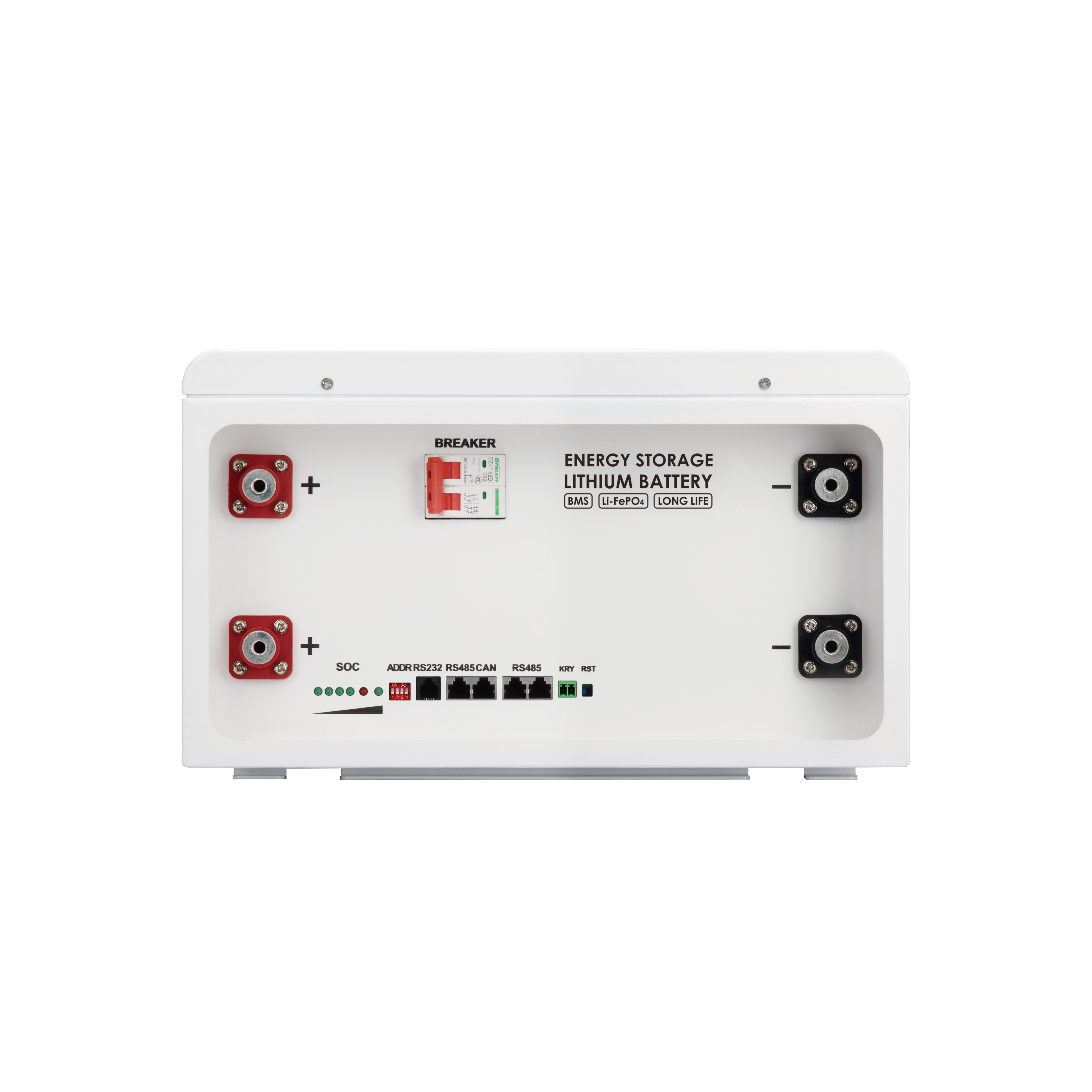

Default:RS485/RS232/CAN Optional:WiFi/4G/Bluetooth
Certified
CE ROHS FCC UN38.3 MSDS
Product Size
400*200*585mm
400*230*585mm
400*230*610mm
Package Size
500*260*630mm
500*290*630mm
460*250*650mm
Net weight
35kg
40kg
42kg
46kg
102kg
106kg
Gross weight
40kg
45kg
50kg
54kg
112kg
116kg
Products Description
Company Profile
Certifications
Product packaging
FAQ
Q1: How to choose a right system and products?
A1: Tell us your requirements, then our seller will recommend a suitable product and system to you.

Q2: The advantages of home photovoltaic system
A2: Solar photovoltaic power generation performance is stable and reliable, with a service life of more than 25 years; Small
investment, big income;zero pollution;Low maintenance costs;
Q3: Why choose us?
A3: FOTOVO have been engaged in new energy power generation for more than 16 years. Our products and services cover more than 39 countries. Our R&D team is composed of top experts in various fields. We are committed to providing first-class solutions for PV power plants.
Q4: What is the warranty of solar system?
A4: 5 years for whole system,10 years for inverter,modules,frame.And we can make sure our products will through very strictly testing,and then send to you.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.And we have offices in many
countries,if you have problems,we can arrange people to help you solve problem.
Q6: What about the package?
A6: Strict double-layer packaging design,Rigorous vibration testing.Ensure that the product is not damaged during transportation.
