TECHNICAL PARAMETER

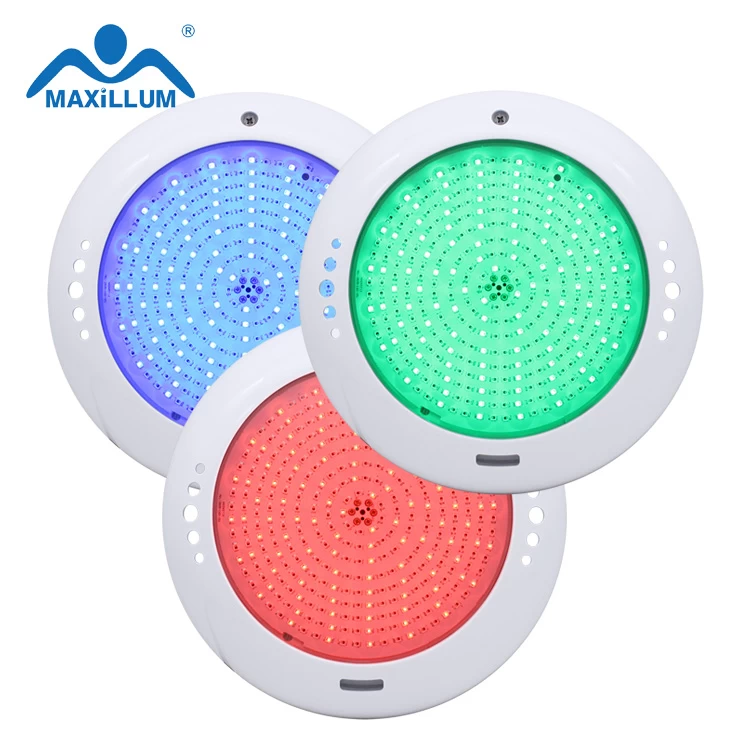

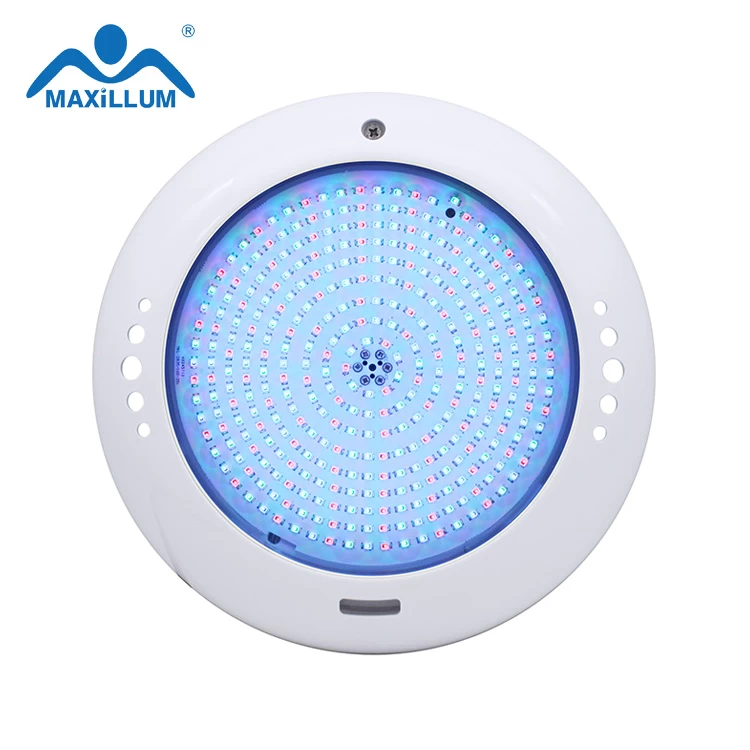

Swimming Pool Light , Epoxy Resin filled wall mounted light

Item: W2003-S351RGB

Voltage: AC 12V

Frequency: 50-60Hz

Power: 25W

Efficiency: 0.825

Draving Mode: Constant Current

Shell material: ABS , hallow

LED type: SMD2835 LED

LED color / quantity : RED 117pcs, blue 117pcs, green 117pcs , total 351pcs

LED Lumen : 1100LM

Light collocating mode: without  lens

Beam angle: 120°

Diameter : 240mm

Cable: 2M 2*1.0mm2

LED PN junction temperature : <65 ℃

Working temperature :0℃~40℃

Protection : IP68

Life span: 50000 hours

Certification: CE & RoHS

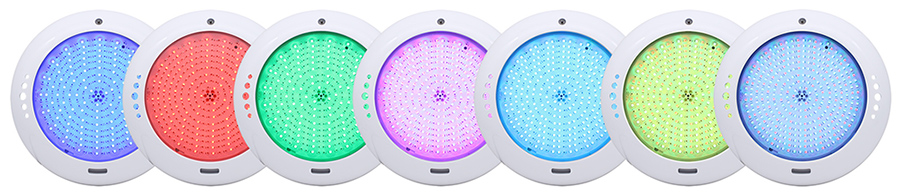

RGB ON/OFF WORKING PROGRAM

Cycles Working 15 Modes

1). Fixed blue

2). Fixed red

3). Fixed green

4). Fixed red/blue

5). Fixed blue/green

6). Fixed red/green

7). Fixed white

8). Cycle red-red/green-green.

9). Cycle green-green/blue-blue.

10). Cycle red-red/blue-blue.

11). Cycle red-green-blue. The speed change goes from low to quick.

12). Cycle red-green-blue. The speed change is slower than Mode 11.

13). Cycle green-red/blue-blue-red-white-blue/green-red/green.

14). Gradual change of all colors

15). Gradual change of red-green-blue

RGB Control Options:

1. ON/OFF control

15 kinds of working program , ON/OFF change color , with memory

2. Remote Control

15 keys remote controller . No.1 ON , No.2 OFF , No3-No.15 13 working mode

suit for family pool

3. Remote Control Box

CB006(max 120W ), CB008 (max300). 100% synchronization

4. WIFI Control BOX

Operate the lamp by cell phone with APP.

DIY the mode. The lamps change color with the music.
