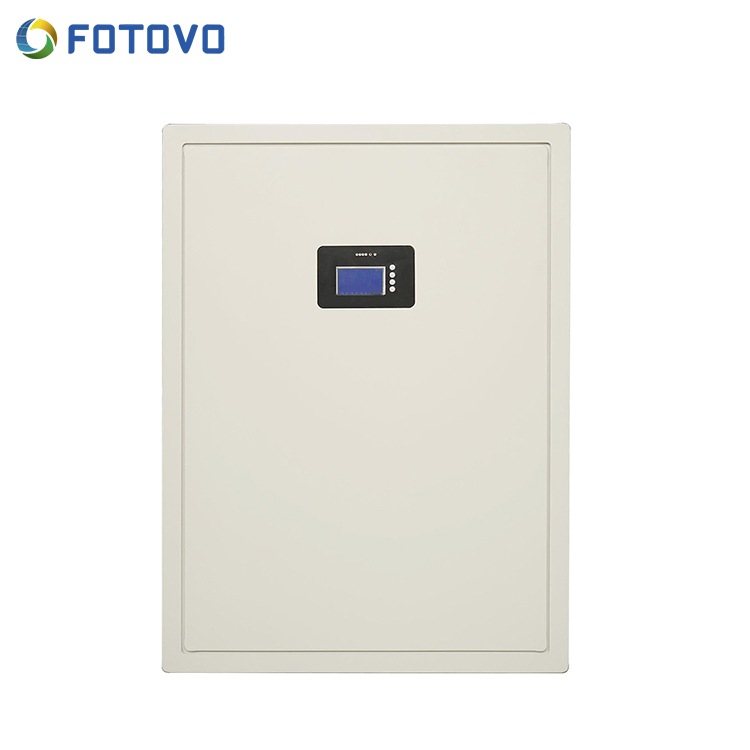

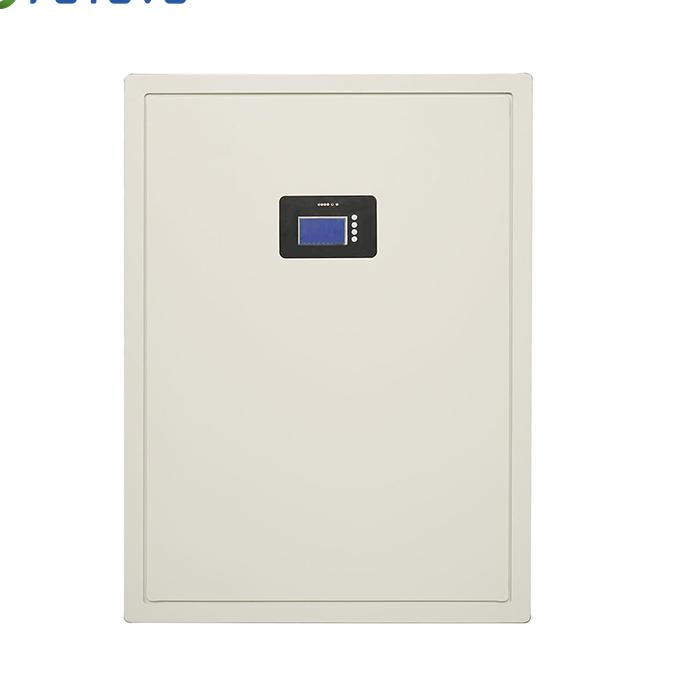

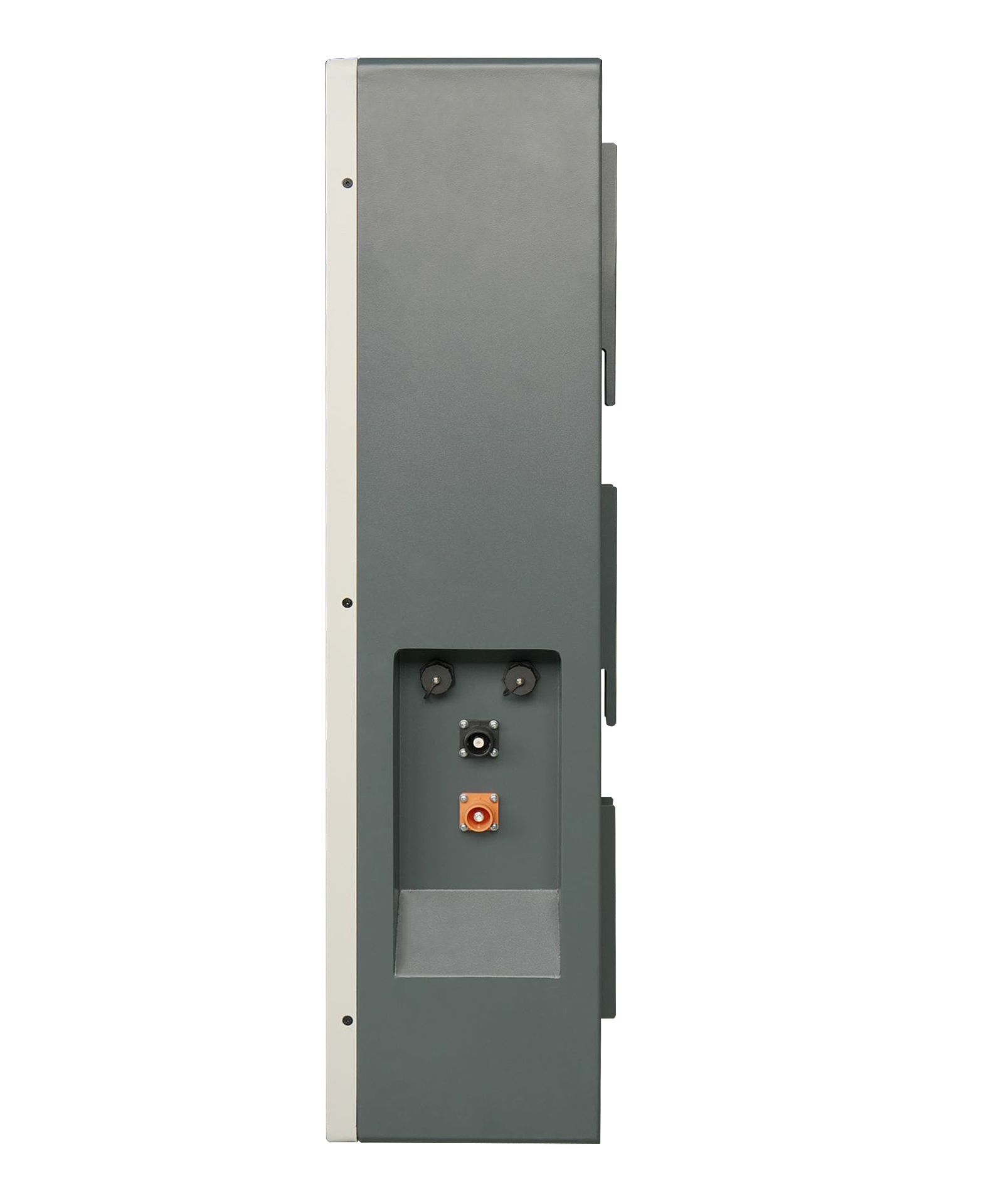

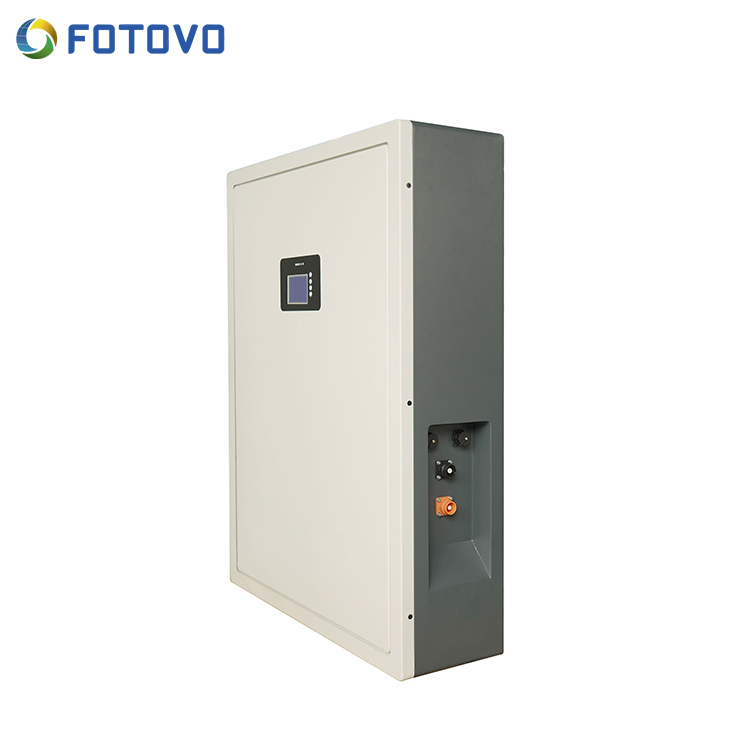

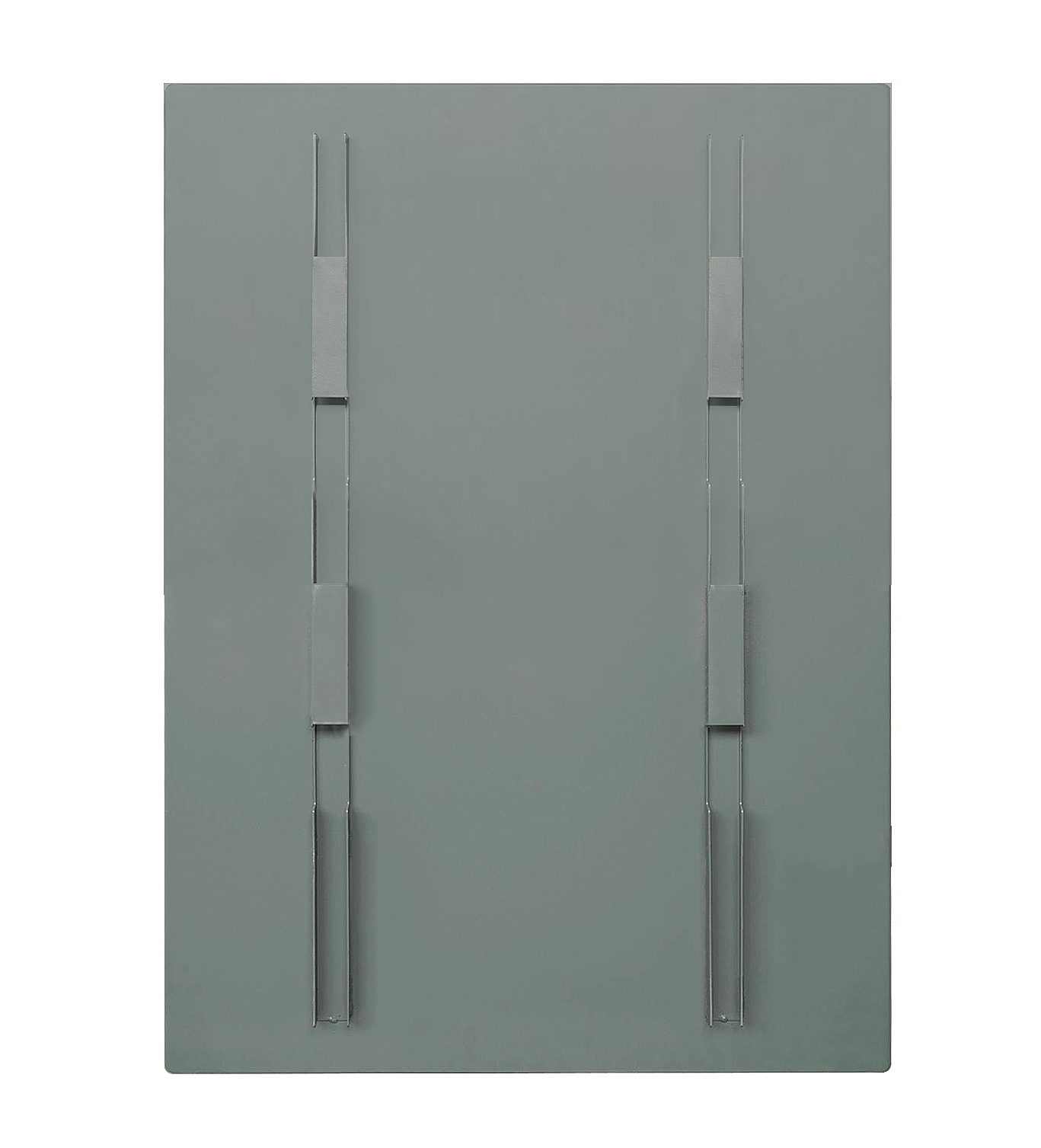

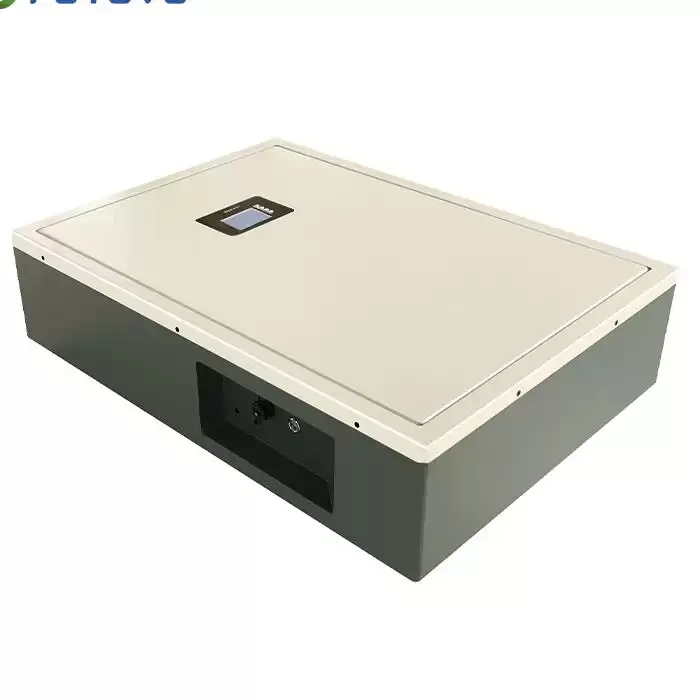

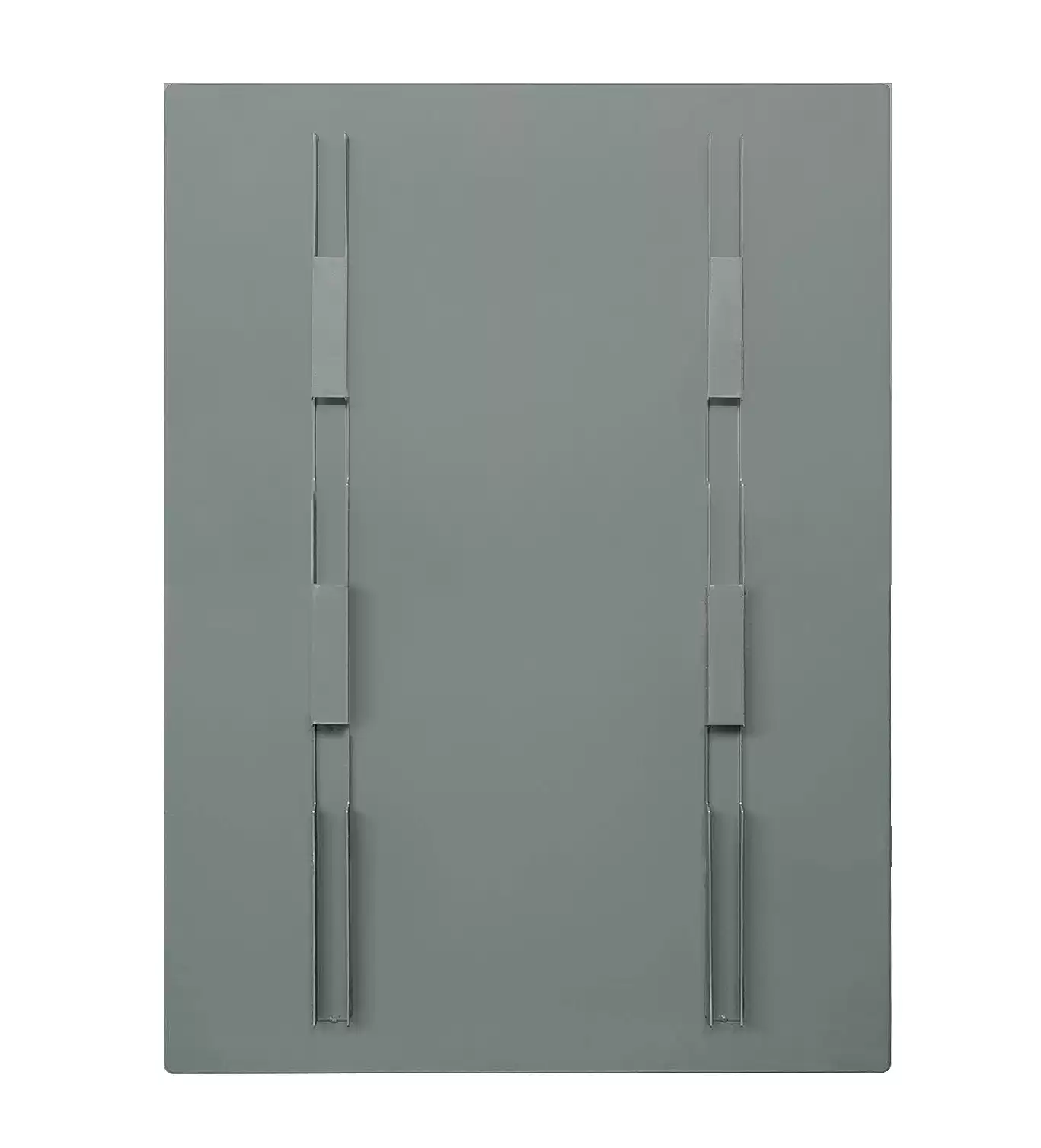

Wall mounted solar lithium ion battery pack 51.2v 200ah

CertificateCE FCC ROHS ISO9001
Warranty5 years

Facebook Twitter Pinterest LinkedIn 分享

Description

Details Images

Product Paramenters

Item	Specifications
Cell Configuration	14S1P
Rated Voltage	51.1V
Working voltage range	42V~58.1V
Rated capacity	207Ah
Rated Energy	10.57KWh
Standard charging/discharging current	50A @25±2℃
Max. charging current	100A@25±2℃
Max. discharging current	100A@25±2℃
Port	Shenzhen, Shanghai
Working temperature range	0～40℃(Charge) -20～40℃(Discharge)
Storage temperature	-10℃~35℃(one month) 25±2℃(three months) 65%±20%RH
Weight	72Kg±3kg
Dimension	(730)×(510)×(174.5)mm
Cycle life	4000 cycles @25℃ 50A charging/discharging 80% DOD
Altitude	0~3000m
IP grade	IP65
Communication interface	CAN and RS485
Humidity range	5~8%

Products Description

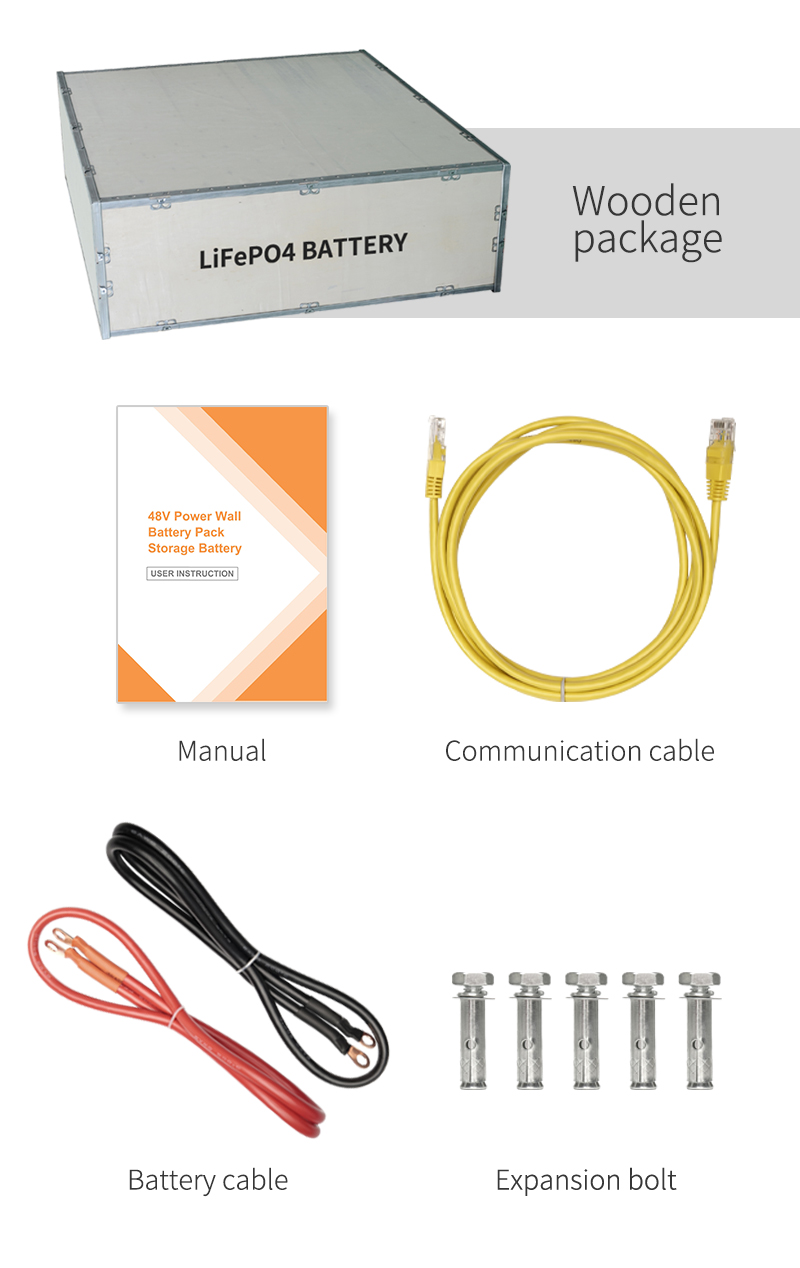

Package list

							 * 1 * 51.1V 207Ah Battery Pack

* 1 Wall Mount Bracket A

* 1 * Wall Mount Bracket B

* 4 * Wall Mount anchor

* 1 set 1.5M Battery Cable (battery to inverter)

* 1*1.5M Battery Cable (battery to inverter)

* 1*Bubble Level
