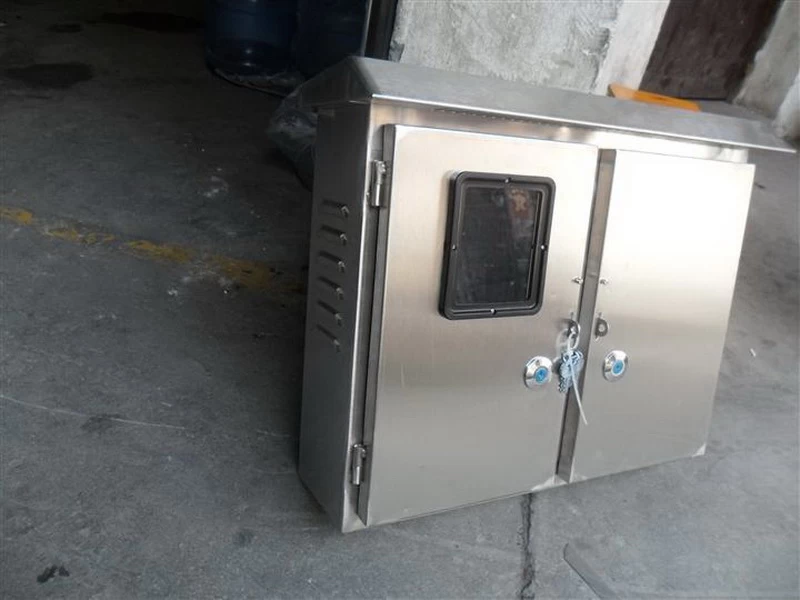

Wall Mounted Window Type Electric Steel Enclosures

Wall Mounted Electric Steel Enclosures,Window Type Steel Enclosures With Galvanized Plate,Wall Mounted Window Type Steel Enclosures





Features:

* Material: stainless steel 304,316,201

* Thickness: 1.2mm,1.5mm

* Dimension:400mm x 500mm x 200mm

* Door: double doors

* Spare parts: back mounting plate, lock, hinge

* Surface treatment: Polishing, brushing

* Installation: indoor/outdoor wall mounted

* Function: electric protected

* Certificate: CE

* Working environment: air port, building, hotel, shopping centre, housing estate, school,

Factory, port, natural gas.

Wall mounted type control box all use stainless steel welded plate bending, non indoor and outdoor type. To do perspective windows and doors, door with sealing rubber strip. To prevent the infiltration of rainwater, the box body is equipped with outlet holes and mounting plate, the outlet hole is factory is additionally provided with a sealing plate.

Specifications:

Part Number

Enclosure Dimensions

Mounting plate dimensions

0016-ECPB-TCH

200 ×300 ×150

150 × 250

0017-ECPB-TCH

300 ×300 ×150

250 × 250

0018-ECPB-TCH

300 ×400 ×150

250 × 350

0008-ECPB-TCH

300 ×400 ×200

250 × 350

0009-ECPB-TCH

400 ×400 ×200

350 × 350

0010-ECPB-TCH

400 ×500 ×200

350 × 450

0011-ECPB-TCH

400 ×600 ×200

350 × 550

0012-ECPB-TCH

600 ×600 ×200

550 × 550
