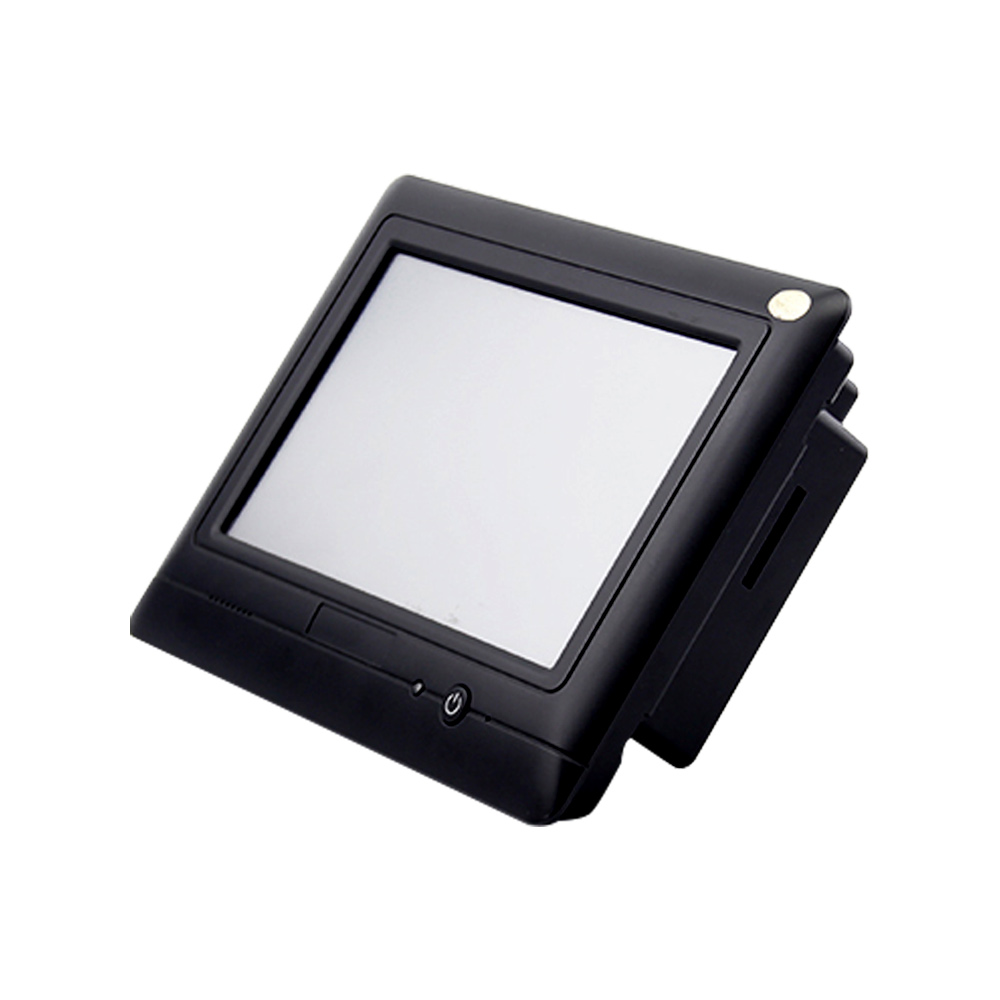

Product Name: Wall mouted Industrial Windows Touch Screen Monitor Computer model SF7803
Main Description:
Integrated industrial machine using industrial-grade 7-inch LCD high-brightness LCD display
Military resistive touch screen, which is characterized by high temperature, high linearity, high sensitivity to make the operation more convenient
Low-power industrial motherboard,onboard core Samsung 2416 (6410) scheme

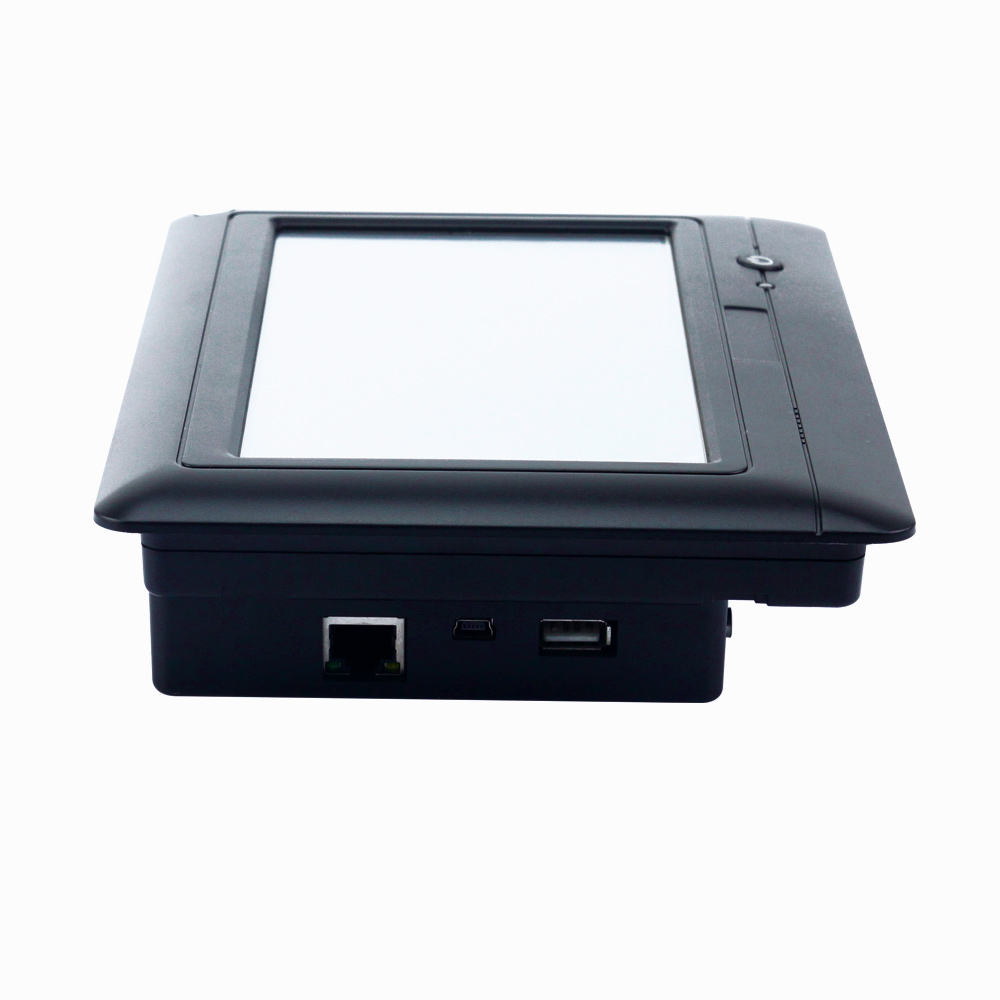

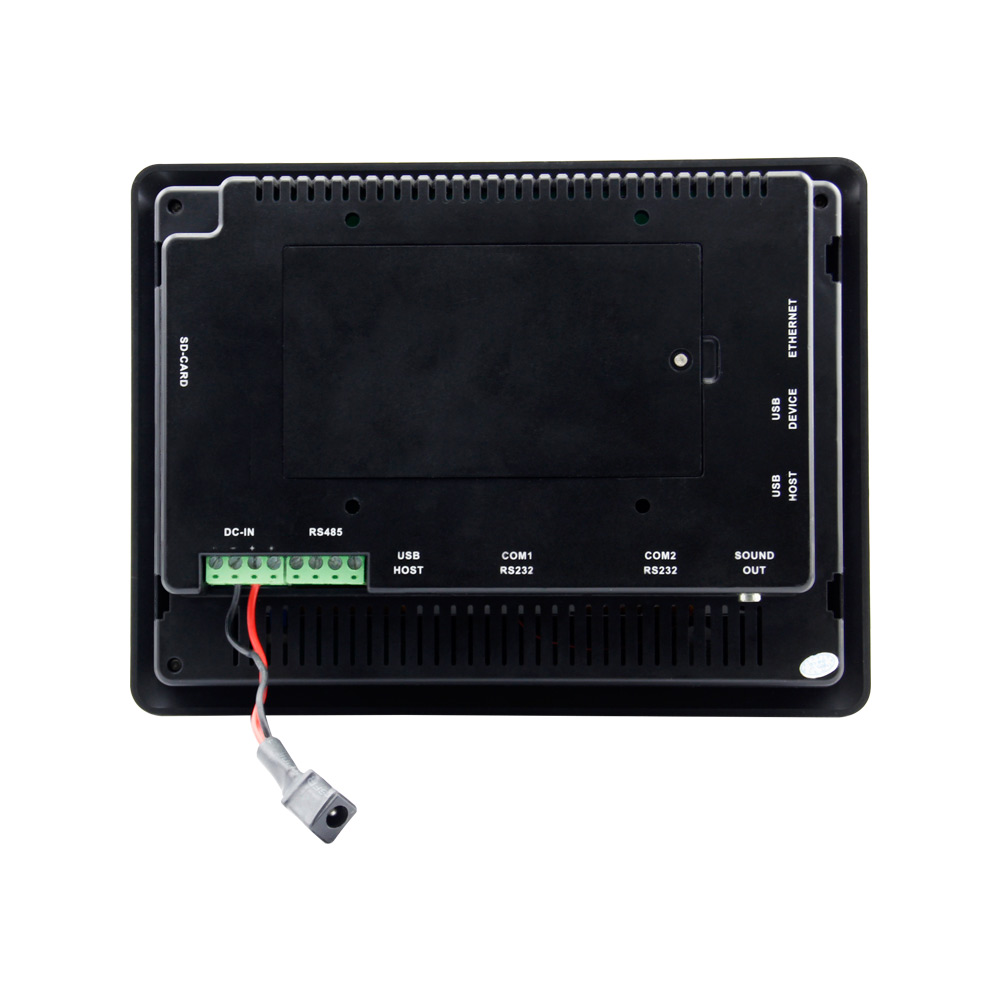

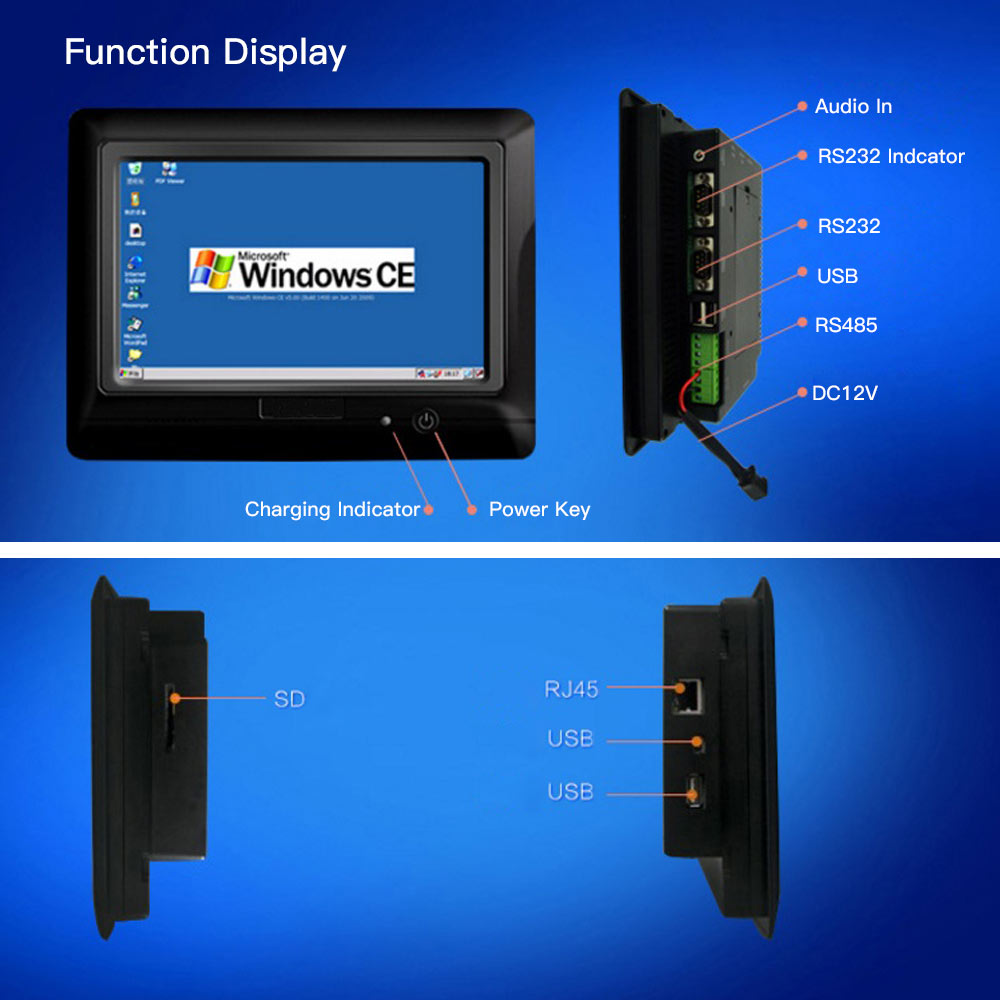

External offers 232 serial port, Ethernet port,USB port,485,SD card slot,audio interfaces
Widely used in engineering control, test equipment, instrumentation, security monitoring, medical devices, intelligent terminals and other high-end embedded applications
Features:

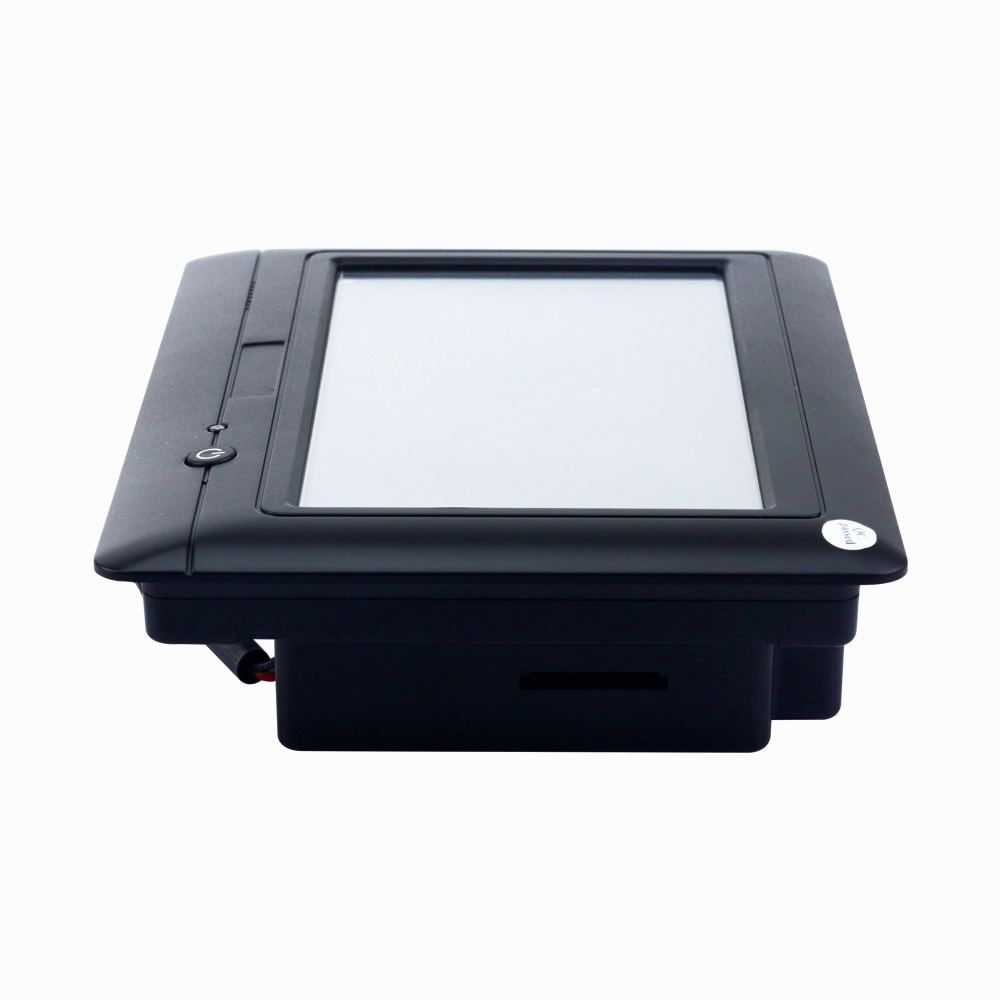

7 inches industrial touch screen 16:9 contrast,800*480pixels

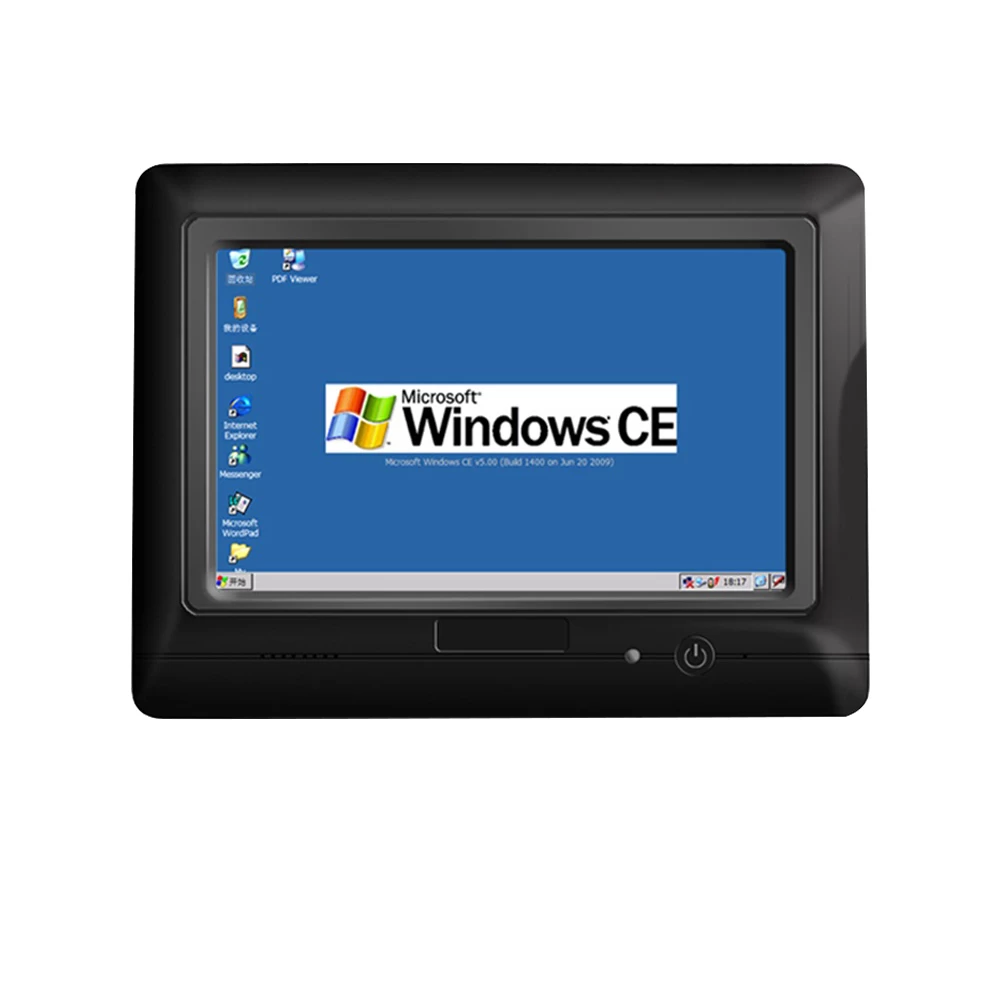

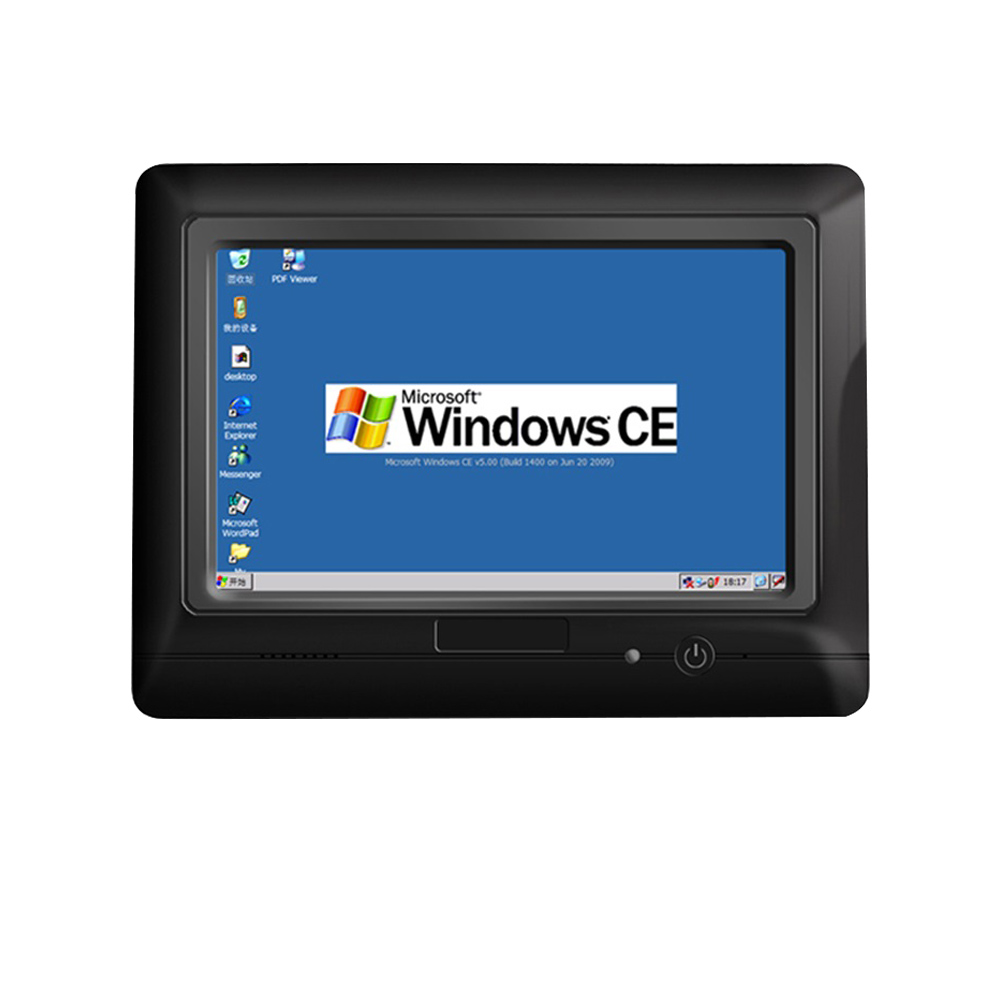

Operation System: Windows CE 6.0
WIFI,Wirelss Communications RT2870 wireless Adapter,supports IEEE802.11b/g
Bluetooth 2.0/4.0

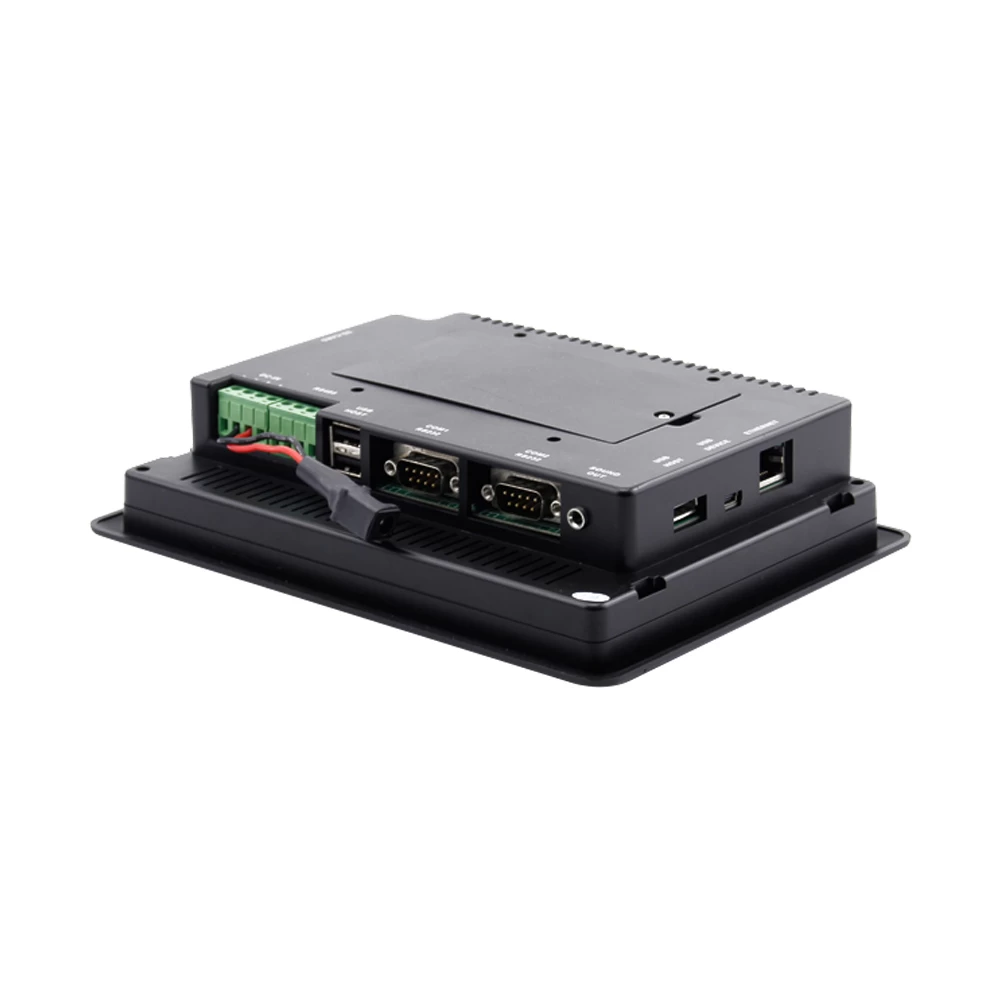

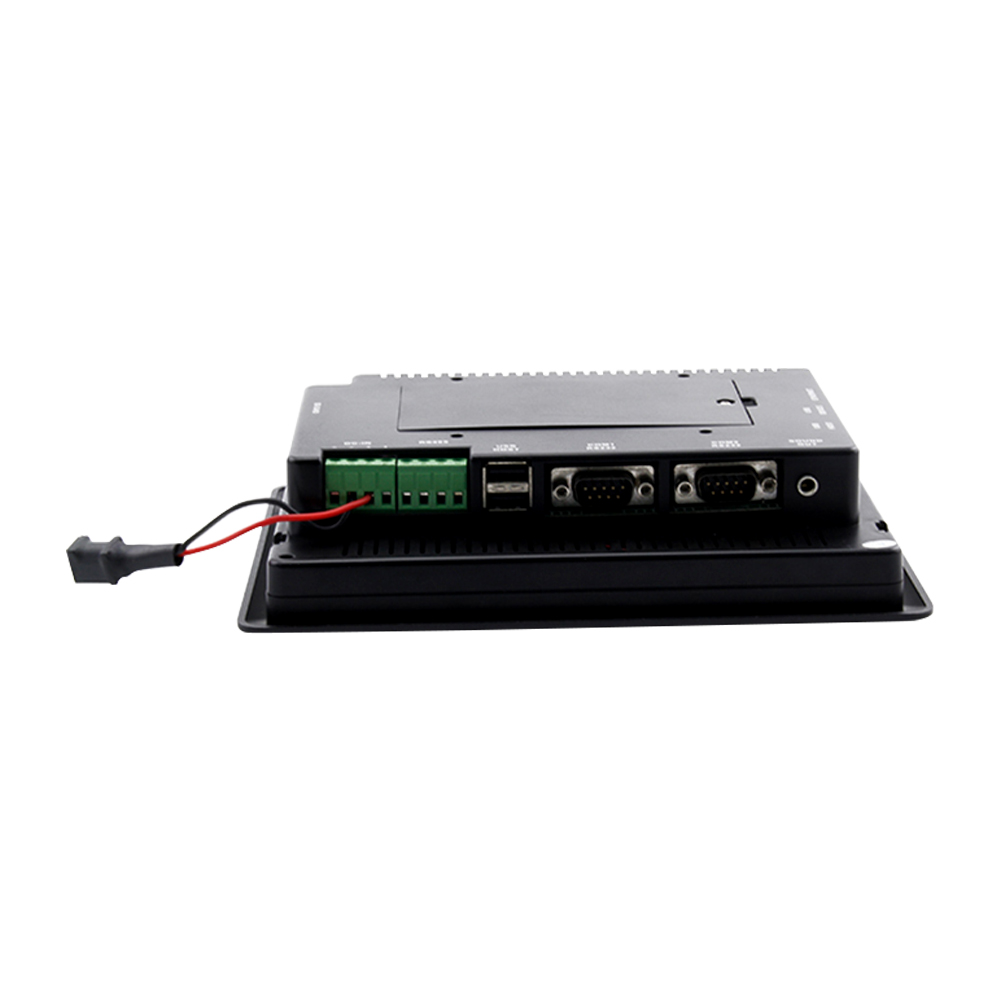

Two External RS232 serial ports, exteral RS485 serials
3 USB host ports
Storage: TF card up to 32GB
Built-in SPI I2C Serial GPIO
7.2V 2400mAh Lithium polymer battery
DC12V～24V/2A power supply
Chinese and English Lanaguage optional
VBVS,NET2005(2008),MS EVC 4.0 ,VC,C#,C++ (Provide the SDK)
Working Environment:Temperature:0℃～50℃;Humidity:0～95%

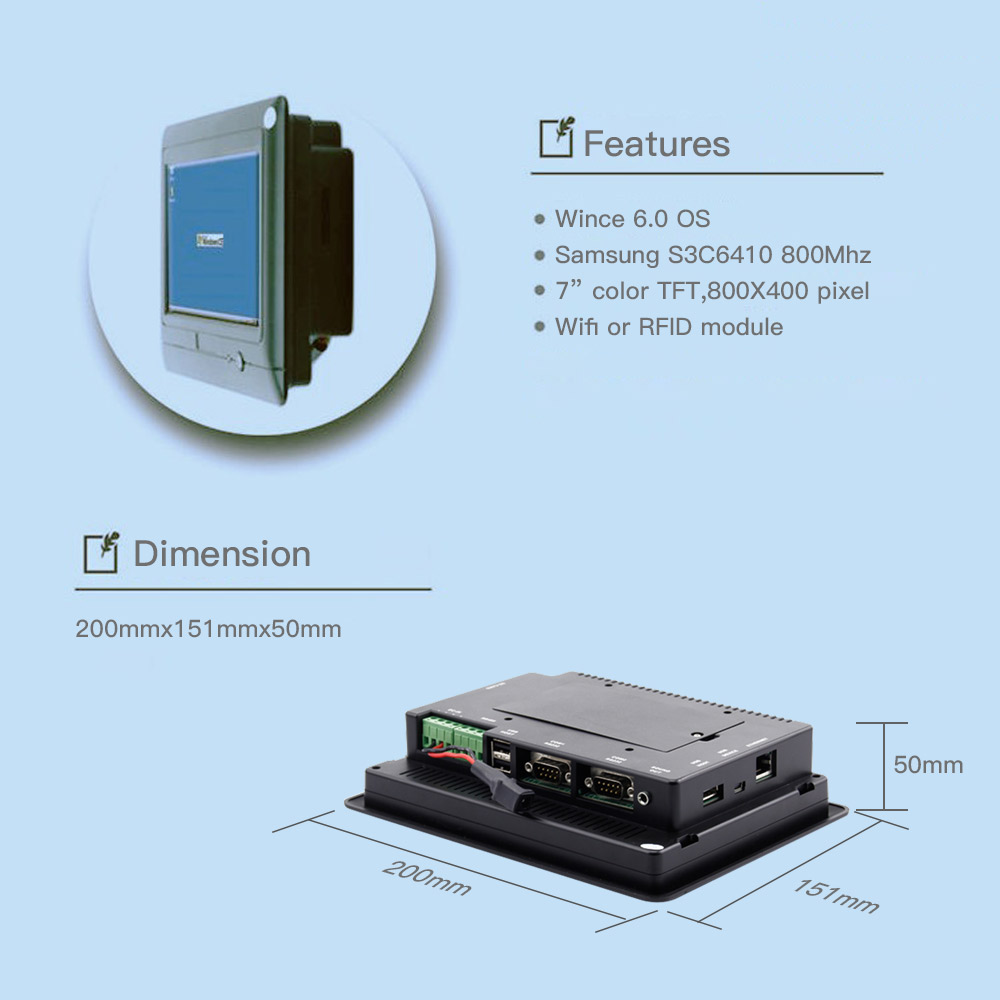

Dimension:20*15.1*5CM
Weight: 0.6KGS
Industrial windows touch screen touch panel could be used very widely in different kind of sectors
