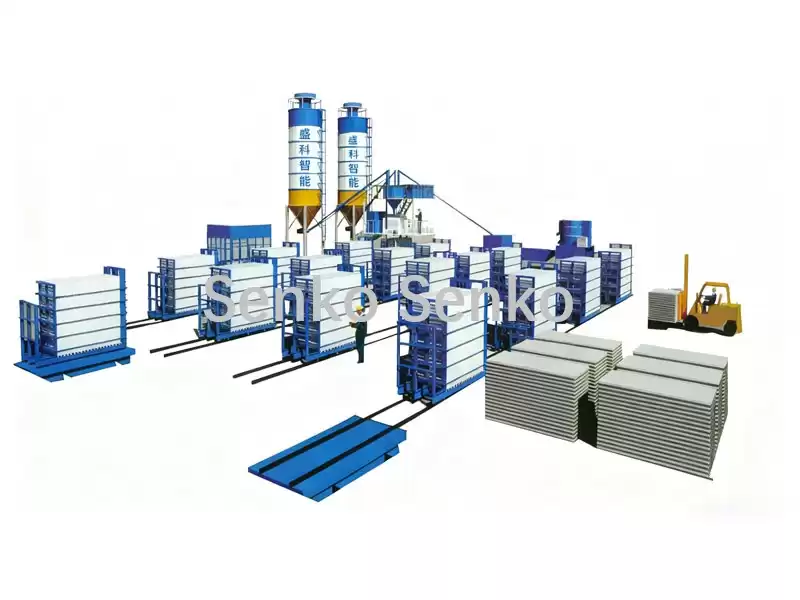

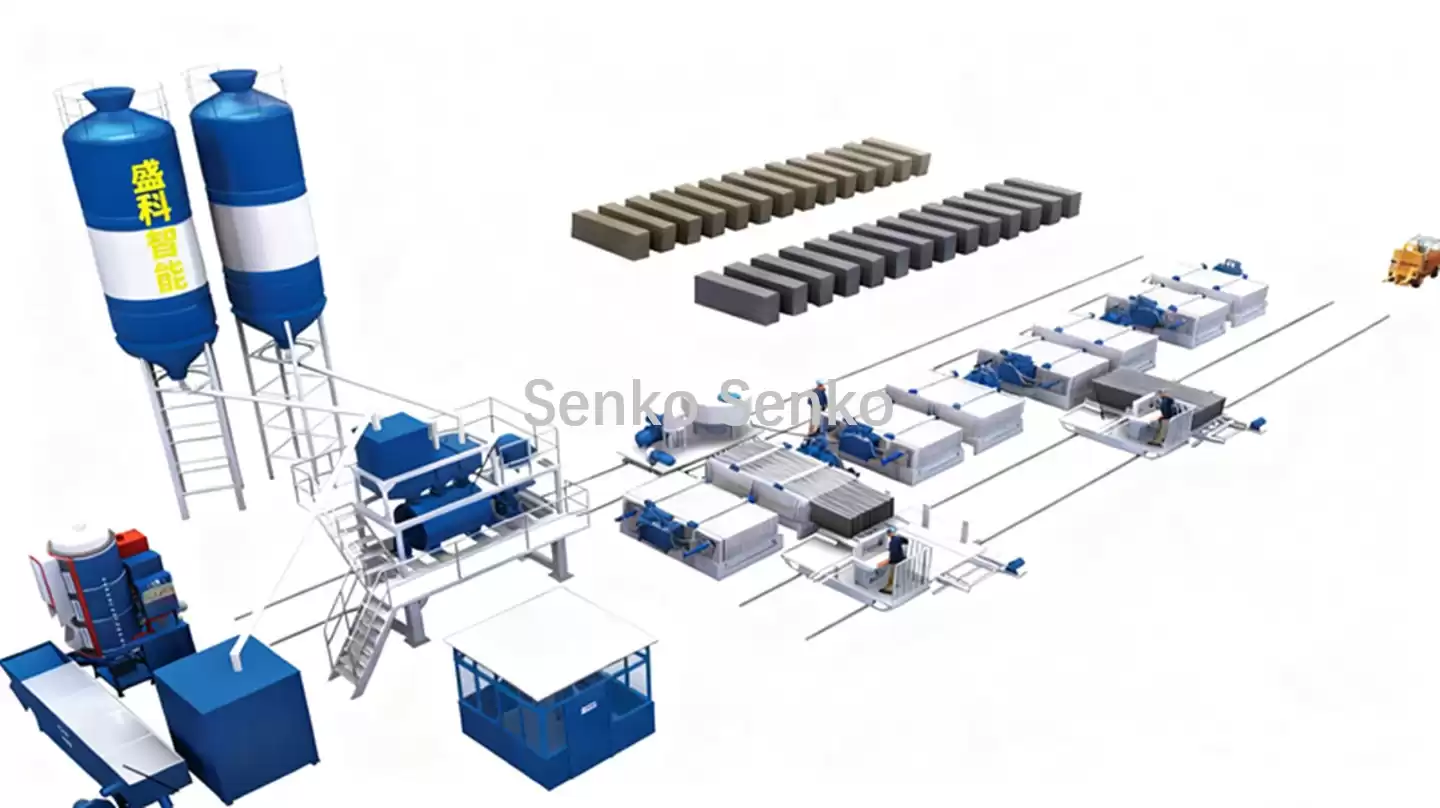

Wall Panel Production Line

wall panel production line is an automated industrial equipment used to produce various lightweight partition wall panels, mainly applied in prefabricated buildings and interior and exterior decoration. Its core raw materials include stone powder, plant fiber, inorganic adhesives, and PVC composite materials, with a daily production capacity of 300-1600㎡. It can produce interior and exterior wall panels with a thickness of 90-240mm, featuring lightweight, sound insulation, and fire resistance.



Wall Panel Production Line (Model: QBX-2000)

Fully automated brick making production line, lightweight wall panel production line, foamed cement wall panel equipment.

Parameter Information:

Finished wall panel dimension 3000*600*75/90/100/120/150mm
Output wall panel of thickness: 75mm 12pcs
Output wall panel of thickness: 90mm 10pcs
Output wall panel of thickness: 100mm 9pcs
Output wall panel of thickness: 120mm 8pcs
Output wall panel of thickness: 150mm 7pcs
Hydraulic station motor power 2.2kw
Hydraulic operating pressure 3-4Mpa
Net weight of the equipments 5 Tons
Main machines  Forming machine, Hydraulic station and Moulds.



Product Advantages:

1. Ultimate Efficiency and Quality:The factory environment overcomes the impact of weather, and automated equipment ensures continuous 24-hour production. Steam curing allows for rapid strength development of components, resulting in stable and uniform quality, and dimensional accuracy far exceeding that of on-site construction.

2. Savings in Labor and Resources:Automated production lines significantly reduce on-site labor while also substantially reducing construction waste and material waste, aligning with green building principles.

3. High Flexibility:By changing molds and adjusting formulas, a single production line can quickly switch between producing multiple different types of components, meeting personalized customization needs.

Finished Products:

Application Scenarios:
