Specifications for steel roll forming roof and wall panel

 Cover width

 Coil width   Wave heigh t   Wave length  Usage

840/1050

1000/1200 30 280 Roof and wall panel

850

1000 12 65 Roof and wall panel

860

1000 21 215 Roof and wall panel

910

1000 7 131   Roof and wall panel

900

1000 15 225 Roof and wall panel

Steel roll forming machine includes:

Decoiler

Steel roll forming machine

Electric controlling cabinet

Cutting system

Hydraulic pump station

Run out table

Roll Forming Machine Layout

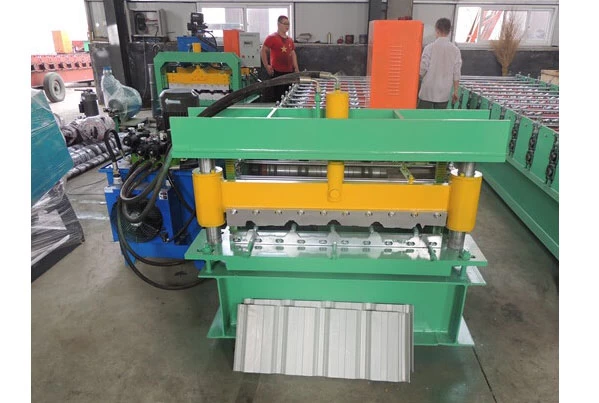

Steel roll forming machine parameters for roof and wall panel

Dimension(mm) :L X W X H 6400 x 1300 x 1000

Forming Axle: Diameter 70mm, 45# steel

Forming wheel: 45# steel hammering

Driving mold: chain and sprocket

Motor:3kw

Roll forming rows:11

Length set & cut  full automatically by computer

Hydraulic station motor: 3KW grade 4

Cutting mold:Gr12

Forming speed:8-10mm/min

Thickness for roll forming:0.2-0.7mm

Width for roll forming machine :1000mm

Special size can be made according to customer’s requirement.


Our roll forming machine has which advantage?

Roll forming machine advantage


Reference

C-section roll forming machine, please refer http://www.hbhscn.com/c-section-steel-roll-forming-machine_p34.html
Floor deck roll forming machine, please refer http://www.hbhscn.com/floor-deck-machine_p36.html
Glazed tile roll forming machine, please refer http://www.hbhscn.com/glaze-roof-tile-steel-roll-forming-machine_p37.html
Down pipe roll fomring machine, please refer http://www.hbhscn.com/down-pipe-roll-forming-machine_p42.html
EPS/color steel sandwich panel machine, please refer http://www.hbhscn.com/eps-color-steel-sandwich-panel-machine_p30.html
