Wall Track

Height adjustable wash basin bracket

The wall track is used for mounting of support arms, shower seats and wash basin brackets, and allows sideways adjustment of these products.

Made in solid grade aluminium alloy.

Weight loading capacity 150kgs.It depends on the type of the walls.

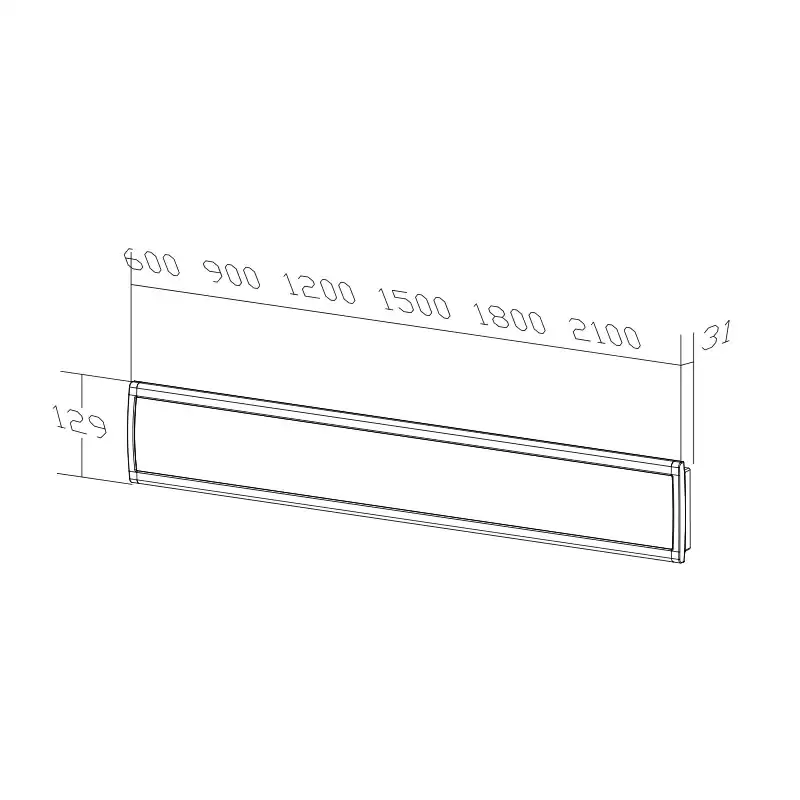

  • Size600-2100mm

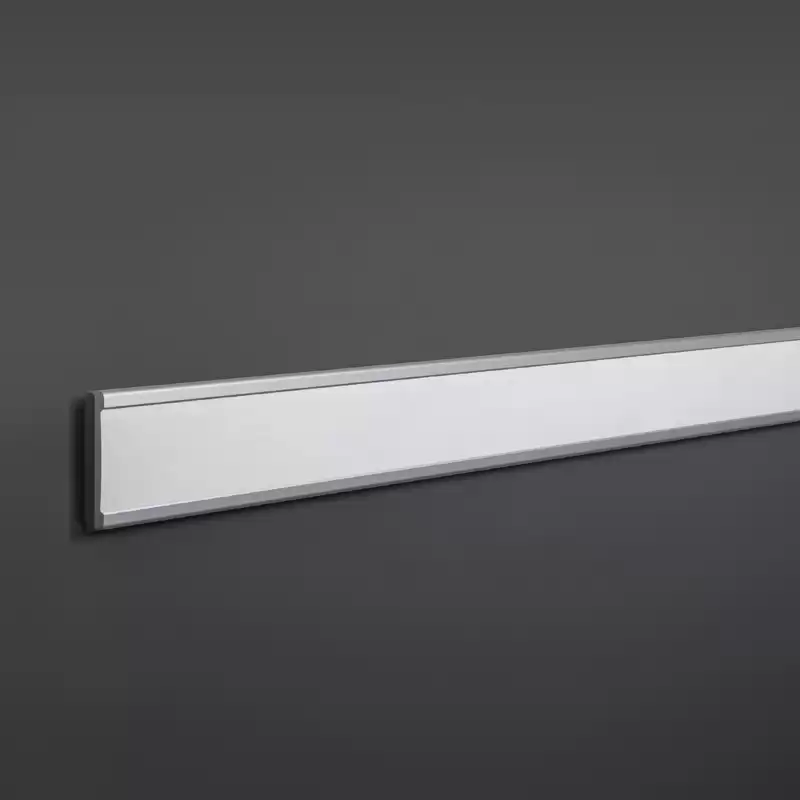

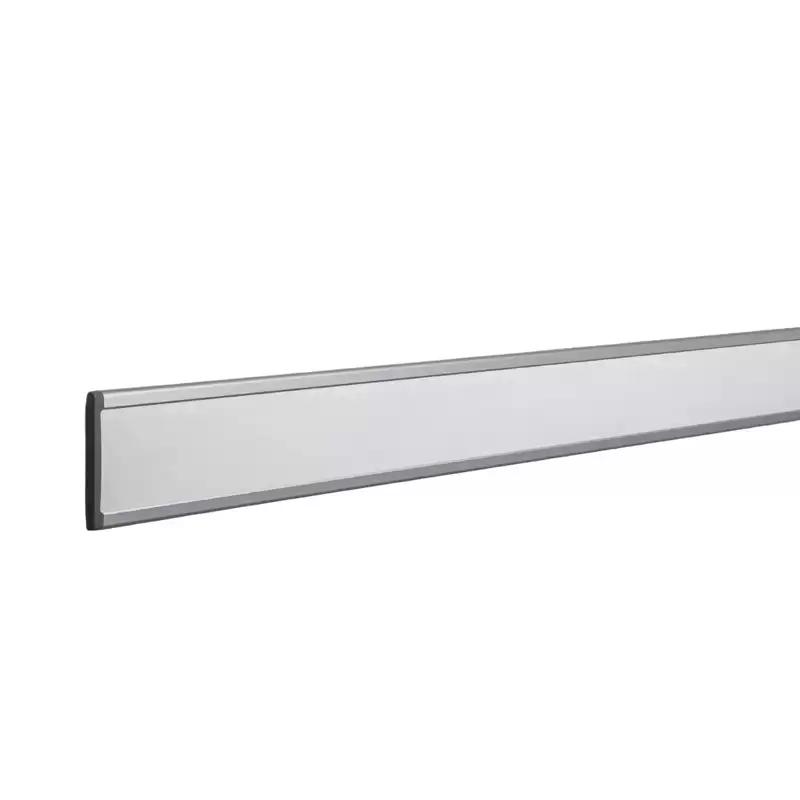

Horizontal Wall Track



Use:

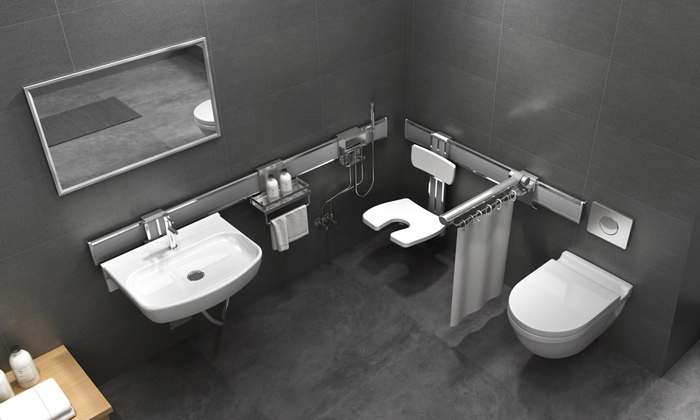

 The horizontal wall track is used for mounting support arms, shower seats and wash basin brackets, and allows sideways adjustment of these products. The horizontal track makes it possible to shift the product along the wall to constantly optimize the available space in the bathroom. The front cover plate conceals mounting bolts and any cables.


  wall track holding AICUBE care produdcts


Features:




  • High Quality - The wash basin bracket is made of super solid aluminum alloy. Weight capacity is 150kgs. It depends on the types of the walls.


  •  Maximum Flexibility -The wall track is used for mounting of support arms, shower seats and washbasin brackets, and allows sideways adjustment of these products. The track distributes the weight of the individual bathroom product, for example a wash basin bracket, along its entire length. The products can be adjusted and locked on to the track with intuitive locking functions. The horizontal track makes it possible to shift the product along the wall to constantly optimize the available space in the bathroom. The front cover plate conceals mounting bolts and any cables


  •  Install Easily -The wall track is mounted to the walls with bolts , and all the bolts are hired and covered by the fPVC plate.



Materials:




1. The wall track is constructed with super solid anodized aluminum.

2. The end of the bracekt over is capped with ABS.

3. The fixing kits and fasteners are made of stainless steel.

4. The front cover of the wall track is PVC.



Packaging:


One set in one carton. Carton Size and Gross Weight depends on the length of the track.



Model

Length

Carton Size

Gross Weight

H02-6OO

600mm

650x160x50mm

2.3 kgs

H02-9OO

900mm

95x160x50mm

3.3 kgs

H02-12OO

1200mm

125x160x50mm

4.3 kgs

H02-15OO

1500mm

155x160x50mm

5.3 kgs

H02-18OO

1800mm

185x160x50mm

6.4 kgs

H02-2100

2100mm

215x160x50mm

7.4 kgs

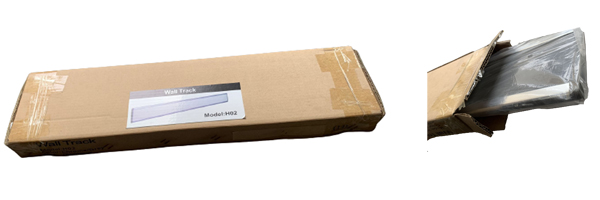

carton packing of wall track H02

Cleaning:



1. The Aicube Care product is to be cleaned with hot water or a mild soapy cleaning agent.

2. We recommend that chalky deposits be removed from aluminum parts using a solution of 3:7 acetic acid: tap water. When the aluminum parts have been washed down with this solution, the parts must be wiped over with a damp cloth, wrung out in clear water. The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.


Warm Note: Do not use chlorine based, corrosive or abrasive cleaners as it may result in the surface being damaged.
