Warehouse Pallet Flow Rack

Flow through racking:

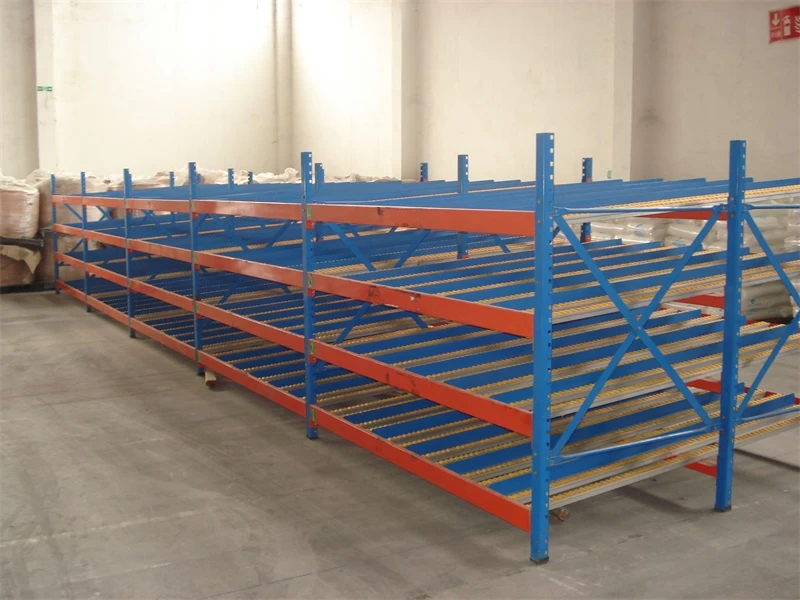

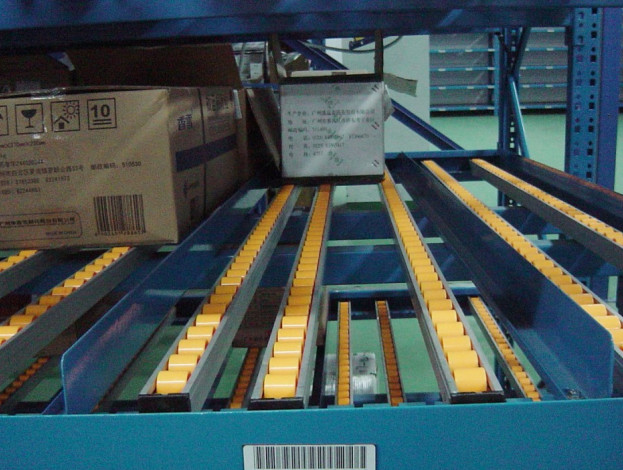

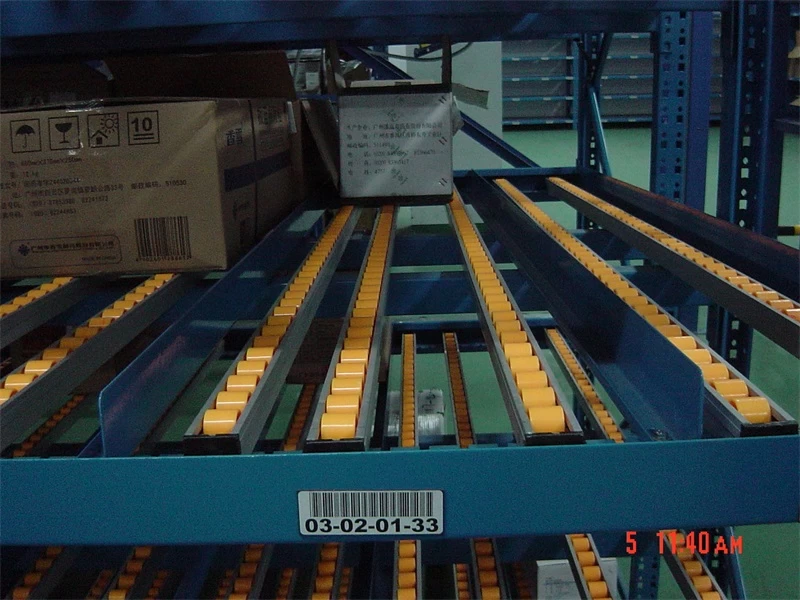

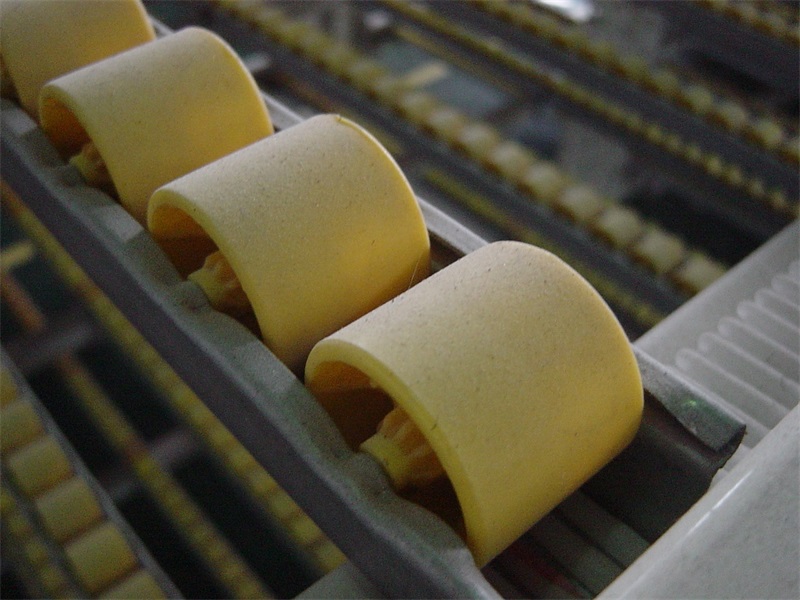

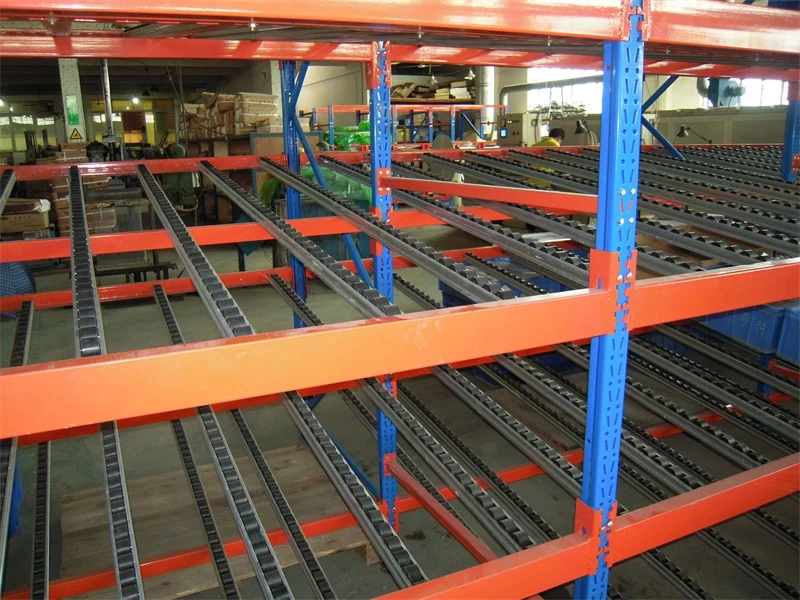

Warehouse Pallet Flow Rack is evolved from the medium storage rack. The fluency strips are connected directly to the front and rear beam and also the middle support beam, then the beam directly hung on the uprightpost. The installation slope of fluency strip depends on the size, weight, packing case and the depth of the pallet flow rack, usually take 5% ~ 9%.Normally, the bearing capacity of a fluency strip roller is 6kg/ piece.If the goods are heavy, 3-4 pieces of the fluency strip can be installed in one raceway.A supporting beam is usually installed at a depth every 0.6m to increase the rigidity of the fluency bar.If the raceway is long, it can also be separated by partition.Brake plates shall be installed at the pickup end to slow down the goods and reduce the impact.Usually, there are 4 dimensions of this kind of racks: 1500*500*2000mm,1500*600*2000mm,2000*500*2000m,2000*600*2000mm.

Customized Pallet Flow Rack is available.

Product Names:

Flow-through Racking, Flow through rack,

storage through racking, warehouse rack system.

Features of flow through rack:

1. Using aluminum or steel rail system, and the influence of gravity, first in and first out principle for the goods is implemented.

2. Its widely used in supermarket, medicine, and chemical and electron industries.

3. Major components of flow-through racking include the body, rail track, hoop, and roller and so on.

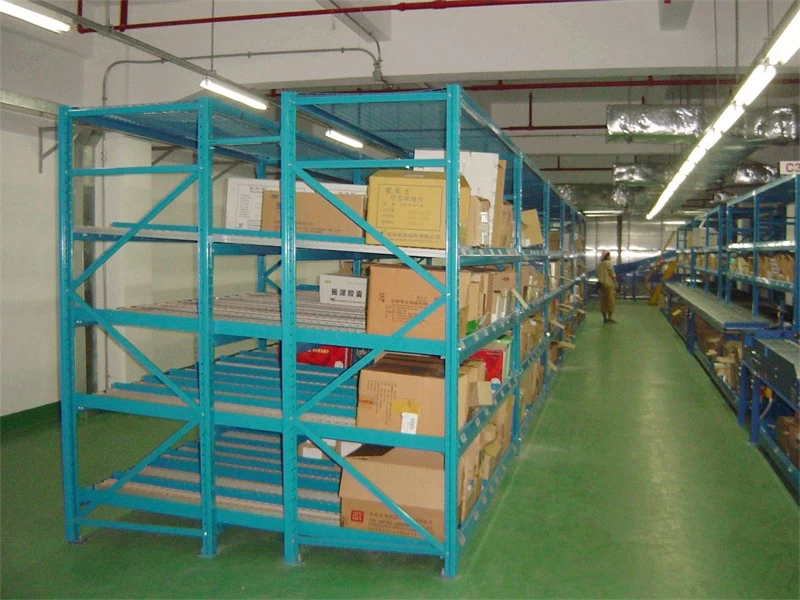

4. Convenient to access and suitable for such places as the two sides of the assembly line and distribution center.

5. Mark: Non-standard specification is available.

We offer design customized, so need following rack's factor:

Any types of heavy duty shelving, wire rack ,warehouse shelves,also parts for it like beams , upright post .etc...

Weight of goods( include pallet or container)

Dimension of pallet and goods(WxDxH)

Pallet's entrance of fork direction

Storage ares( Length, wide, height)

Type and parameter of forklift( include lift height and turn radius)

Storage goods quantity and storage requirement.

Sample :

We will send you sample for your reference, but have to pay from your side;

And we will refund the fee once you have an order with us!

Services:

Our free services include consultations and sample CAD layouts

of your proposed rack system. Don't hesitate to consider reviewing

the racking systems on site or at our headquarters.

Get the racking system you need at the best price guaranteed.
