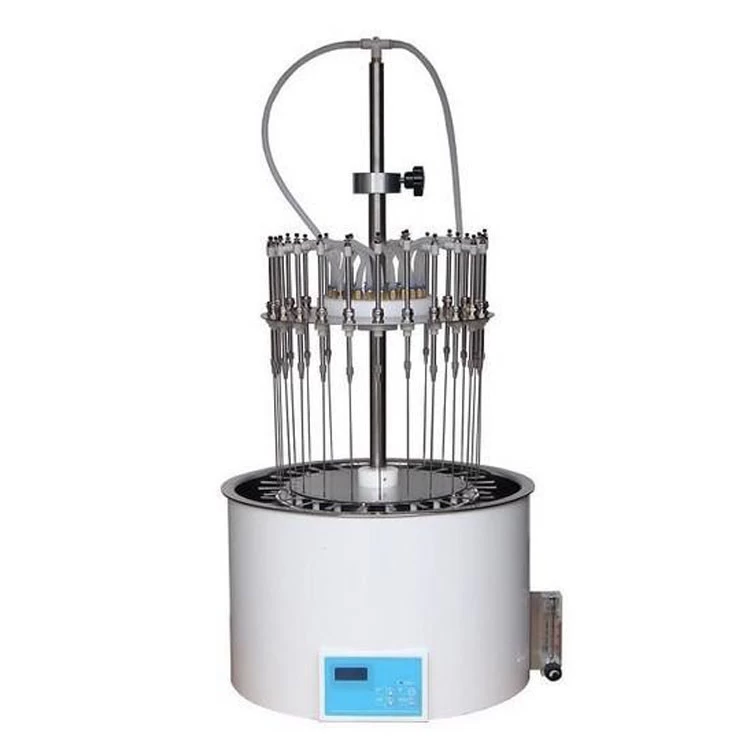

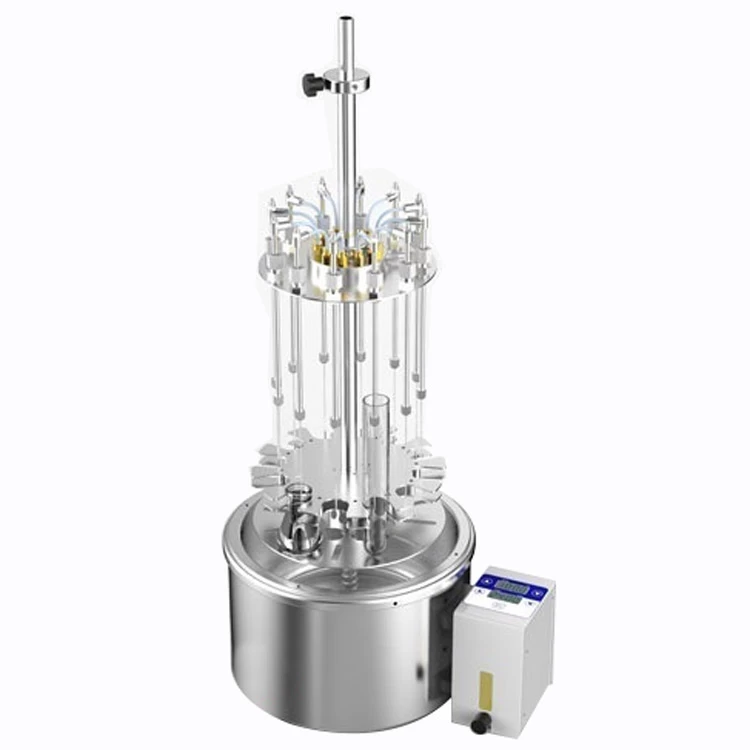

The Water Bath Sample Concentrator combines a precision water bath with nitrogen injection needles to concentrate samples.  This product a high-precision control instruments adopts the microcomputer processing and PID control method, its working principle is rapid, continuous and controllable blown nitrogen to the surface of the sample. According to the evaporation rate and the boiling point of the solvent, to set the heating temperature, and to achieve a large number of samples concentrated.

1.Temperature range: RT+5°C ~ 100°C                        2.Time range: Max 99h59min

3.Accuracy of the temperature: ≤ ±0.5 °C                   4.Display Accuracy: ±0.1 °C

5.Temperature Uniformity (60 °C): ≤ ±0.5 °C             6.Heating time (40-100°C): ≤30 mins

7.Number of sample positions: 12                               8.Test tube range: φ10-29mm (liquid volume 1-50ml)

9.Max. Lift Stroke: 200mm                                            10.Max. gas pressure: 0.2Mpa

11.Max. Flow rate: 15L/min                                           12.Gas-in Joint Outer Diameter: φ7mm

13.Needle Length: 150mm                                            14.Heating power(W): 1000

15.Fuse: 250V 10A Ф5×20                                               16.Working size: Ф260X150mm

17.Dimension(mm)(L×W×H): 370X300X860                  18.Weight(kg): 9.5

Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
