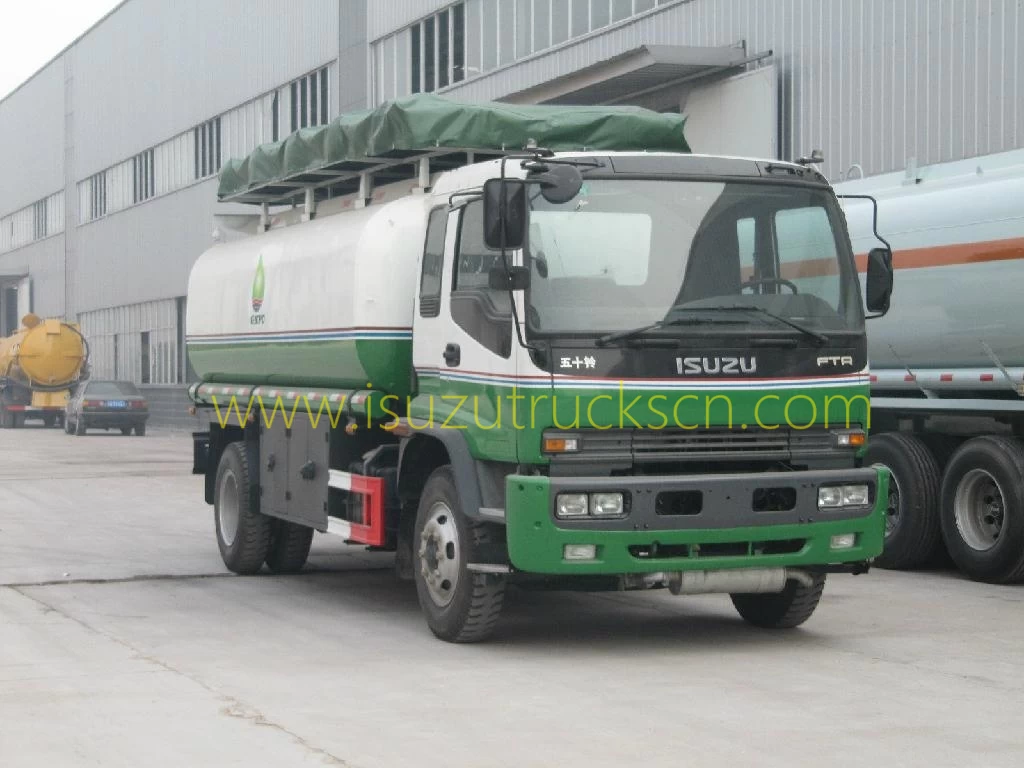

Water Cart ISUZU FTR Watering Trucks 14000L
Function:
Water cart Isuzu FTR (also called water carriers, water tank lorry truck, cleaning water tranport tanker truck, water sprinkler truck,water tanker, water vehicle,water truck isuzu,portable water tank truck, watering vehilce, Tanker water trucks ) is produced for transportation and distrubition of industrial and drinking water, spraying and washing of streets and tunnels, dust and environmental control and fire-fighting purposes. In order to achieve those different operations , each water tanker truck is equipped with various features and it’s designed according to capacity of the carrier vehicle.
Areas of Application and Use
- Transportation and distrubition of drinking water
- Transportation and distrubition of industrial water
- Pressurized street and road cleaning
- Pressurized tunnel cleaning
- Dust and environmental control
- Fire fighting service
Features:
---- ISUZU chassis, perfect performance
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Water pump super powerful, efficient pump in and out
---- Strong, durable, perfect performance
---- Prolonged service life
Specification:
| Water Cart ISUZU (14,000 litres) |
| General |
Vehicle Brand |
POWERSTAR |
| Chassis Brand |
ISUZU FTR |
| Overall Dimension |
8980 * 2500 * 3200 mm |
| GVW / Kerb Weight |
16,000 kg / 72,20kg |
| Cab |
Cab Capacity |
3 persons allowed |
| Air Conditioner |
W/ air conditioner |
| Engine |
Fuel Type |
Diesel |
| Engine Brand |
ISUZU engine, 4KH1 |
| Power |
190 Hp (139 KW) |
| Displacement |
5199 ml |
| Emission Standard |
Euro IV |
| Chassis |
Drive Type |
4X2, left hand drive |
| Transmission |
ISUZU gear box, no overhaul within 500,000km |
| Wheelbase/No. of axle |
4500 mm / 2 |
| Tyre Specification |
9.00-20 |
| Tyre Number |
6 tyres and 1 spare tyre |
| Max Speed |
98 km/h |
| Paint |
Metallic paint |
| Superstructure |
Tank Capacity |
14,000 Litres ( About 3,700 US gallons) |
| Tank Material |
Carbon steel |
| Flow Speed |
1000 litres / min |
| Delivery Head |
45 m |
| Suction Head |
6 m |
| Hose |
High quality PVC hose, anti-aging |
| All other standard accessories: manhole, ladder, inlet, discharge……. |
| Optional |
** Tank material could be stainless steel or carbon steel with non-toxic treatment for potable water, safe for human body. |

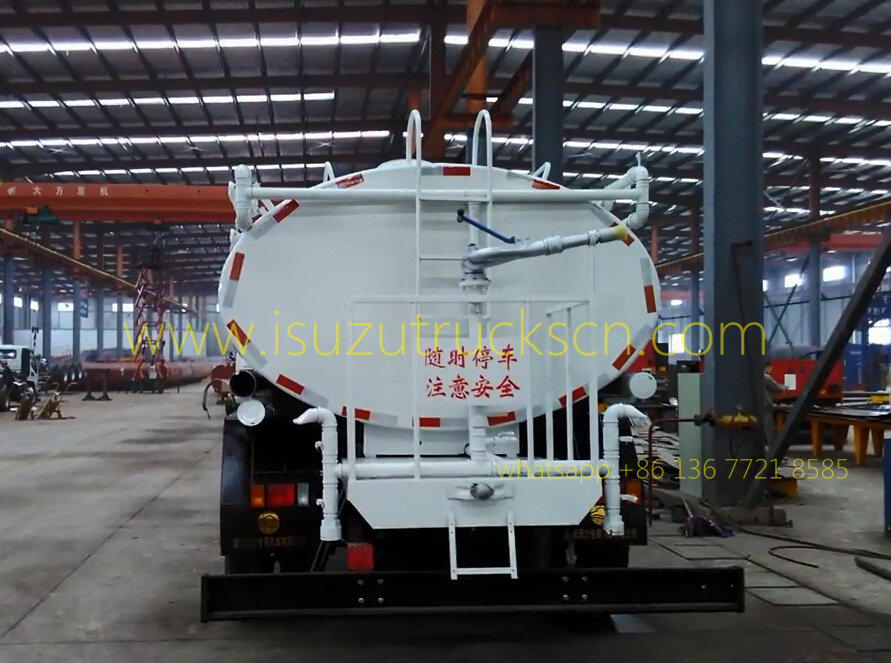

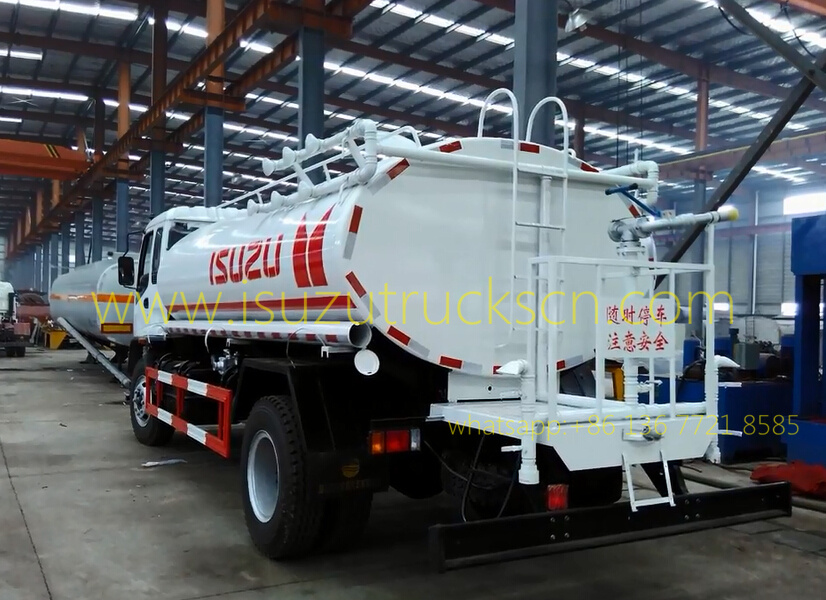

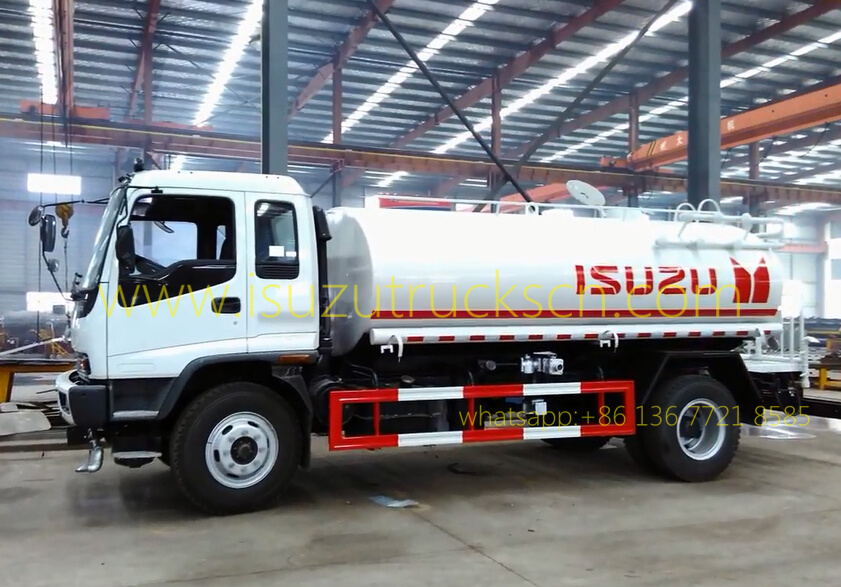

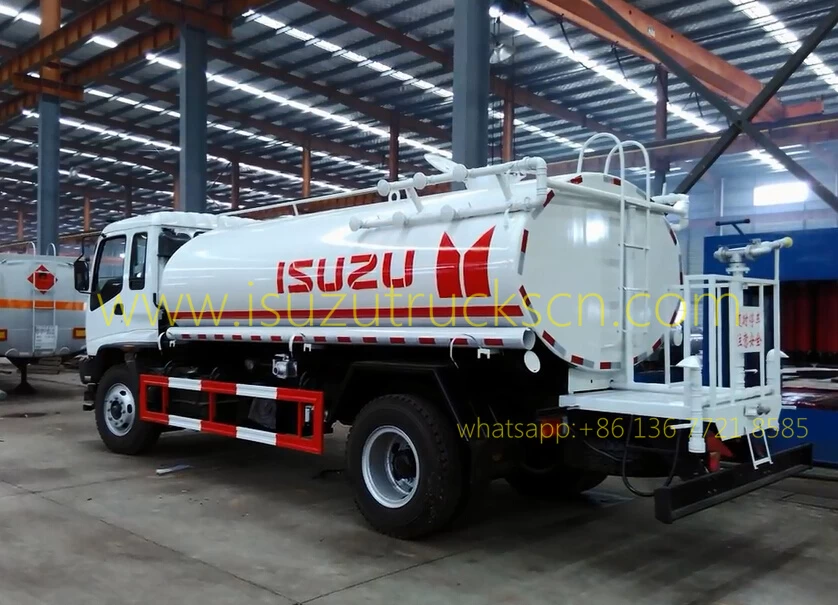

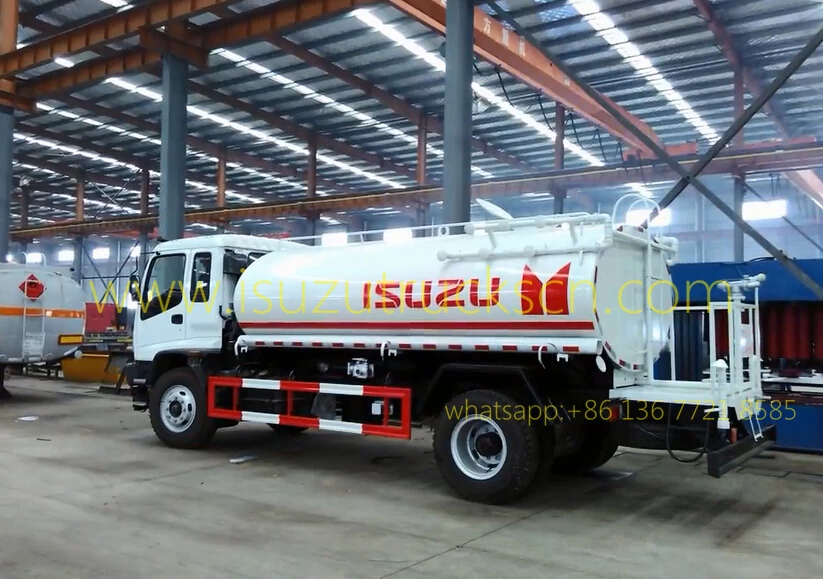

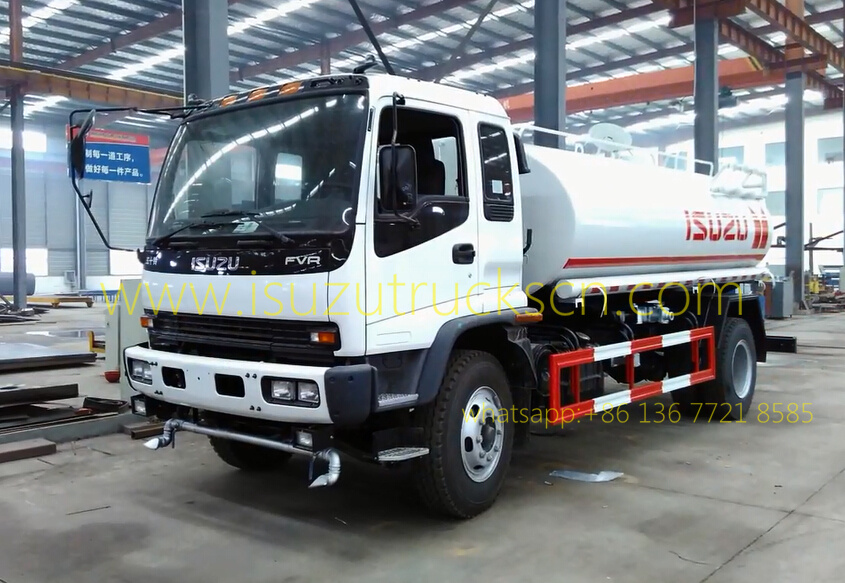

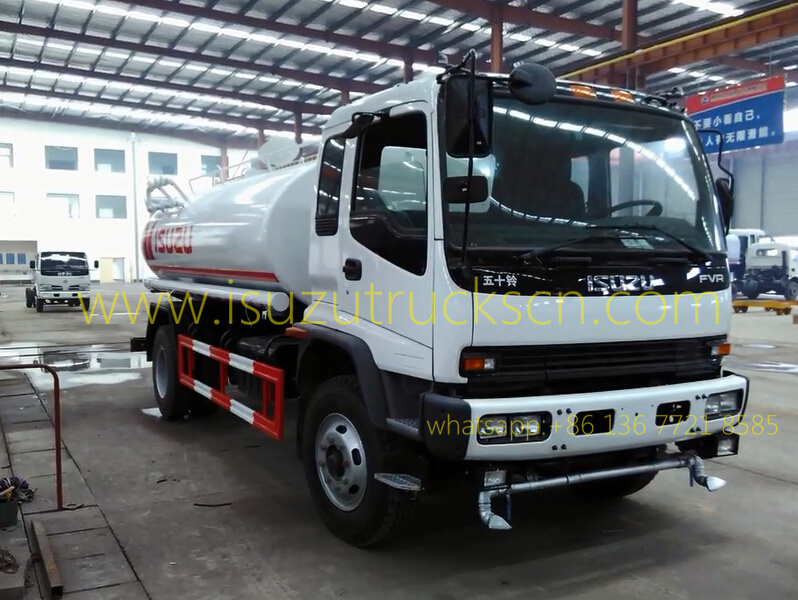

Recently Built Water Tank Truck :
|
|
14,000 Liters
(Anti-corrosion treatment)
|
|
|
Carbon Steel
4mm
rollback truck rollback truck
|
|
|
|
|
|
|
|
|
|
Discharge Hose &
Hose Box
|
Standard
rollback truck rollback truck
|
Valve Control Station
tow truck hydraulic tow truck hydraulic tow truck hydraulic
Float Ball Liquid Level Indicator
tow truck hydraulic tow truck hydraulic tow truck hydraulic
Hose & Hose box
tow truck hydraulic tow truck hydraulic tow truck hydraulic
Powerstar Water Tank Trucks Isuzu Water Bowsers 5,000L detail pictures
