Product Parameters
| Model |
6KW-W |
9KW-W |
12KW-W |
6KW-O |
9KW-O |
12KW-O |
| Heat Transfer Medium |
Water |
Thermal Oil |
| Maximum Temperature |
120℃ |
180℃ |
| Heating Power (kW) |
6 |
9 |
12 |
6 |
9 |
12 |
| Pump Power (kW) |
0.37 |
0.37 |
0.75 |
0.37 |
0.37 |
0.75 |
| Maximum Pump Flow (L/min) |
42L/min |
42L/min |
56L/min |
42L/min |
42L/min |
56L/min |
| Pump Head (M) |
28 |
28 |
38 |
28 |
28 |
38 |
| Number of Interfaces |
Two in,
two out |
Four in,
four out |
Four in,
four out |
Two in,
two out |
Four in,
four out |
Four in,
four out |
| Mold Inlet and Outlet Diameter |
3/8"×4pc s |
3/8"×8pc s |
3/8"×8pc s |
3/8"×4pc s |
3/8"×8pc s |
3/8"×8pc s |
| Dimensions (H×W×D cm) |
67×30×66 |
67×30×66 |
67×30×66 |
67×30×66 |
67×30×66 |
67×30×66 |
| Net Weight (kg) |
50 |
54 |
58 |
48 |
50 |
60 |
Key Features
✅ Flexible Adaptation of Dual Styles: Two customized models, water type and oil type, are provided to meet the needs of medium and low temperature cooling and high temperature heating, respectively, easily cope with the molding temperature control of different materials, and adapt to various processes such as injection molding and extrusion.
✅ Brand High-Temperature Resistant Pump: Equipped with a low-noise pump that is resistant to high pressure and high temperature, it has stable and reliable operation and long service life, ensuring stable medium circulation in 24-hour continuous production.
✅ Stainless Steel Heating Tube: Built-in 304 stainless steel heating tube, excellent thermal conductivity and corrosion resistance, adapting to the high temperature heating requirements of various media, and is not easy to scale after long-term use.
✅Intelligent and Precise Temperature Control: Equipped with a microcomputer controller, it automatically adjusts heating and cooling in real time, effectively controls mold temperature fluctuations, reduces product defects caused by uneven temperature, and provides a stable temperature environment for high-quality molding.
✅Humanized Intelligent Operation: The operation interface supports the storage of multiple sets of temperature control solutions, and preset parameters can be quickly called when changing molds, simplifying manual adjustment steps.
✅Stable Thermal Fluid Circulation: Equipped with a temperature-resistant and high-pressure pump, it drives the thermal fluid to circulate evenly to various areas of the mold, reduces local temperature differences, improves the consistency of mold surface temperature, and provides a stable heat conduction guarantee for precision molding.
✅Multi-Scenario Adaptation: Provide different power models to adapt to temperature control requirements, support various molding processes such as injection molding and extrusion, and have a wide range of application scenarios.
Product Detail Display
-
-

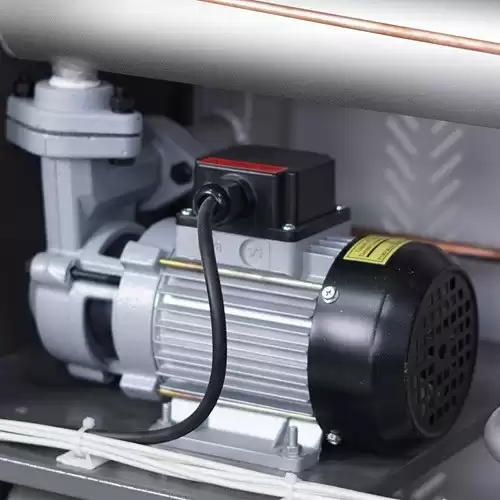

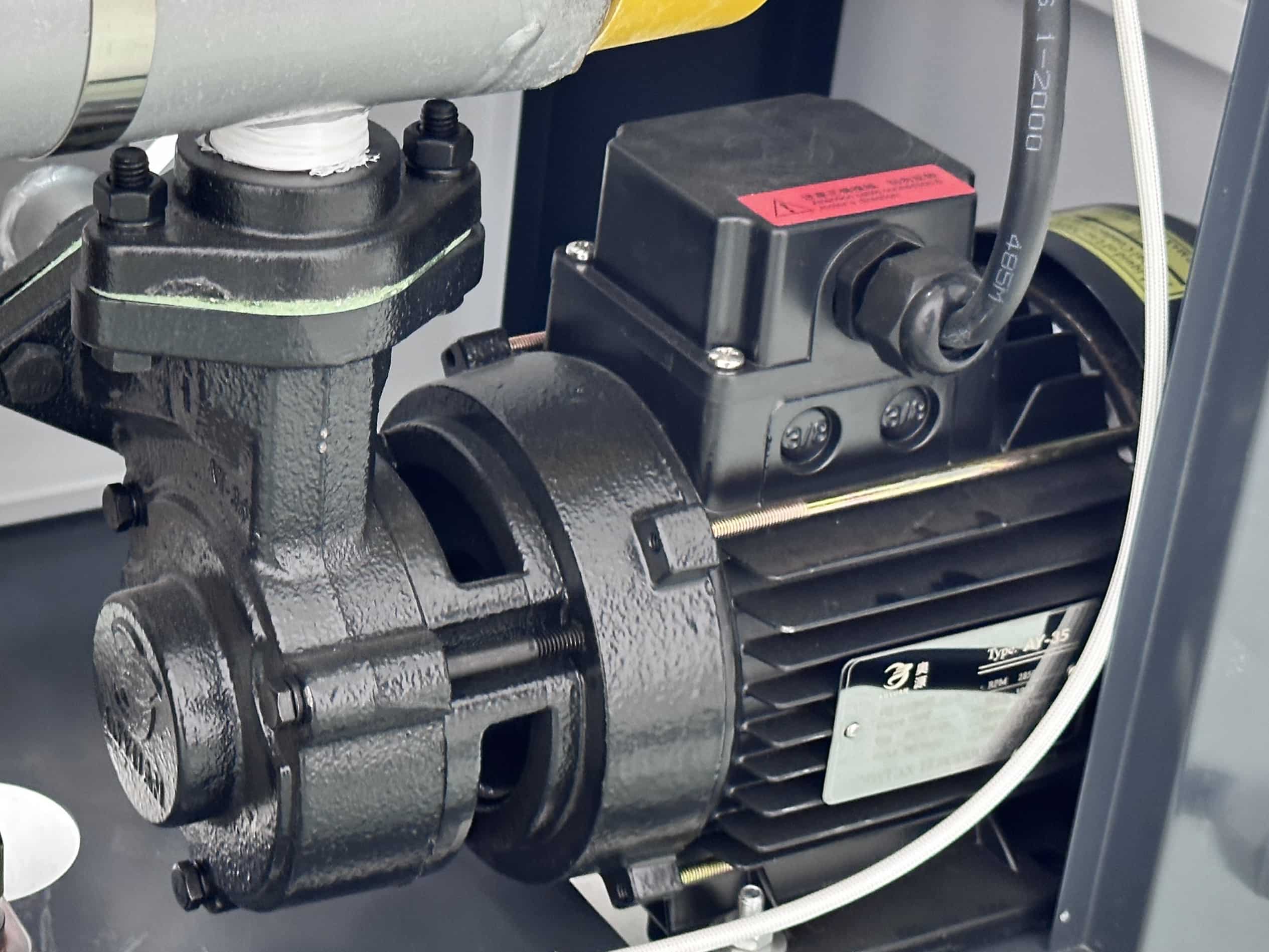

Brand Pump
Adopt a high temperature resistant, high pressure resistant, low noise pump, stable operation, and long service life.
-
-

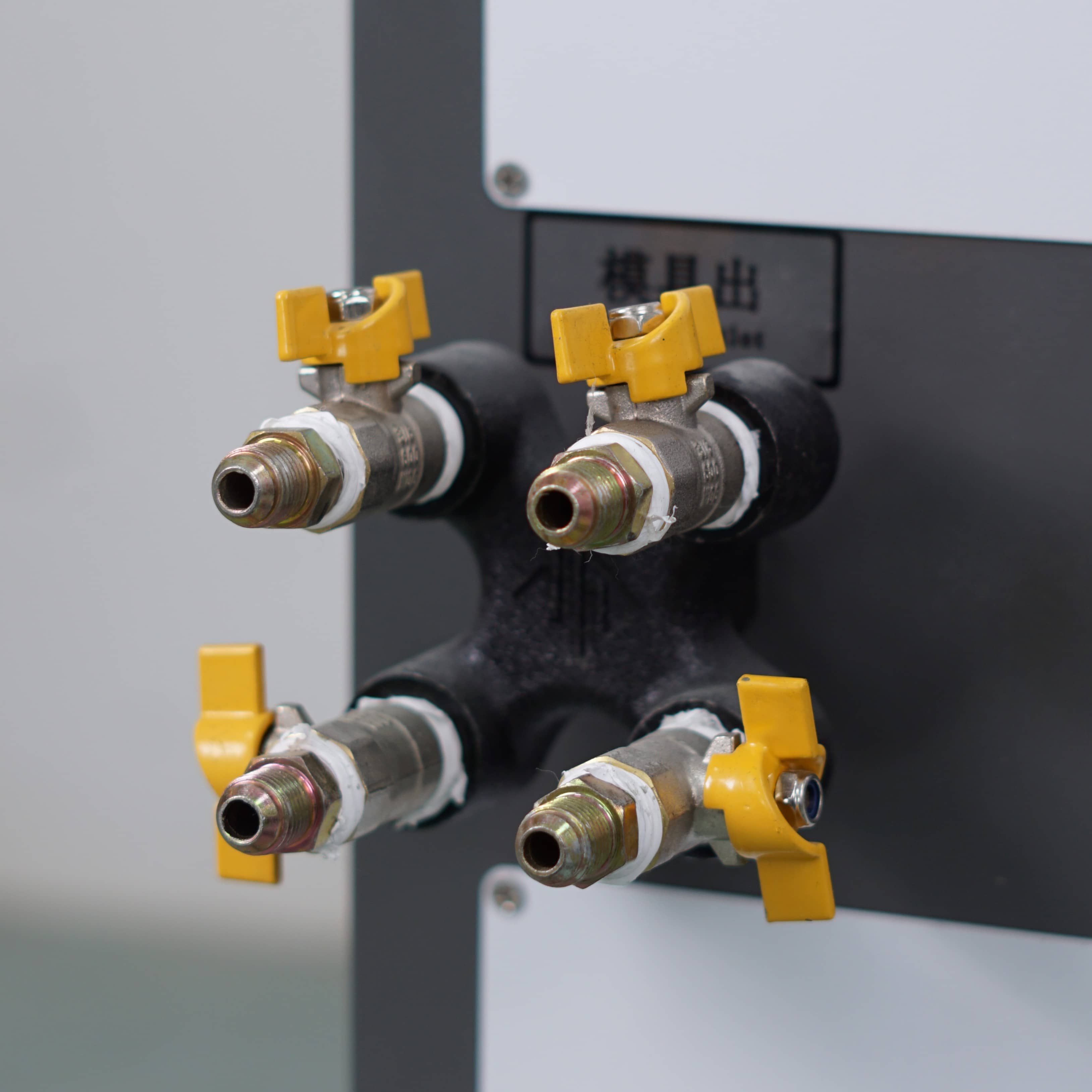

Pure Copper Interface
The inlet and outlet are all made of copper connectors, which are resistant to high temperatures.
-
-
HEATS UP QUICKLY IN ONE MINUTE

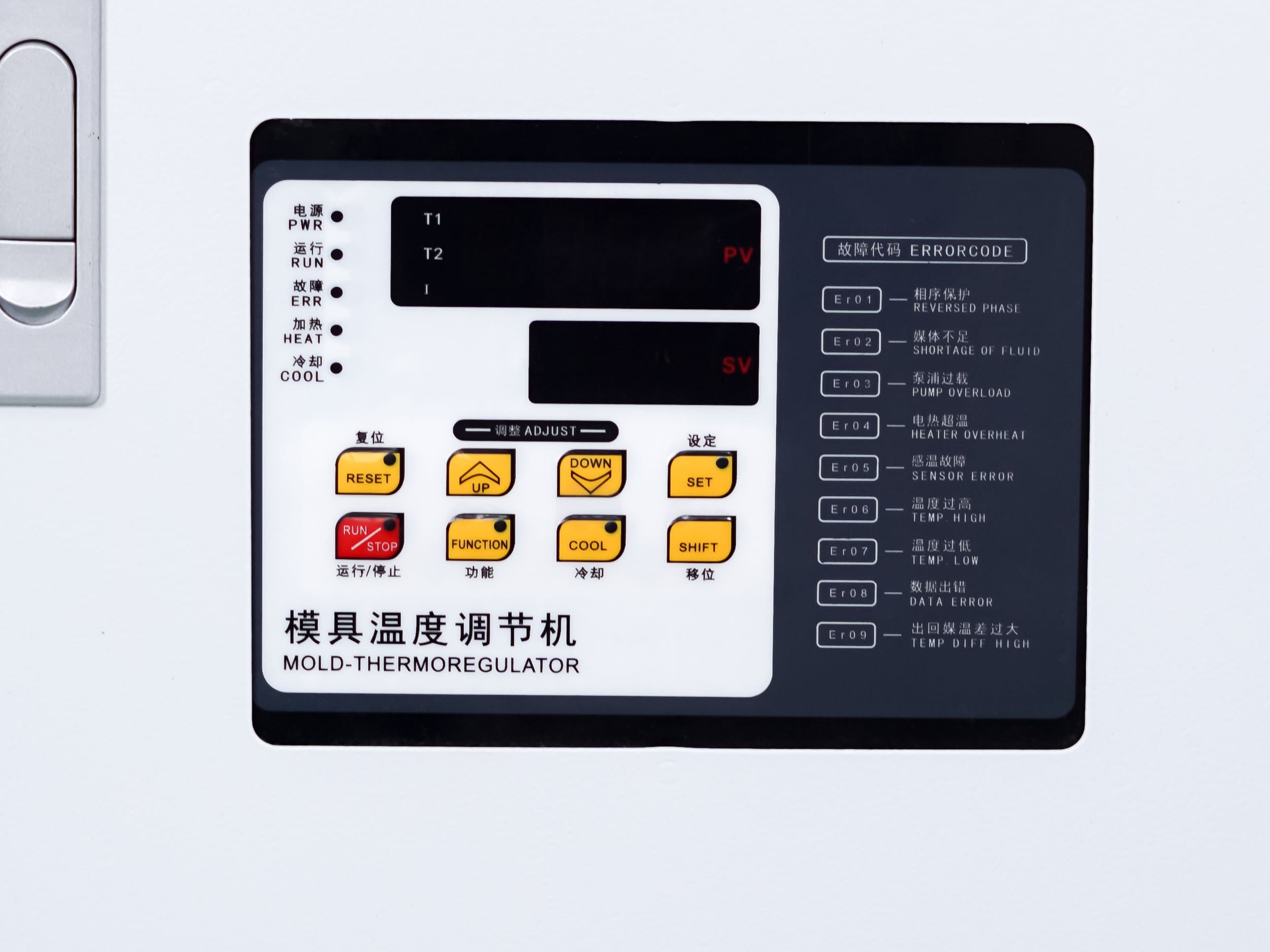

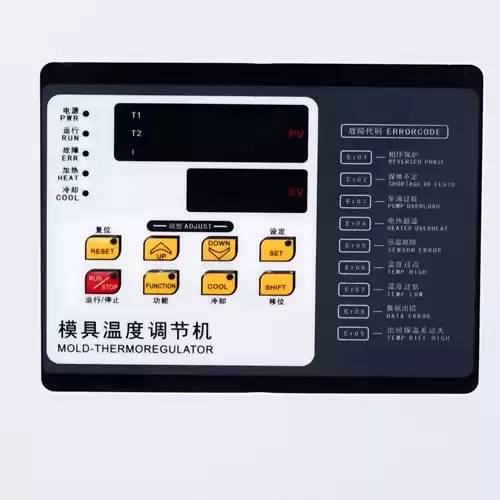

Bangpu microcomputer control panel
Stable and constant temperature ±1°C

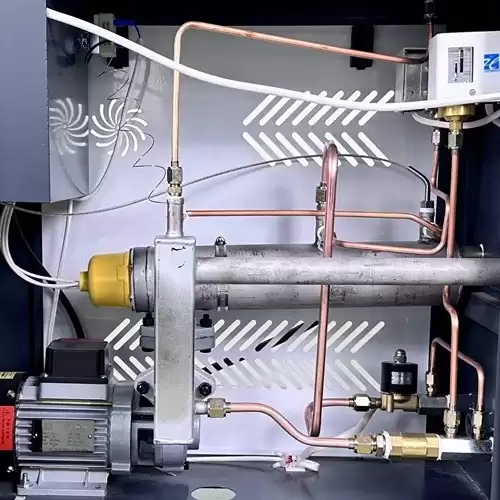

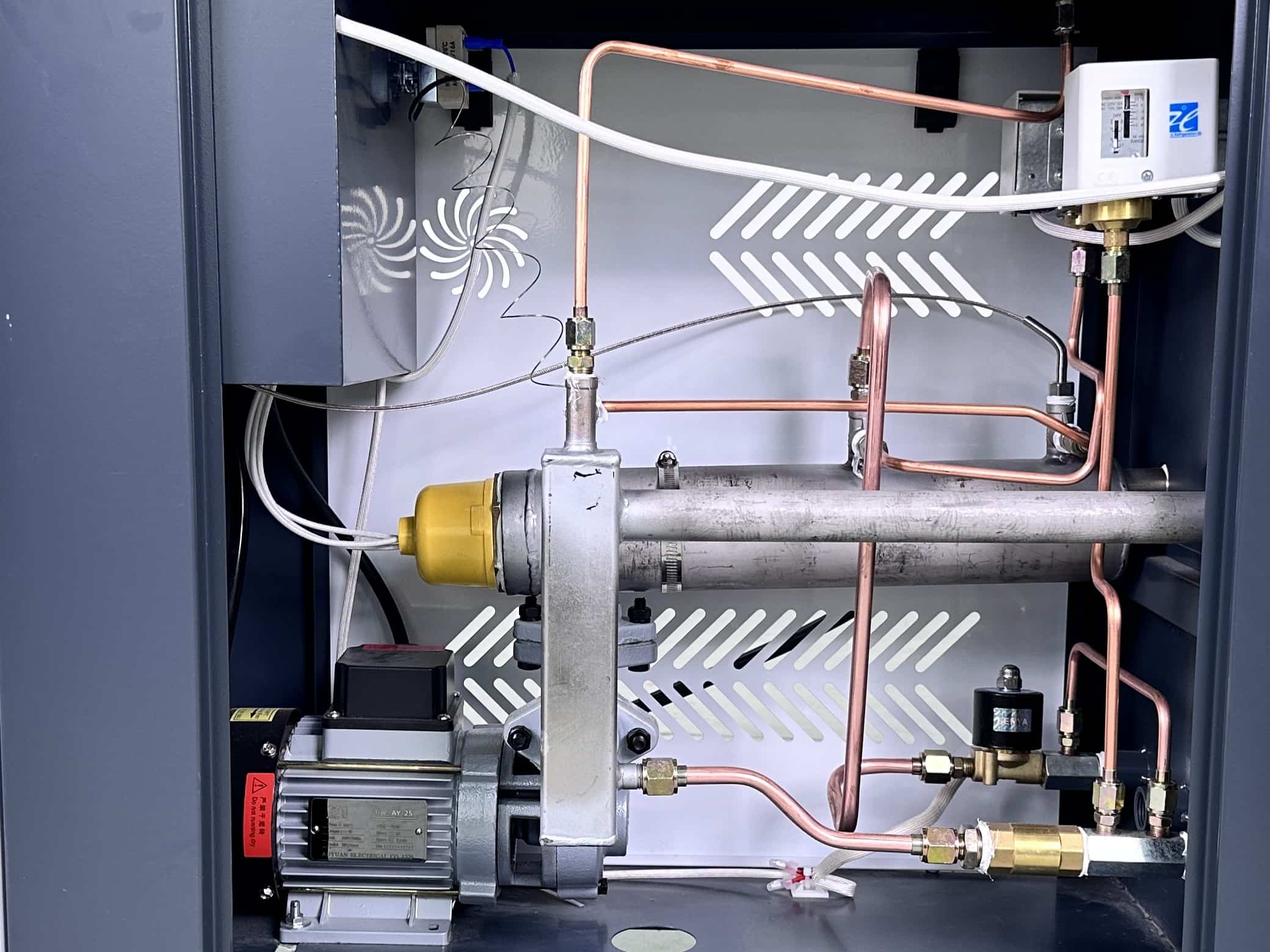

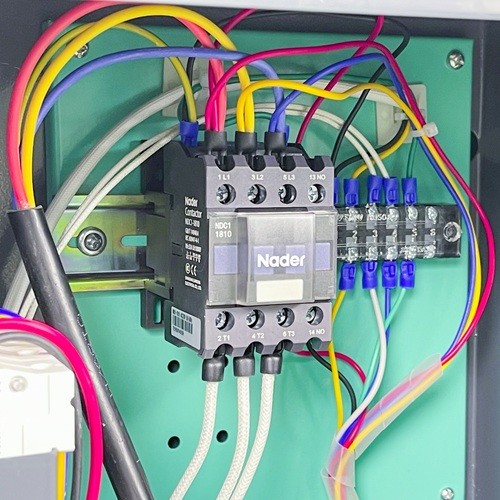

THE INTERNAL STRUCTURE OF THE PRODUCT
It adopts high temperature, high pressure resistance, and low noise pumping.
Stable operation and long service life.
