Waterproof Air Purifier Cooling Fan with Auto Restart

AC axial fans are made from reinforced plastic with an aluminum-alloy frame, are constructed from a temperature-resistant aluminum alloy to withstand high heat environments.

Facebook Twitter Pinterest LinkedIn 分享

Description

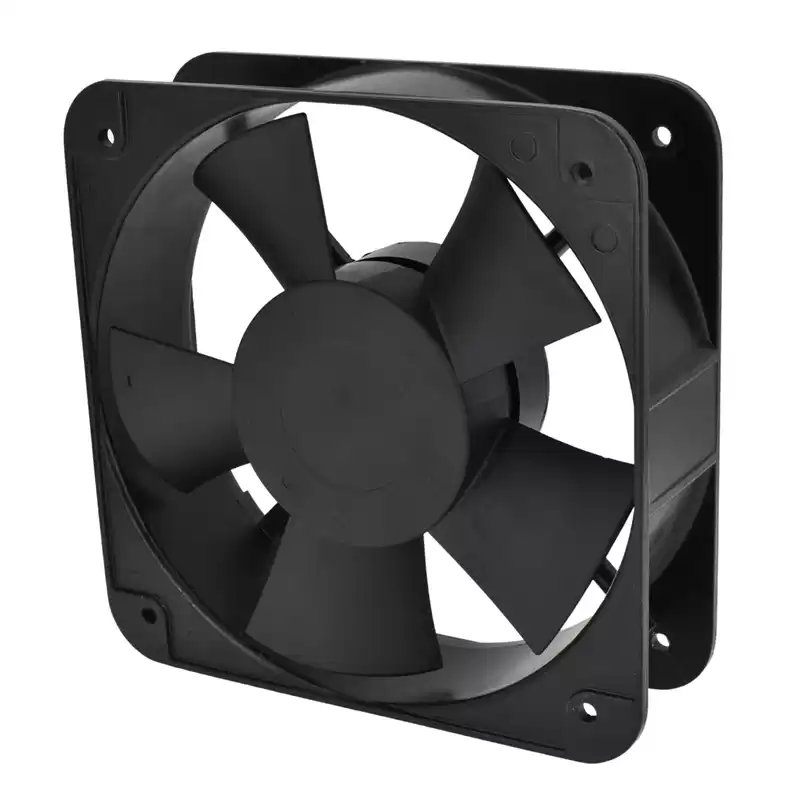

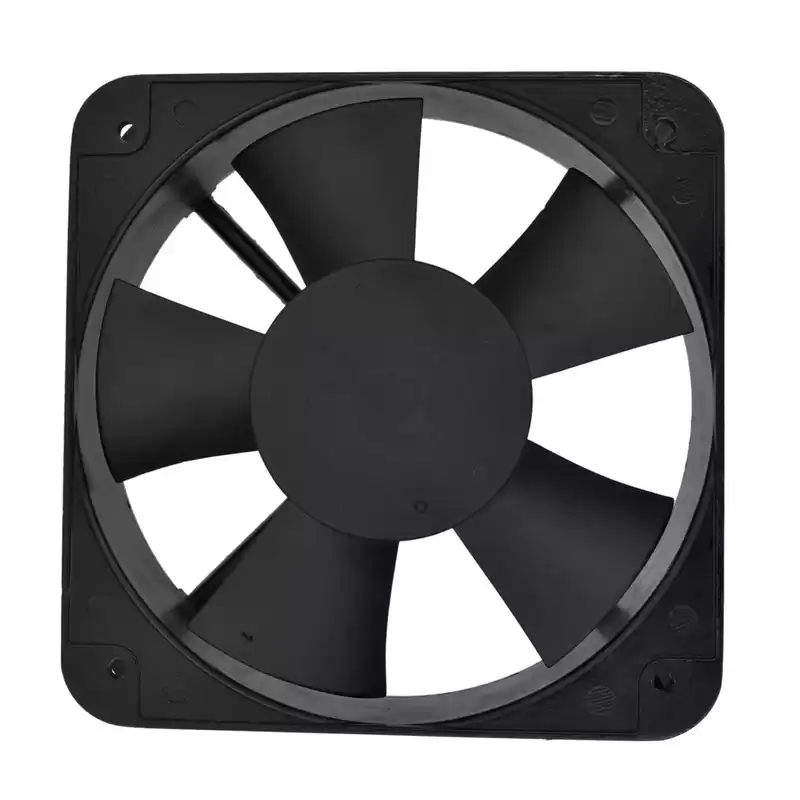

200mm x 60mm 220/50Hz Duall Ball Bearing Axial Industrial Cooling Fan for Ventilation. The axial fan with higher air flow to enhance cooling performance.

About this item

Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.

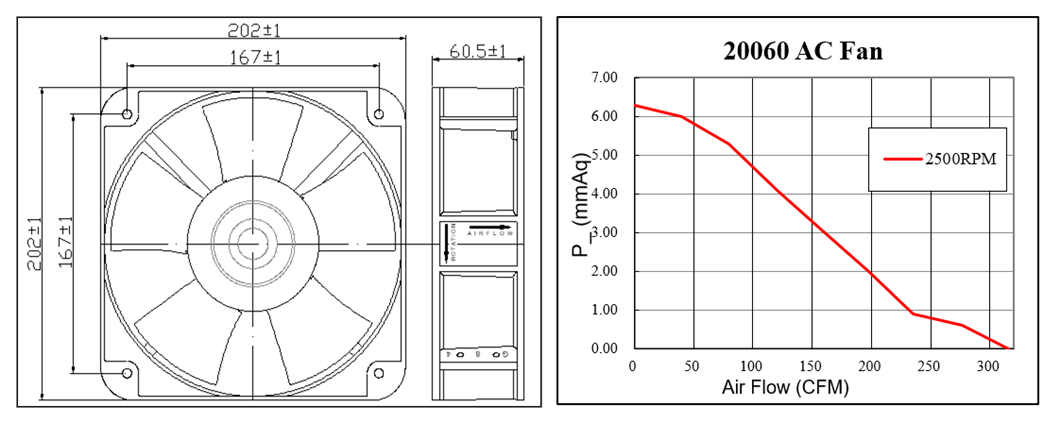

Dimension of outer the frame is 200 mm(L) x 200 mm(W) x 60 mm(H) / The size of fan in inch is 7.87 in(L) x 7.87 in(W) x 2.36 in(H); The center to center distance beween the mountiong holes is 167.0 ± 1.0 mm / 6.57 in.

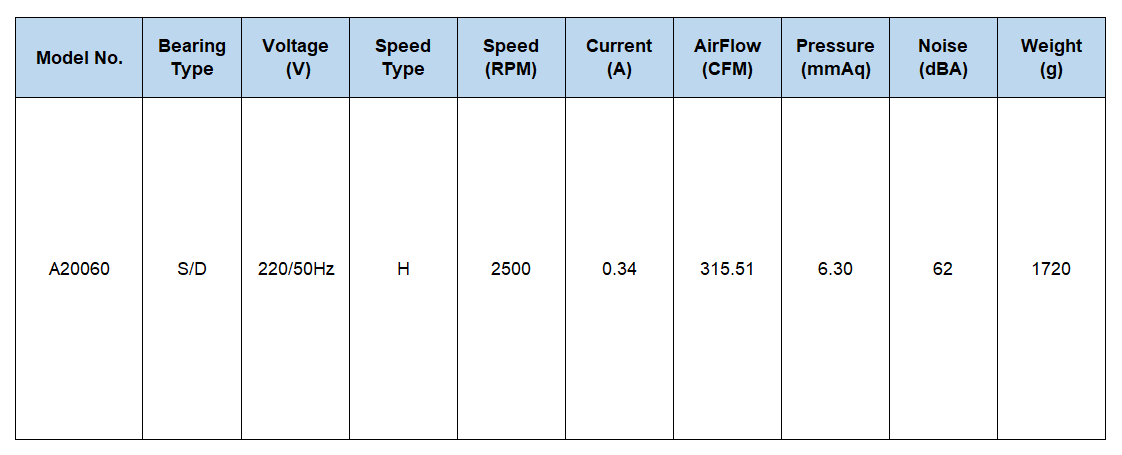

Operating Voltage Range: AC 220/50Hz | Current: 0.34 Amp | Speed: 2500 RPM | Airflow: 315.51 CFM | Noise: 62 dBA | Pressure: 6.30 mmAq.
High Speed: This model is designed to maximize airflow and can be too loud for some applications.
Lead wire: (+): Red wire ; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing ; Life: working up to 50,000h at 25 degrees.
Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

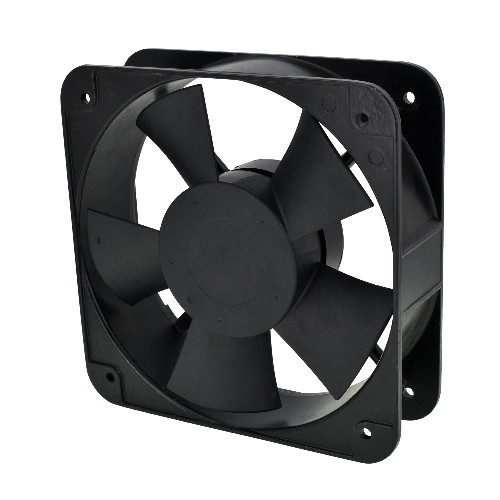

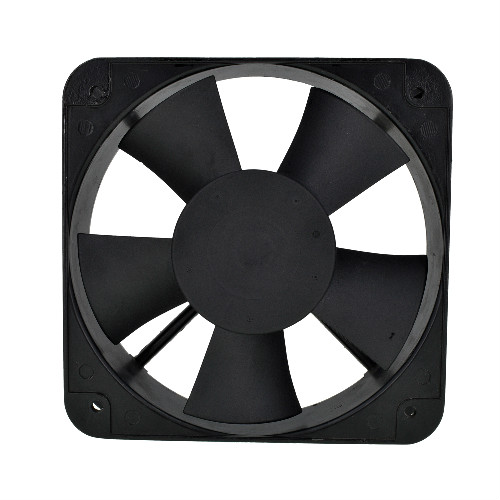

AC AXIAL FAN 200x200x60mm(7.87"x7.87"x2.36")

200X200X60mm Aluminum Frame Cooling Fan AC Motor Axial Cooling Fan 220V

General Specification:
Frame: Aluminum Alloy
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing

dualball bearing axial flow fan 220v

high temperature resistance cooling fan

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.

Feature

Strict Waterproof & Dustproof Test;
The power frequency is fixed and it will not change with the voltage;
Can work normally in the low temperature environment of -10℃~70℃;
Updated blade and motor designs allow this to put out 315.51 CFM airflow;
Excellent performance and impeccable quality for Ac cooling system fan with a square housing.

More Models

These fans are available in several sizes to accommodate diverse applications—such as those found in tight spaces or difficult to reach areas.

Type	Model	Size	Type	Model	Size
AC Axial Fan	A08025	80x80x25mm(3.15"x3.15"x0.98")	AC Axial Fan	A13538	135x135x38mm(5.31"x5.31"x1.49")
	A09225	92x92x25mm(3.62"x3.62"x0.98")		A15050	150x150x50mm(5.90"x5.90"x1.97")
	A11025	110x110x25mm(4.33"x4.33"x0.98")		A17051A	170x150x51mm(6.69"x5.90"x2.0")
	A12025A	120x120x25mm(4.72"x4.72"x0.98")		A17051B	170x150x51mm(6.69"x5.90"x2.0")
	A12025B	120x120x25mm(4.72"x4.72"x0.98")		A18060	180x180x60mm(7.08"x7.08"x2.36")
	A12038A	120x120x38mm(4.72"x4.72"x1.49")		A20060	200x200x60mm(7.87"x7.87"x2.36")
	A12038B	120x120x38mm(4.72"x4.72"x1.49")		A22060	220x220x60mm(8.65"x8.65"x2.36")

Application

DC/AC fans are mainly used in ventilation, refrigeration, heating, automobile, driving technology, electronic power, UPS power supply, LED lighting, mechanical equipment, communication equipment, instrumentation and other industries, and are an important part of equipment cooling components.

High Speed Axial Flow Cooling Fan

Low Noise AC Motor Axial Cooling Fan

Custom projects related to Refrigerator, Freezer, Beverage coolers, Oven, Outdoor telecom cabinet cooling systems, and more.
Creates cooling systems to keep home entertainment systems, computers, and other electronics running at their ideal temperature and optimal speed.

Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.
