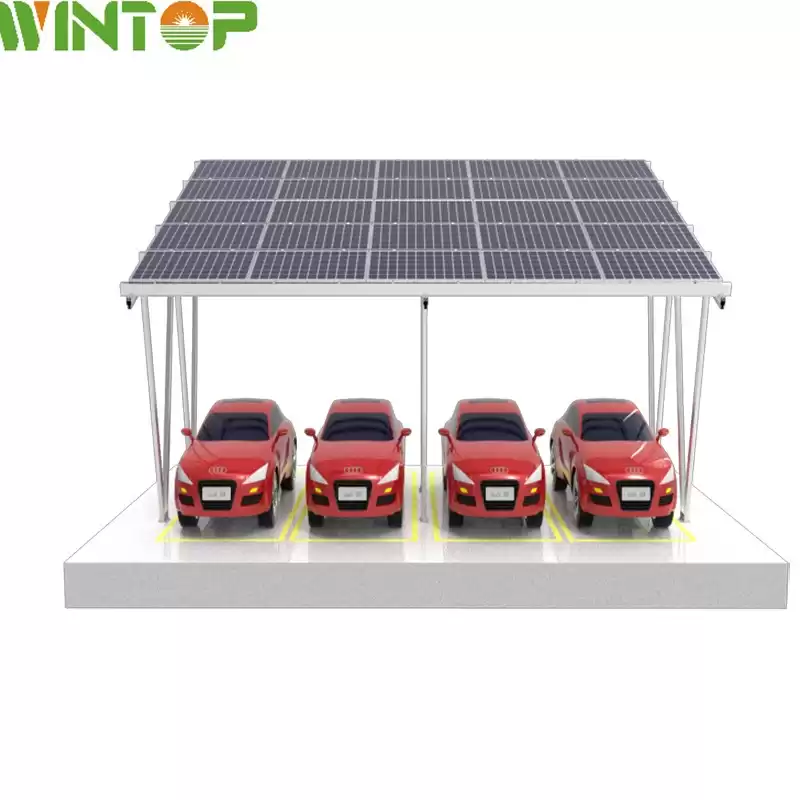

Waterproof Aluminum Carport Solar Mounting System
Product Description
Solar Carport Mounting System can provide both shade and solar energy can be generated.Wintop solar carport can be customized according to your ground size.
Wintop carries a variety of designs for solar carport systems such as double and single row parking, customized foundations and optional sub-decking for waterproofing and preventing icicle formation. Other optional accessories include advertising space, cable management, carport lighting, and drainage.
Technical Parameters
|
Installation location
|
Ground
|
|
Installation angle
|
Up to request
|
|
Wind load
|
60m/s （216kmh/133mph)
|
|
Snow load
|
1.4KN/m²
|
|
Applicable module type
|
Mono-crystalline, Poly-crystalline, Double wave and Thin film
|
|
Module Orientation
|
Horizontal, Vertical
|
|
Design standard
|
AS/NZS1170,JIS C 8955-2017
|
|
Bracket material
|
AL6005-T5(Anodized Oxidation)
|
|
Fastener Material
|
Stainless steel SUS304
|
|
Warranty&Duration
|
10 years&More than 20 years
|
Features & Benefits
-
Lightweight, easy transportation and installation, safe construction;
-
Effectively use of the space while generating electricity;
-
Available for installing double grass solar panel;
-
One parking structure,many benefits;
-
The maximum pre-assembly, save construction time and labor cost.

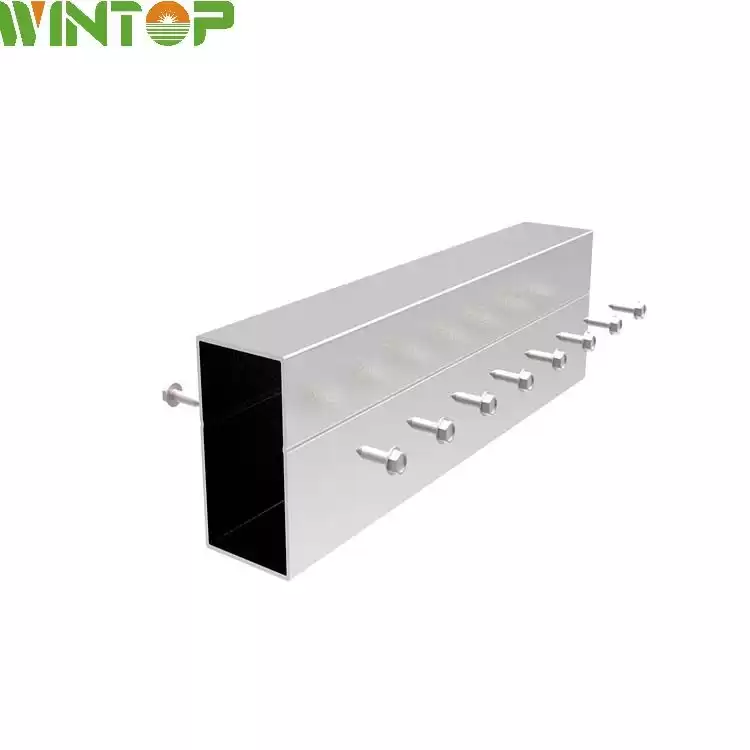

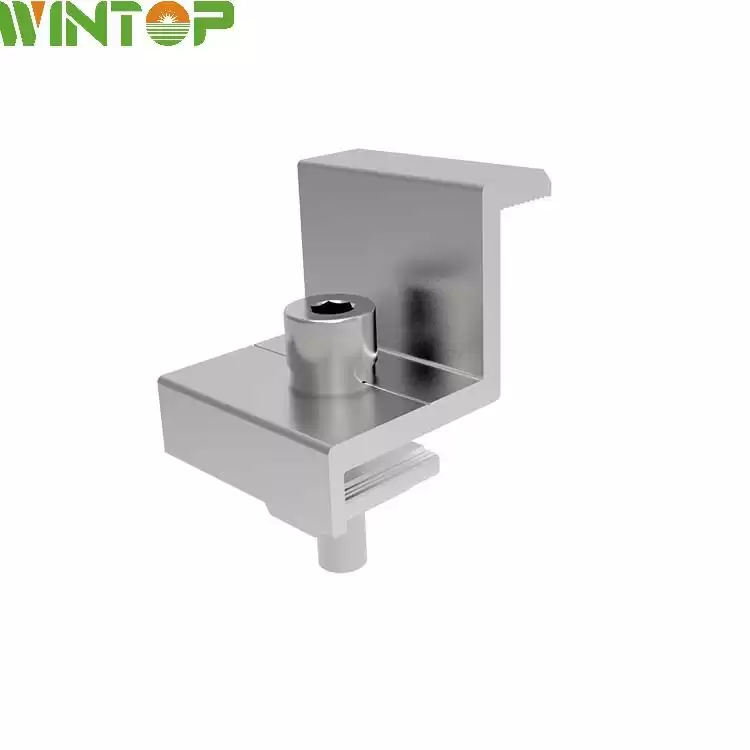

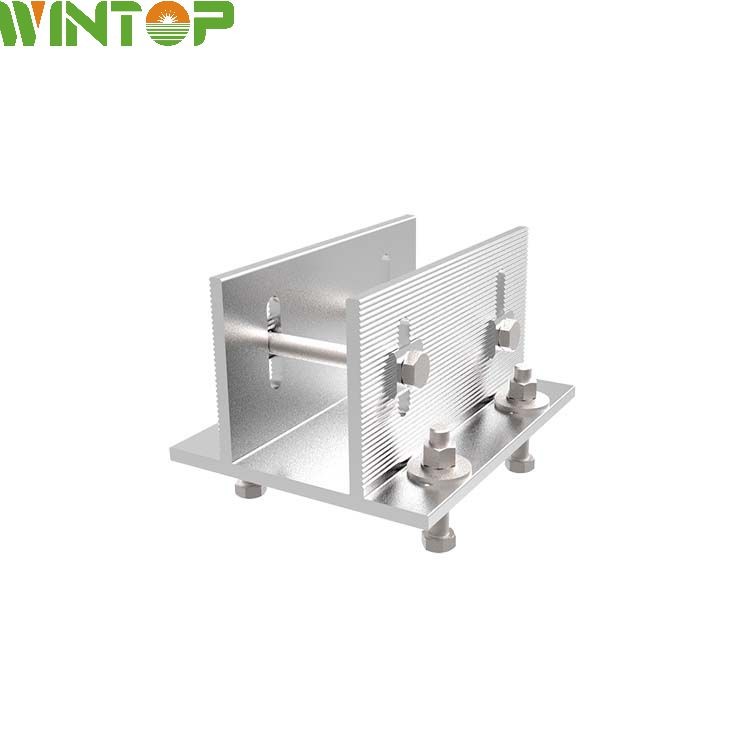

Components
Carport solar mounting bracket is built by the following components.

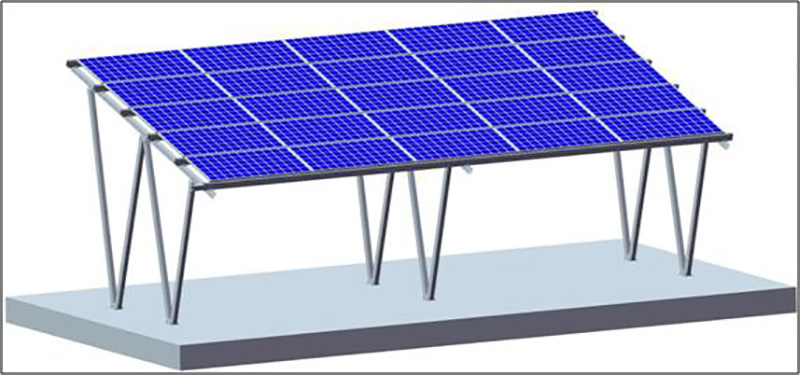

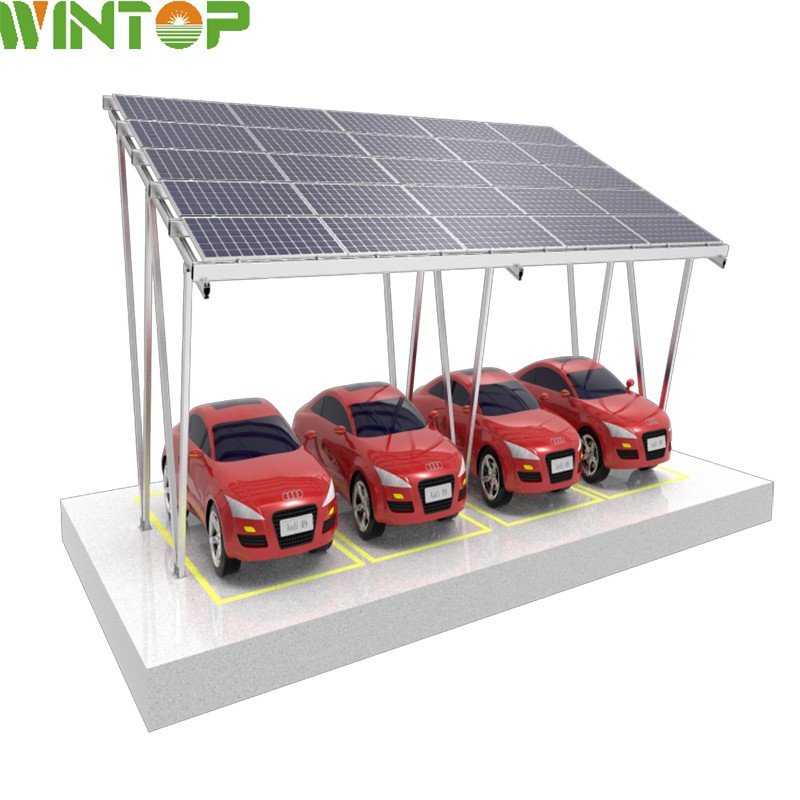

Project
Our solar carport installation system has cases in many countries, such as Japan,Korea, Mexico, Indonesia, Vietnam, Australia etc.
Certificate
Carport mounting QC
WinTop Solar brought forward the standardized and internationalized management concept at the beginning of its establishment, positively brought in and strictly applied ISO9001:2008,CP, APQP,FMEA,MSA, SPC etc international quality manage system in all phases including R&D, manufacturing, marketing and after service.We have strictly quality control 6S for all our products.
FAQ
(1) Are you a manufacturer, trading company or a third party?
We are a manufacturer, and we have built up our company since 2016.
(2) Where is your factory located?
Our factory address is : No.585, HongTang Road, TongAn District,Xiamen,City,Fujian,P.R.China.
(3) How can I get to your factory?
When you arrive in the Xiamen International Airport,then we can pick you up there,and next visit our head office and factory.
(4) If i will need to stay in your place for few days, is that possible to book the hotel for me?
It’s always my pleasure, hotel booking service is available.
(5) What is your minimum order quantity, can you send me samples?
Our minimum quantity is 1 set, and Yes it is acceptable to send you samples if you need,then you just need to pay the shipping fee of the samples.If you need,please feel free to send your inquiry to me.
