Waterproof Cross Flow Radiator Fan for Advertising Displays

The air radiator cross flow fan has an operating temp of  -10℃ ~ 70℃ super high temperature range. Aluminum construction with great waterproof function, making it ideal for most outdoor environments, and can be used for heat dissipation of display screens.




Energy Saving Customized Exhaust Cross Flow AC Motor Fan for Ventilation. The cross flow fan is made of high-quality aluminium alloy metal material, is not easy to be deformed, has excellent workmanship, durable frame and long service life.


About this item

  • Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.
  • Dimension of outer the frame is 210 mm x 190 mm x 30 mm / The size of fan in inch is 8.26 in x 7.48 in x 1.18 in; The center to center distance beween the mountiong holes is 210 ± 1 mm / 8.26 in.
  • Operating Voltage Range: AC 110/60Hz; 220/50Hz | Current: 0.10 Amp | Speed: 2500 RPM | Airflow: 24.83 CFM | Noise: 39 dBA | Pressure: 0.60 mmAq.
  • High Speed: This model is designed to maximize airflow and can be too loud for some applications.
  • Lead wire: (+): Red wire ; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing; Life: working up to 50000h at 25 degrees.
  • Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

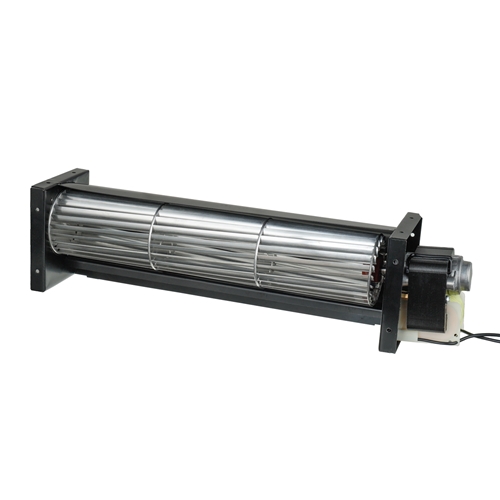

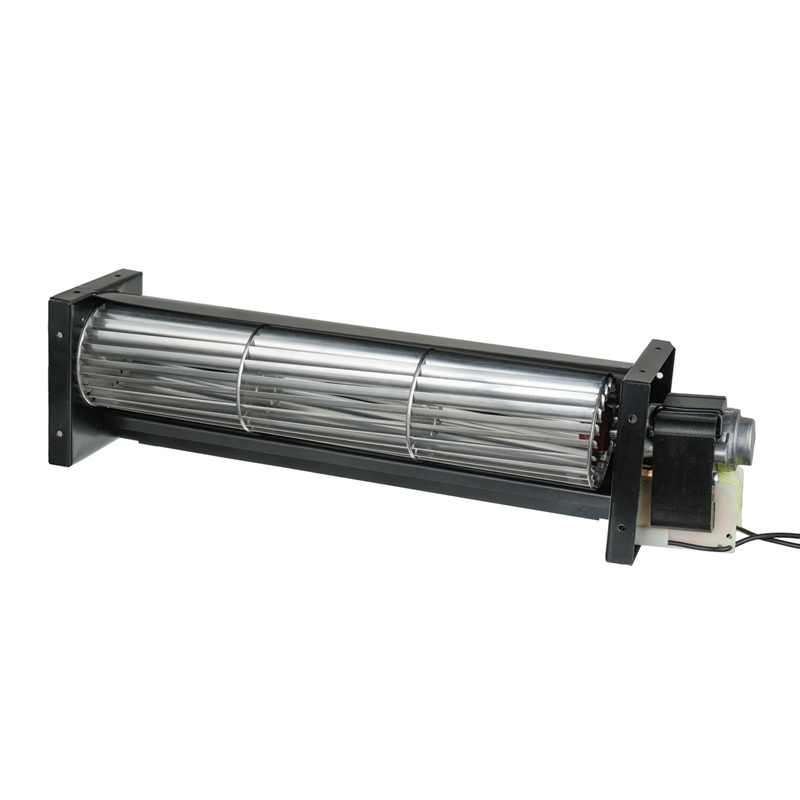

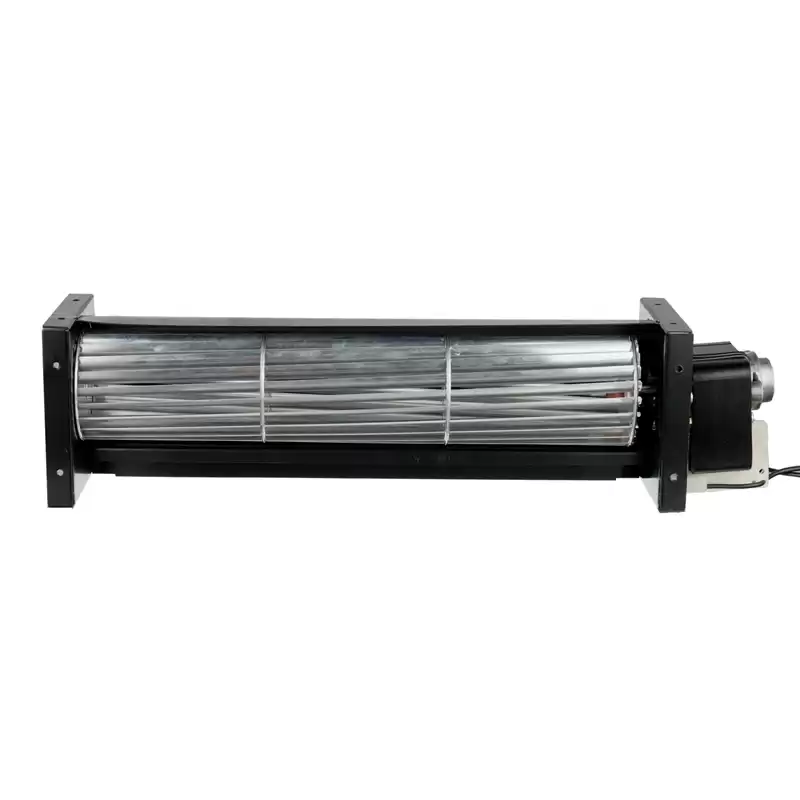

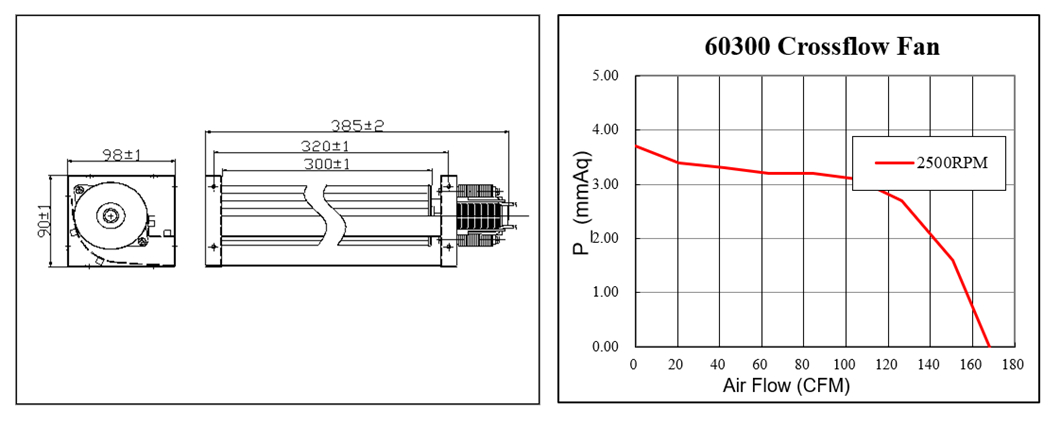

AC Cross Flow Fan 320x300x60mm

    aluminum wheels AC cross flow fan       China supplier AC cross flow fan with shaded pole motor

General Specification:
Frame: Cold Rolled Steel
Impeller: Aluminum Alloy
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing

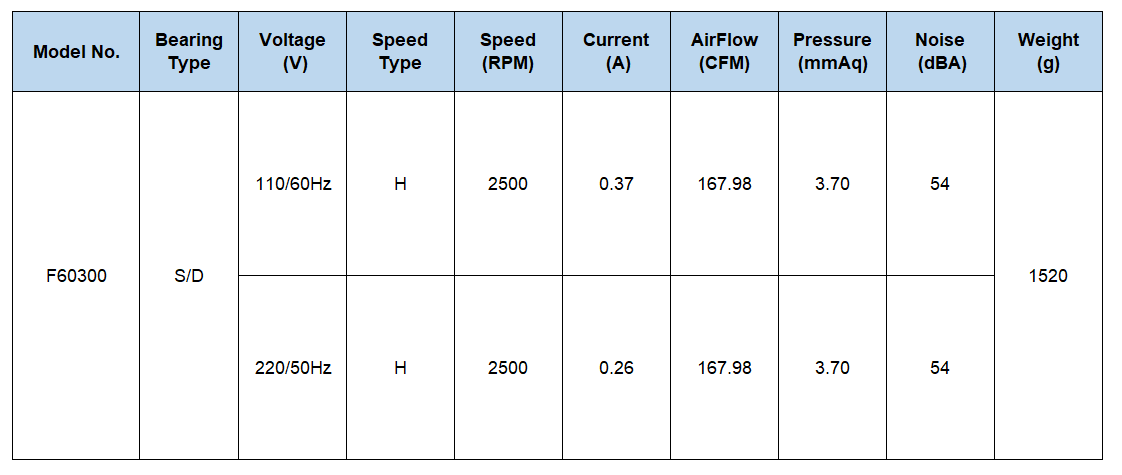

110v 220v cross flow cooling fan 2500rpm

   low noise AC cross flow fan

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.



Feature

  • Parameters can be set according to customer requirements;
  • It's designed for operating temperatures from -10°C to +70°C;
  • Impedance protection ensures safe operation at high temperatures;
  • Long life cycle, low noise, high efficiency, meet the strict test of waterproof and dustproof;
  • The fans provide two-dimensional airflow across the length of the impeller and they produce less noise.


More Models

These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.

Type Model Size Type Model Size
DC Crossflow Fan F25090 109x90x25mm AC Crossflow Fan F30190 210x190x30mm
F30090 108x90x30mm F30290 310x290x30mm
F30090(PBT) 108x90x30mm F60180 200x180x60mm
F30150 168x150x30mm F60240 260x240x60mm
F30190 210x190x30mm F60300 320x300x60mm
F30250 270x250x30mm

F30290 310x290x30mm

F40150 170x150x40mm

F40300 320x300x40mm

F50100 132x90x50mm

F50200 263x200x50mm



Application

The cross flow fans widely used for ventilation and cooling of residential, office and industrial buildings or as a replacements fans, such as Air Purifiers, Humidifier, Sports equipment, Clothes dryer, disinfection cabinet, air curtain machine, advertising display, ect.

Factory Supply Cross Flow Fan For Air Curtin

  • Custom projects related to Air Conditioners, Refrigeration and display cabinets, Dehumidifiers, Sports equipments, and many other industrials.
  • Create a good cooling and ventilation systems to keep household appliances and other electronic equipments running at the ideal temperature and at the best speed.



Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.




Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.



Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
