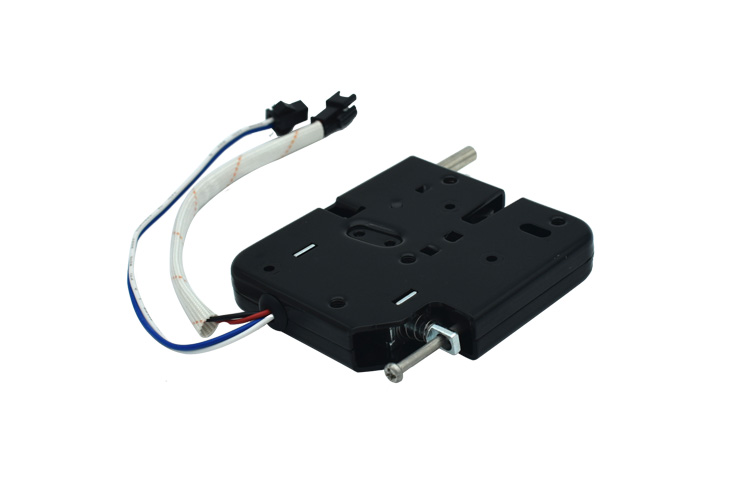

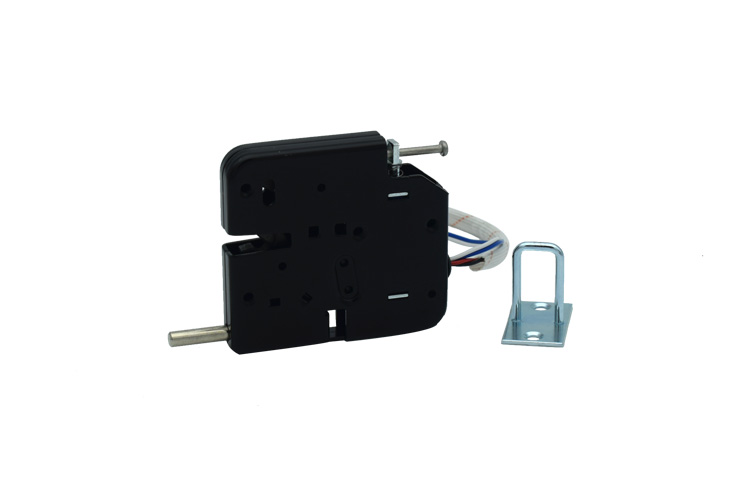

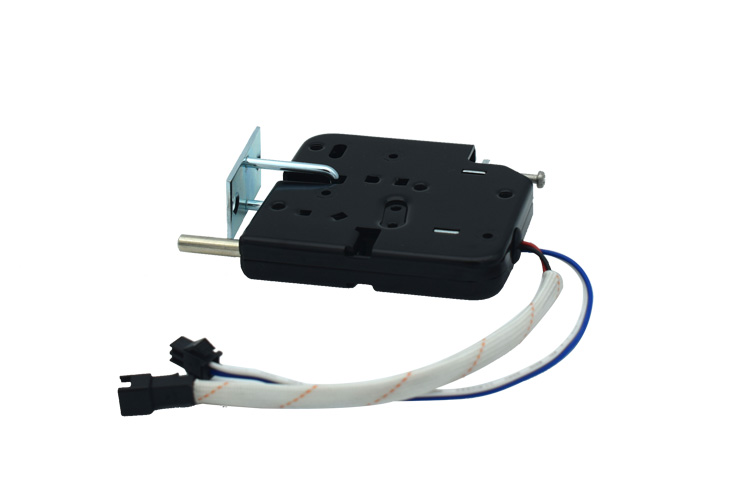

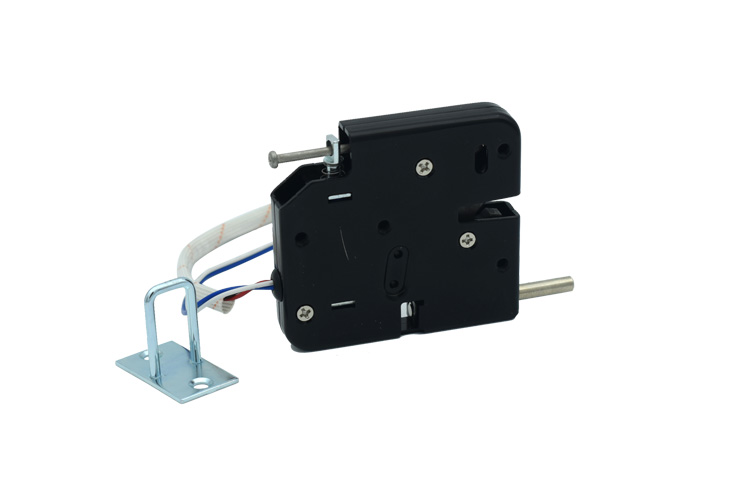

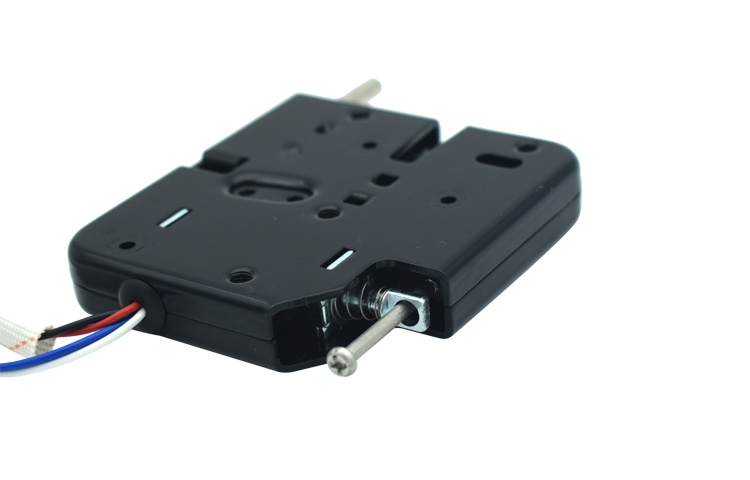

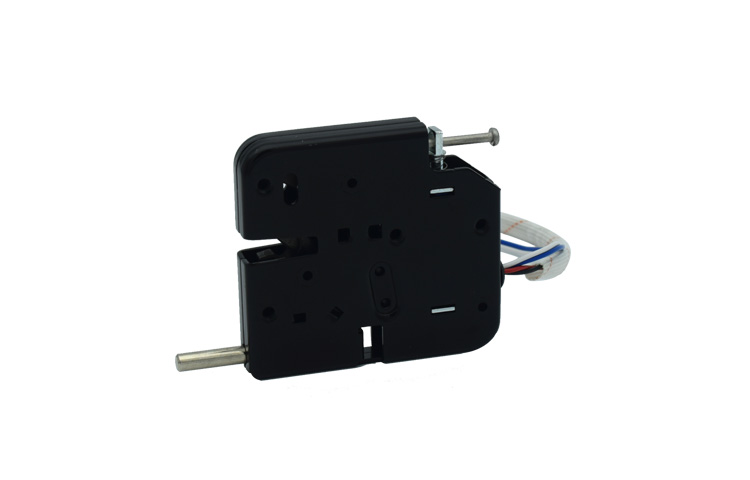

Landa solenoid lock is made of high quality pure carbon steel, electrophoretic paint surface treatment, corrosion resistance
This solenoid lock is more than 500 thousand times under rated working conditions,
the locking hook can carry 150 kg class pull without obvious deformation
Product Description
|
Brand
|
Landa
|
Model Number
|
SHL7267L-12C06
|
|
Rated Voltage (V)
|
DC 12
|
Rated Power(W)
|
24
|
|
Work Model
|
Latch
|
Force (N)
|
5-40
|
|
Stroke(mm)
|
Customized
|
Reset Time(s)
|
0.2
|
|
Service Life
|
500 Thousand Times
|
Certification
|
CE,ROHS,ISO9001,UL
|
|
Material
|
Stainless steel
|
Lead Wire Length(mm)
|
200
|
|
Install Style
|
screw
|
Tolerance of Dimension
|
gb/t1804-m
|
|
Water-proof
|
IP65
|
Insulation Class
|
B
|
|
Hi-Pot Test
|
AC 600V 50/60Hz 2s
|
Max. power-on time(s)
|
2
|
|
Working Temperature
|
-20°C-55°C
|
Duty Cycle
|
10%
|
|
Temperature Rise
|
Max. 65°C under rated voltage
|
Payment Term
|
TT,PAYPAL
|
|
Sample Order
|
Yes
|
Warranty
|
1 Year
|
|
MOQ
|
1000 pcs
|
Supply Ability
|
10000 pcs per Week
|
|
Delivery Time
|
7 Days
|
Port of Loading
|
Zhongshan
|
Features
1. Made of high quality pure carbon steel, electrophoretic paint surface treatment, corrosion resistance
2. Adjustable elasticity, suitable cabinet door, automatically popped open with power on
3. small size, regardless of the left and right, easy to install, and set aside a mechanical emergency unlocking position
Specifications Dimension: 72.7*67.2*13 (mm) Working mode: independent (power-off door locking, power-on instant trigger open lock)
Service life: more than 500 thousand times under rated working conditions,the locking hook can carry 150 kg class pull without obvious deformation
Certification: CE, ROHS, ISO9001, UL 11 years of designing and producing experience, good quality, best service, competitive price
