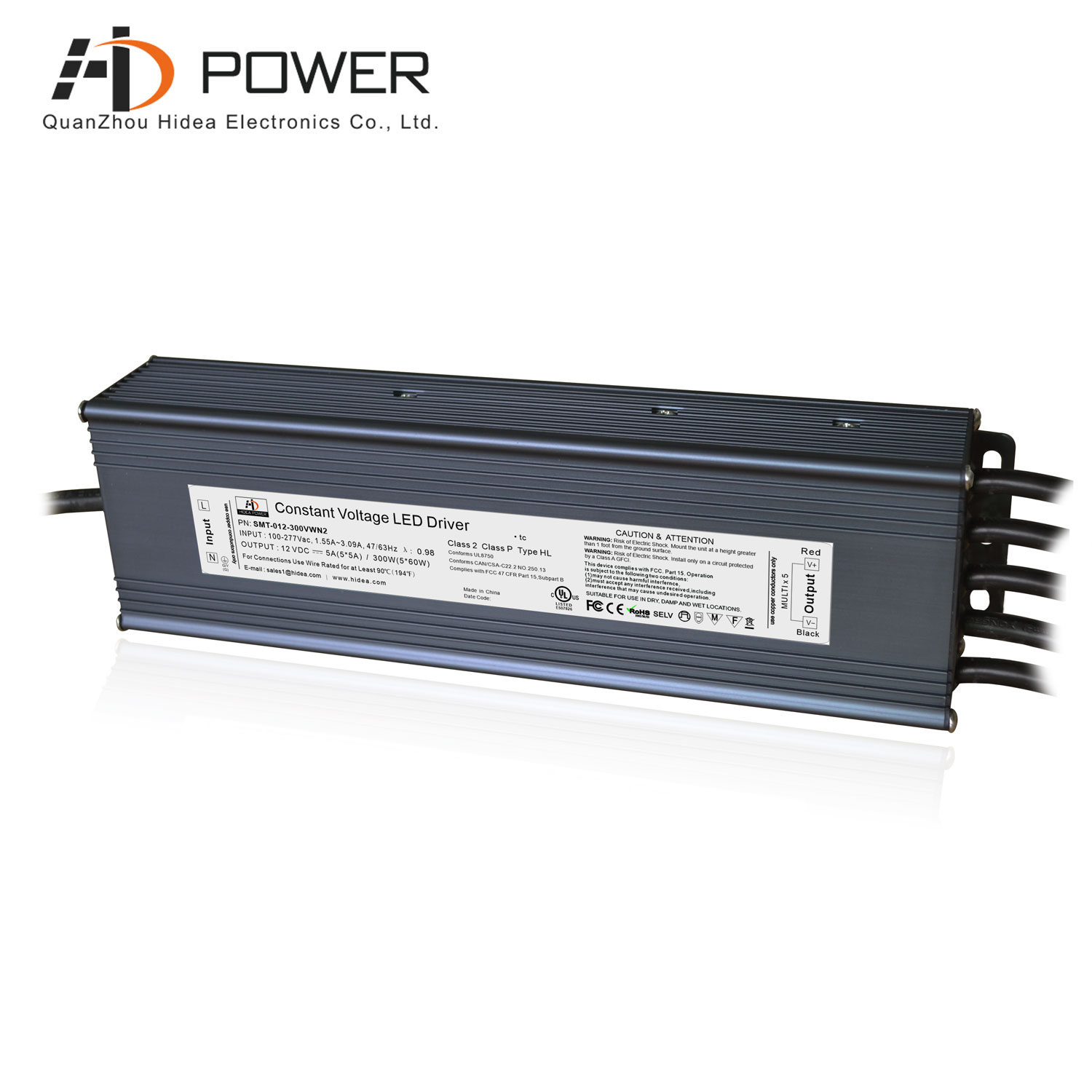

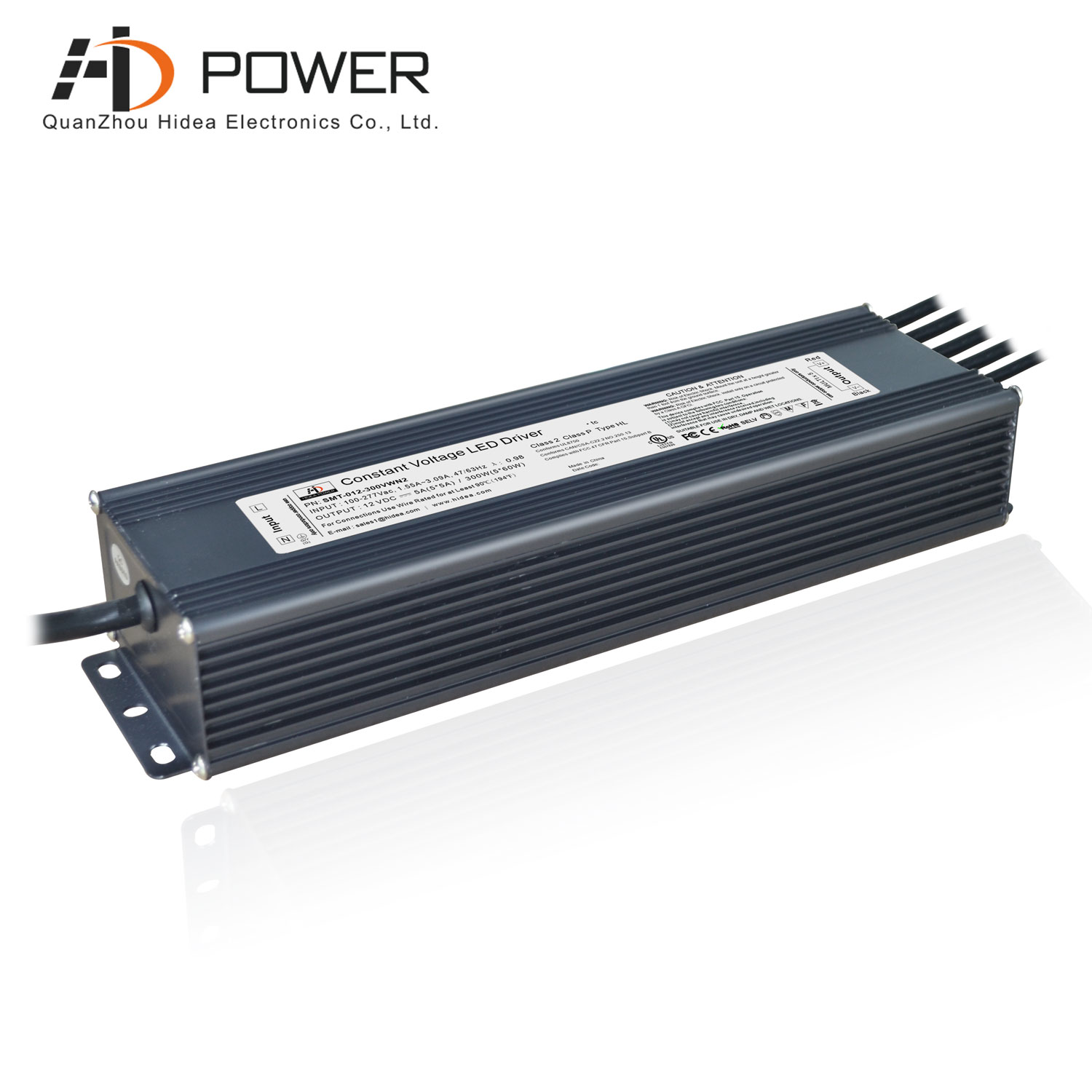

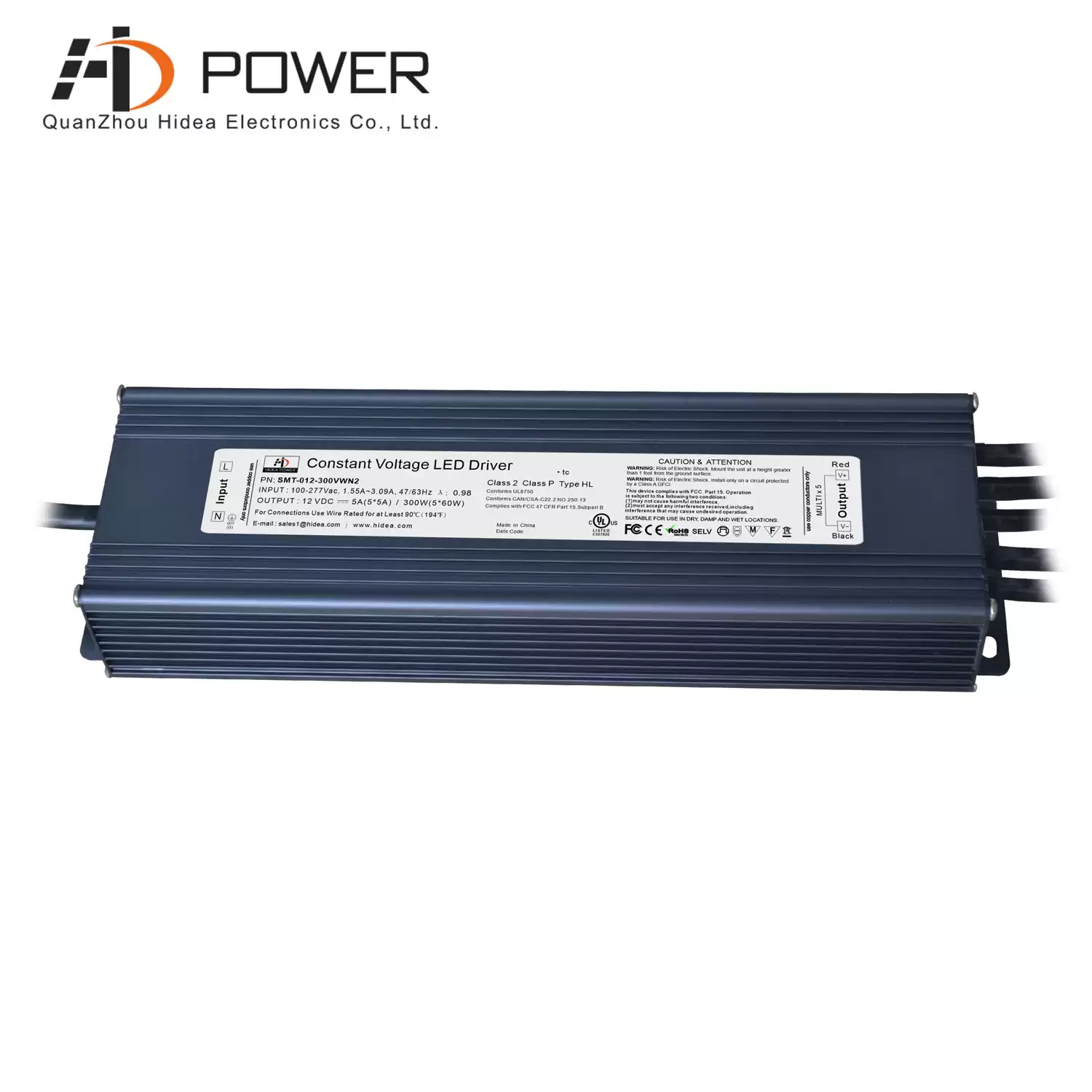

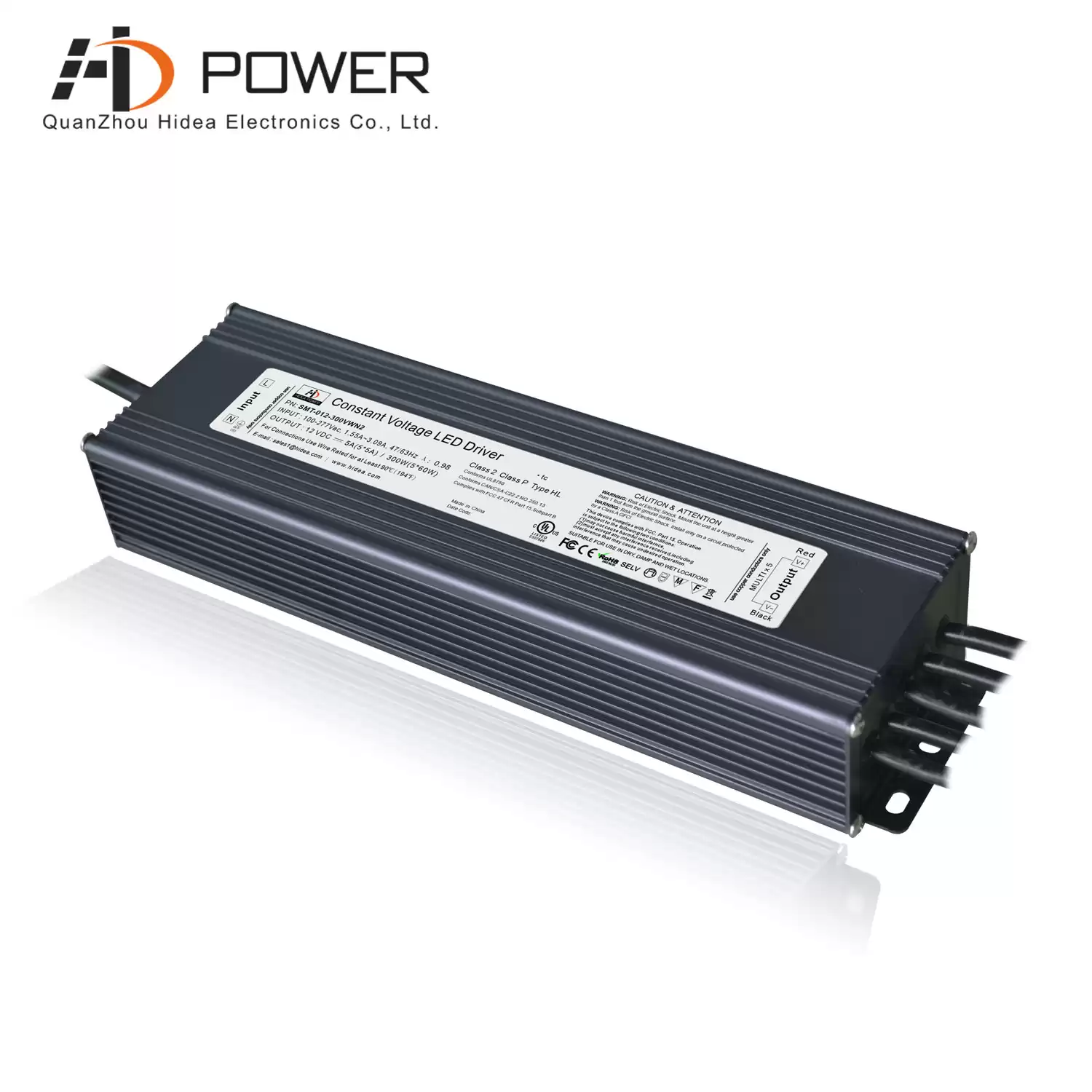

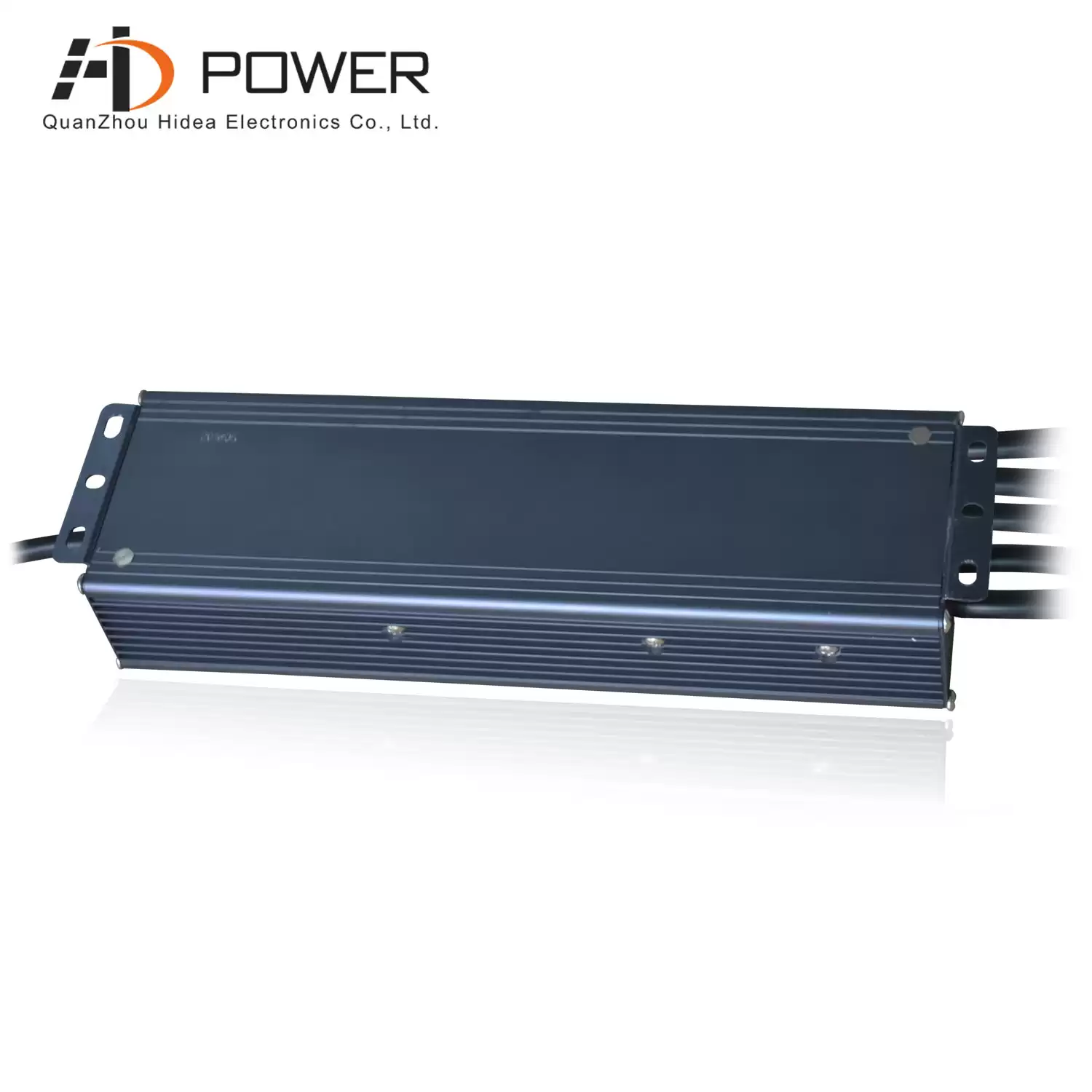

waterproof high power 300W 12vdc waterproof driver power supply LED transformer manufacturers ip67
The 300w led driver with input voltage of 100-277vac has the design of short circuit, overload and overtemperature protection. It is convenient and fast to install and conforms to the international safety lighting laws
Specification
|
Model
|
SMT-012-300VWN2
|
SMT-024-288VWN2
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Rated Current
|
5*5A
|
3*4A
|
|
Rated Power
|
300W (5*60W)
|
288W (3*96W)
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor(Typ.)@ full load
|
0.99@120VAC 0.95@277VAC
|
0.99@120VAC 0.95@277VAC
|
|
THD(Typ.)@ full load
|
<20%
|
<20%
|
|
Efficiency(Typ.)@ full load
|
88%@120V 92%@277VAC
|
86%@120V 91%@277VAC
|
|
AC Current(Max.)
|
3.4A@100VAC
|
3.6A@100VAC
|
|
Inrush Current (Typ.)
|
35A ,50%,960us @120VAC ; 43A,50%,1ms @277VAC 12.4A (twidth=430us) @277VAC
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% Hiccup mode ,recovers automatically after fault condition is removed
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC 47 CFR Part 15 ,Subpart B
|
|
Others
|
Weight
|
1.90Kg
|
|
Size
|
303*78*47mm (L*W*H)
|
|
packaging
|
10PCS/CTN 385*335*200mm 20PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
