waterproof ip67 24v dc 120w constant voltage dimmable led strip light driver power supply

120w dali & push dimmable led driver Constant voltage working mode, working efficiency up to 86%, using free air convection cooling, waterproof grade ip67, good heat dissipation, compatible with CreeLighting's 120W LED floodlight to achieve smooth flicker-free dimming


  • Size210*70*43mm
  • Shape & SizeStandard Size
  • Output Voltage12/24Vdc
  • Output Power(Watt)120W
  • Input Voltage100-265Vac
  • Working ModeConstnat Voltage LED Driver
  • Dimming ModeDALI Dimming
  • Weight1100g
  • CertificationCE
  • Warranty5 Years

waterproof ip67 24v dc 120w constant voltage dimmable led strip light driver power supply

This dali dimmable led driver has built-in active PFC function, short-circuit/overload/over-temperature protection, IP67 waterproof rating, dimming range between 0-100%, and 5-year warranty

  Specification

Model SMT-012-120VMH SMT-024-120VMH
Output DC Voltage 12V 24V
Voltage Tolerance ±0.5V
Voltage Regulation ±0.5%
Rated current 10A 5A
Rated power 120W
Load Regulation ±0.2%
Input Voltage Range 100-265VAC
Frequency Range 47 - 63Hz
Power Factor(Typ.)@ full load PF≥0.99 / 120VAC  PF≥0.98/ 230VAC  (Full loading)
THD(Typ.)@ full load <15%
Efficiency(Typ.)@ full load 86% 86%
AC Current(Max.) 1.41A 1.41A
Inrush Current (Typ.) 13.2A/120VAC  59A/230VAC
Leakage current <0.5mA
Protection Short Circuit constant current mode, recover automatically after fault condition is removed
Over Load ≤120% constant current limiting, recover automatically after fault condition is removed
Over temperature 100℃±10℃  Shut down o/p voltage, recovers automatically after temperature goes down
Protection Class
Environment Working TEMP. -40~+60℃ (see below derating curve)
Working Humidity 20 - 95%RH ,non-condensing
Storage TEM.,Humidity -40 - +80℃,10 - 95%RH
TEMP.coefficient ±0.03%/℃(0 - 50℃)
Vibration 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC Safety standards EN61347-1 EN61347-2-13 IP67
Withstand voltage I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC
Isolation resistance I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
EMC Emission EN55015   EN61000-3-2 ,EN61000-3-3
EMC Immunity EN61000-4-2,3,4,5,6 ,11,   EN61547
Others Weight 1.1Kg
Dimension 210*70*43mm(L*W*H)
packing 340*275*170mm/10pcs /CTN
Notes 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

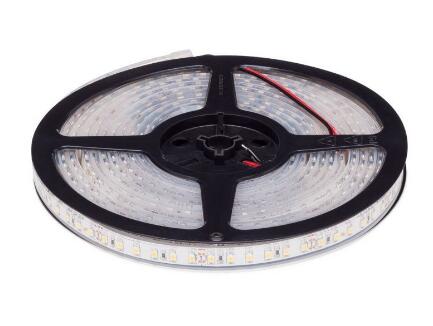

  Compatible Light Type

AspectLED's Flexible LED strip lights are a perfect solution for a wide variety of architectural and accent lighting applications through dimmable 12v transformer, including; cove lighting, under-cabinet lighting, back-lighting, pathway lighting and decorative lighting.

  Related Products

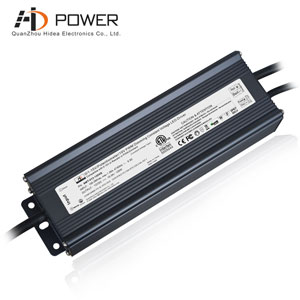

led transformer 120w 24vdc120W 0 10V dimmable led driver ip67 waterproof level, 100-277vac input voltage, constant voltage working mode, compliant with global safety lighting regulations, 3-year warranty


Mode:SMT-012-120VD

Dimming Mode : 0 10v Dimming

Output Power : 120W

intput voltage:100~277V AC

Size:230*70*46MM   (L*W*H)
