Unit No.
|
Shaft Dia
|

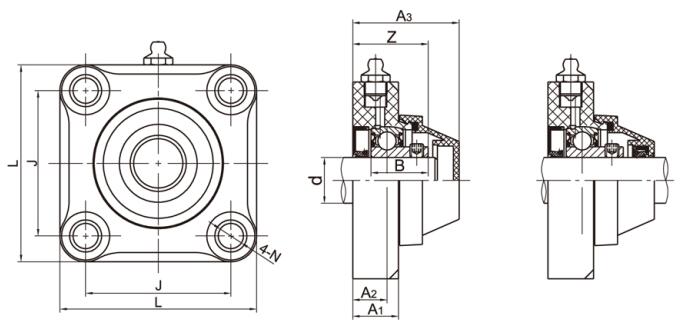

Dimensions(mm)
|
Bolt
|
Housing
|
|
d
|
H
|
J
|
A2
|
A1
|
N
|
B
|
Z
|
A3
|
size (mm)
|
Weight (kg)
|
|
(in)
|
(mm)
|
|
WP-SSBF204
|
|
20
|
86
|
63.5
|
15
|
22.5
|
11
|
25
|
36.3
|
49.5
|
M10
|
0.36
|
|
WP-SSBF204-12
|
3/4
|
|
86
|
63.5
|
15
|
22.5
|
11
|
25
|
36.3
|
49.5
|
M10
|
0.36
|
|
WP-SSBF205
|
|
25
|
98
|
70
|
16.8
|
22.5
|
11
|
27
|
36.3
|
49.5
|
M10
|
0.38
|
|
WP-SSBF205-14
|
7/8
|
|
98
|
70
|
16.8
|
22.5
|
11
|
27
|
36.3
|
49.5
|
M10
|
0.38
|
|
WP-SSBF205-15
|
15/16
|
|
98
|
70
|
16.8
|
22.5
|
11
|
27
|
36.3
|
49.5
|
M10
|
0.38
|
|
WP-SSBF205-16
|
1
|
|
98
|
70
|
16.8
|
22.5
|
11
|
27
|
36.3
|
49.5
|
M10
|
0.38
|
|
WP-SSBF206
|
|
30
|
110
|
83
|
20
|
26
|
11
|
30
|
41
|
55
|
M10
|
0.56
|
|
WP-SSBF206-17
|
1-1/16
|
|
110
|
83
|
20
|
26
|
11
|
30
|
41
|
55
|
M10
|
0.56
|
|
WP-SSBF206-18
|
1-1/8
|
|
110
|
83
|
20
|
26
|
11
|
30
|
41
|
55
|
M10
|
0.56
|
|
WP-SSBF206-19
|
1-3/16
|
|
110
|
83
|
20
|
26
|
11
|
30
|
41
|
55
|
M10
|
0.56
|
|
WP-SSBF206-20
|
1-1/4
|
|
110
|
83
|
20
|
26
|
11
|
30
|
41
|
55
|
M10
|
0.56
|
|
WP-SSBF207
|
|
35
|
120
|
92
|
19.5
|
26
|
11
|
32
|
45
|
59
|
M10
|
0.77
|
|
WP-SSBF207-20
|
1-1/4
|
|
120
|
92
|
19.5
|
26
|
11
|
32
|
45
|
59
|
M10
|
0.77
|
|
WP-SSBF207-21
|
1-15/16
|
|
120
|
92
|
19.5
|
26
|
11
|
32
|
45
|
59
|
M10
|
0.77
|
|
WP-SSBF207-22
|
1-5/8
|
|
120
|
92
|
19.5
|
26
|
11
|
32
|
45
|
59
|
M10
|
0.77
|
|
WP-SSBF207-23
|
1-7/16
|
|
120
|
92
|
19.5
|
26
|
11
|
32
|
45
|
59
|
M10
|
0.77
|
|
WP-SSBF208
|
|
40
|
131
|
102
|
22
|
30
|
11
|
34
|
47.5
|
65.5
|
M10
|
0.99
|
|
WP-SSBF208-24
|
1-1/2
|
|
131
|
102
|
22
|
30
|
11
|
34
|
47.5
|
65.5
|
M10
|
0.99
|
|
WP-SSBF208-25
|
1-9/16
|
|
131
|
102
|
22
|
30
|
11
|
34
|
47.5
|
65.5
|
M10
|
0.99
|
Notes: Anti_Bacteria Protection Series ia available by adding prefix "AB" as designation.Ordering example: ABWP-SSBF204.
