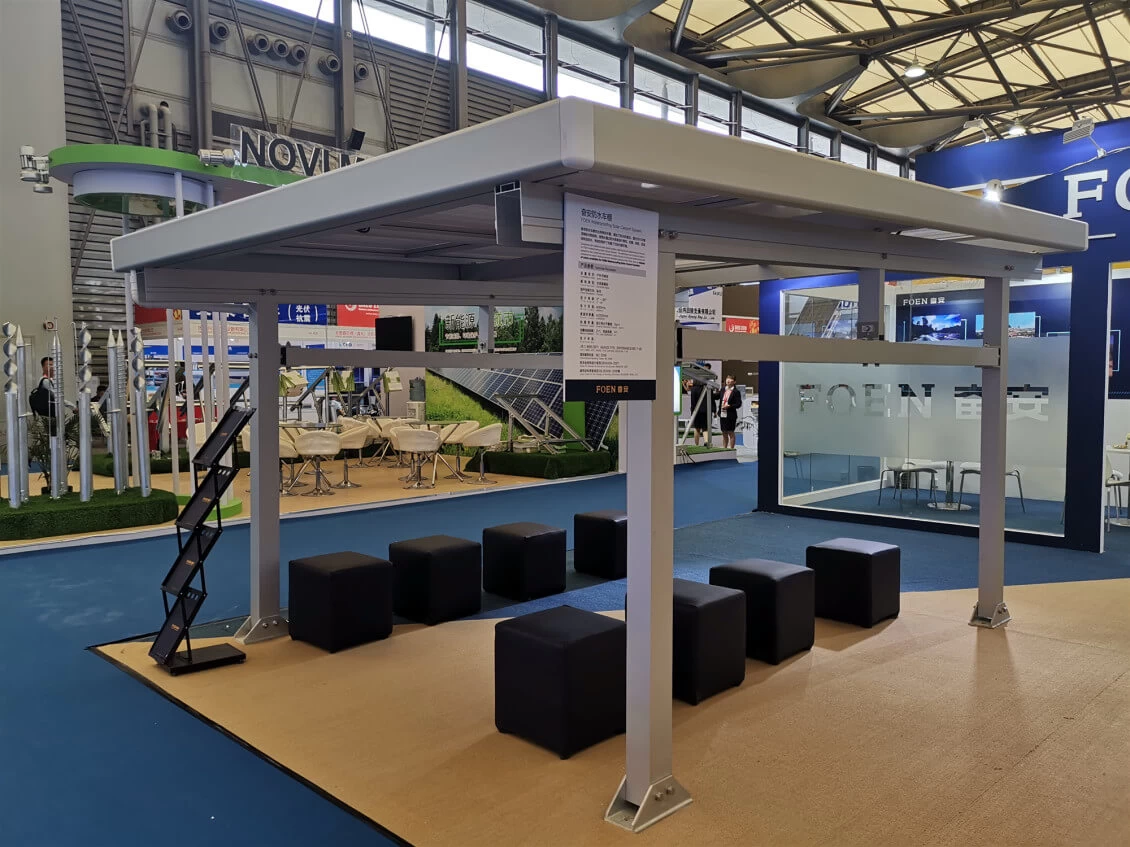

Waterproofing Carport Solution for PV Solar Panels

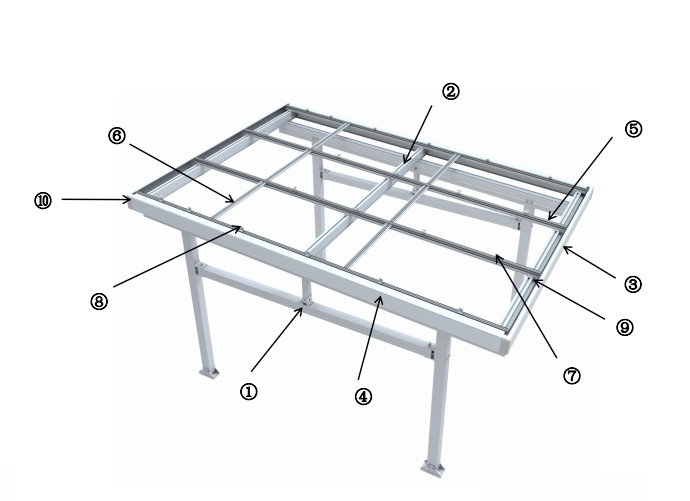

Compared with traditional carport, The optimized inner structure on FOEN waterproofing carport top make it possible to lead, collect and emit rainfall with waterproofing system, reaching structural waterproofing and protecting the carport inside effectively. In additional, the non-penetrating joint of water chute can be loaded and disassembled repeatedly, thus reducing on-site workload significantly.

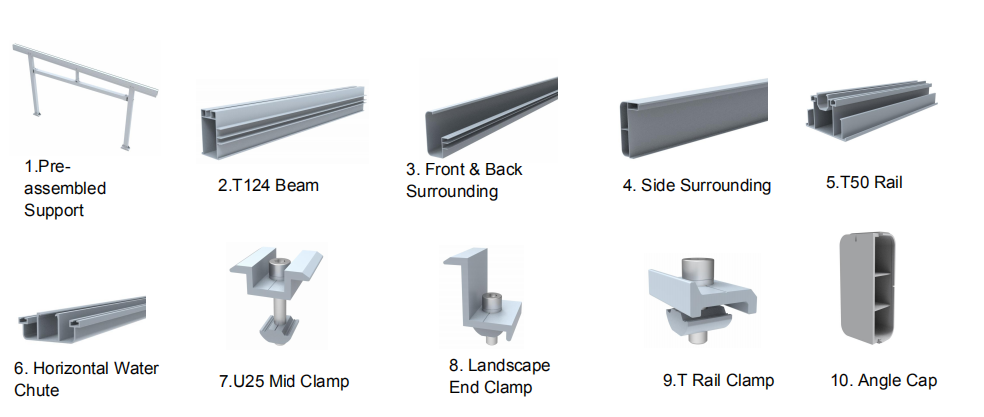

Material
|
AL 6005-T5/SUS304/Q235B
|
Surface Treatment
|
Average Anodizing Coating Thickness≥ 12μm Average
Hot-galvanized Coating Thickness≥ 65μm
|
|
Panel Type
|
Framed & Frameless
|
Wind Load
|
≤60m/s
|
Snow Load
|
1.4KN/m2
|
Panel Orientation
|
Landscape/Portrait
|
Tilt Angle
|
0°~20°
|
Seismic Load
|
Lateral seismic factor: Kp=1; seismic coefficient: Z=1; Use coefficient: I=1
|
Standards
|
JIS C 8955 : 2017
AS/NZS 1170
DIN1055
ASCE/SEI 7-05
International Building Code: IBC 2009
|
Warranty
|
15years quality warranty, 25years life span warranty
|

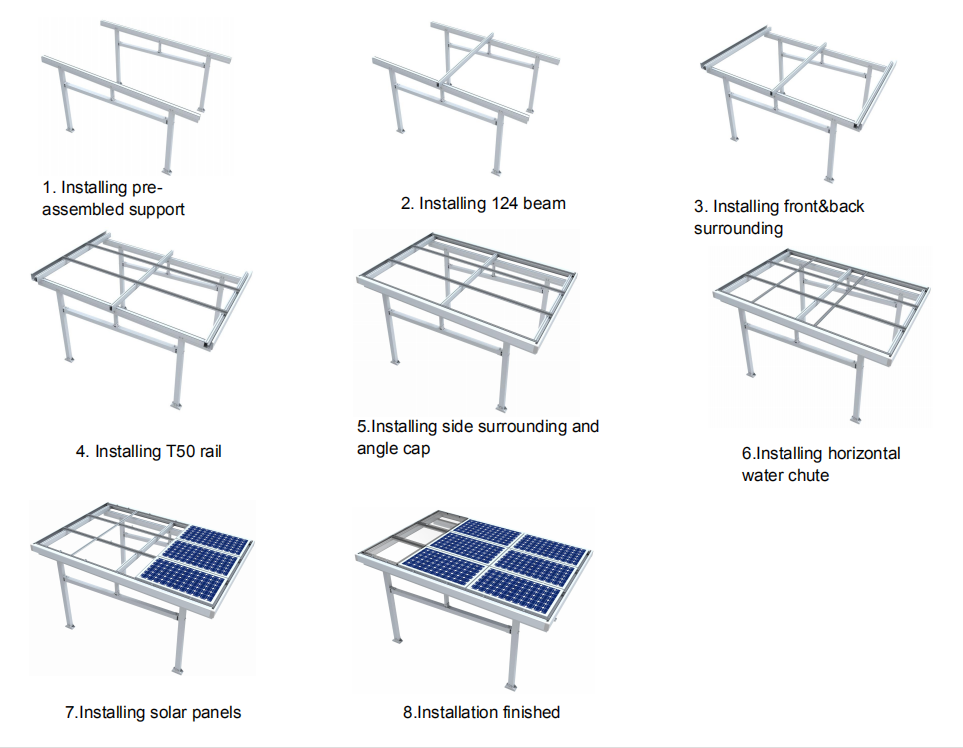

Highly pre-assembled before shipment, save your onsite labor cost
Serving as a charging station for electrical vehicle while develop a renewable energy for the installers.
Reserve enough sunshine(shading rate:30%-40%) to keep the normal grouth of plants.
Check and test Structure strictly for the use in extreme weather and geographical conditions.
15 years' warranty, 25 years' life span
