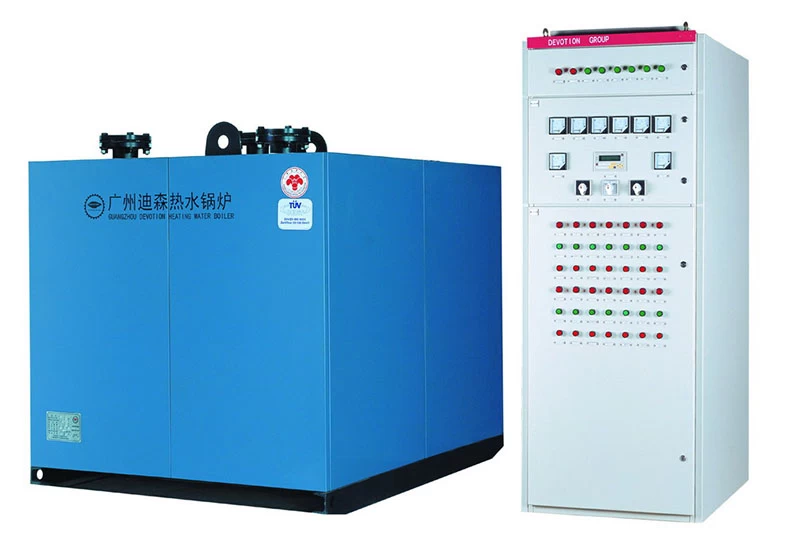

WDR Series Direct-heated Electric Hot Water Boilers

WDR Series Direct-heated Electric Hot Water Boiler capacity of 35kw -2785Kw.



Proposa of CWDR series direct electric hot water boiler

  • The product is mainly used for heating radiators, especially suitable for residential communities, hospitals, schools, banks and other units
  • For external water-water heat exchangers, it can be used as a heat source device for water, providing heating and hot water and 24 hours of continuous supply of domestic hot water.
  • The product cannot be used to directly supply domestic hot water, nor can it be used for boiling water


CWDR series direct electric hot water boiler Features:

The product has the advantages of no noise, no pollution, easy installation and use. The power grid can be used to perform hotspot exchanges to achieve capacity reserve. Provides a setting that can adjust the wind for the power sector, especially for areas where the pictorial and firefighting requirements are required and in areas that are prosperous. With a thermal efficiency of over 99%, the following key technologies are used:

Electric heat pipe arrangement and connection mechanism (patented technology): The reasonable arrangement of the electric heating pipe of the unit is made to facilitate replacement and maintenance.2. PLC control technology: realize that the unit has no automatic unattended, electric heating pipe grading starting and stopping to ensure the safe operation of the electric boiler, with over-temperature, overload, short circuit, leakage, lack of water, lack of equal safety protection measures.

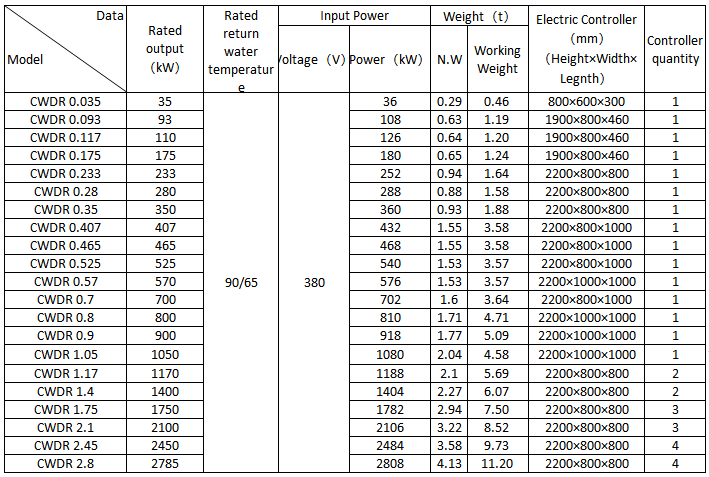

CWDR series direct electric hot water boiler Tech data

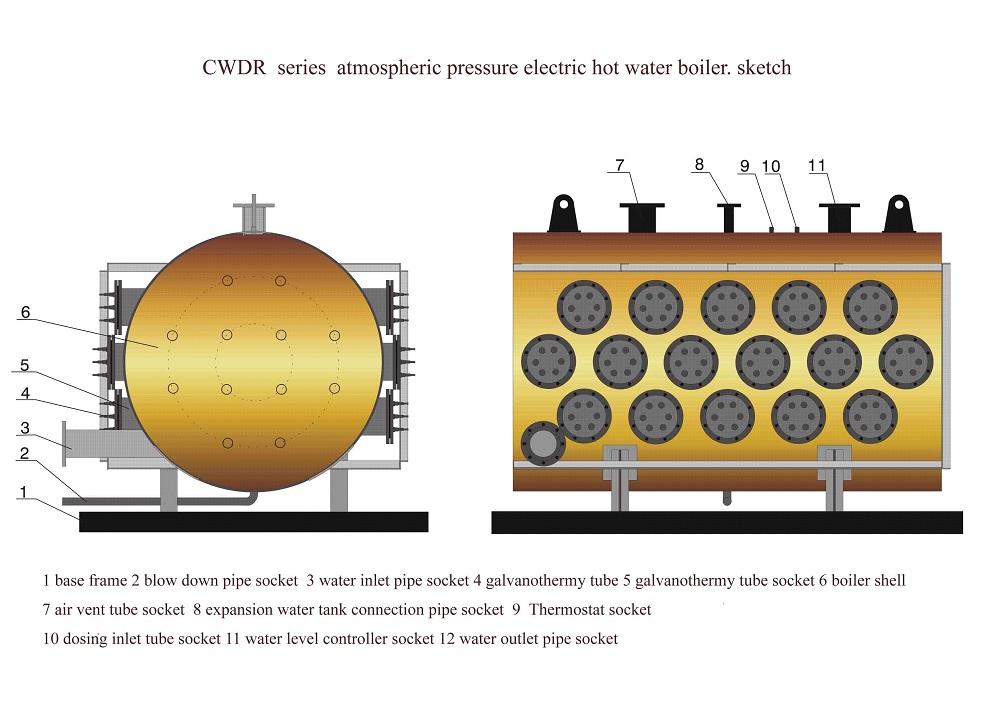

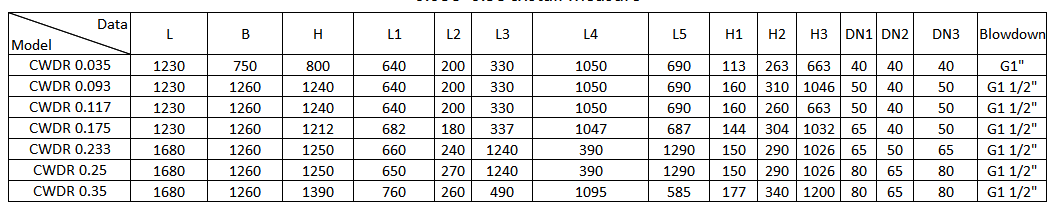

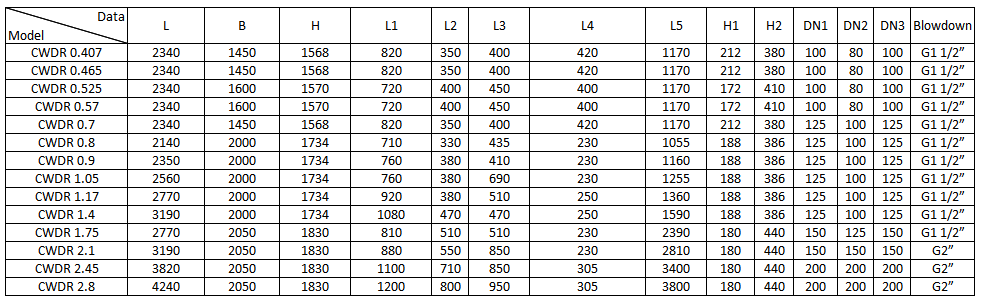

Dimension of CWDR series direct electric hot water boiler
