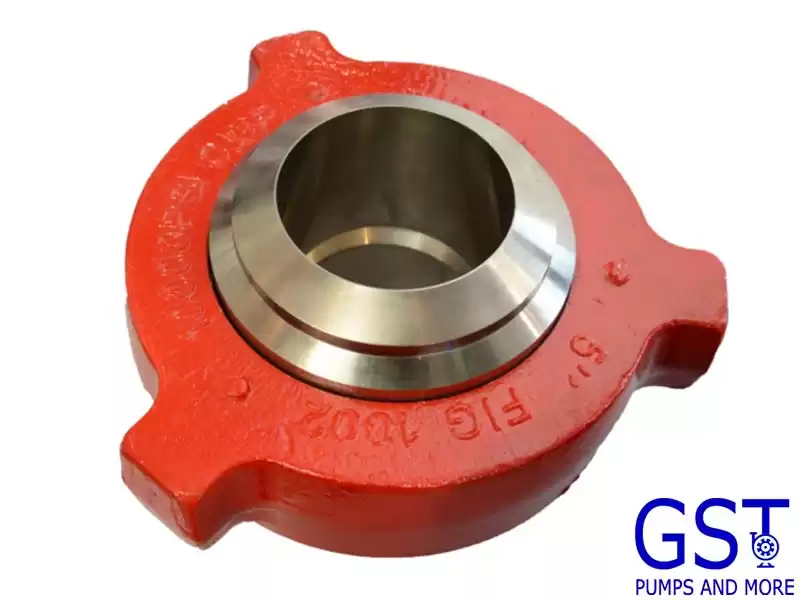

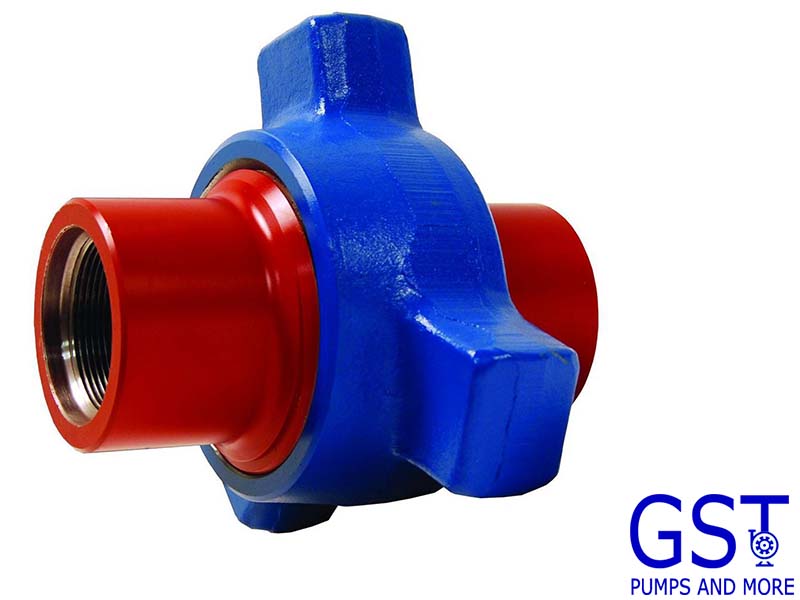

Description
High pressure hammer union is used in cementing trucks, fracturing trucks, various manifolds, pipelines and other high-pressure equipment, and is the commonly used pipe connectors for transporting oil, water, fracturing fluid and mixed liquid. This product is made of high-quality alloy steel, with good mechanical properties, sealing performance and different pressure ratings.

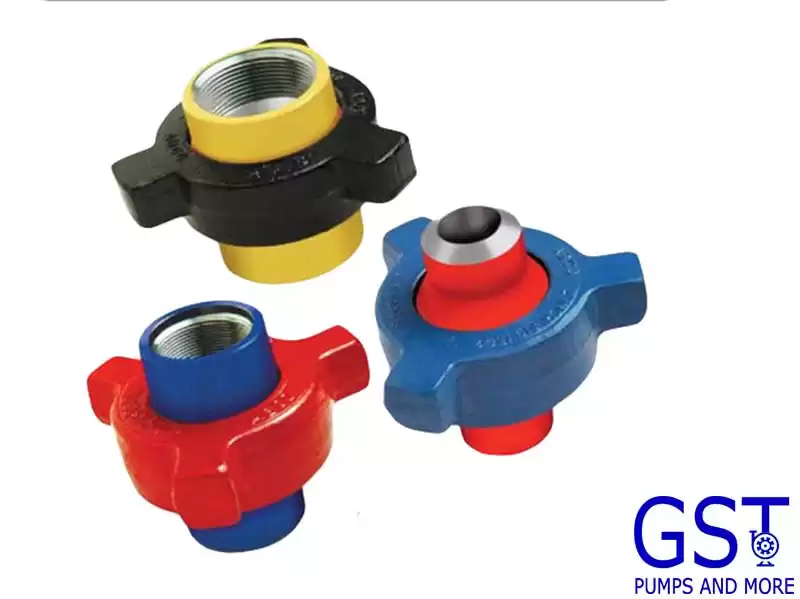

The pressure ratings is from 1,000 psi (7MPa) to 20,000 psi (140MPa), the available FIG model. is FIG100, FIG200, FIG206, FIG400, FIG602, FIG1002, FIG1003, FIG1502, FIG2002, FIG2202 series, and the end connection are available with threaded type, butt welded type, source gas types. For easy identification, the hammer union of different pressure ratings are color-coded and have obvious specification connection forms and pressure rating marks on the wing nuts.

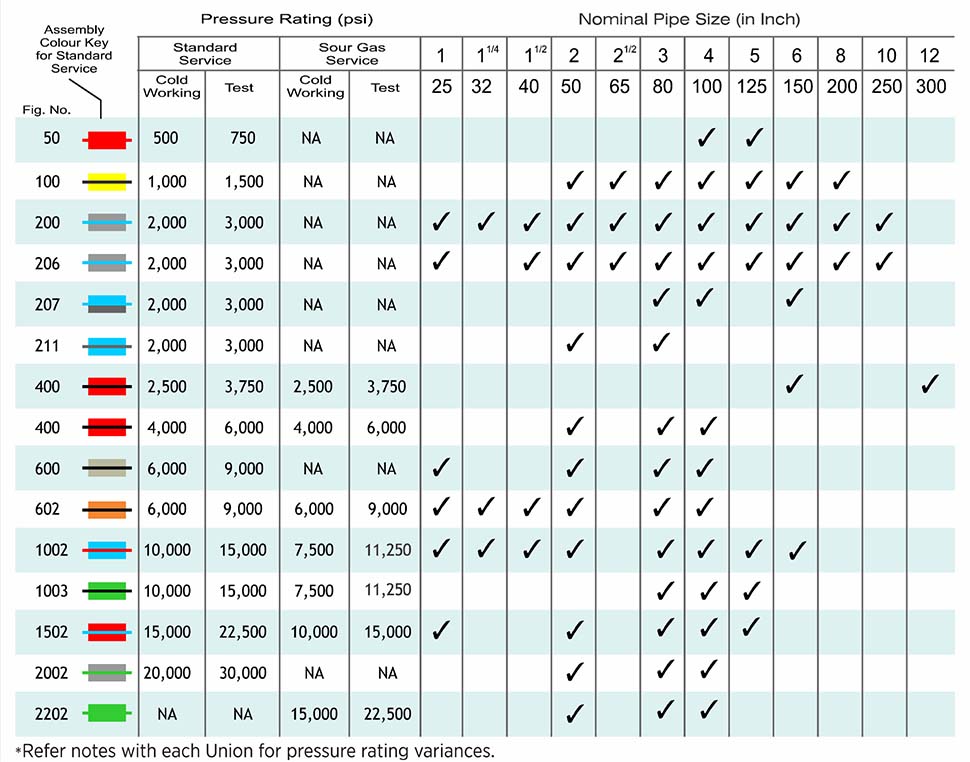

Specifications
Features
- Precisely machining surface to ensure excellent strength and high pressure containing capability.
- Excellent sealing performance by precise LP and NPT thread.
- Seal ring made of imported rubbers, extended service life.
- Four source service unions, strictly complaint with NACE MR0175 standards.
- ACME thread on connections, easy make up and break out without special tools.
Packaging & Shipment
Packaging type: Export Plywood Box
Exporting port: Tianjin, Shanghai
FAQ
1. Who are you?
Tianjin Geostar Petroleum Equipment Co., Ltd. are integrated oilfield pump solution provider. We produce GST brand centrifugal pump and supply RG brand F series drilling mud pump, parts, plunger pump etc.
2. Why should we buy from you?
a. Competitive price
b. Quick delivery
c. Worry free after-sales service. Refund or sending new goods if quality issues can't be resolved by after-sales service.
3. Is after-sale service available to your products?
Yes, we have professional after-sale service team which will offer you the site commissioning service. Engineers are available to be abroad for service.
4. What is your warranty policy?
We offer 12 months limited warranty for complete set of equipment or machinery.
5. What is the delivery time for your product?
Generally, ready stock for commonly used parts, mud pump unit and complete equipment depends upon technical configuration.
