Well Air Recovery Compressor

After buffer, pressure regulation and settlement separation, most of the water, gas, light hydrocarbon and solid impurities are initially separated, and the subsequent treatment process is determined according to the composition and quality of the gas.



The product descriptio

Products according to customer requirements (flow purity pressure, use environment, main purpose and customer special requirements), to provide independent solutions, from design to customized products for customers.Equipment indicators advanced, safe and reliable, automatic control and other characteristics.

Product parameters


Well recovery compressor


The serial number

Model


Displacement(Nm3/h)

Operating pressure(Mpa)

Exhaust pressure(Mpa)

Electric power(kw)

Overall dimension(mm)

1

ZW-0.38/ 0.2-20

22

0.02

2

7.5

1500*1100*1300

2

ZW-0.4 /(1-2)-15

50

0.1-0.2

1.5

7.5

1500*1100*1300

3

ZW-0.33/2-25

50

0.2

2.5

11

1500*1100*1300

4

ZW-0.64/(1-2)-20

80

0.1-0.2

2

15

1500*1200*1300

5

ZW-0.54 /2-25

83

0.2

2.5

15

1500*1200*1300

6

ZW-0.8/1-20

80

0.1

2

15

1600*1200*1300

7

ZW-0.8/(1-1.5)-20

90

0.1-0.15

2

18.5

1700*1200*1300

8

ZW-1.5/(0.05-0.1)-25

85

0.005-0.01

2.5

18.5

1700*1200*1300

9

ZW-0.25/(4-10)-200

100

0.4-1.0

20

30

2500*1800*1600

10

ZW-1.34/ (1-3)-25

204

0.1-0.3

2.5

37

2000*1600*1200

11

DW-0.86/(5-20)-30

600

0.5-2

3

37

2000*1600*1200

12

DW-3.3/(0.05-0.1)-25

180

0.005-0.01

2.5

37

2000*1600*1200

13

DW-2.05/(5-9)-20

625

0.5-0.9

2

55

2200*1600*1200

14

VW-4.0/(1-3)-25

600

0.1-0.3

2.5

90

2400*1800*1500

15

VW-5.0/(1-3)-25

720

0.1-0.3

2.5

110

3400*2200*1300

16

DW-6.0/(1-3)-25

840

0.1-0.3

2.5

132

4200*2200*1500

17

VW-6.7/2-25

1020

0.2

2.5

160

4500*2800*1500

18

DW-7.7/(1-3)-25

1200

0.1-0.3

2.5

160

4500*2800*1500

19

DW-3.7/10-(36-38)

2100

1

3.6-3.8

160

4500*2800*1500

20

DW-6.71 /5-30

2040

0.5

3

200

5500*3000*1600

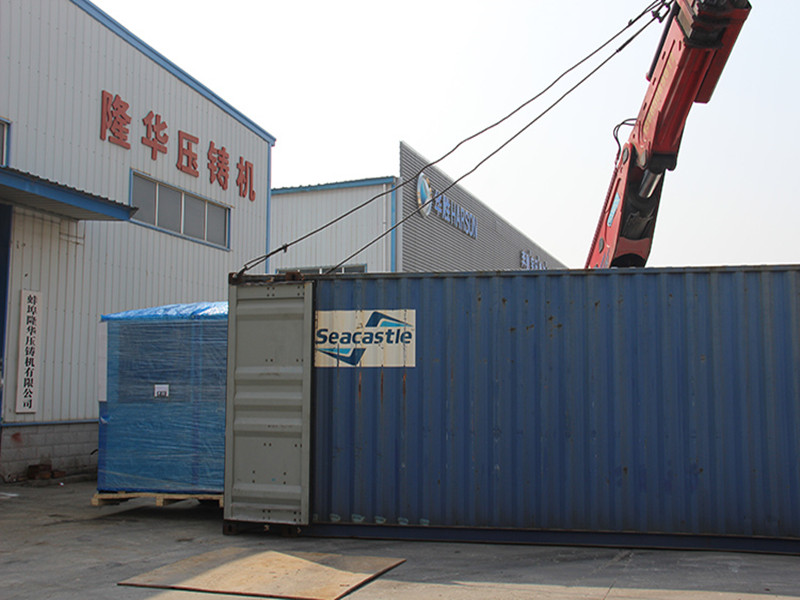

Packaging

packaging Details


1.  Strong plywood case with steel frame
2. Standard export wooden case for the plate fin heat exchanger for alta copco with foam.
3. With Nitrogen inside for protection and wooden box or film packing depends on the heat


  exchanger. Delvier requirement:40HQ or 40 FR.

4. According to customers' requirements.

5. Transport Package:Common Packing

6. Simple Package for Container Transportation



After-sales service

1. Provide free technical services and provide free training for technical, maintenance and operation personnel of the demander.

2. The warranty period of the equipment is 12 months from the date of production.In the event of any malfunction (except the quality accident caused by improper operation and use of the user), the company shall be responsible for timely repair or replacement of the main parts damaged by the compressor free of charge.During the "three guarantees" service period, all the problems caused by the manufacturing quality of the products will be repaired by our company free of charge.

3. The company's technicians are responsible for guiding the installation of compressor and other equipment, and debugging the equipment provided by the company free of charge until the equipment is put into normal operation.
