| Manufacturer：WESTINGHOUSE |
Product Package：Original Package
|
Dimensions: 33.5 cm x 21 cm x 2 cm
|
Weight: 0.28KG
|
|
Product Description：Low Power I/O Expansion Board
|
|
A6824： ModBus and Rack Interface Module for use with IMR 6000/10, IMR 6000/20 and IMR 6000/30
|
|

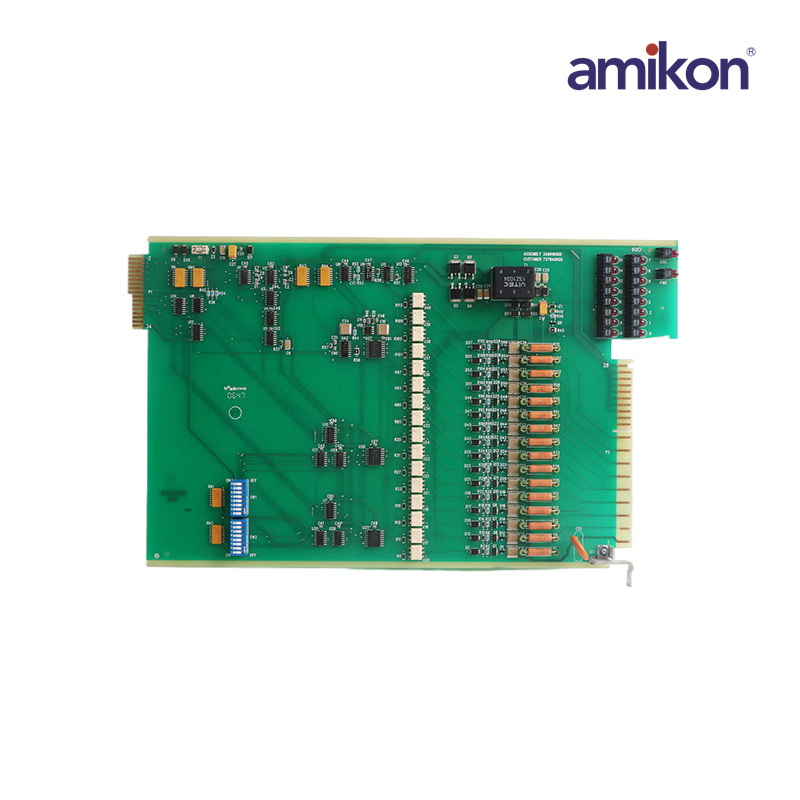

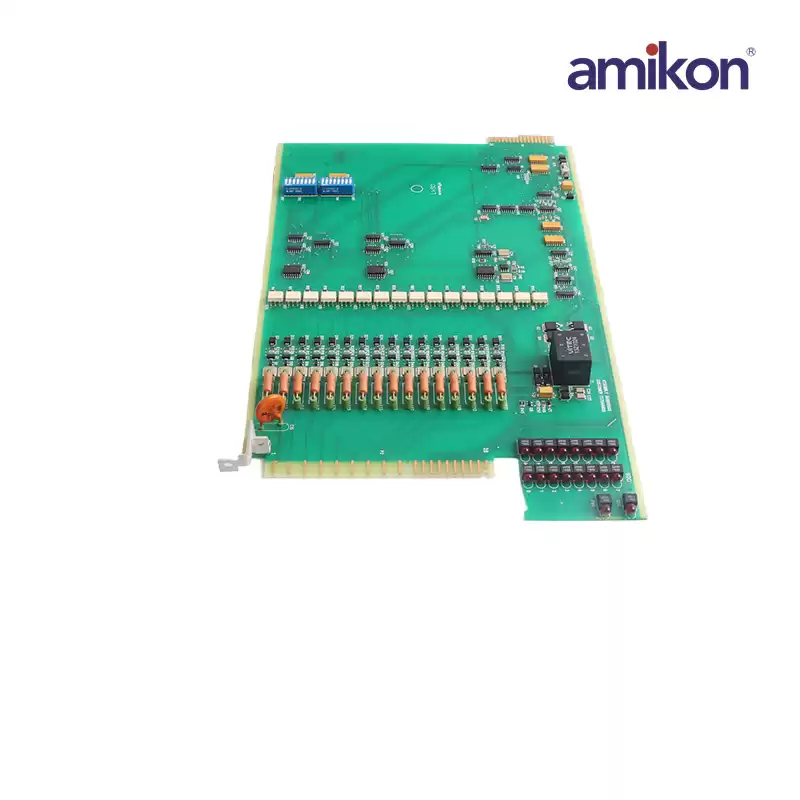

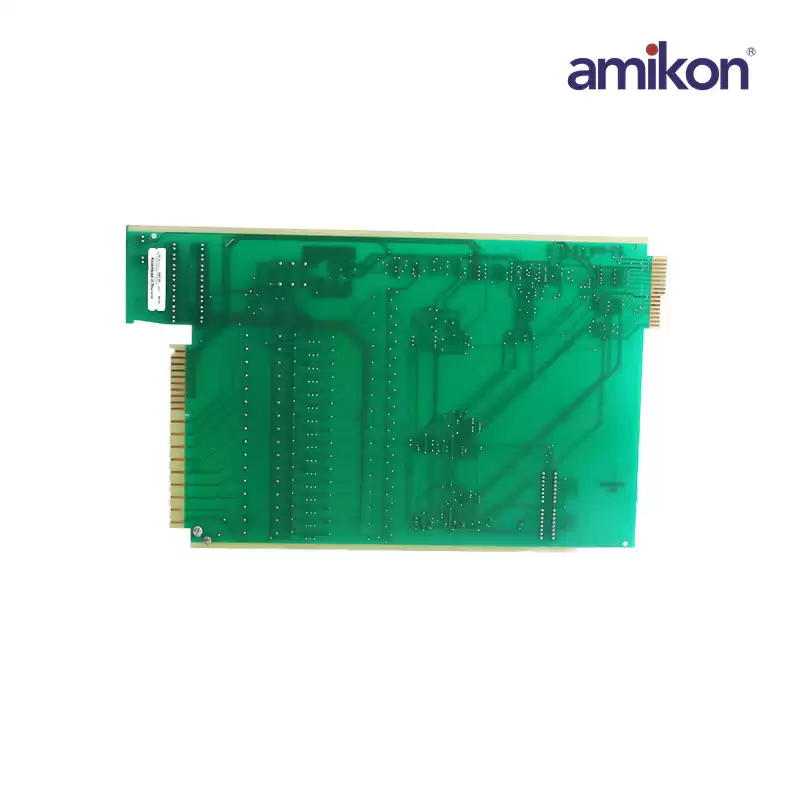

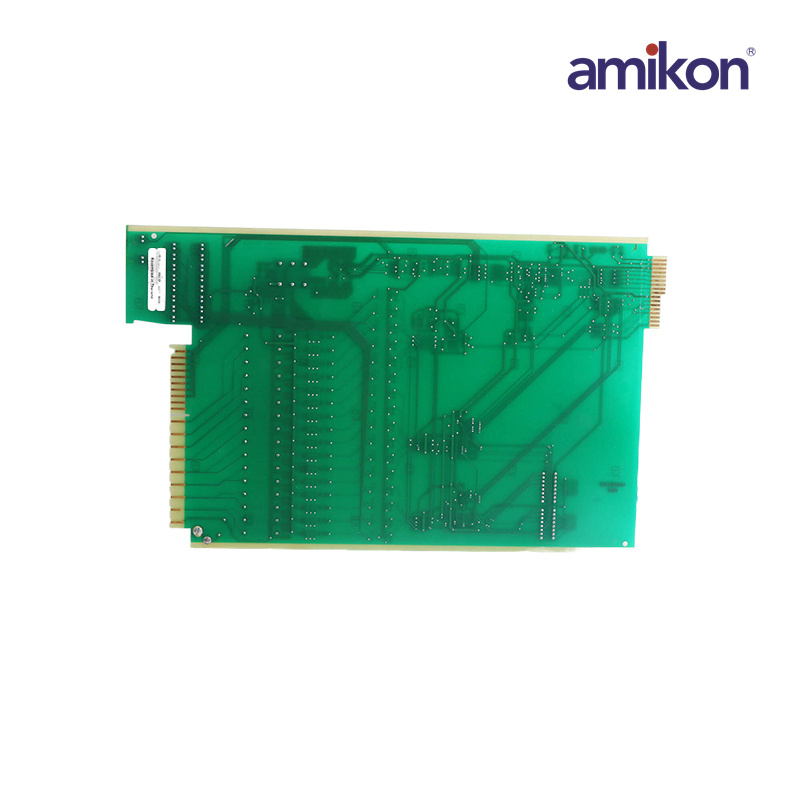

WESTINGHOUSE 7379A06G02
|
The Low Power I/O Expansion Board (LPI/OEB) measures approximately 4” by 7.25” and mounts piggy-back on either the TeleFlow or TeleRTU CPU Board. Removable card-edge connectors are provided to accommodate field wiring.
A 1.25” by 1.2” cutout area is incorporated into the board’s design to accommodate mounting of the Multivariable Transducer’s Wet End Connector and Balance Board onto the TeleFlow CPU Board. The LPI/OEB operates in conjunction with Revision 3 and higher TeleFlow CPU Boards and with TeleRTU CPU Boards.
Three versions of the LPI/OEB are available; fully populated version P/N 392927-01-2 (see Figure 1), depopulated version that supports DI/DO and the Comm. Port P/N 392927-02-0 and a depopulated version that supports DI/DO only P/N 392927-03-9.
|
