Purpose:

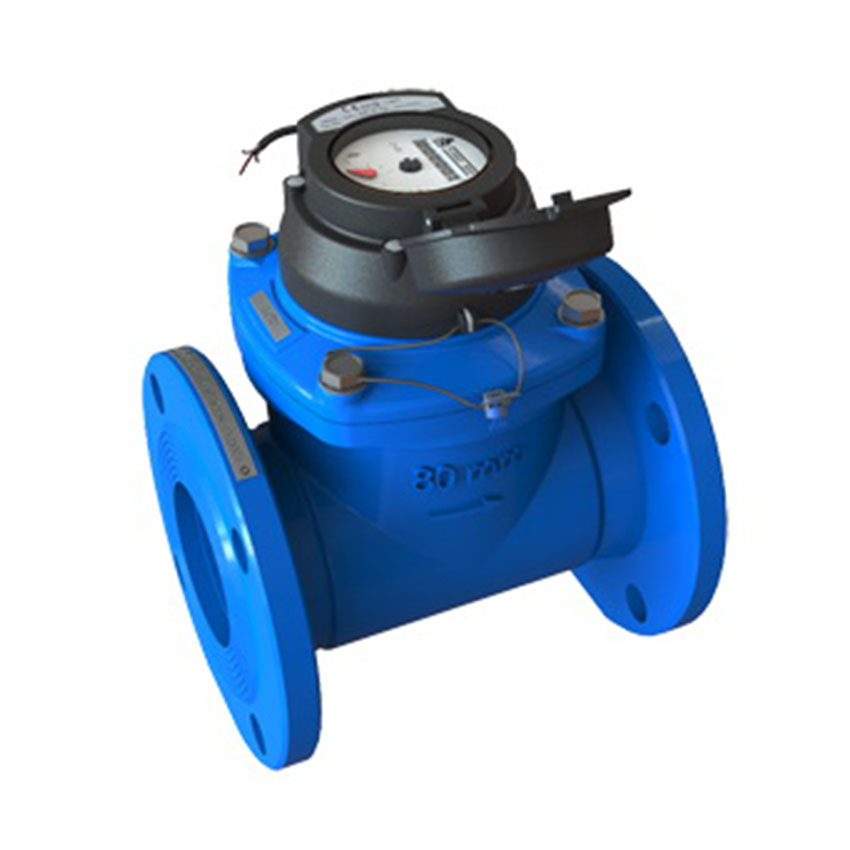

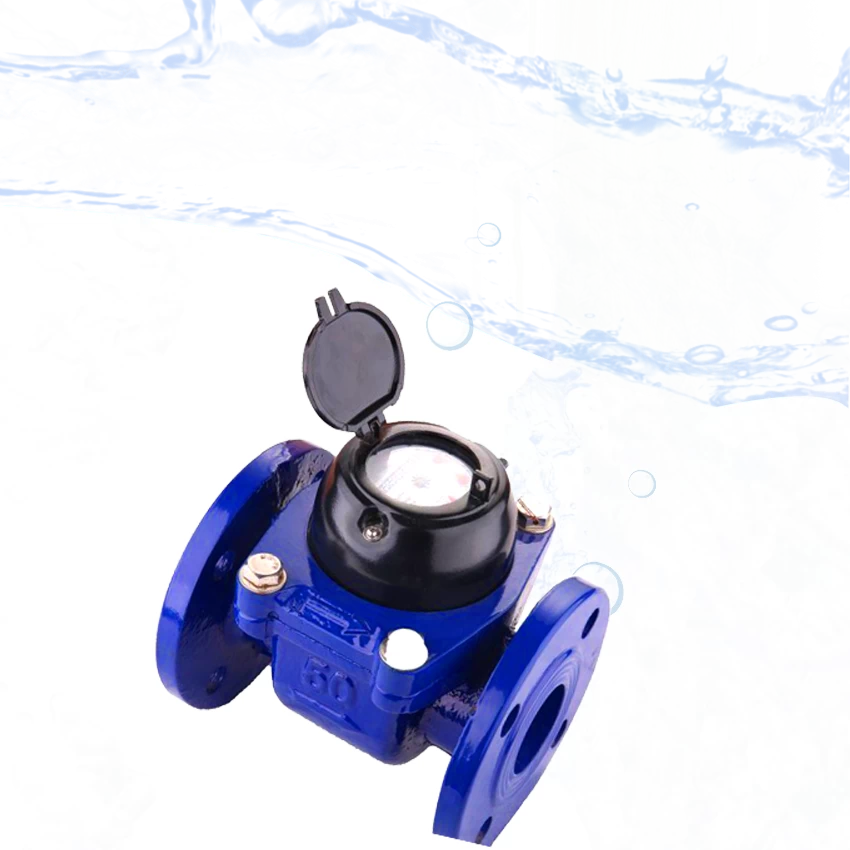

This series of bulk water meters a type of woltman water meter.is used to measure the total quantity of cold (hot) water flowing through the running water pipeline.

Features:

Wet E-type: with high measurement accuracy, small initial flow rate, easy to read
liquid seal F-type: counting mechanism adopts special liquid package, good anti-fouling performance, can keep long-term reading clear
Cold, hot water optional
Series with strong versatility, large circulation capacity, low pressure loss
Large circulation capacity
Compact and detachable structure
Magnetic drive
Counter adopts vacuum Sealed
Anti-condensation and atomization
The metering precision is iso4064
The maintenance is convenient

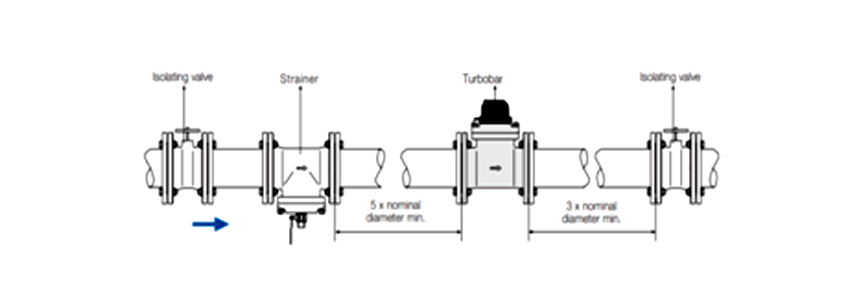

Installations Recommendation

Proper installation helps maximize the accuracy and lifespan of woltmant water meter.

All turbine meters are sensitive to turbulent conditions caused by diameter changes, pumps, tees, valves, etc. Therefore,install the meter far from these disturbances and according to the following specifications:
Upstream - 5 diameters min.
Downstream - 3 diameters min
