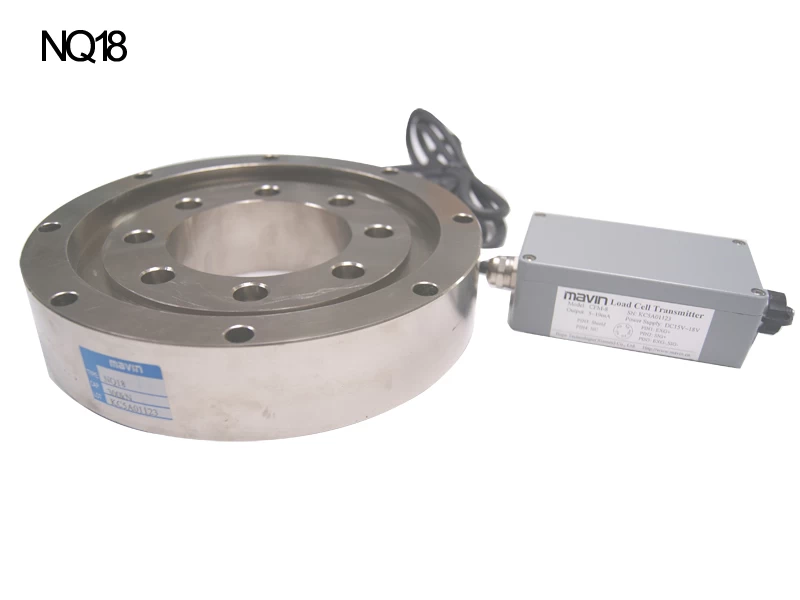

Wheel shaped compression force load cell 200KN NQ18

The NQ18 is a customizable designed spoke type load cell, bigger dimension, Steel alloy wheel shaped load cell for a higher capacity range for Industrial Scale load cell, Batching scale load cell, Boat Scale load cell with waterproof connector to guarantee stable quality of performance.



  • Rated Output4-20mA
  • Dimensionφ206*42mm
  • MaterialSteel Alloy
  • Capacities200KN
  • Protection ClassIP67 / IP68

Compression Load Cell NQ18 (200KN)

The NQ18 is a  customizable designed spoke type load cellbigger dimension, Steel alloy wheel shaped load cell for a higher capacity range for Industrial Scale load cell, Batching scale load cell, Boat Scale load cell with waterproof connector to guarantee stable quality of performance.


Key Features

Steel Alloy material with potting Compound

Capacity: 200KN

Protection class: IP67/PI68

Rated Output : 4-20mA


Usage & Applications

Injection moulding machine

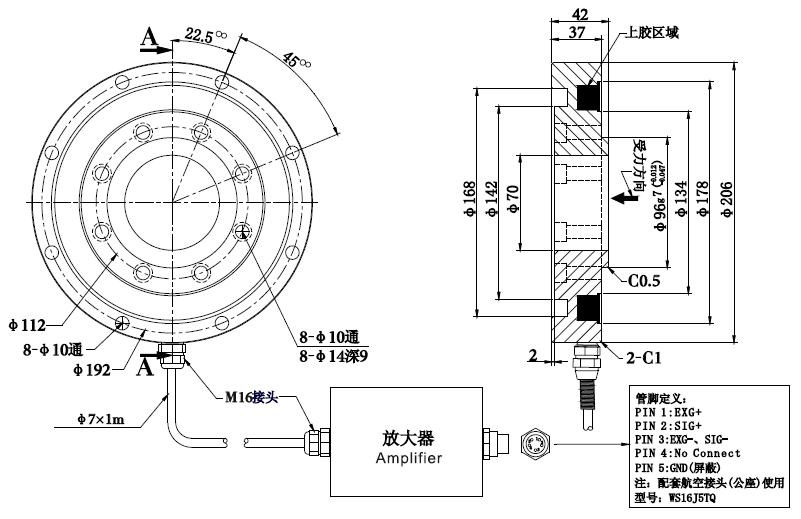

Dimensionwheel shaped load cell NQ18

NQ18 Specification

Rated Capacities

200kN

Rated Output

420mA

Zero Balance

±0.1%FSR

Non-linearity

±0.6%FSR

Hysteresis

±0.6%FSR

Repeatability

±0.6%FSR

30mins Creep

30mins Return

Safe Overload

200%FSR

Ultimate Overload

Temperature Effect On Output

±0.1%FSR/10

Temperature Effect On Zero

±0.1%FSR/10

Input Impedance

Output Impedance

Insulation Impedance

≥2000MΩ

Recommended Excitation

DC15V18V

Maximum Excitation

OperatingTemperatureRange

 -3070

Construction

Steel Alloy

Protection Class

IP67 / IP68

Cable

φ7×1m(removable cable)

Recommended Platform Size

Mode of Connection
