White Outdoor Banquet Tent
Application:
White Outdoor Banquet Tent Widely used for temporary outdoor weddings & parties & banquets, festival celebrations, conferences, outdoor exhibition, sports event, trade show, trade fair, advertising and temporary workshops.
Available size:
● Clear span available between 10-40m.
● Modular structure, the length is adjustable by 5m unit.
Features:
● Fashionable and beautiful with graceful arc roof lines. Widely used for royal and top grade events & activities accompanied with glass or ABS Hard Walls.
● Elegant design with roof extensions on both long sides helps to keep the interior side of the tent dry and clean in heavy rain & wind situation (with/without sidewalls).
● Wind load: above 100km/h.
● No exterior guy ropes or staking required.
● Accessories available: Transparent PVC roof covers and walls, clear windows sidewalls, glass walls, ABS Hard Walls, sandwich walls, lining decoration, glass door, sliding door, flooring system, weight plates, anchors.

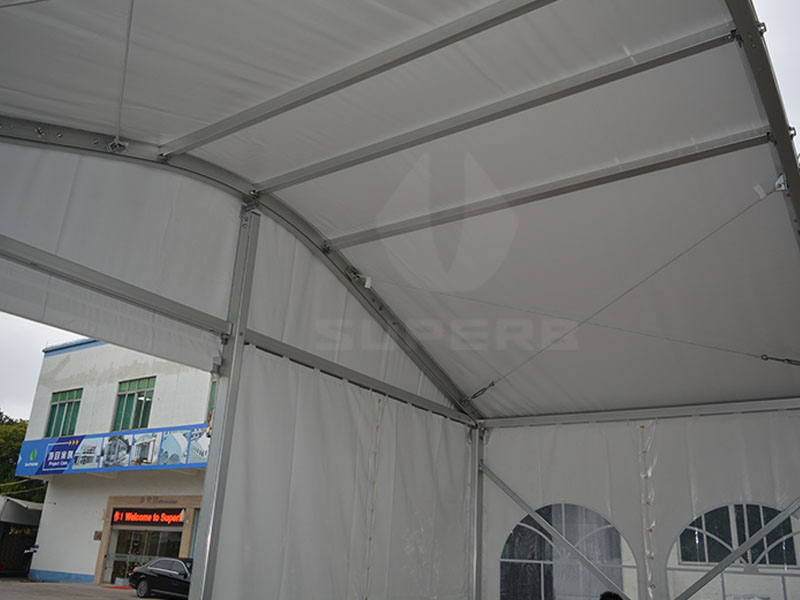

Frame:
● No maintenance requirement.
● Extruded 4 channel aluminum hollow profiles with anodized finishing above 12um.
● All steel connectors including small parts have galvanized finishing above 60um.
Cover:
● Kedered roof fabric and sidewalls provide weather-proof tight coverings.
● Bar tensioning roof & sidewalls system.
● Different brand fabric for option: China Fabric, Ferrari, Sioen, Verseidag.
|
Type
|
Span (m)
|
Side height (m)
|
Ridge height (m)
|
Bay Distance (m)
|
Roof Pitch
|
Longest Component (m)
|
Wind Load (km/h)
|
|
MS10/3.3-5AT
|
10
|
3.3
|
4.5
|
5
|
18°
|
5.7
|
100
|
|
MS12/3.3-5AT
|
12
|
3.3
|
4.8
|
5
|
18°
|
5.7
|
100
|
|
MS15/3.3-5AT
|
15
|
3.3
|
5.3
|
5
|
18°
|
5.7
|
100
|
|
Main frame Profile
|
152x120x4mm （4-Channel)
|
|

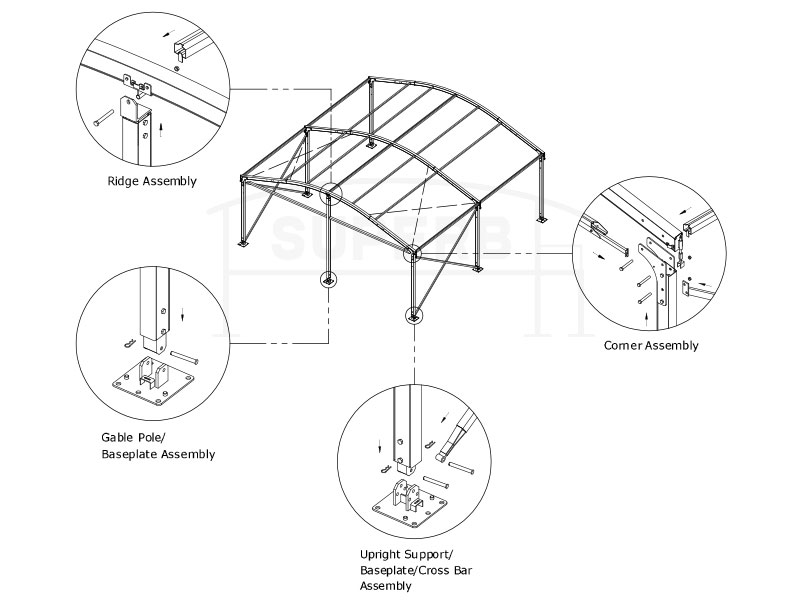

Eave Connection
|
Hot-dip Galvanized Twin Steel Plate
|
|
Roof Fixing
|
Bar Tension
|
|
Frame Material
|
Hard Pressed Extruded Aluminum 6061/T6
|
|
Cover Material
|
Double PVC coated Polyester textile, flame retardant to DIN4102 B1,M2,750-900g/sq.m
|
The accessories of Banquet Tent:
