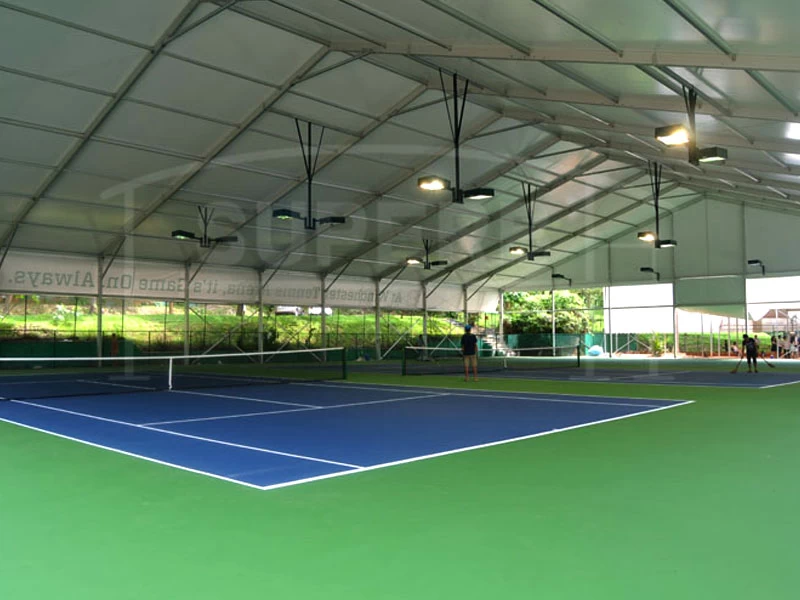

White Sport Tent For Tennis Court
Superb Sports Tent provides safest and most cost-effective solutions for tennis court. The high roof of our sports tent offers large space for variety sporting events. Superb indoor sport tent for tennis court use high quality aluminum frame, which is flexible , economical, safe . it’s easy to set up and disassemble, the building and construction time is short. Our PVC- coated polyester fabric is waterproof, flame retardant, UV resistant, wind-resistant.
Sport Tent's Cover:
● Kedered roof fabric and sidewalls provide weather-proof tight coverings.
● Bar tensioning roof & sidewalls system.
● Different brand fabric for option: China Fabric, Ferrari, Sioen, Verseidag.
Sport Tent's Frame:
● No maintenance required.
● Extruded 4 channel aluminum hollow profiles with anodized finishing above 12um.
● All steel connectors including small parts have galvanized finishing above 60um.
● Modular character for diverse combination and expansion.
Sport Tent's Available sizes:
● Clear span available from 3m to 60m.
● Length: adjustable by 3m unit (SS & WS series) or 5m unit (for other series).
The Specification of Sport Tent For Tennis Court
|
Type
|
Span
(m)
|
Side
height (m)
|
Ridge
height (m)
|
Bay
Distance (m)
|
Roof
Pitch
|
Longest
Component (m)
|
Wind
Load (km/h)
|
|
BS10/4-5
|
10
|
4
|
5.5
|
5
|
18°
|
6
|
100
|
|
BS15/4-5
|
15
|
4
|
6.4
|
5
|
18°
|
8.5
|
100
|
|
BS20/4-5
|
20
|
4
|
7.1
|
5
|
18°
|
10.7
|
100
|
|
BS25/4-5
|
25
|
4
|
7.9
|
5
|
18°
|
10.7
|
100
|
|
Main
frame Profile
|
204x120x4mm（4-channel)
|
|
Eave
Connection
|
Hot-dip
Galvanized Twin Steel Plate
|
|
Roof
Fixing
|
Bar
Tension
|
|
Frame
Material
|
Hard
Pressed Extruded Aluminum 6061/T6
|
|
Cover
Material
|
Double
PVC coated Polyester textile, flame retardant to DIN4102 B1,M2,650-900g/sq.m
|
