Wholesale Custom Carbon MTB Full Suspension Cycle Frame Suppliers

-Type: MTB FULL SUSPENSION 29ER
-Size: 16.5” / 18” / 19” (C to T)
-Head Tube: Tapered 1-1/8’’ - 1-1/2”

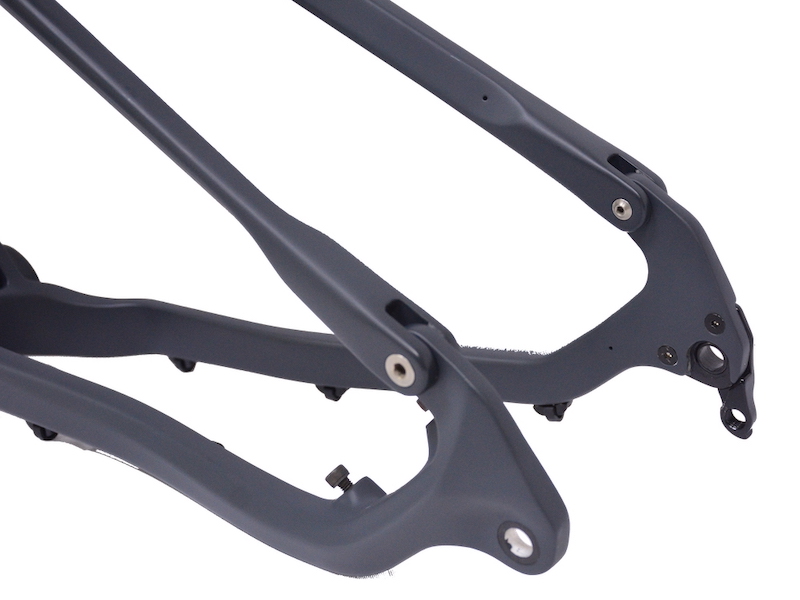

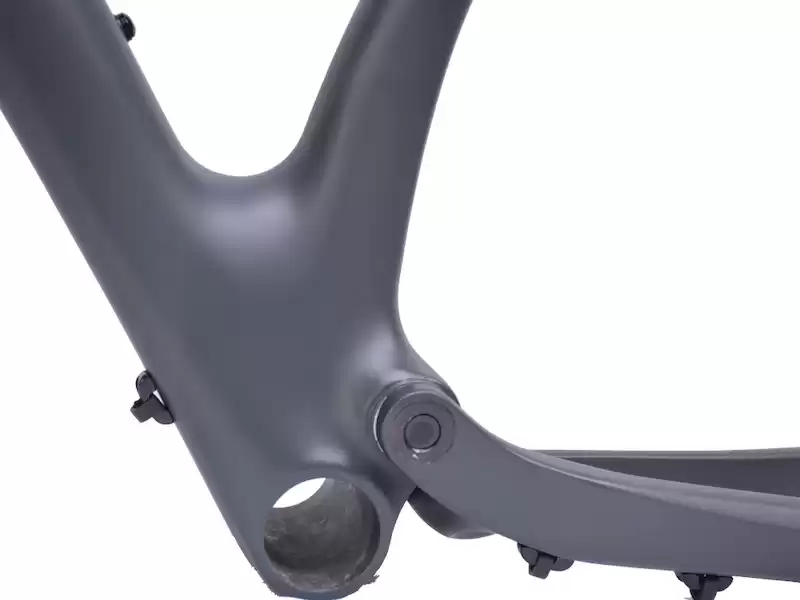

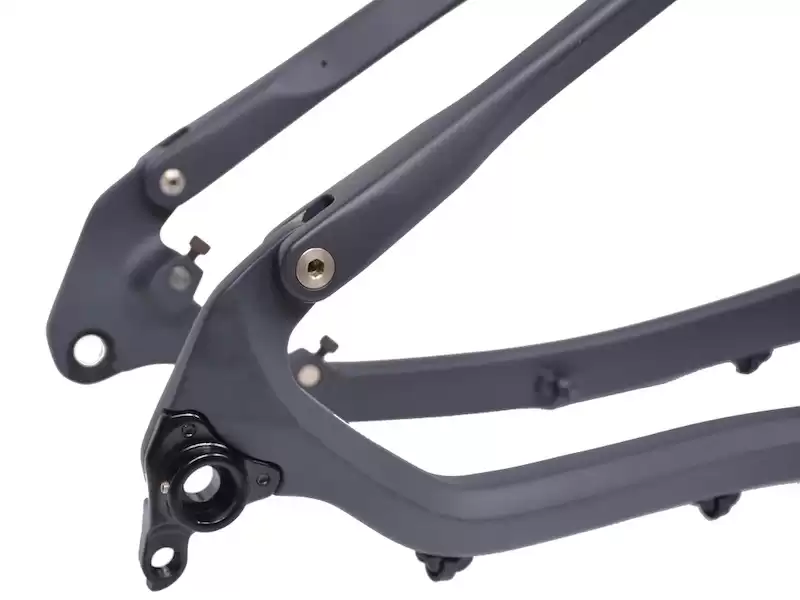

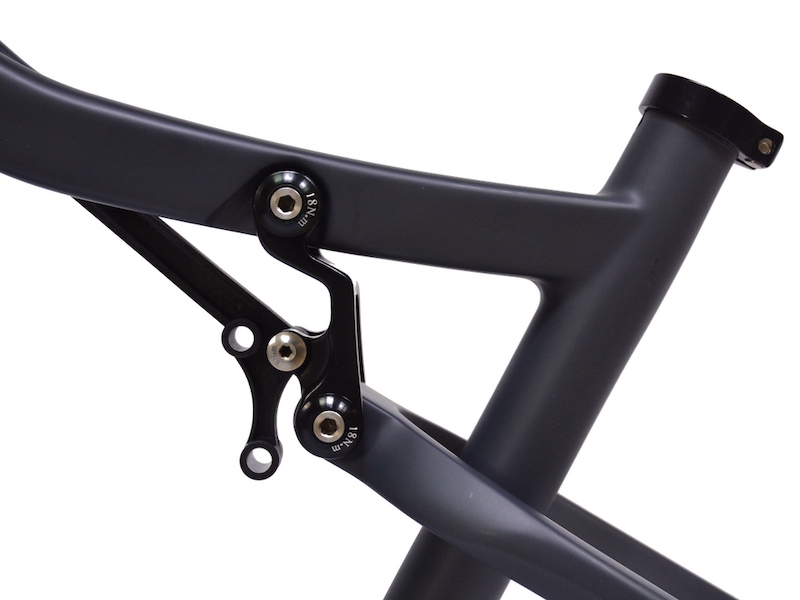

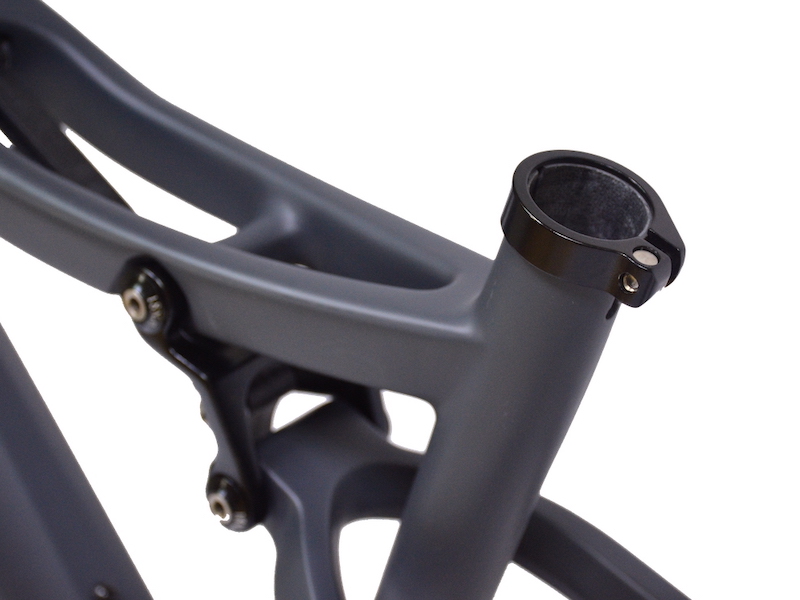

Carbon MTB Full Suspension Cycle Frame

  • Type: MTB FULL SUSPENSION 29ER
  • Size: 16.5” / 18” / 19” (C to T)
  • Head Tube: Tapered 1-1/8’’ - 1-1/2”
  • Bottom Bracket: BB92
  • Brake type: Post mount brake
  • Seat Post: 31.6mm
  • Cable Routing: internal shift external brake
  • Tire Spec.: 2.25 inch
  • Hub Spec.: 12 x 142mm Thru axle
  • Travel : Rear 100mm
  • Shock Spec.: 165mm
  • Weight:2000g+/-50g(M Size)
  • Material : Toray  T800 / T7000

Light Carbon MTB Full Suspension Frame Many kinds of frame size for customer more option,please send email to sales@tourdecycling.com for more frames size geometry.

Size


16.5"



18"


19"


Stack 592 607 621
Reach 395 413 433
Head Tube Angle 70.5 70.5 70.5
Head Tube Length 100 110 125
Seat Tube Angle 73.5 73.5 73.5
Seat Tube Length 420 458 480
Top Tube Length 565 595 620
BB Drop 40 40 40
Rear To BB Center 450 450 450
Fork To BB Center 643 662 687
Fork Built Height 510 510 510
Fork Rake 45 45 45
Wheel Base 995 1109 1138

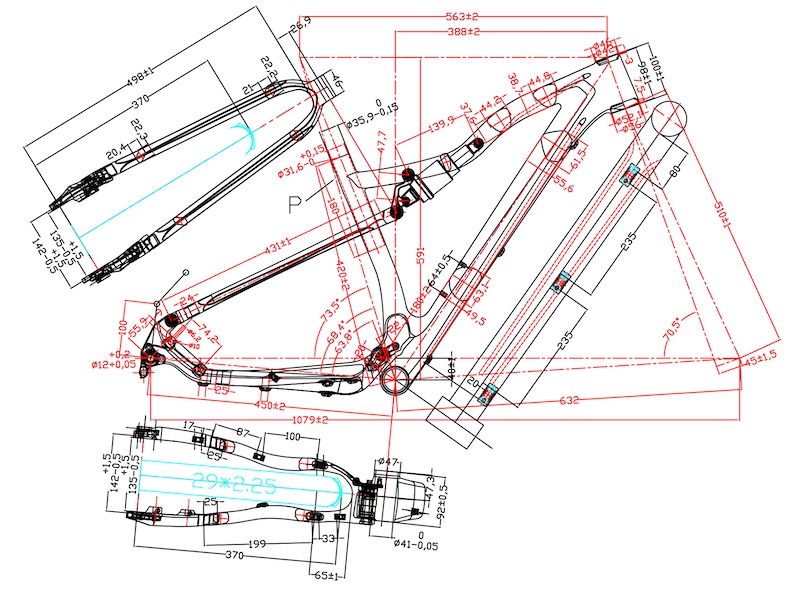

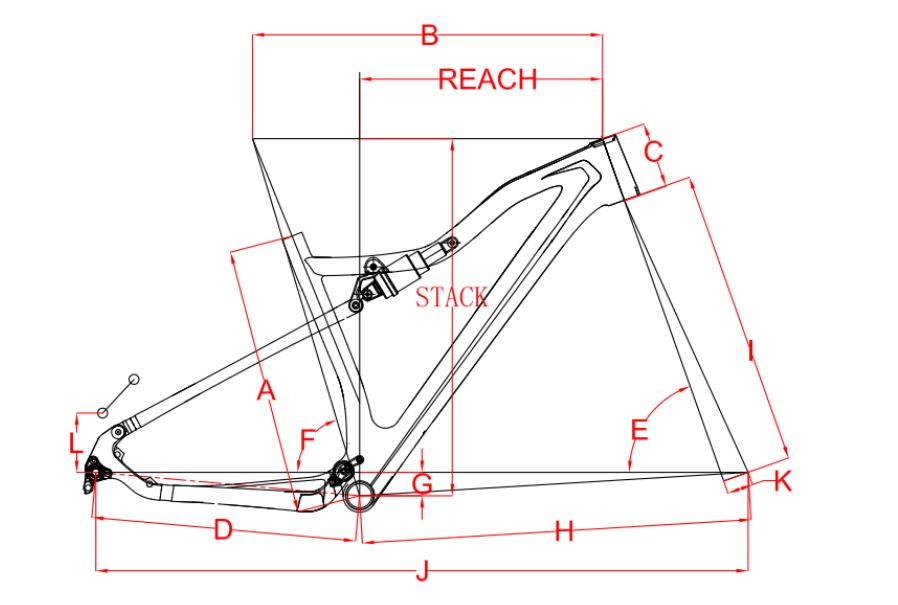

Technical drawings can help customer find the frame detail parameters and structure they are interested.


29er full suspension frames


TECHNOLOGY

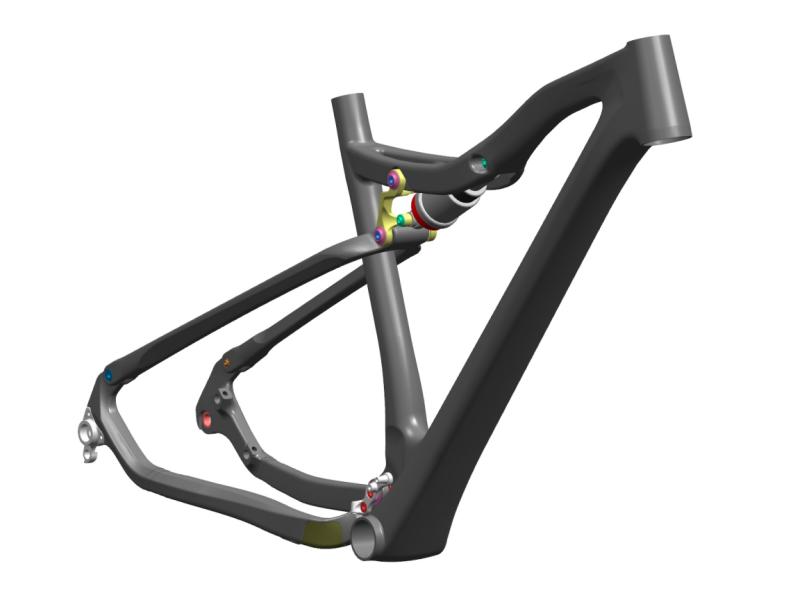

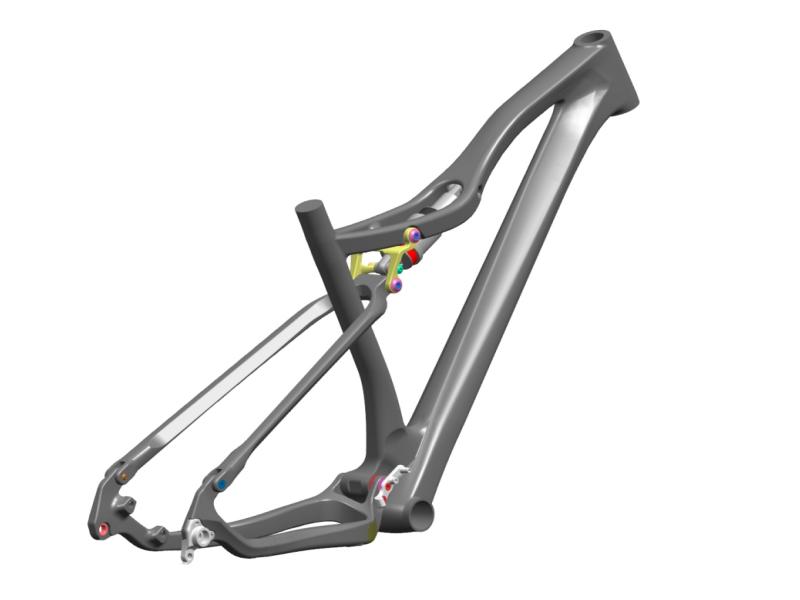

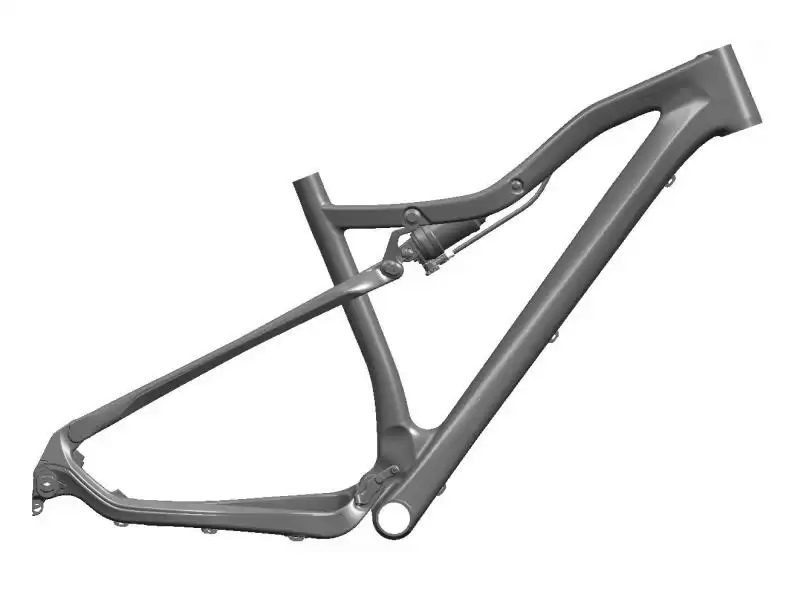

carbon fiber frames design

Italy Design Team

we invited Italy professional engineer to develop new moulding each year. More than 10 years design experience can supply more accurate design which is developed according to the customer’s requests and specifications, focusing on the targets and providing functional solutions.


bicycle frame 3D print

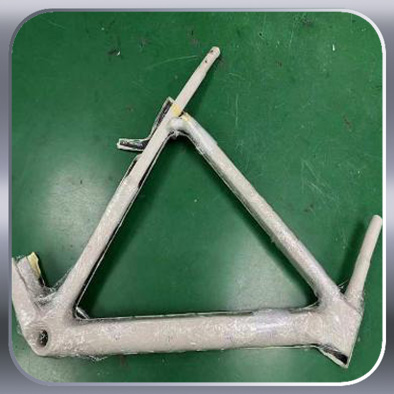

3D latex mandrel technology

we added new 3D latex mandrel technology. 3D latex mandrel technology than traditional EPS or airbag technology can make frames more smooth without wrinkle inner wall.


carbon fiber Tory for bicycle frameset

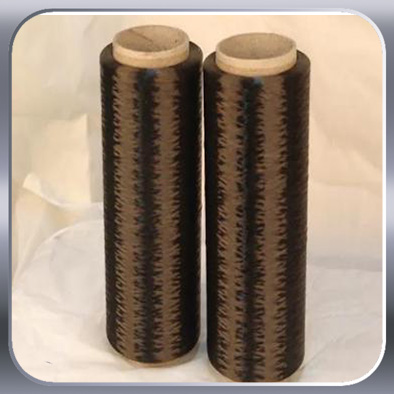

Carbon Fiber Material

Premium Japan Toray T700/T800 carbon fiber is used in our carbon bike frame.

Combining with stable resin system to make consistent quality and light weight frame.

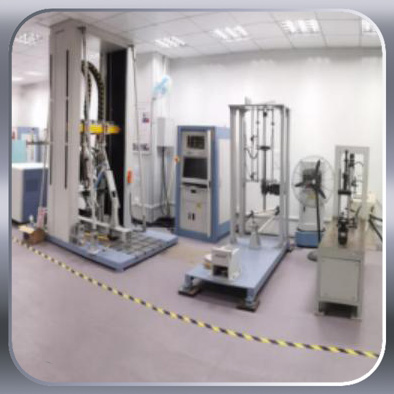

BIKE FRAMES TEST LAB

Lab Test

All tour de cycling carbon frame are rigorously tested under international standard ISO4210/EN15194.We will also be sent sample to the 3rd External Organization for SGS testing upon customer’s requirement. All new frames will be tested at least 10% more strictly during the development phase on the basis of EN15194 or ISO4210, thus it can ensure the safety of all products.


Bicycle frameset wrannty

2-Year Warranty

We have very strict mass production management system, IQC, PQC, OQC and Lab Testing process. We insist on making high quality.

For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).

Click Warranty  to see more details in another page.


Why choose us ?

Tour De Cycling has more than 17 years of production experience in carbon frame developing and manufacturing.. Our factory has mature technology and patents, can be customized design for brand companies, and provide OEM services. More than 100 kinds of frame products have been developed and produced, and more than 95% of them are exported overseas.


FAQ:


Q1:How tall should you be for a 29 inch bike?

A1:29er model are fit for the height in 5inch-6inch or taller. Riders more than 6' tall can enjoyable: You'll definitely enjoy a more natural riding situation with this size and frame geometry of a 29er.


Q2:What size MTB frame do I need?

A2:The size and height as follows:

      Small 14-16inch 162cm-170cm (5ft 4in-5ft 7in)

      Medium 16-18inch 171cm-178cm (5ft 7in-5ft 10in)

      Large 18-20inch 179cm-185cm (5ft 10in-6ft 1in)


Q3:Is it worth getting a carbon MTB?

A3:If you want the premium look and an exceptional ride quality, a carbon mountain bike is very fit for you. It also can take your skills to the new next level in mountain bike technology, a carbon MTB bike can help you do it all.


Q4:How long do mountain bikes last?

A4:A mountain bike can last over 20 years when you keep proper maintenance . This situation is highly dependent on where you ride and how much you ride. Some items will wear out, tires, chains, brake pads and drivetrains will not last forever. So careful maintenance is very important.


Q5: Can you ride long distances on a mountain bike?

A5:Mountain bike are strong, it can take a beating and are reliable. It might take a bit more effort than road bike.
