Products Overview:
We are professional LED TV CKD/SKD overall solution provider and OEM/ODM manufacturer with 15 years' experience, which has excellent solution design ability, specialized R&D team, best pre-sales and after-sales service. LED TV size from 18.5" to 75" CKD/SKD both can be customized. Our Aim is to provide you the quickest and most thorough pre-market after-sales service and the best overall solutions.
We can provide LED TV whole CKD/SKD solutions, including plastic/plastic+metal TV Cabinet(front bezel, middle bezel, support shore, back cover, IR lens, bracket base, base rubber, backplane, side terminal plate, bottom terminal plate), Optics(LED bar/reflector/diffuser plate/diffuser film/prism sheet), Mainboard/motherboard, Electronics accessories(key board, IR board, wire for LED bar, speaker and speaker wire, remote, power wire, keyboard wire, LVDS wire), Ingredients(EVA gasket/glass limit/cushion rubbers/acetate tape/double sided foam for OC) and all screws(BB3*8/PWB3*8/BM3*6/BM3*4...).
Main Solutions:
31.5inch Backlight Solution 1
(Brightness: 5000cd/m²)
|
LED Bar (2*6) 2W
|
|
Diffuser Plate*1
|
|
Diffuser Film*1
|
|
Reflector Film*1
|
|
Prism Film 0 degree*1
|
31.5inch Backlight Solution 2
(Brightness: 4500cd/m²)
|
LED Bar (2*6) 2W
|
|
Diffuser Plate*1
|
|
Diffuser Film*2
|
|
Reflector Film*1
|
|
Cabinet
|
Plastic back plate (can reduce the cost)
|
|
Electronic materials
|
Mainboard+Key board+IR board+LED Bar with wire+Speaker with wire+Remote+Power Wire+Keyboard Wire+LVDS
|
|
Ingredients
|
EVA Gasket for Middle Bezel+Cushion Rubber+Acetate tape+Screws
|
|
Remark: CKD/SKD Customized can be accepted based on your actual requirement.
|
TV CKD Parts Introduction - Prism Film/Sheet:
Prism Film BEF (Brightness Enhancement Film), or a prism, invented by 3 m products, and first used in the liquid crystal display (LCD), in order to improve the front of the display Brightness.
Mirror membrane is an optical film made from the prism structure made of acrylic resin and produced on PET substrate by using 3M micro-replication technology. The surface is a micro prism structure with a height of 20-50 microns. According to the principle of geometric optics, the light emitted from the backlight passes through the circulation of the prism membrane and the backlight system, and finally focuses on the direction of the front, thus achieving the brightening effect.
Usually a single prism is used because the display and TV require a larger brightness Angle than a laptop display. In large size liquid crystal modules, 3M usually recommends BEF III series prismatic membranes. Compared with BEFII, the prisms of BEFIII are not microprisms of equal size. The use of this random prism structure can eliminate the optical coupling and reduce the reflection mole effect.

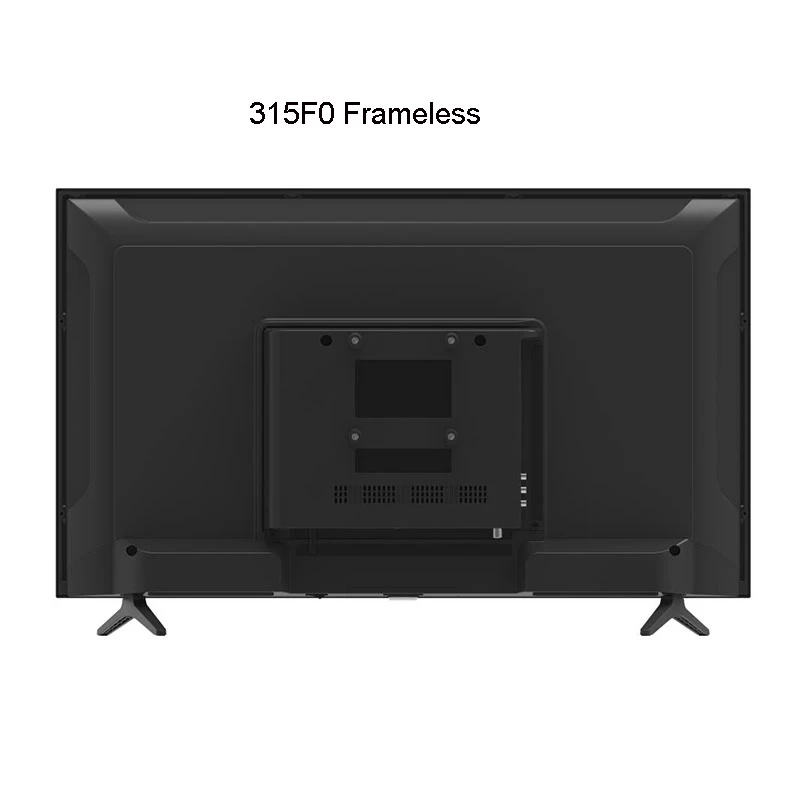

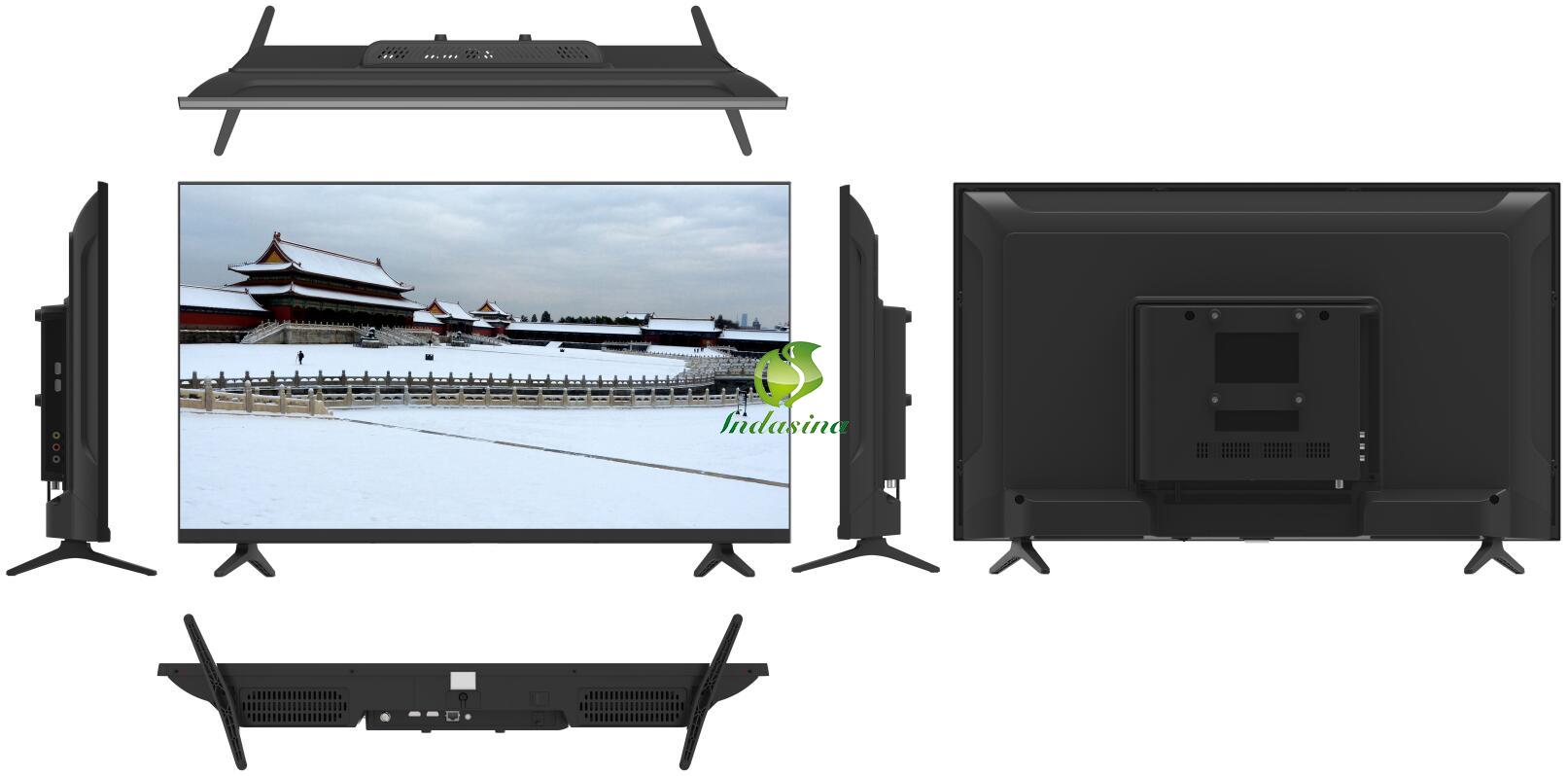

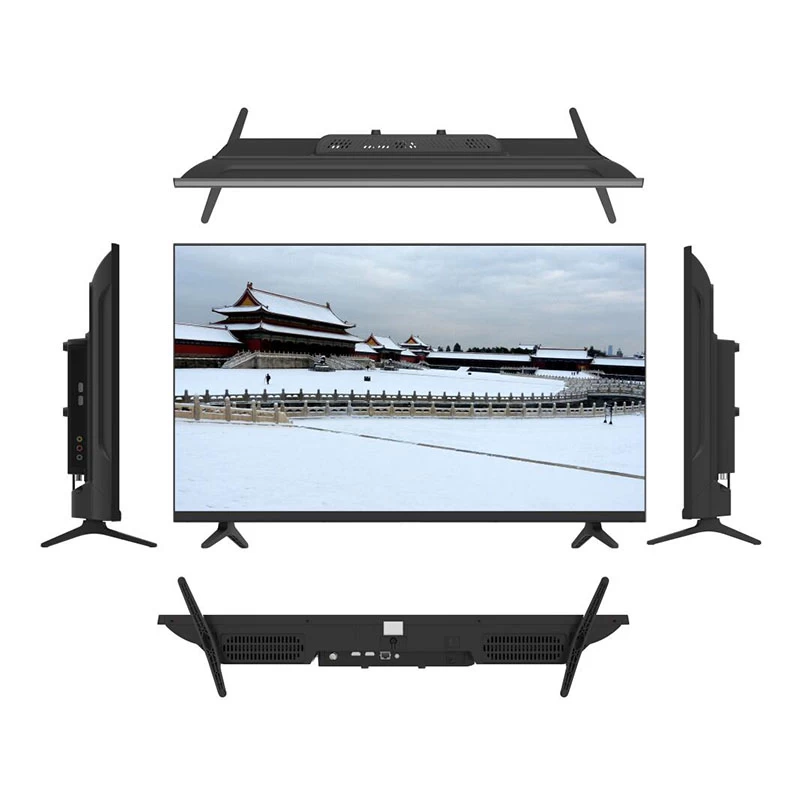

Products Images:
FAQ
Q: How long is the warranty?
A: 1-year warranty since delivered out.
Q:How about the OEM/ODM service ?
A: We provide all kinds of OEM/ODM service,eg:Logo printing on housing,Customized package,Software Customization.
Q: How long is the delivery time?
A: Sample order about 3-5 working days, bulk order about 7-15 working days.
Normally, we ship goods by sea,air and express.
. By sea to your nearest sea port for 10~15 days
. By air to your nearest air port for 5~10 days
. By express(UPS,DHL.FEDEX,TNT...) to your door for 3~6 days
Q: What methods of payment accepted?
A: 1. We can accept T/T, L/C before production.
2. If you have any doubt about payment, please contact us freely.
Q: Why do you choose us?
A: Shenzhen INDASINA Technology Co.,ltd is a high quality DLED TV manufacturer and solution provider. We will try our best to provide the products you need, we will provide you with the most satisfactory service. If you want to know more, you can contact us. We also welcome you to visit our factory in Shenzhen.
