Wholesale OEM Time Trial Carbon Frameset

-Type: Time Trial 700C
-Size: 470/490/515/535/555 (C to T)
-Head Tube: Tapered 1-1/8’’ - 1-1/2”

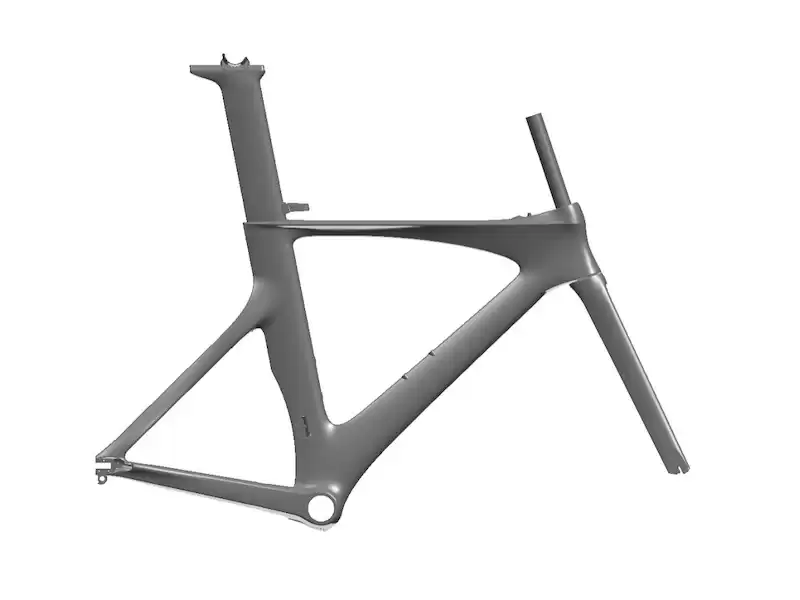

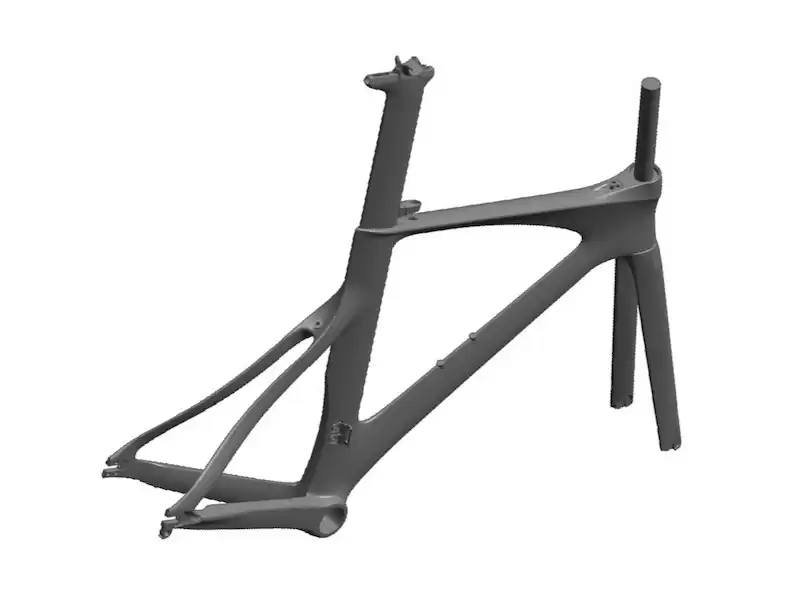

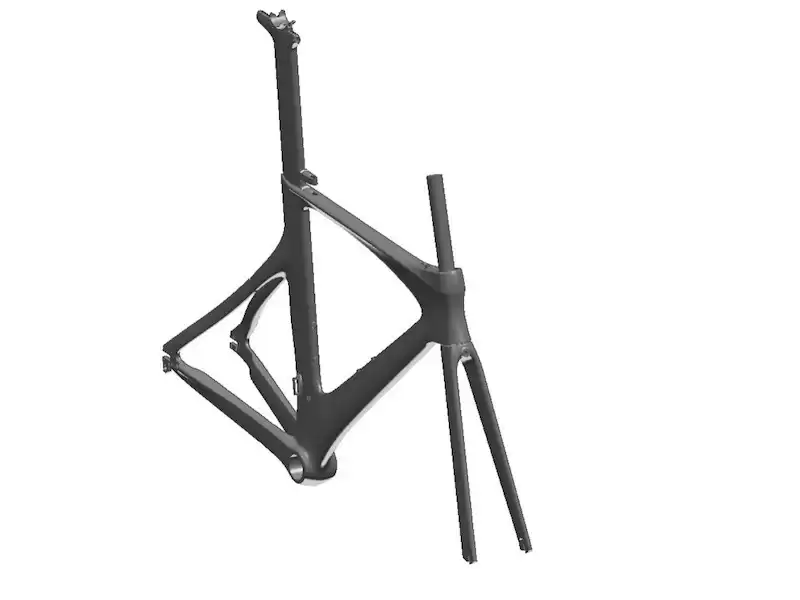

Time Trial Carbon Bike Frameset

  • Type: Time Trial 700C
  • Size: 470/490/515/535/555 (C to T)
  • Head Tube: Tapered 1-1/8’’ - 1-1/2”
  • Bottom Bracket: BB86.5
  • Seat Post: TDC-GE01
  • Fork model: TDC-GF03/04

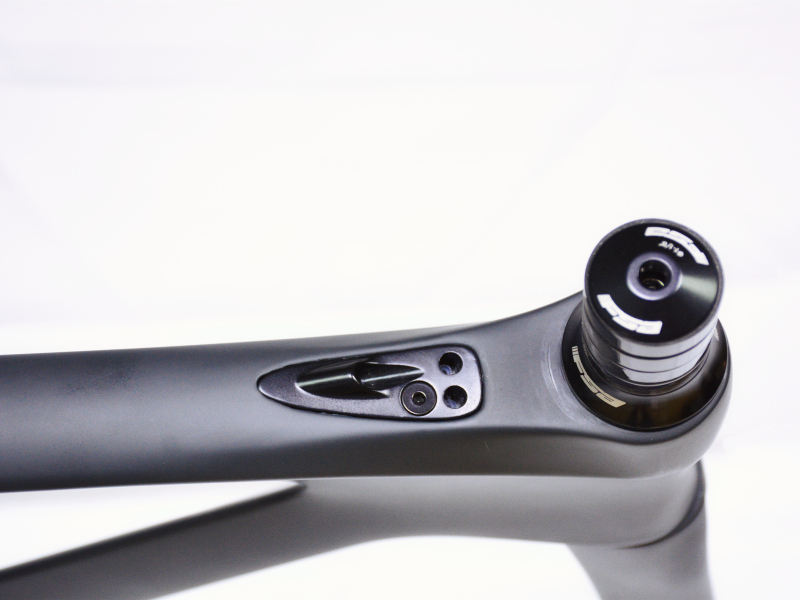

  • Cable Routing: Internal and Di2 compatible
  • Brake type: Direct mount
  • Tire Spec.: 700*28C
  • Hub Spec.: QR 130mm
  • Weight:1285g+/-35g(M Size)
  • Material : Toray T800 / T700

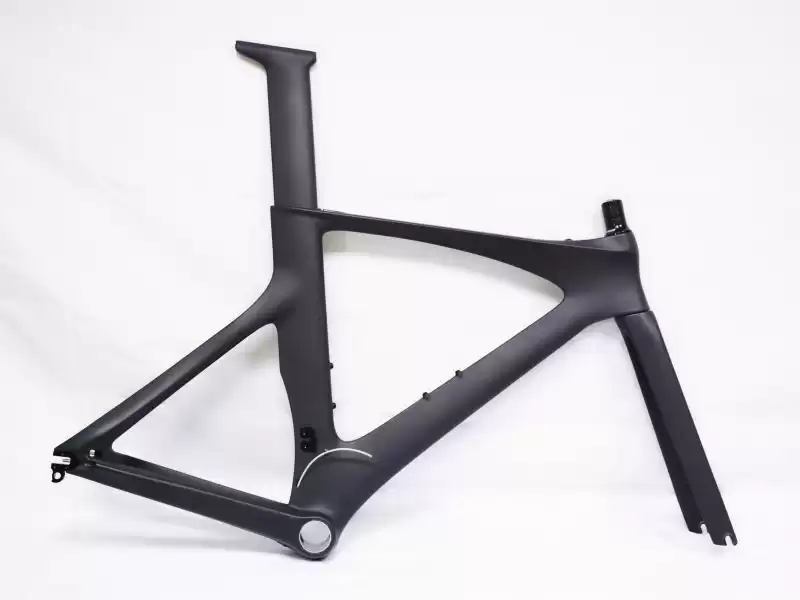

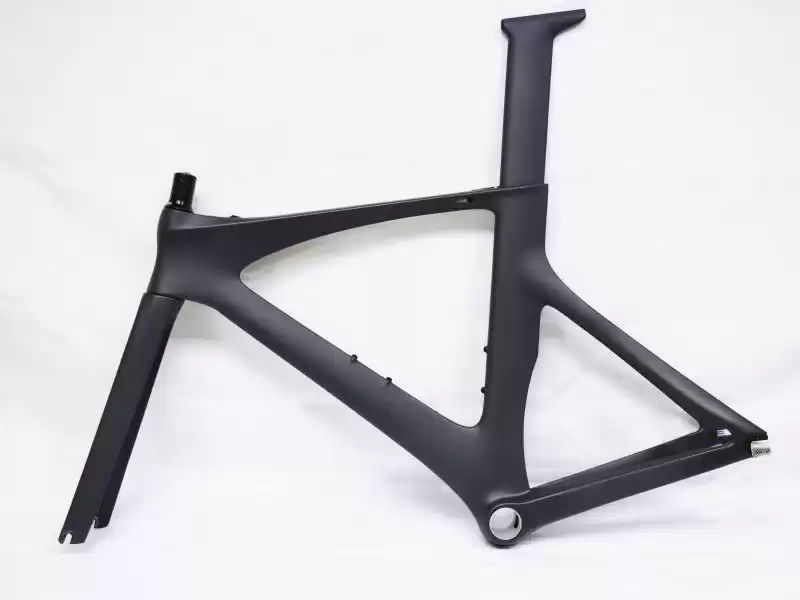

Time Trial Carbon Frameset


Many kinds of frame size for customer more option,please send email to sales@tourdecycling.com for more frames size geometry.

Size 470 490 515 535 555
Stack 491 510 530 555 575
Reach 384 410 426 436 448
Head Tube Angle 71.5 71.5 71.5 72.5 72.5
Head Tube Length 90 110 130 150 171
Seat Tube Angle 79 79 79 79 79
Seat Tube Length 473 492 515 538 558
Top Tube Length 479 509 529 544 559
BB Drop 75 75 75 75 75
Rear To BB Center 382 382 382 382 382
Fork To BB Center 581 613 636 638 656
Fork Built Height 370 370 370 370 370
Fork Rake 50 50 50 44 44
Wheel Base 951 983 1006 1009 1026

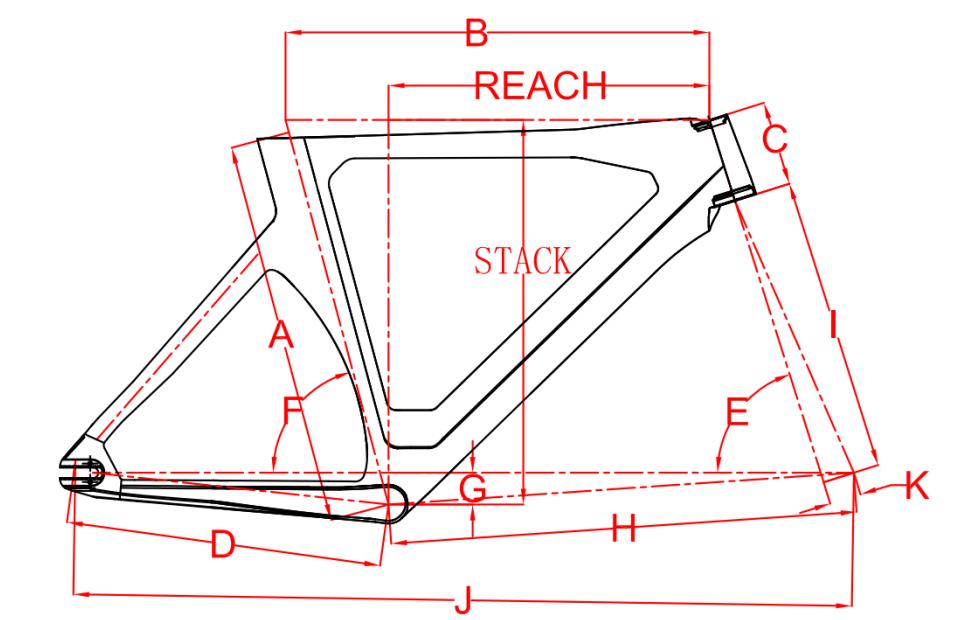

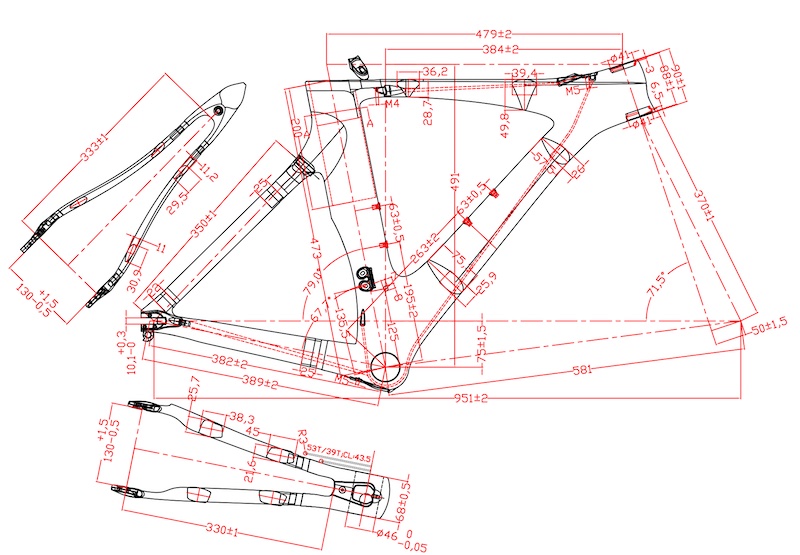

Technical drawings can help customer find the frame detail parameters and structure that they are interested.

disc brake time trial bike frameset


TECHNOLOGY


carbon fiber frames design

Italy Design Team

we invited Italy professional engineer to develop new moulding each year. More than 10 years design experience can supply more accurate design which is developed according to the customer’s requests and specifications, focusing on the targets and providing functional solutions.


bicycle frame 3D print

3D latex mandrel technology

we added new 3D latex mandrel technology. 3D latex mandrel technology than traditional EPS or airbag technology can make frames more smooth without wrinkle inner wall.


carbon fiber Tory for bicycle frameset

Carbon Fiber Material

Premium Japan Toray T700/T800 carbon fiber is used in our carbon bike frame.

Combining with stable resin system to make consistent quality and light weight frame.

BIKE FRAMES TEST LAB

Lab Test

All tour de cycling carbon frame are rigorously tested under international standard ISO4210/EN15194.We will also be sent sample to the 3rd External Organization for SGS testing upon customer’s requirement. All new frames will be tested at least 10% more strictly during the development phase on the basis of EN15194 or ISO4210, thus it can ensure the safety of all products.


Bicycle frameset wrannty

2-Year Warranty

We have very strict mass production management system, IQC, PQC, OQC and Lab Testing process. We insist on making high quality.

For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).

Click Warranty  to see more details in another page.


Why choose us ?

Tour De Cycling has more than 17 years of production experience in carbon frame developing and manufacturing.. Our factory has mature technology and patents, can be customized design for brand companies, and provide OEM services. More than 100 kinds of frame products have been developed and produced, and more than 95% of them are exported overseas.


FAQ:

Q1: What is your MOQ ?

A1:Minimum order quantity of different non-products is different. For specific products, please consult with inquiry.We can supply samples at a cost of twice the selling price. If you place an order, the sample fee will be refunded.


Q2: How long is the sample lead time?

A2: For existing samples, it takes 20 days.


Q3: How long is the production lead time?

A3: Decide the delivery date of the product according to the quantity ordered,About 45-55 days.


Q4: What format of the file do you need if I want my own design?

A4: We have our own designer in house . So you can provide JPG or PDF,etc.We will make 3D drawing for mold or printing screen for your final confirmation based on technique.


Q5: How many colors are available?

A5: Any color can be provided as long as the color palette you need is provided to us.


Q6: Which kinds of certificate would you have?

A6: Product Patent Certificate. Local certificate of safety standards.


Q7: What is your payment term?

A7: Firstly, confirm PI and pay deposit,then we will arrange sample and massive production. After finished production, pls. pay the balance before shipment. Then delivery the goods.
