Wholesale Price Q235 Scaffolding Side Bracket

Scaffolding Side Bracket Manufacturer

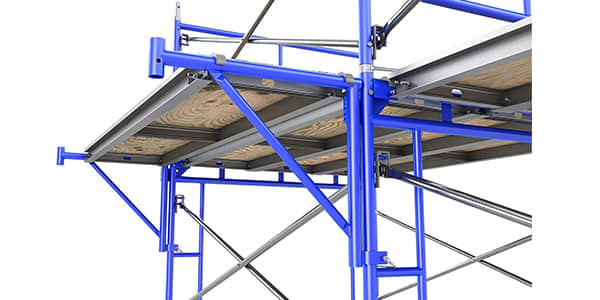

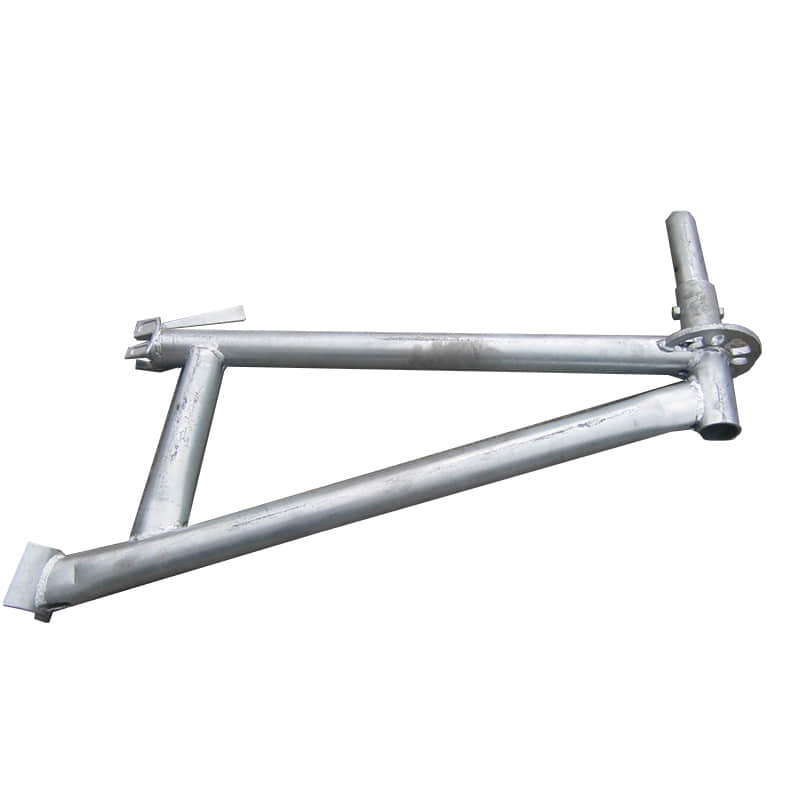

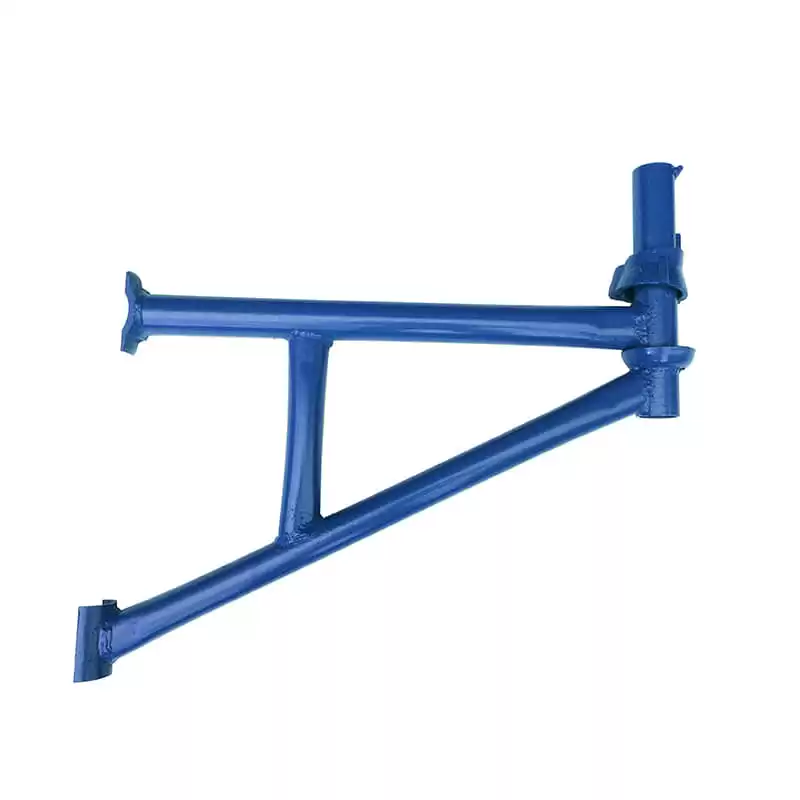

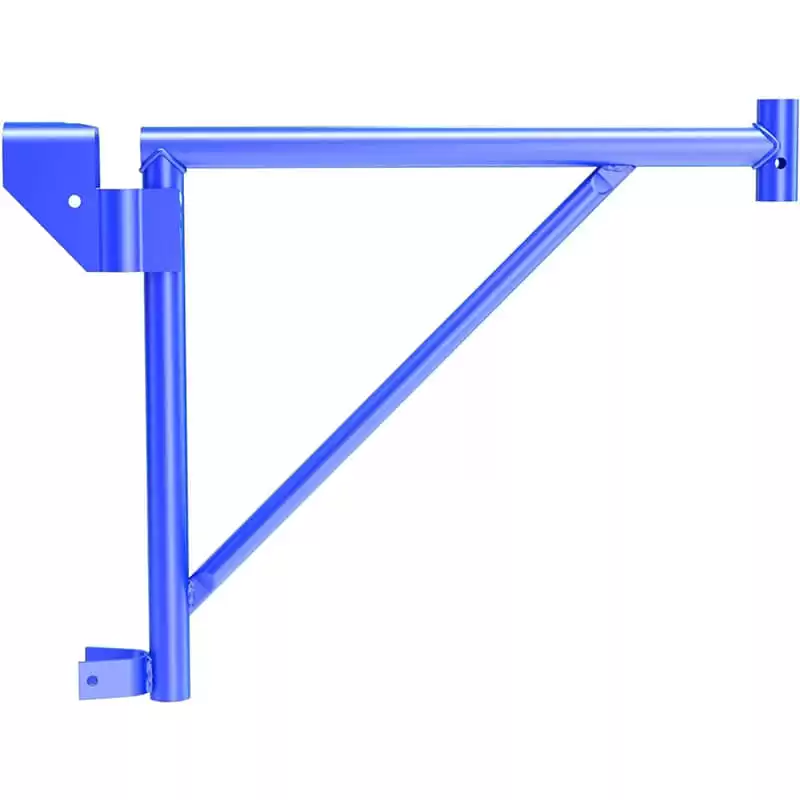

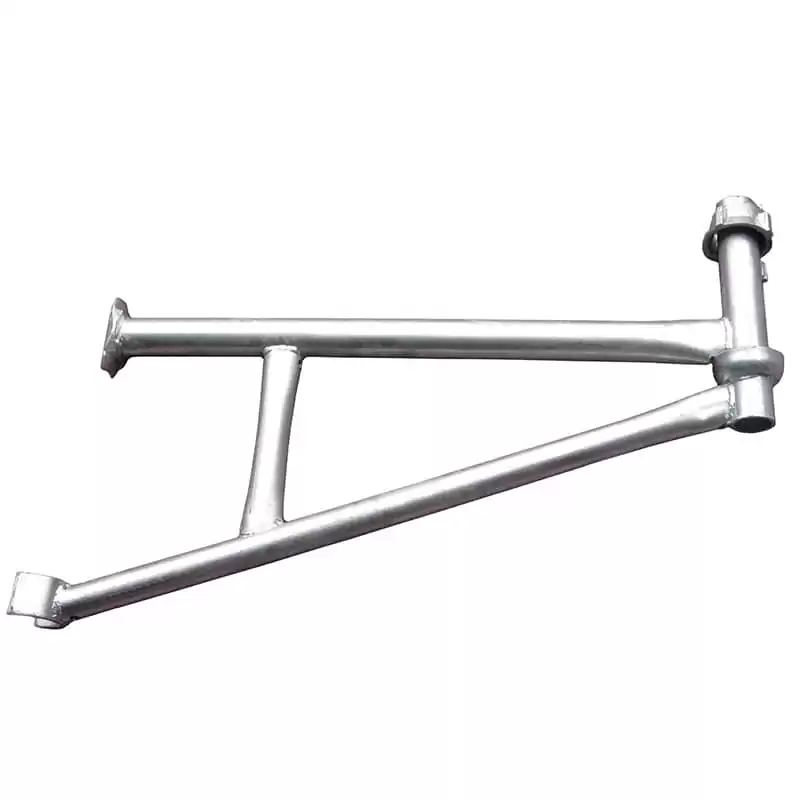

Side brackets for scaffold (also called putlog brackets or extension brackets) are extension components used to create a bigger working platform. They effectively create more room for workers and materials and make it easier for the workers to access things, allowing work to be done quicker and safer. They are made to easily connect to the main scaffold structure, allowing for stable and safe support of a plank, thus creating a larger working area.

AJ Building is a leading scaffolding manufacturer and supplier in China. We specialize in producing high-quality scaffolding components designed to improve the safety and efficiency of your construction site. Our side bracket scaffold are excellent in performance, providing the strength and versatility you need for a variety of scaffolding applications. Partner with us to enjoy the advantages of highly competitive prices, excellent quality, and factory-direct sales.

Key Features and Specifications

Our scaffolding side brackets are produced to comply with international standards and will give you durability and peace of mind.

• Robust Design: Made from high-quality steel (Q235, Q345), to withstand heavy loads as well as the harshest working conditions.
• Works with Many Systems: Compatible with various scaffolding standards, including Ringlock, Cuplock, Kwikstage, Quicklock, Scaffolding frame, and standard tube and coupler scaffolds.
• More Stable: Easily attach to the scaffolding, providing an even level extension to your working platform.
• More Safety: Enables the ability to create wider and safer walkways, decreasing the likelihood of slips, trips, and falls, as well as improving materials handling.
• Simple to Install: Can be quickly and easily set up and dismantled, are lightweight, but extremely strong, thus saving you time and labor costs.

Common Sizes

We offer a range of standard sizes to accommodate diverse project requirements. Custom sizes are also available upon request.

Standard Lengths:

0.3m (approx. 12 inches)

0.5m (approx. 20 inches)

0.7m (approx. 28 inches)

0.9m (approx. 35 inches)

1.2m (approx. 47 inches)

Tube Diameter: Typically 48.3mm (OD)

Wall Thickness: Varies based on load capacity requirements, typically ranging from 2.5mm to 3.2mm.







Surface Treatment Options



To ensure maximum longevity and resistance to corrosion, our scaffolding side brackets are available with the following surface treatments:

Hot-Dip Galvanized: Provides superior long-term corrosion protection, ideal for outdoor and harsh environments. This coating significantly extends the lifespan of the brackets.

Electro-Galvanized (Zinc Plated): Offers good corrosion resistance for less aggressive environments and provides a clean, bright finish.

Powder Coated: Available in various colors, powder coating offers good protection against rust and wear, while also providing an aesthetically pleasing finish.

Painted: A cost-effective option for basic corrosion protection.
