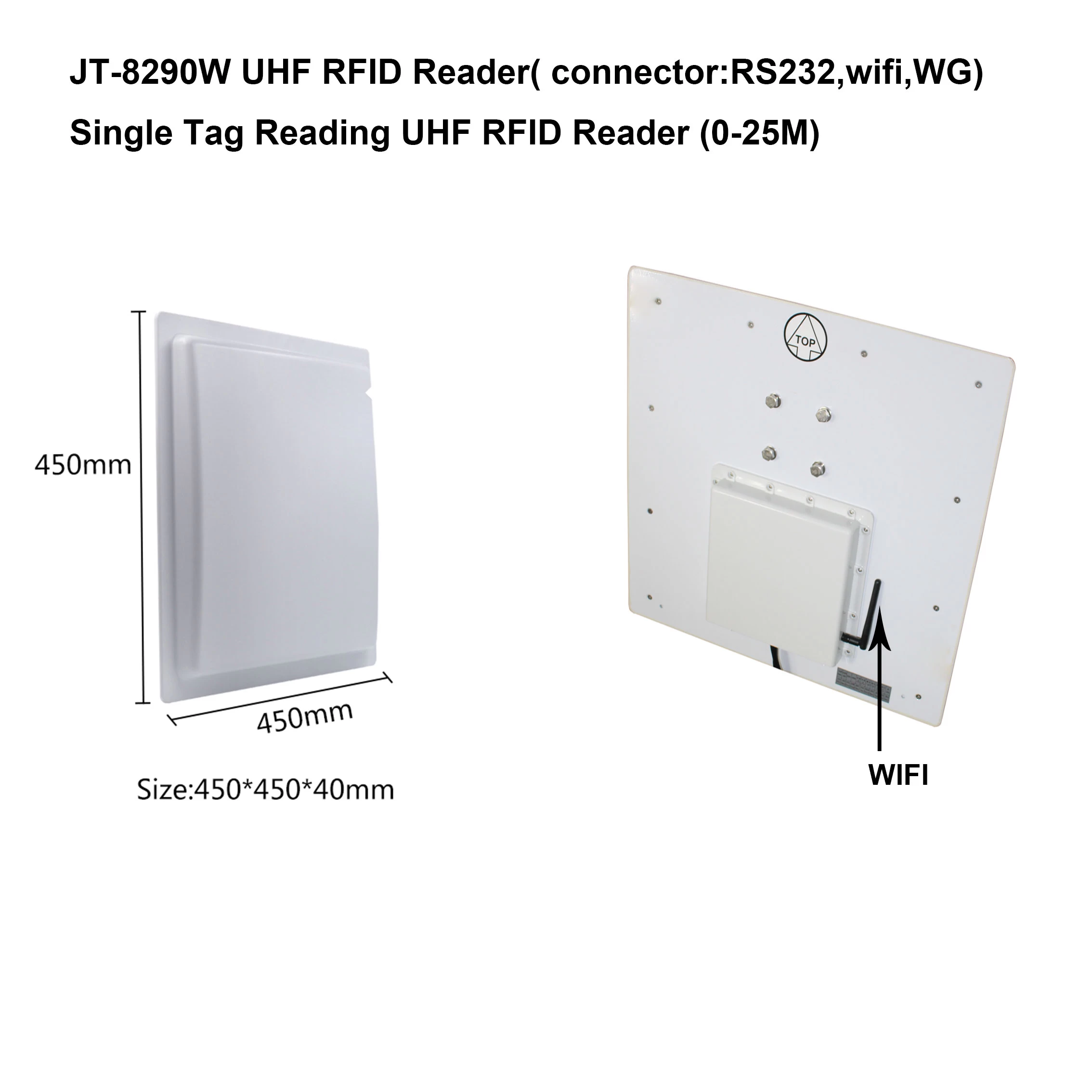

WIFI Long Range reader 20M JT-8290W

1. Long-range reader, 232, Wiegand, WIFI coexistence of the three data output.

2. Can add lowtemperature treatment, to -40 degrees environment, industrial 6000V lightning.

3. free warranty for two years, has done CE, FCC certification.

4. the device encryption, authorization card, anti-copy.

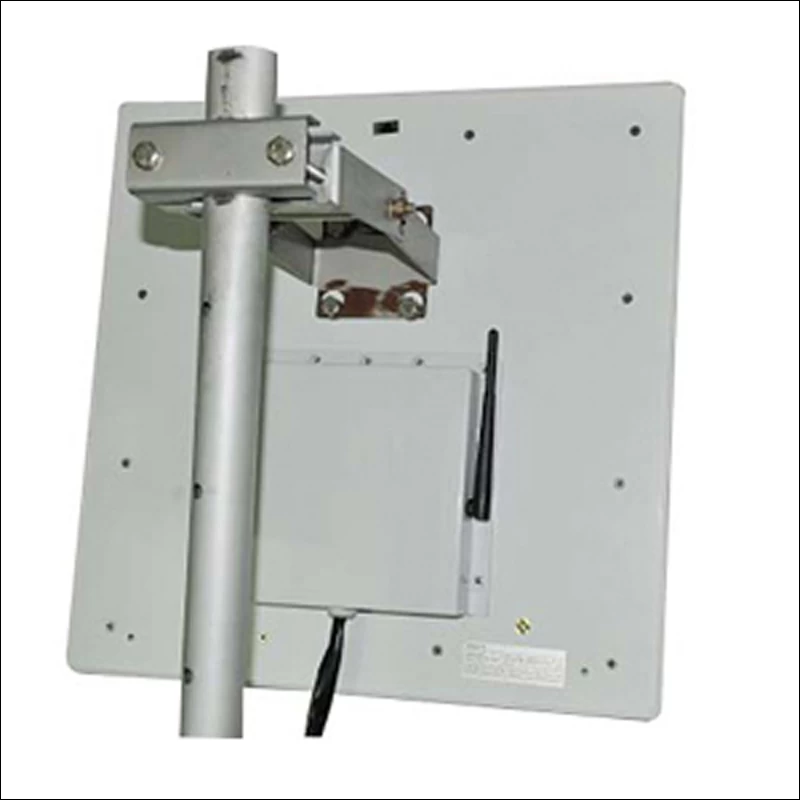

5. clip code installed pole diameter of not more than 6CM.


Facebook Twitter Pinterest LinkedIn 分享

Description:

UHF RFID Long Range reader JT-8290 could be applied in various harsh working environment for multiple protocols compatible and high speed reading. Full support the tags of ISO-18000-6C (EPC C1 GEN2) or ISO-18000-6C.Its stable reading distance is 25m (Depends on tag and environment)


Application:

◆Transportation vehicle management: Monitor and manage the transportation of vehicle and container

◆Custom management: custom clearance and transit of material

◆Logistic management: manage the flow of commodity, mail and package

◆Manufacturing sequence: monitor parts during the whole productive process

◆Device management: monitor the flow of device


Specification:

Item No.

JT-8290W

RS232,WIFI,Wiegand

JT-8290B

RS232,TCP/IP,Wiegand

JT-8290A

RS232,RS485,Wiegand

JT-8290G

RS232,GPRS,Wiegand

Performance parameters

Working Frequency

902~928 MHz or 865~868MHz

Protocol

ISO18000-6C(EPC C1 GEN2)

RF power

0~30dBm(Adjustable)

Software & SDK

DEMO and C#, VC, VB, Java, DELPH, etc.,

Encryption

Can be directly encrypted, copy prevention.

Reading range

stable reading range 25M(Depends on tag & environment)

Industrial lightning protection

6000V

Low temperature protection

Northeast, Northwest extremely cold region, low temperature protection

Frequency modulation

hopping or fixed frequency

Input/output port

Two-way relay output(customized), one-way trigger input

Antenna gain

12dBi polarization

Working way

Buzzer

Power

12V/3A Adaptor

Physical parameters:


Item size

450x450x50mm

Package size

600x480x110mm

Net weight

5KG

Shell material

ABS

Working temperature

-20℃~+65℃

Storage temperature

-45℃~+95℃
