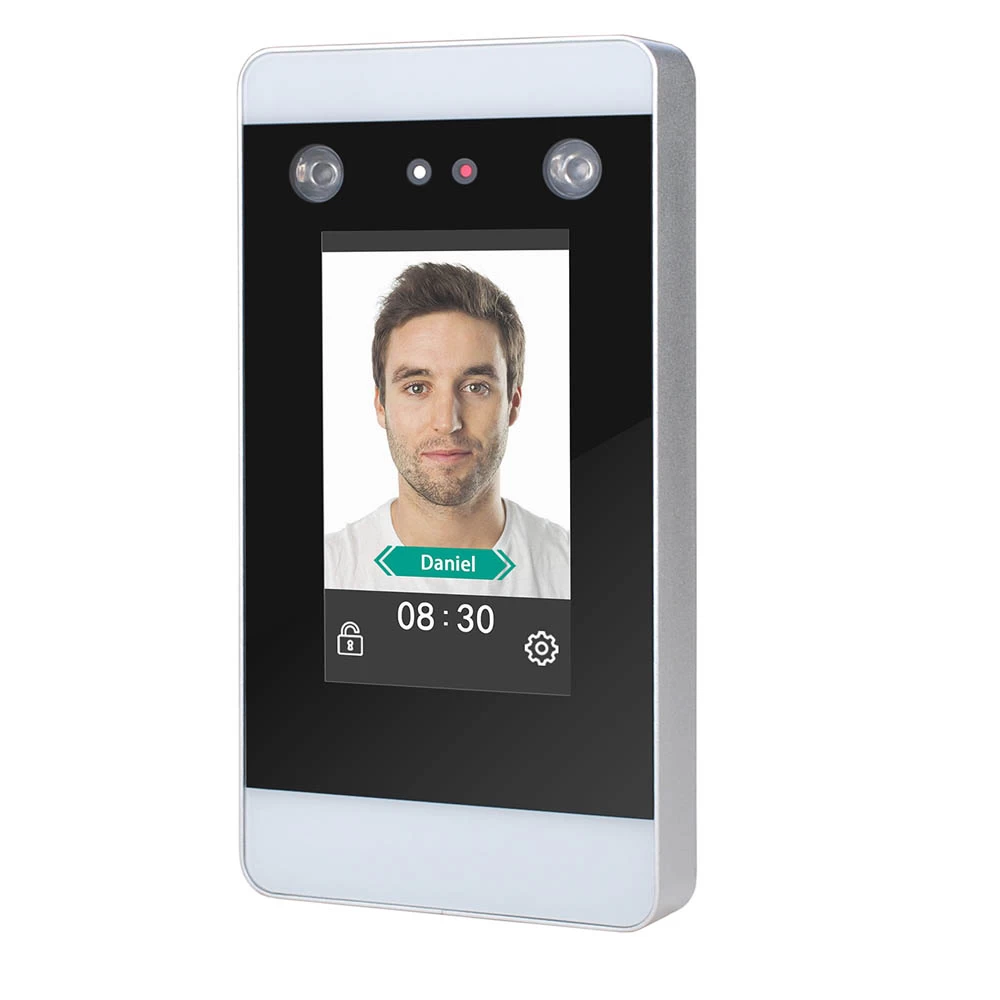

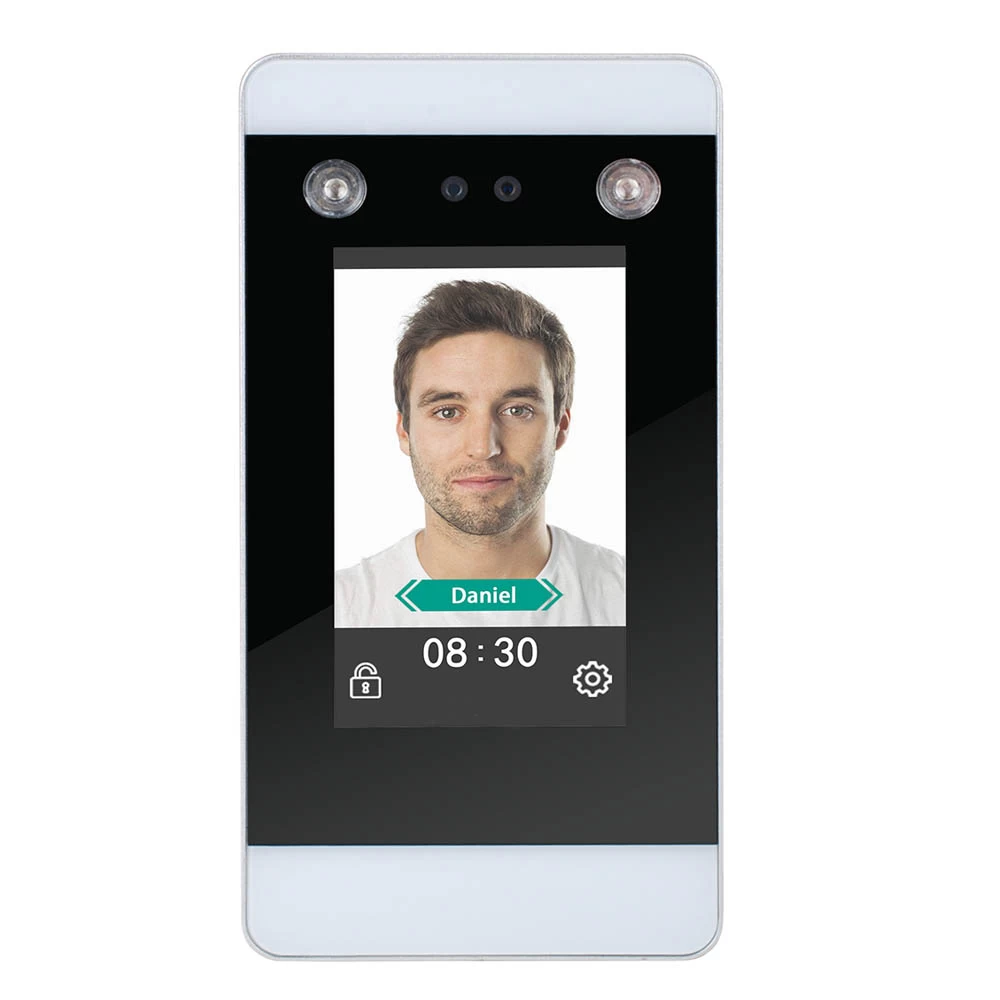

WIFI TCP IP Dual Lens Facial Dynamic Recognition Time Attendance And Access Control

WIFI TCP IP Dual Lens Facial Dynamic Recognition Time Attendance And Access Control with Wiegen for Access Control model SF-DT43 is with high accurate facial recognition mostly used in office buildings, offices, homes



Product Name: WIFI TCP IP Dual Lens Facial Dynamic Recognition Time Attendance And Access Control Model SF-DT43


Main Description:


International leading ultra-high speed facial recognition algorithm

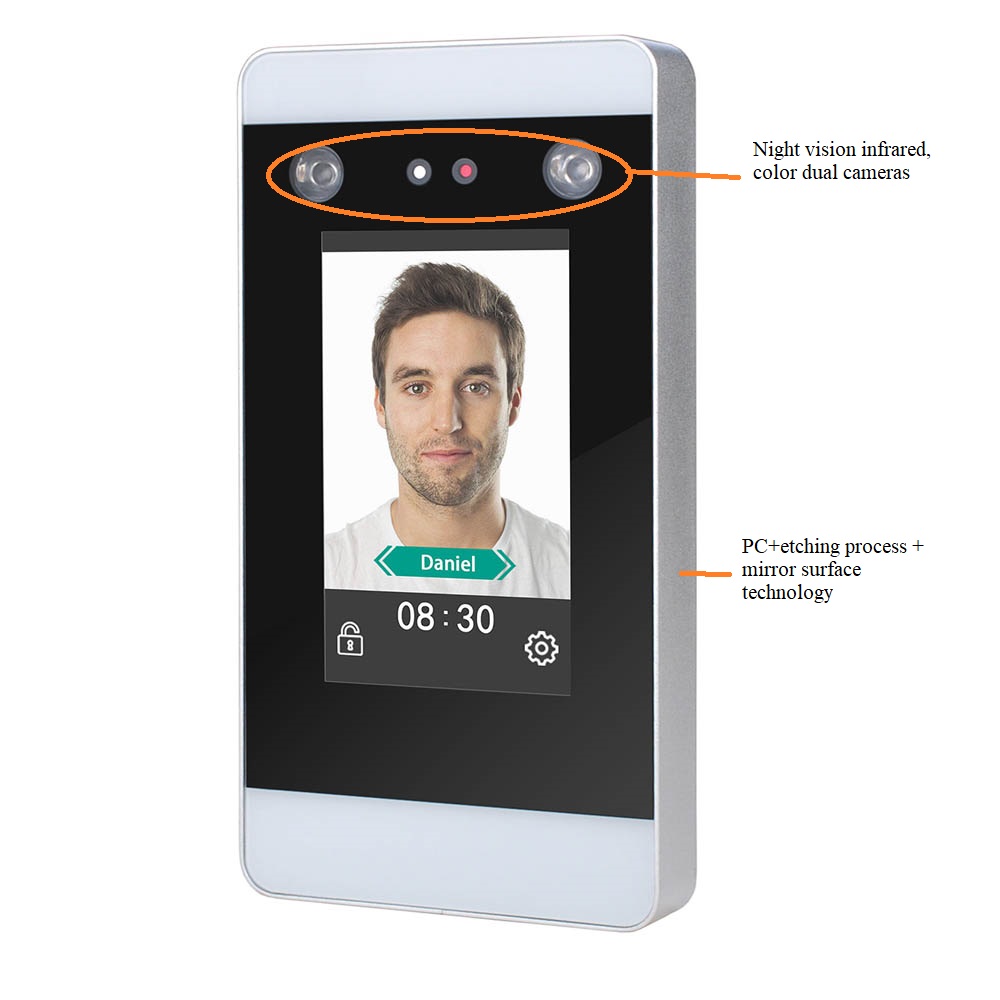

Night vision infrared, color dual cameras

The original cross-matching technology can realize in live detection, eliminate photo and model attacks

Material: PC+etching process + mirror surface technology, ergonomic design

4.3 inch touch screen

Supports cross-network connection across gateways.

Perfect balance of FAR&FRR.



Overview

Dynamic facial recognition machine



SF-DT43 has multiple ports supporting  cross-network connection across gateways,wiegen for access controls etc


Facial access control with wiegen



Dynamic Facial and Time attendance Terminal Model SF-DT43 has standing type and is wall-mounted types to meet different project needs





Detailed Descriptions:



Hardware:
CPU:ARM Cortex-A7 Quad-core,  1.2G
Storage:1G DDR3 8G eMMC
OS: LINUX
Camera: Dual camera(High resolution infrared and color dual cameras)
IR LED: Yes
LCD:4.3 inch HD Touch Screen
Infrared approach receiver: Yes
Touch screen: Yes
Communication:TCP/IP,USB,U-disk, WIFI
FRR: <= 1%
FAR: <= 0.0001%
USB port: Yes
Working voltage: DC12V - 24V Wide voltage design
Ambient light: 0-50000Lux
Working temperature: 0℃-40℃
Working humidity(RH): 20% ~ 80%

Software
Face capacity: 2000, optional 5000
Storage capacity: 200000
Recognition way face、card、password
Language Chinese/English(Korean/Japanese etc.)
Self-checking function Yes
Face FAR/ FRR 0.001/0.1(%)
Recognition Speed 0.3s
Face intelligent update function Yes
Recognition ways 1:1, 1:N

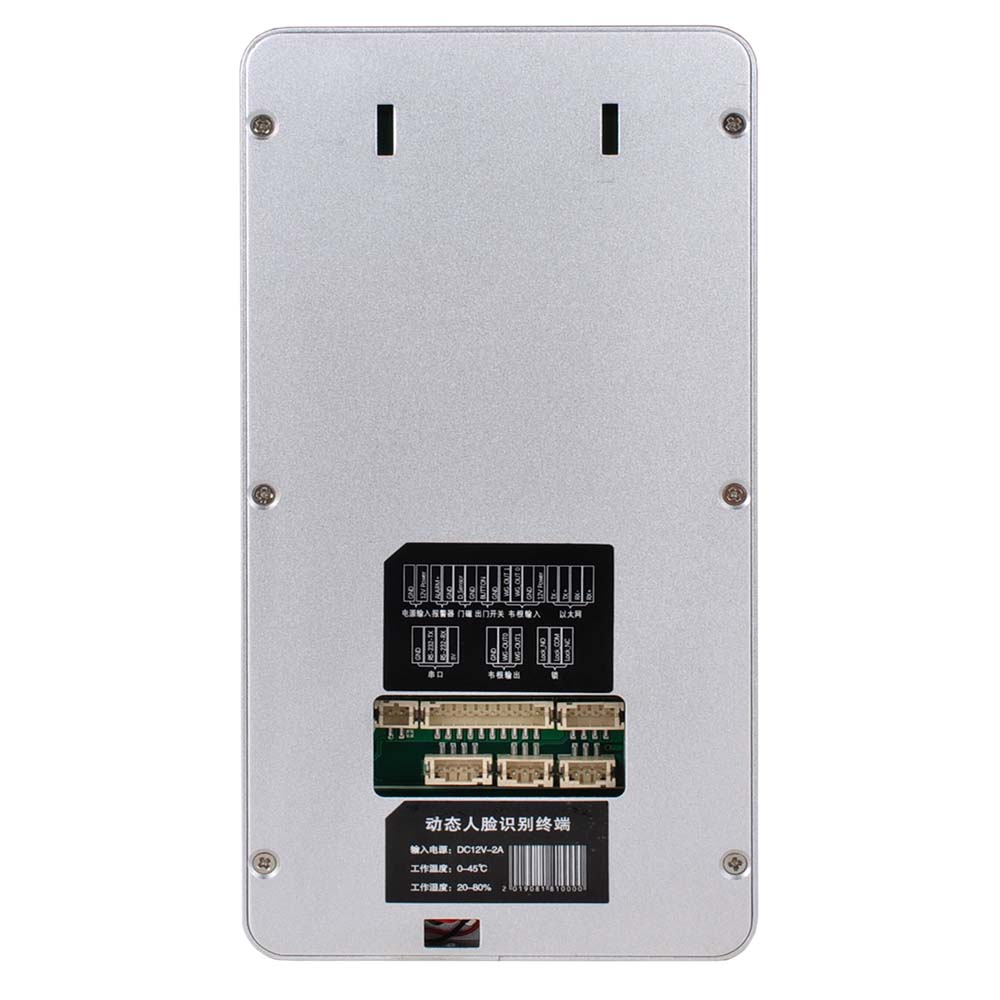

Wiegand input&output:

Door sensor(EN-MG)
Gate magnetic signal input

Alarm output

Doorbell output
Door switch signal input
Wiegand 1 group of WG26/34 input(External reader available)
1 group of WG26/34 output
Tamper alarm: Yes
Relay: Japan Fujitsu relay
Circuit : Main board overpressure protection, anti - reverse protection, anti - lightning, anti - surge, etc
