Wireless access point in wall AP router embedded hotel wifi project USB charging telephone LAN port

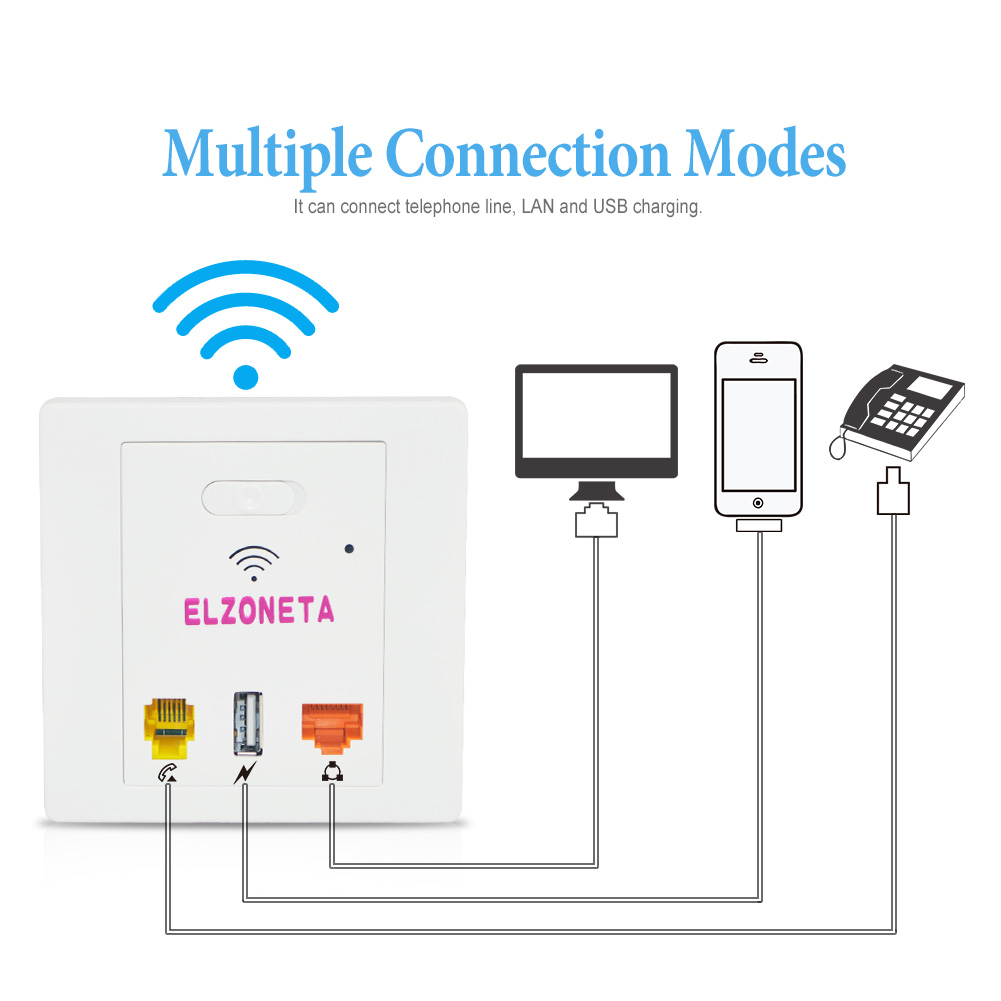

This wall embedded AP can enlarge the WIFI area and keep the network more stable and safety. With the USB charger port, LAN port and telephone port is functional for hotel project and also suitable for Villa or home use.

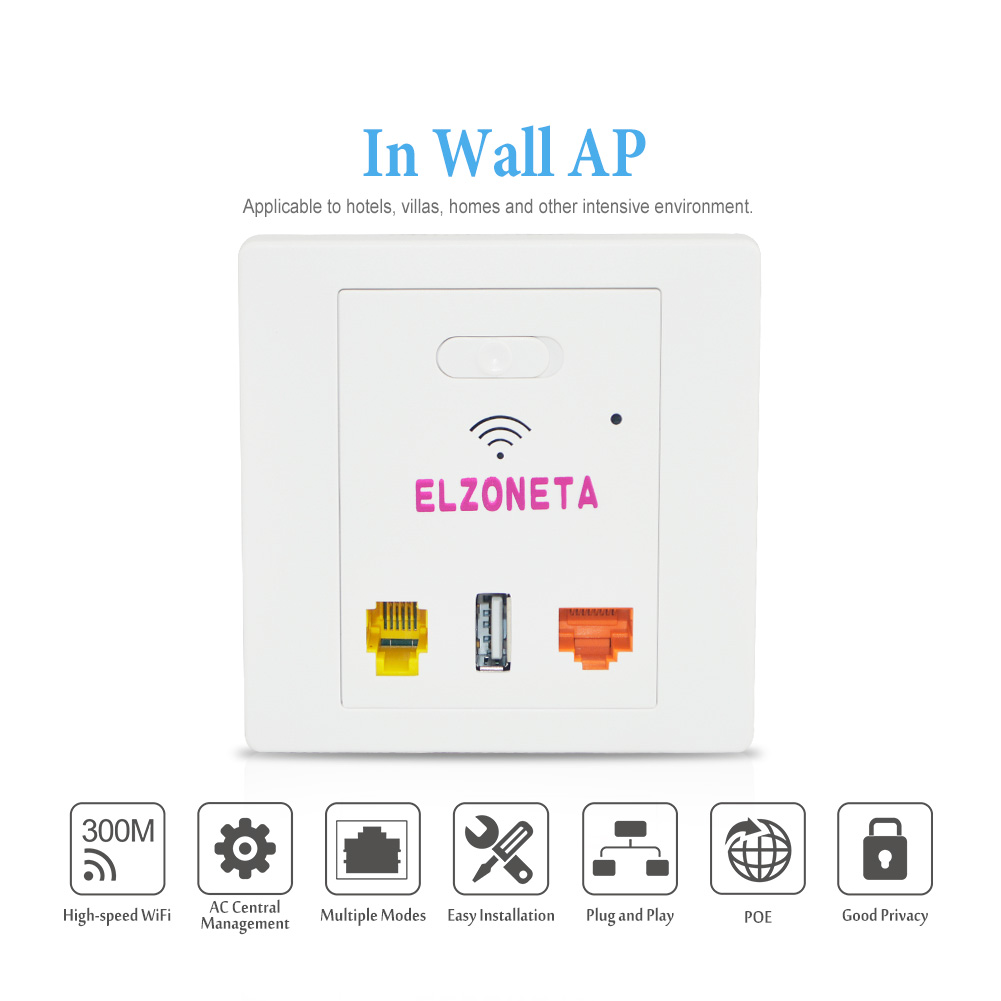

EC-AP01 Hotel Wireless In Wall AP



300Mbps in wall wireless access point provides a more stable and faster WiFi coverage in hotels, dormitory and office.


HARDWARE FEATURES

Chipset:MTK7620A Industrial processor

Router throughput:16 ports

Wireless Technology:802.11B/G/N,2T2R MIMO

RAM:64MB DDR2 RAM

Flash:8MB

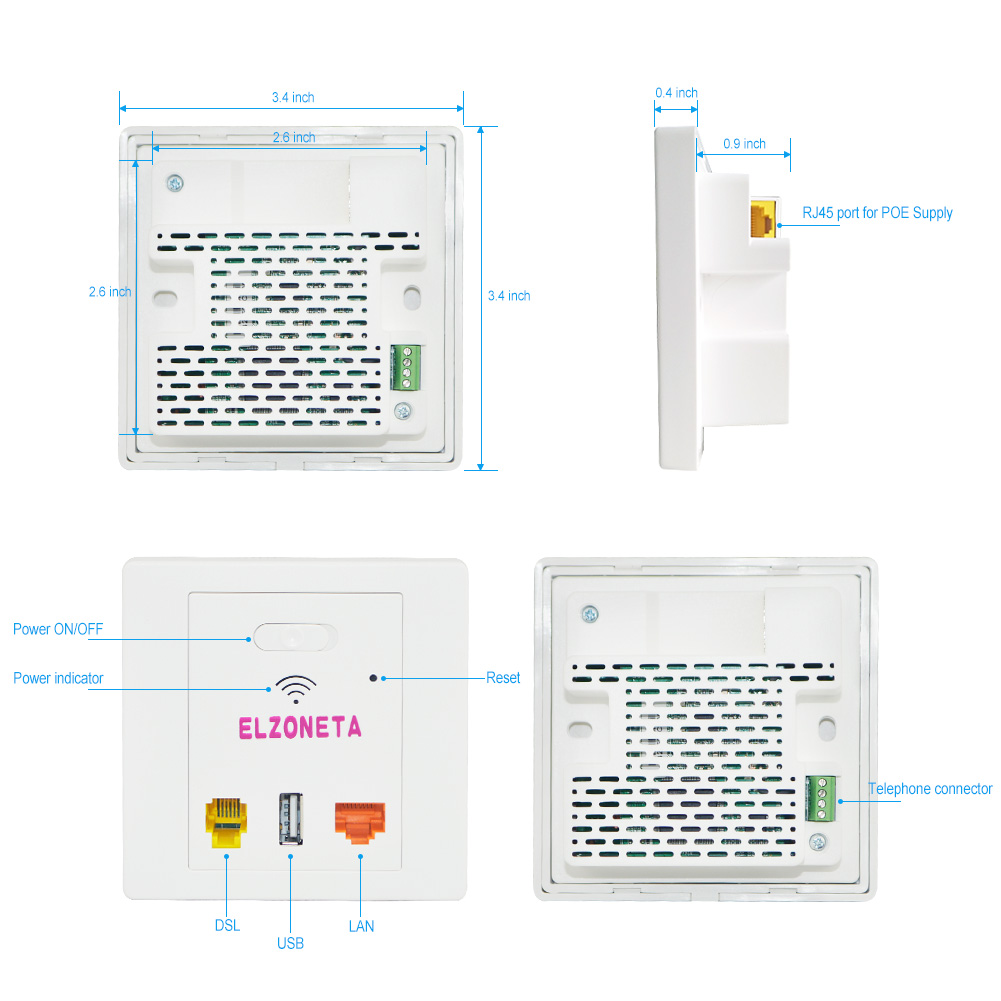

Interface:

1 x 10/100Mbps Adaptive wired network interface(Support 48V power supply, the longest distance is 100 meters)1 x Reset button


RF PARAMETER

Wireless Rate:300Mbps

Wireless Standards:IEE802.11b/g/n

Frequency:2.4GHz

Modulation:OFDM, CCK, BPSK, QPSK

Maximum transmit power:27dBm/500mw

Antenna:Internal 2* 3dBi Omni


SOFTWARE FEATURES

Management style:Soft AC/Hard AC controller

Operation Mode:AP/ Repeater

Channel configuration:Intelligent selection channel

Signal analysis:Support signal strength display and analysis

Transmitted power:Support transmit power adjustment and distance control

Wireless security:WPA2 PSK/AES

WPA/WPA2 PSK+TKIP/AES

Radio broadcast:SSID,SSID/ Tag VLAN

Regular reboot:Support timing restart function

System settings:WEB

Software upgrade:WEB page or TFTP upgrade

User rights:user name and password is configurable


PHYSICAL CHARACTERISTICS

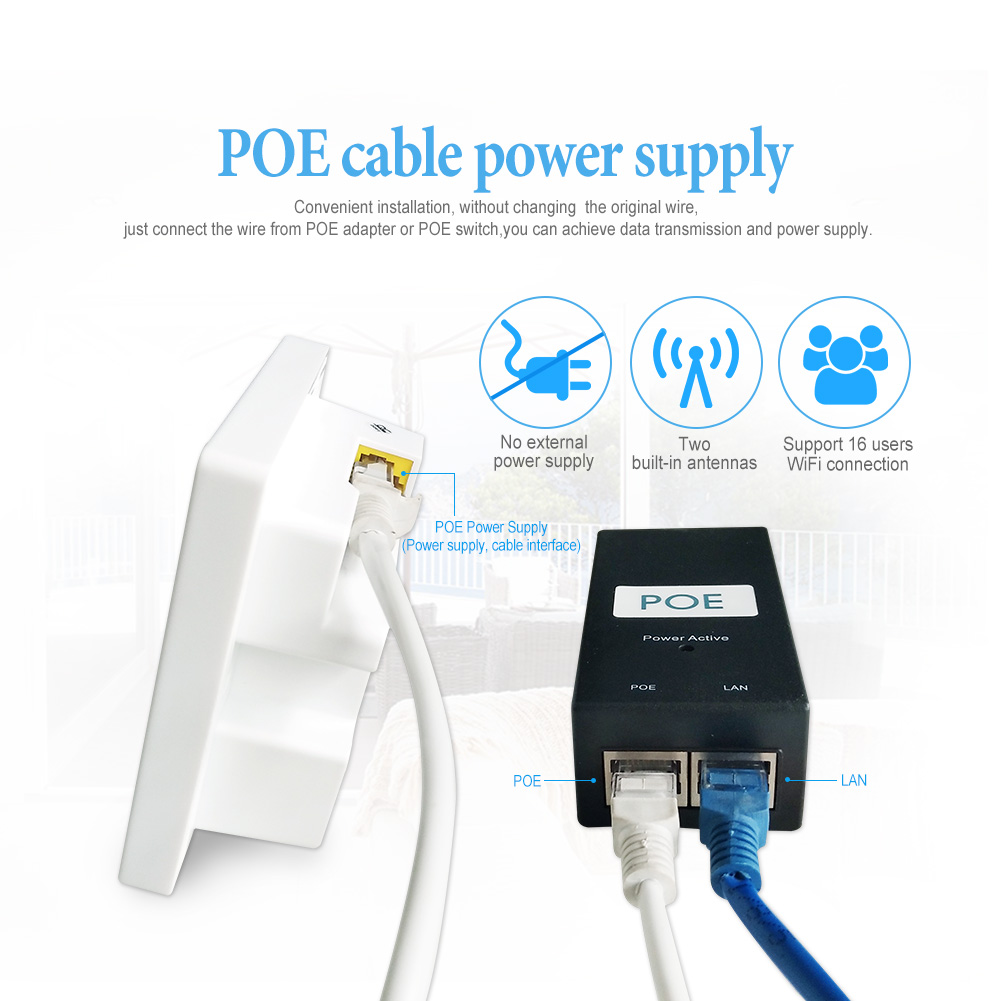

Power Supply:48V 0.5A POE

Operating Temperature:-30℃~+70℃

Operating Humidity:10%~90%

Power Consumption:12W

Material:ASA Engineering plastic shell

Installation method:wall mounting


More Information:

wireless in wall AP

wifi router access point

wall AP with POE


hotel project wireless AP

embedded wall access point
