Wireless zigbee dimming led power supply led driver 12v 60w

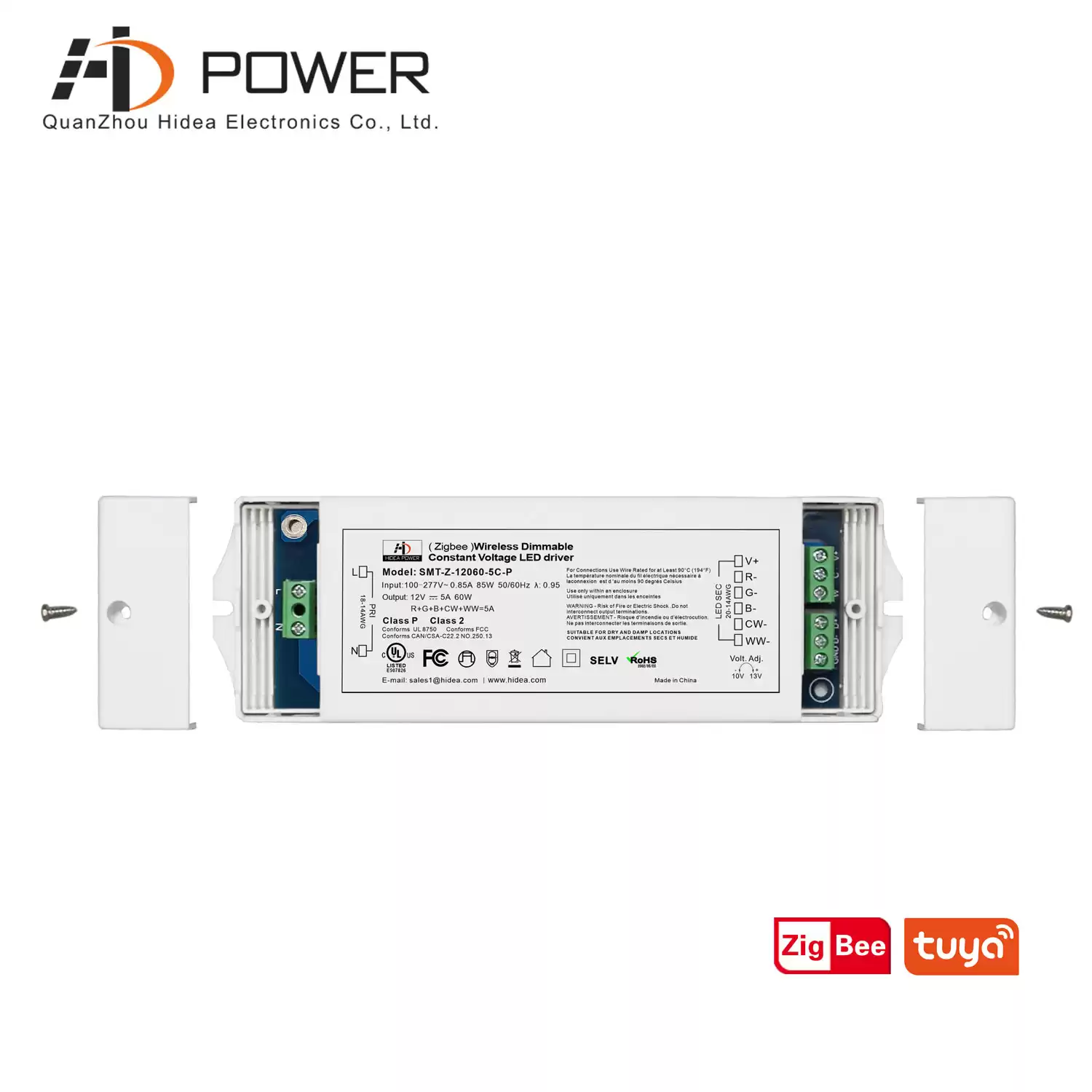

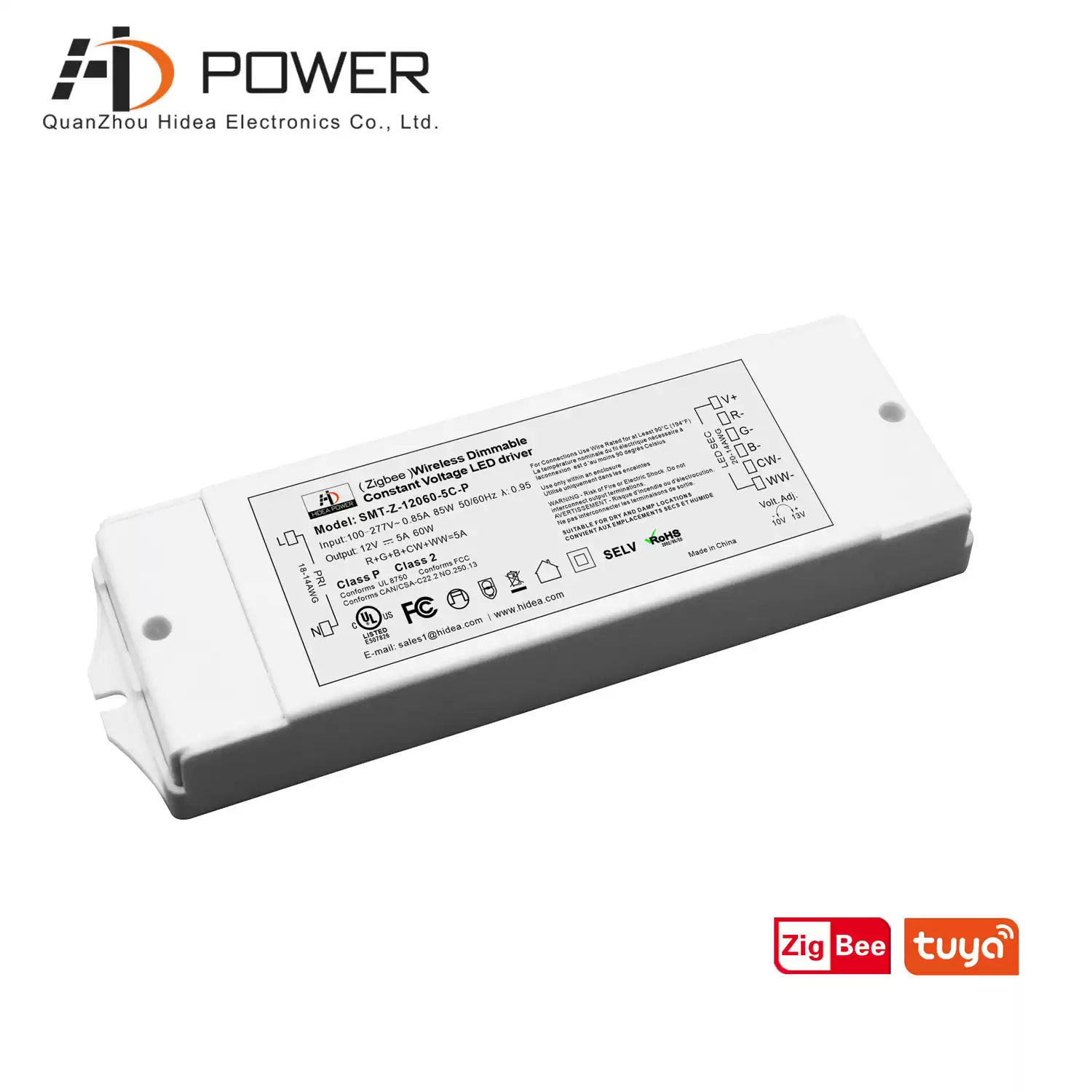

12v 60W Wireless zigbee dimming led power supply Passed UL certification, mainly sold to North America Compatible with Batuled's LED downlight to achieve smooth dimming effect
Specification
|
Model
|
SMT-Z-12060-YC-P
|
SMT-Z-24060-YC-P
|
|
Y=1 , 2, 3, 4, 5 for DIM (DW); CCT(TW); RGB; RGBW; RGBW+CCT
|
|
Output
|
DC Adj. Voltage Range
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
CH1+CH2+CH3+CH4+CH5=5A
|
CH1+CH2+CH3+CH4+CH5=2.5A
|
|
Rated power
|
60W
|
|
Load Regulation
|
±2%
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47 - 63Hz
|
|
Power Factor(Typ.)@ full load
|
PF≥0.95/ 230VAC (Full loading)
|
|
THD(Typ.)@ full load
|
<15%
|
|
Efficiency(Typ.)@ full load
|
87% @230VAC
|
88%@230VAC
|
|
AC Current(Max.)
|
0.72A
|
0.72A
|
|
Inrush Current (Typ.)
|
45A (Twidth 145us measured at 50% I peak, COLD START, 230VAC)
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recover automatically after fault condition is removed
|
|
Over Load
|
≤120% ,hiccup mode, recover automatically after fault condition is removed
|
|
Over temperature
|
≤100℃±10℃, shutdown output voltage, recover automatically after temperature drop
|
|
Protection Class
|
II
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20 - 90%RH ,non-condensing
|
|
StorageTEM.,Humidity
|
-40 - +80℃,10 - 95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0 - 50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 (EU) & UL8750 UL1310 (US)
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC (EU) & I/P-O/P:1.5KVAC (US)
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC Emission
|
EN55015 EN61000-3-2 EN61000-3-3 (EU) & FCC Part 15 B (US)
|
|
EMC Immunity
|
EN61000-4-2,3,4,5,6,11 EN61547
|
|
Others
|
Net Weight
|
0.40KG
|
|
Dimension
|
192.5*62*24mm (L*W*H)
|
|
packing
|
195*65*28mm /1PC/box 280*210*160mm/20PCS/CTN G.W.:8.3KG/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set up tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Compatible Light Type
The input voltage of 12v zigbee dimmable led driver 60W is 100-277VAC. After the power supply is matched with the device, remote dimming can be realized through the mobile phone app, which is more convenient and faster than the kelvix common type led driver
Related Products
|

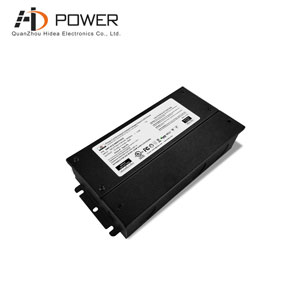

 triac dimmable 12v 5a constant voltage class 2 led driver Suitable for indoor environment
