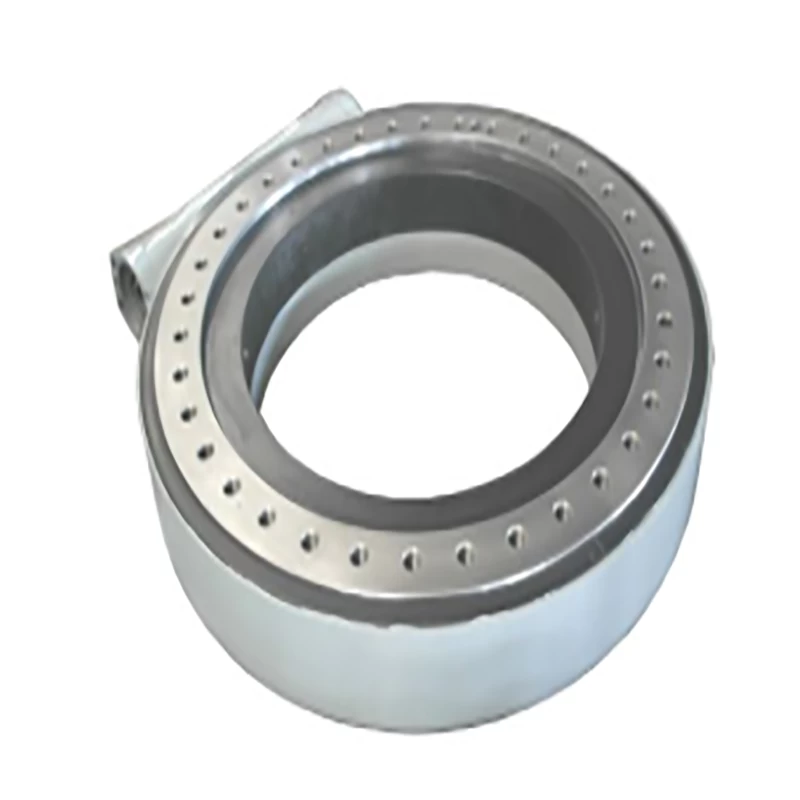

With Good Quality SE25 Slewing Drive

Due to the slewing bearing of the core part, the slewing drive can simultaneously support axial force, radial force and tipping moment.




With Good Quality SE25 Slewing Drive

The slewing drive is easy to install, easy to maintain, and saves installation space. Mainly used in aerospace. Tower cranes, excavators, construction machinery, satellite receiving systems, solar tracking systems and many other industries. Especially in recent years, the rapid development of solar photovoltaic power generation industry is widely used.


Se25 slewing bearing is an honorary product of Maanshan Jingwei.

the Data Model is se25

theOutput Torque is 18KN.m

the Tilting Moment Torque is 271 KN.m

the Holding Torque is 158.3 kN.m

the Static Axial Load is 2380KN

the Static Radial Load is 945KN

the Dynamic Axial Load is 590KN

the Dynamic Radial Loadis is 470KN

the Speed reducing ratio is 150:1

the Tracking Precision is 0.15°

the Self-lock is YES

the Weight is 204KG


Our SE25 have two types-single worm and double worm gear. Customers can choose the DC motor or hydraulic motor according to their needs.The tilting moment torque of SE25 slewing drive is 271kN.m,and the Gear ratio is 150:1.

For more product information, please feel free to contact us.
