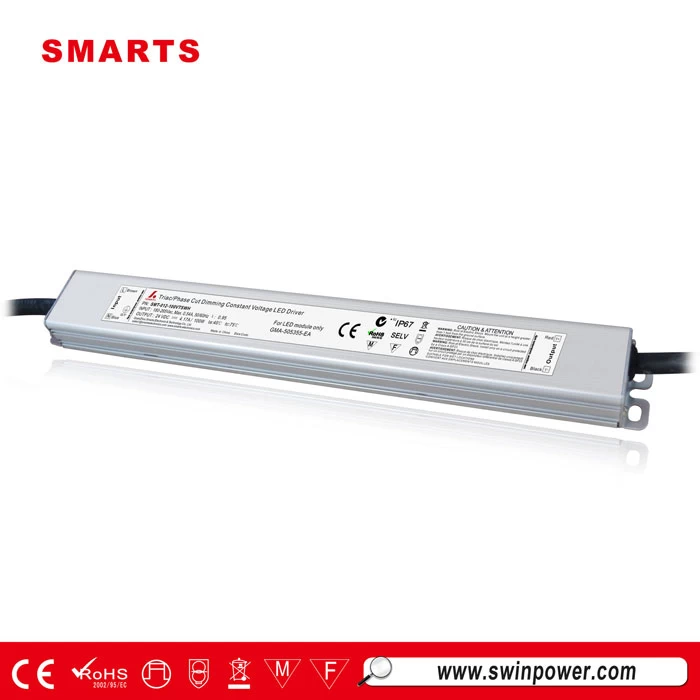

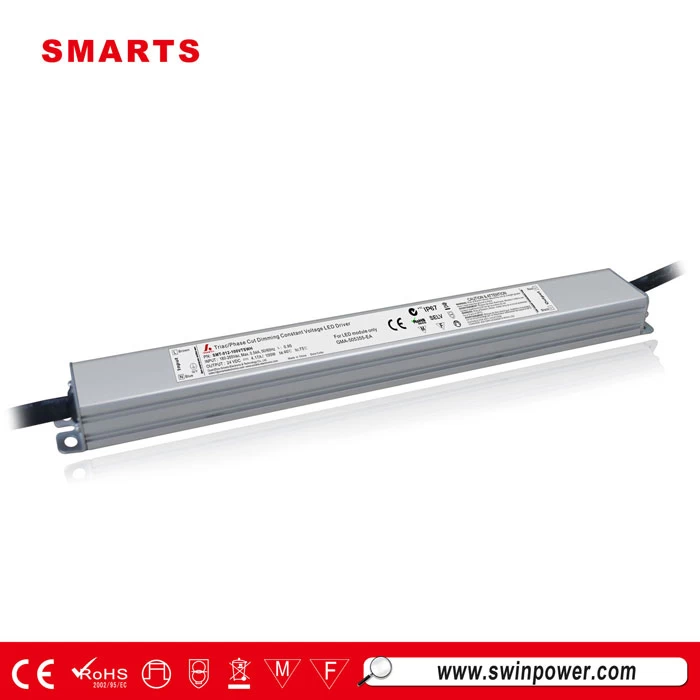

With SAA CE ROHS constant voltage triac dimmable led driver 100w 12v ac to dc power supply

A series of slim shape triac dimmable led driver divide 12v triac dimmable constant voltage led driver & 24v triac dimmable constant voltage led driver. Our 12v 100w slim type triac dimmable constant voltage led driver are 7 years warranty


  • CertificationSAA CE ROHS
  • Size330*32*23mm
  • Dimming modeTriac Dimmable
  • Working Modeconstant voltage
  • Output Current100w
  • Output Voltage12v
  • Input Voltage180~265V

With SAA CE ROHS constant voltage triac dimmable led driver 100w 12v ac to dc power supply


Our triac dimmable LED drivers comtabile well with most of  brands of Triac/Phase-Cut dimmers (Brand: Lutron, Leviton,Clipsal, HDL, ABB, DALITEK )

This model 100w slim size triac dimmable LED driver  have short circuit/overload/over temperature protection.Through 100% full load burn-in test.


  Specification



model

SMT-012-100VTSWH

SMT-024-096VTSWH

Output

DC Voltage

12VDC

24VDC

Voltage Accuracy

±5%

±5%

Rated current

8.33Amp

4Amp

Rated power

100W

96W (class 2)

Voltage Regulation

±0.5%

Load Regulation

±1%

±1%

Input

Voltage Range

180-265 VAC

Frequency Range

4763HZ

Power Factor ( Typ.

PF≧0.95

Full Load EfficiencyTyp.

>83%

>84%

AC CurrentTyp.

1.10A/100VAC  /  0.43A/277VAC

Inrush CurrentTyp.

9.2A, 50%, 1ms@120VAC / 26.4A, 50%, 780us@2770VAC

Leakage current

<0.50mA/110VAC; 0.13mA/277VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over Loading

≤120% shut down o/p voltage, re-power on to recover

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Environment

Working TEMP.

-40+60℃

Working Humidity

2090%RH,non-condensing

Storage TEM.,Humidity

-40+80℃1095%RH

TEMP.coefficient

±0.03%/℃050℃

Vibration

10500Hz2G 10min./1 cycleperiod for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P: 2KVAC

Isolation resistance

I/P-O/P100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,,11, ,

Alight industry level

Others

Weight

0.55Kg

Size

330*32*23mm (L*W*H)

packing

50PCS/CTN





Triac dimmable led driver
dali led power supply
0-10v led driver
slim size led driver


  Problem analysis


1. Question: If all dimmable LED drivers we ordered will provide more than 12 or 24 volts? As our some of LED lighting 's voltage is more than 24VDC a bit .

Answer:  ±0.5% is the acceptable margin of error for both 12v dc and 24vdc led drivers.



2.Question:  Do all of these units have protection from thermal overload (excessive heat), voltage overload, short circuit, and power surge?

Answers: Yes, all of those units have the protection  from thermal overload (excessive heat), voltage overload, short circuit, and power surge.



3.Question: Do you have any customers in the US? I have not heard about your company before.

Answer: 1) Light Blue LLC

               2) Diode LED
