Water meter composition:

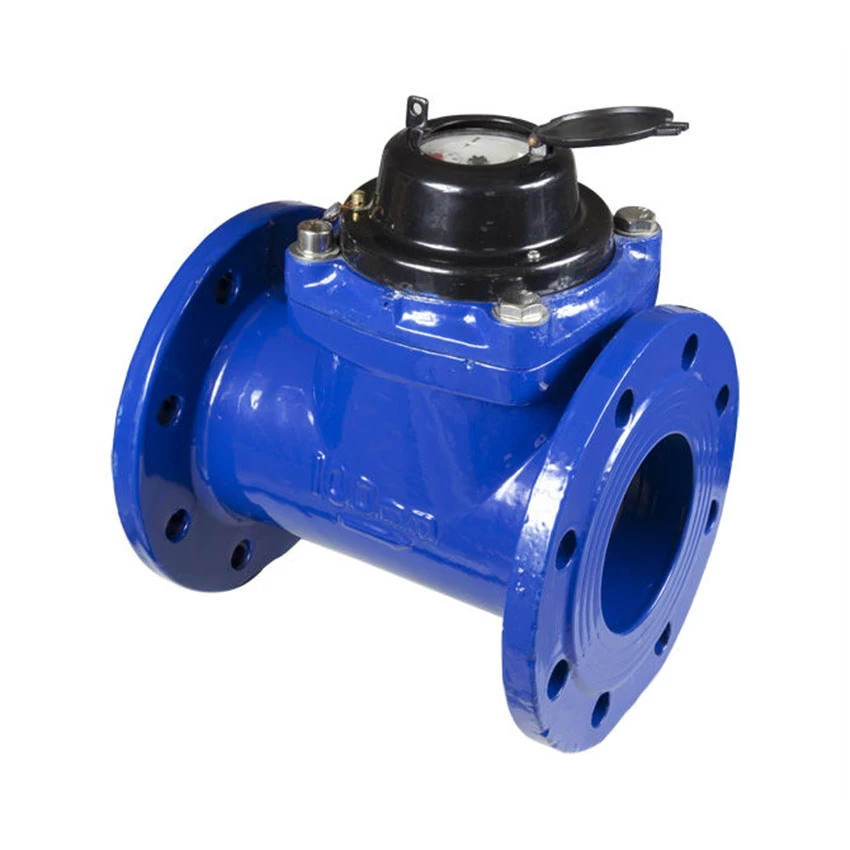

Nominal caliber 80~300mm horizontal helix water meter mainly consists of watch case, rectifier, error adjusting device, helix, bracket, worm wheel and worm, counting mechanism, meter lense, sealing gasket and middle cover and so on.
Product characteristics:
1. The indicating mechanism adopts magnetic transmission structure and has the function of anti-magnetic interference;
2. Removable structure, easy to repair and maintain;
3. Large circulation capacity, small pressure loss, anti-water impact and anti-pollution ability;
4. The reading is clear and intuitive and easy to use.
Flow performance is higher than GB/T 778-1996b and ISO 4046 class B standards;
6. Can be equipped with pulse output
Application:
detachable woltman type water meter is used to record the water consumption of large flow pipeline, is suitable for running water, well water and river water of unidirectional flow, and can also be used for sewage metering, but it is not suitable to measure corrosive liquids.
