Wood Coal Heating Continuous Green Tea Leaves Fixation Processing Machine 6CSTL-CM60

DL-6CSTL-CM60 wood coal heating continuous tea leaves fixation mainly for roasting green tea leaf, oolong tea leaf, white tea leaf and other kinds tea.


  • Efficiency75 kg/h
  • Heating typeWood and coal
  • Barrel speed5-37 min
  • Barrel length3000 mm
  • Barrel diameter600 mm
  • Voltage380/50
  • Dimension990×4060×2190 mm

Description:
DL-6CSTL-CM60 wood coal heating continuous tea fixation machine use of high temperature to destroy the activity of enzymes in fresh leaves, to prevent polyphenol oxidase from continuing to oxidize, so that the water inside the fresh leaves evaporates. Making the smell of grass in the tea subsides, the fragrance of tea emerges, and the leaves become soft, creates conditions for rolling process.

Application:
Continuous tea leaves fixation machine can use for most kinds of tea, such as green tea, oolong tea, white tea and other kinds tea leaves.

Advantage:

1. The use of clean energy, high thermal efficiency, energy saving effect is good;
2. The use of microcomputer temperature control technology, precise temperature control;
3. Pitch optimization, mechanical fixing "fry" "stuffy" combination, improve the quality of tea;
4. Mechanical structure, precision, reliable quality, stable performance.
5. With automatic feeding machine, fixing effect is better, more efficient.

Parameter:

DL-6CSTL-CM60 continuous wood and coal heating tea leaf fixation machine specification:

Model DL-6CSTL-CM60
Dimension 990×4060×2190 mm
Voltage 380/50
Drum inner diameter 600 mm
Drum inner length 3000 mm
Drive motor Power 0.75 KW
Speed 1400 rpm
Voltage 380 V
Air exhausting
motor
Power 370 W
Speed 1400 rpm
Voltage 380 V
Drum speed 5-37 min
Heating type Wood and coal
Efficiency 75 kg/h
The above data is based on fresh tea leaf water content of 75-80%.

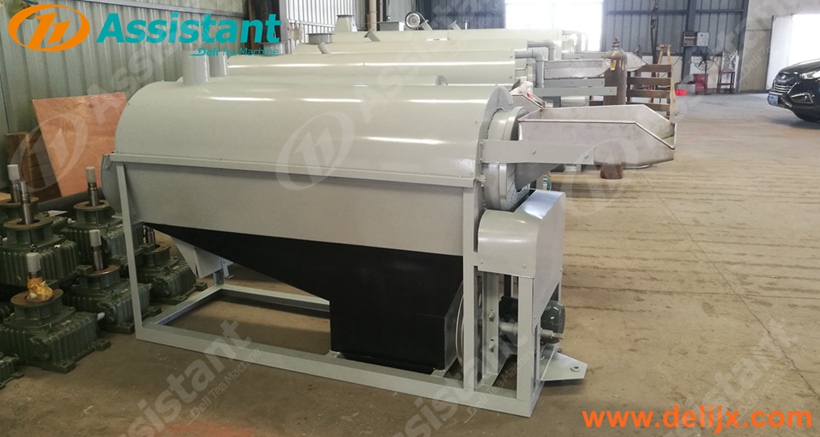

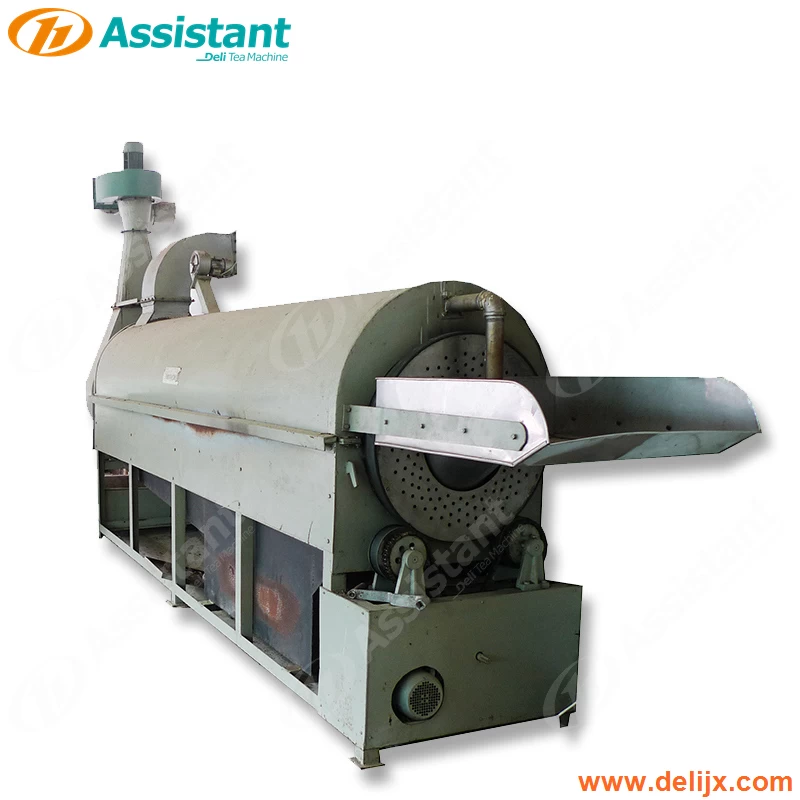

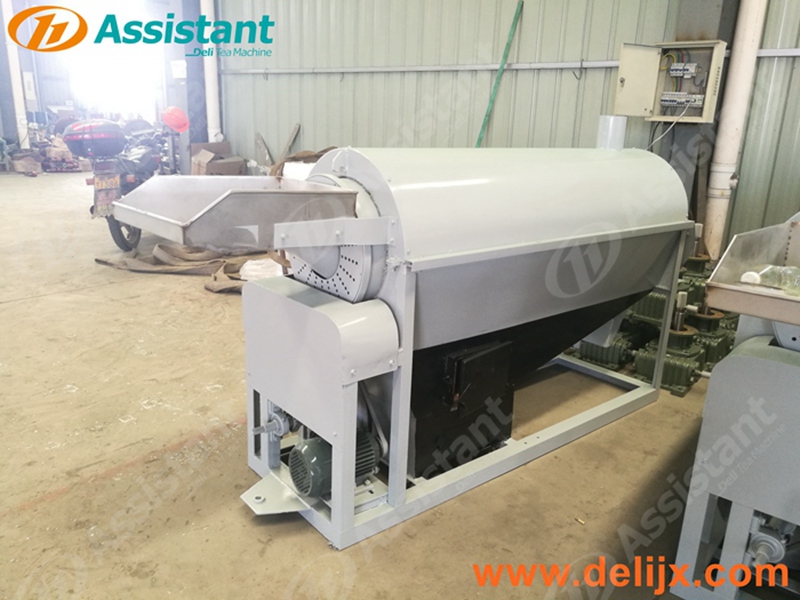

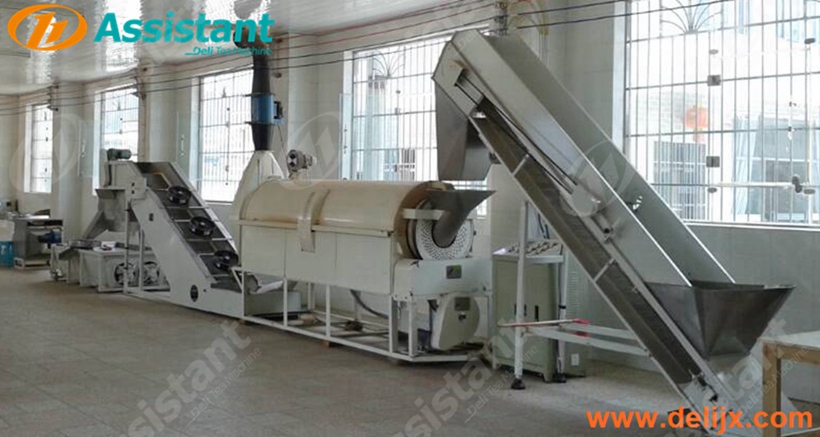

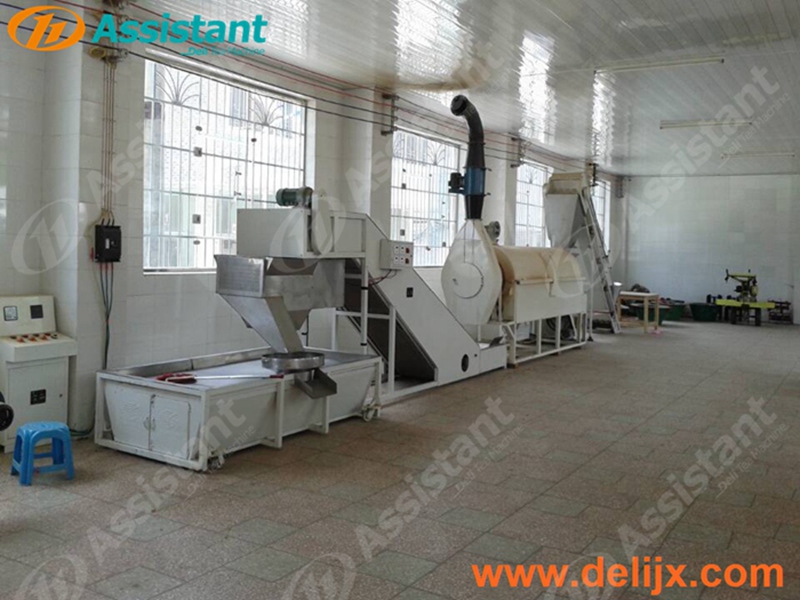

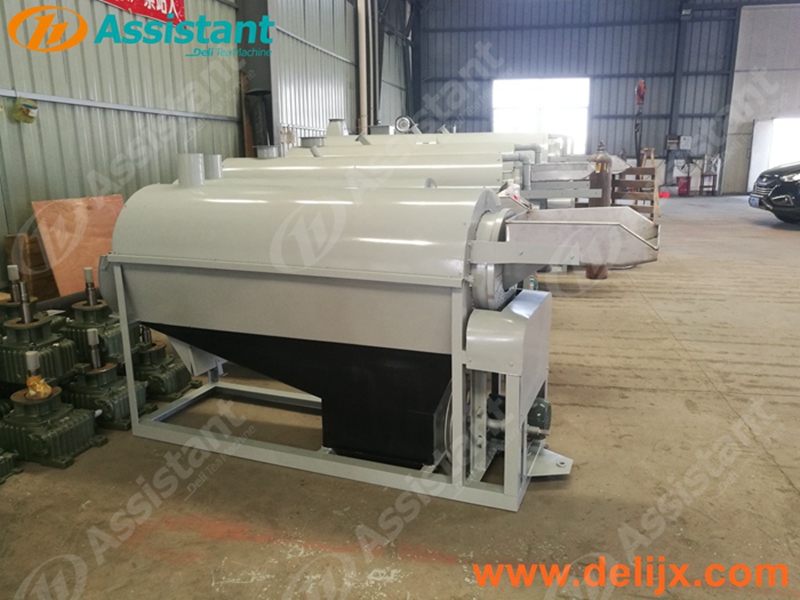

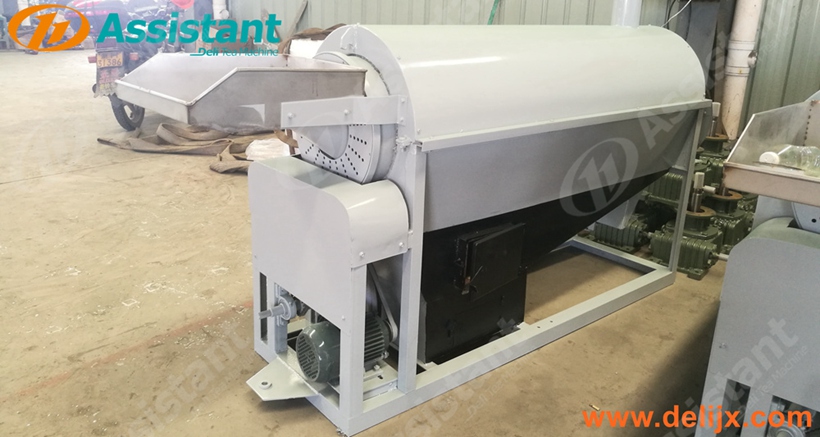

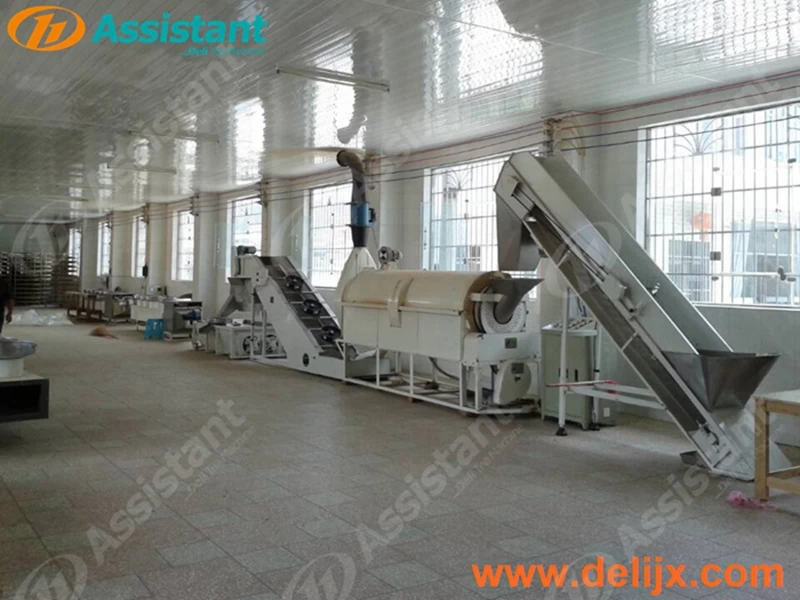

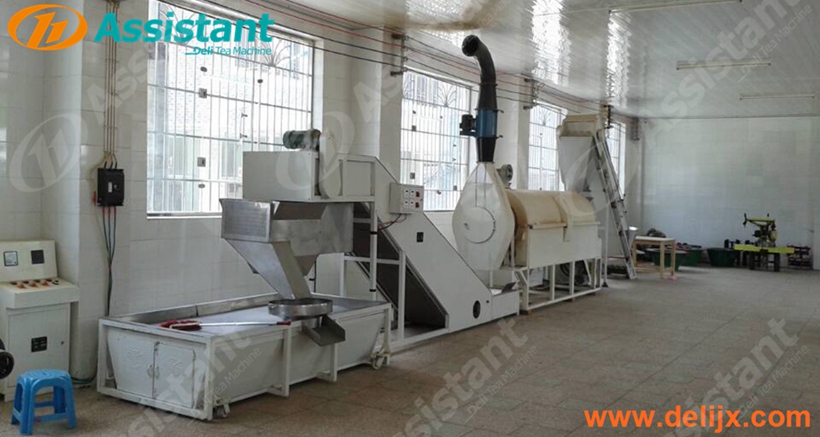

DL-6CSTL-CM60 wood and coal heating tea leaves fixation machine photos:

Wood Coal Heating Continuous Green Tea Leaves Fixation Processing Machine 6CSTL-CM60
Wood Coal Heating Continuous Green Tea Leaves Fixation Processing Machine 6CSTL-CM60
Wood Coal Heating Continuous Green Tea Leaves Fixation Processing Machine 6CSTL-CM60
Wood Coal Heating Continuous Green Tea Leaves Fixation Processing Machine 6CSTL-CM60
