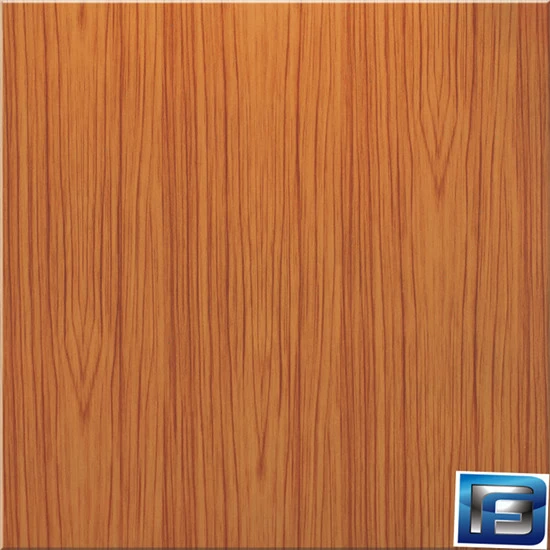

wood grain aluminum trim coil

No matter wooden grain or marble stone aluminum coil, it is referred from the natural material to reach the texture effect of wood and stone. The pattern comes from the painting original color after a high temperature baking of 224-255℃.




Wooden grain coated aluminum coils are widely applied to ACP,

aluminum ceiling, roofingfireproof roller shutterdoors, wall panel , facade cladding, etc.



1. Specification for coated aluminum coils
01)Material: aluminum alloy A1100, A3003, A3005, A3105
02)Aluminum thickness:0.04-1.20mm
03)Max coil width: 1600mm(standard 1240mm)
04)Coil ID: 405mm,505mm, Coil OD: 1000-1400mm
05) Coil standard weight2500kgs/coil
06) Coating: PE or PVDF coating

07) Surface treatment: anti-scratch, glossy, matte

08) Color: wooden grain, marble stone, plain color,3D, HD, metallic, patterned, etc.
09) Dried and baked: oven baked at 450 degree F
10) Coating thickness: double coating-25 micron, single coating-18 micron
11) Coating hardness: (pencil hardness) 2H
12) Coating adhesive: no lower than first grade
13) Impact resistance: no cracking and peeling(50kg/cm, ASTMD-2794:1993)
14)Flexibility(T-bend):2T or by your option
15) MEK resistance: more than 100
16)Outer packing: wooden plate, covering with craft paper and film, Eye to Sky or wall to Sky packing.

 2. Applications

Interior applications: ACP skin, door skin, wall cladding, ceilings, kitchen cabinet,  balconies, shutters...

Exterior applications: roller shutters, gutters, wall cladding, facades, roofing, canopies, tunnels, column covers renovations...

Advertisement and market applications: display platforms, signboards, fasciashop fronts...
