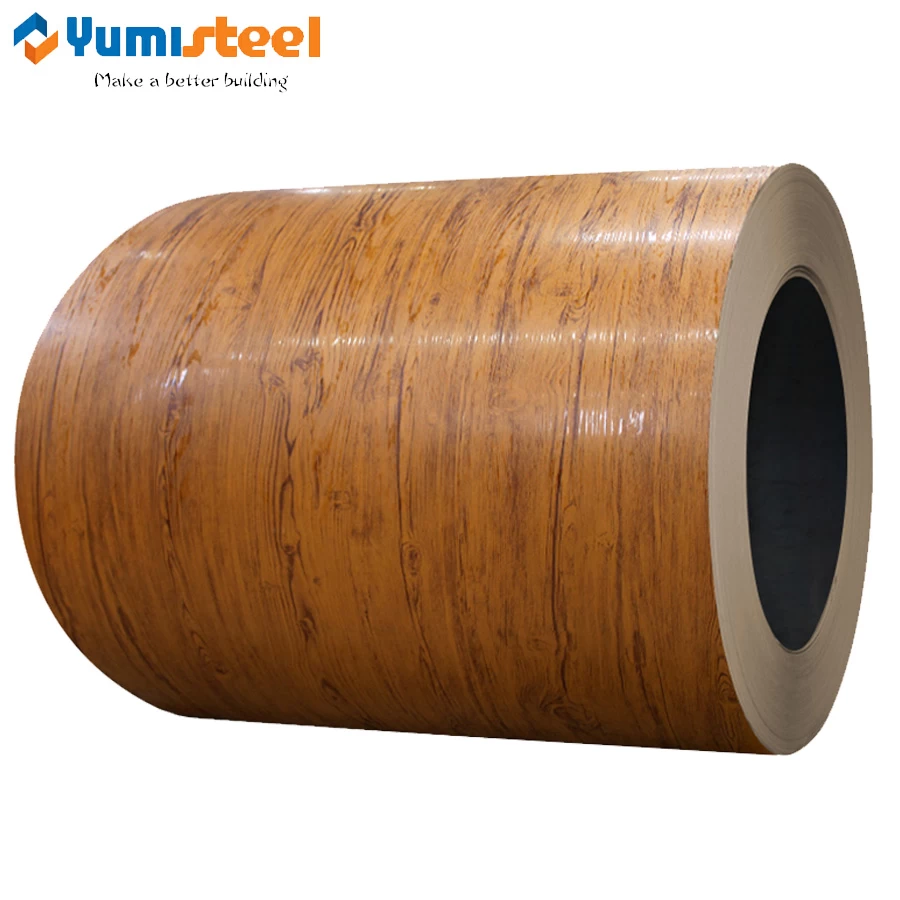

Features of steel coils with grains
☆ Different wood grains color swatches for choices:
Various colorways can meet up your requirements on buildings or products that need steel with special grains.The grains also can be customized.
☆ High quality coating types for choices:
Yumisteel can offer you coatings on steel coils as follows,you can choose the suitable one,as per local environment.
1) Polyester(PE)
2) Silicon modified polyester(SMP)
3) High durability polyester(HDP)
4) Polyvinylidene fluoride(PVDF)
☆ Strict quality control on wood pattern steel coil:
Strict production process;
Skillful technical workers;
Final products inspection;
Test for resistance to corrosion,salt spray test,exposure test,machinability and thermal resistance;
Seaworthy packing standards.
PPGL steel coils specification
|
Product name
|
Wood grain PPGL coils
|
|
Base sheet
|
Aluminum and zinc coated steel
|
|
Thickness range
|
0.20 - 1.00 mm
|
|
Width range
|
900 - 1250 mm
|
|
Coil weight
|
3 MT - 10 MT
|
|
Mass of coating
|
40 g/m² - 275 g/m²
|
|
Painting standard
|
Primers: Epoxy, PU
|
|
Top Coating: Polyester (PE),Silicon Modified Polyester (SMP),High-durability Polyester coating(HDP)Poly Vinyl Di Flouride (PVDF)
|
|
Back Coating: Epoxy, Polyester, PU
|
|
Top Coating
|
15 μm - 30 μm
|
|
Back Coating
|
10 μm - 12 μm
|
|
Colors
|
Customized
|
|
Packing
|
Seaworthy Packaging
|
Wood pattern steel coils application

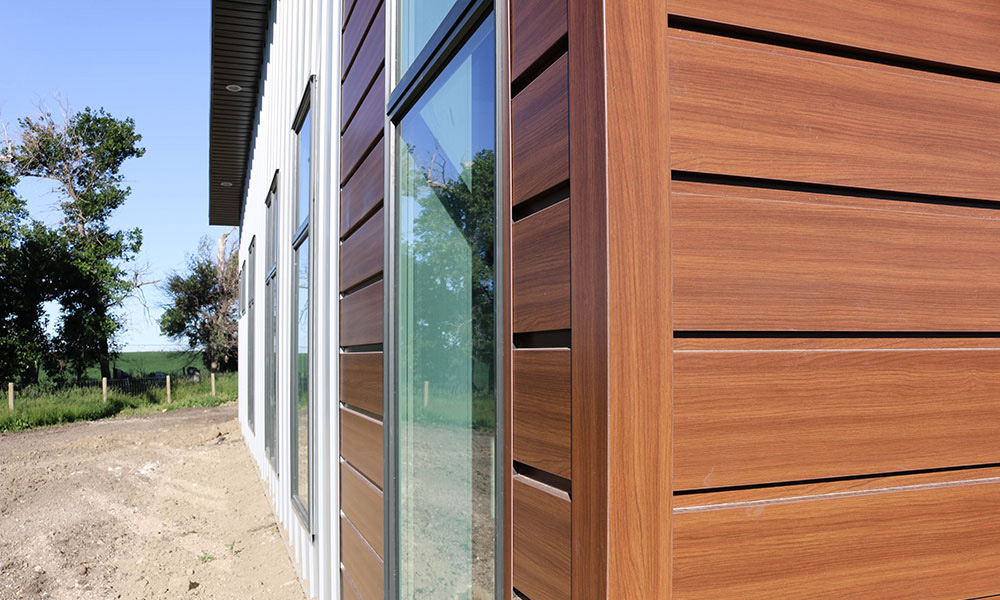

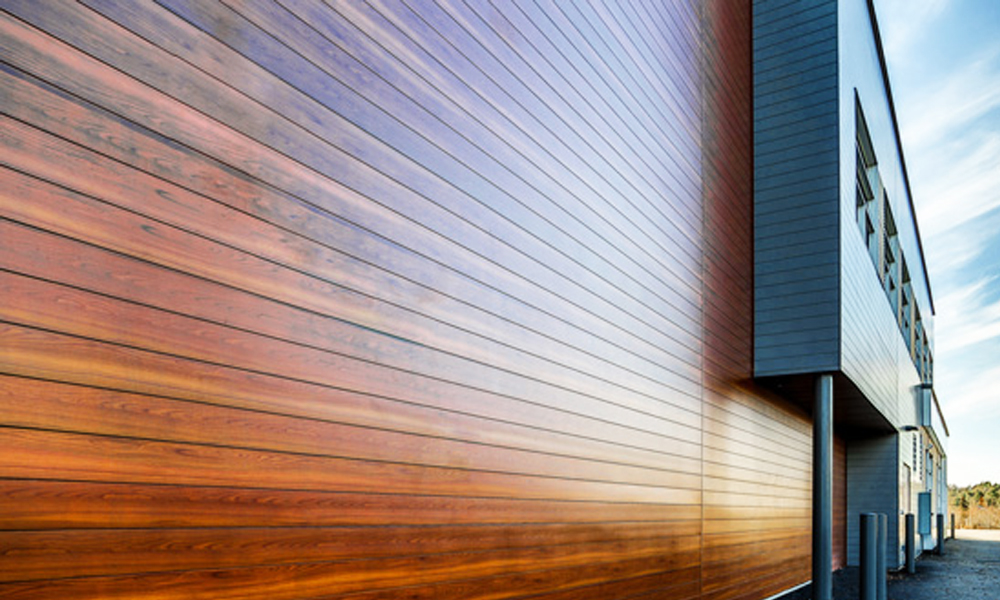

☆ As construction materials:
Wood steel doors,windows,wall panels,ceiling panels,etc.
☆ As household materials
Wood grain chairs,tables,curtain walls,decorative material,ect.
Packing & Delivery:
☆ Packing:
All steel coils from Yumisteel will be well packed as follows.
☆ One layer of Mildew paper and one layer of moisture-proof kraft paper to protect the steel coils.
☆ One 3.5cm thick kraft paper loops inside,and connected with mildew paper and of moisture-proof kraft paper to make sure the steel coils are well protected.
☆ Then again one layer of steel sheet on the surface and tighted with steel strips.
☆ When loading,we put mildewproof bags in the container.
☆ Delivery:
Delivery time for regular sizes: 15-20 days ;
Delivery time for special sizes: 25-30 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
