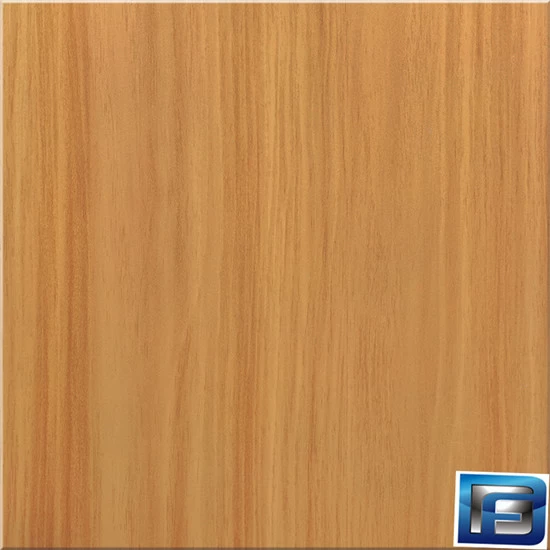

Wooden grain coated aluminum coils are widely applied to ACP,

aluminum ceiling, roofing, fireproof roller shutter, doors, wall panel , facade cladding, etc.

1. Specification for coated aluminum coils
01)Material: aluminum alloy A1100, A3003, A3005, A3105
02)Aluminum thickness:0.04-1.20mm
03)Max coil width: 1600mm(standard 1240mm)
04)Coil ID: 405mm,505mm, Coil OD: 1000-1400mm
05) Coil standard weight: 2500kgs/coil
06) Coating: PE or PVDF coating

07) Surface treatment: anti-scratch, glossy, matte

08) Color: wooden grain, marble stone, plain color,3D, HD, metallic, patterned, etc.
09) Dried and baked: oven baked at 450 degree F
10) Coating thickness: double coating-25 micron, single coating-18 micron
11) Coating hardness: (pencil hardness) 2H
12) Coating adhesive: no lower than first grade
13) Impact resistance: no cracking and peeling(50kg/cm, ASTMD-2794:1993)
14)Flexibility(T-bend):2T or by your option
15) MEK resistance: more than 100
16)Outer packing: wooden plate, covering with craft paper and film, Eye to Sky or wall to Sky packing.

 2. Applications

Interior applications: ACP skin, door skin, wall cladding, ceilings, kitchen cabinet,  balconies, shutters...

Exterior applications: roller shutters, gutters, wall cladding, facades, roofing, canopies, tunnels, column covers , renovations...

Advertisement and market applications: display platforms, signboards, fascia, shop fronts...

<td style="font-style:normal;background:#ffffff;color:#333333;font-size:9

Next Product

Prev Product

---

Product Tags

series woods          wood colors          color wood          wood series tiles          wood series of sandstone          series woods laminate          white color series          color clay series          blue color series

---

INQUIRY

Contact us for all information about the product

---

Telephone

E-Mail Address

Enquiry

click here to leave a message

leave a message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Coating Characteristic table
Item	Test Item	Standard	National standard	DF Test Result
1	Color Difference	ECCA T3	Δ E≤ 2.0	Δ E≤ 1.5
2	Gloss Difference	ECCA T2	≤ 10	≤ 5
3	Coating Thickness	ECCA T1	Two layers Min 23um	≥ 24um
			Three layers Min 30um	≥ 33um
4	Pencil Hardness	ASTM D3363	≥ HB	HB
5	T-bend	ASTM D4145	≤ 2T	≤ 2T
6	Adhesion	ASTM D3359	Grade 0	Grade 0
7	Impact	ASTM D2794	≥ 50 kg/cm	≥ 50 kg/cm
8	Boiling water Resistance	GB/T17748	2h No Change	4h No Change
9	Solvent Resistance	ASTM D2248	200 times paints remaining	500 times no break
10	Acidity Resistance	ASTM D1308
