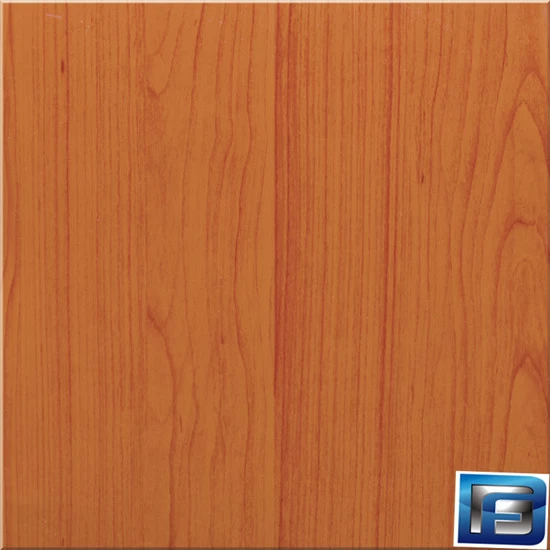

Wooden texture aluminum coil 3003/3005 for ceiling, roller shutter

 Wooden texture aluminum coil 3003/3005 for ceiling

1.Specialized on wood aluminium coil
2.SGS, BV, ISO9001
3.Guarantee for 15 years




Wooden grain coated aluminum coils are widely applied to ACP,

 aluminum ceiling, roofingfireproof roller shutter, doors, wall panel , facade cladding, etc.



1. Specification for coated aluminum coils
01)Material: aluminum alloy A1100, A3003, A3005, A3105
02)Aluminum thickness:0.04-1.20mm
03)Max coil width: 1600mm(standard 1240mm)
04)Coil ID: 405mm,505mm, Coil OD: 1000-1400mm
05) Coil standard weight2500kgs/coil
06) Coating: PE or PVDF coating

07) Surface treatment: anti-scratch, glossy, matte

08) Color: wooden grain, marble stone, plain color,3D, HD, metallic, patterned, etc.
09) Dried and baked: oven baked at 450 degree F
10) Coating thickness: double coating-25 micron, single coating-18 micron
11) Coating hardness: (pencil hardness) 2H
12) Coating adhesive: no lower than first grade
13) Impact resistance: no cracking and peeling(50kg/cm, ASTMD-2794:1993)
14)Flexibility(T-bend):2T or by your option
15) MEK resistance: more than 100
16)Outer packing: wooden plate, covering with craft paper and film, Eye to Sky or wall to Sky packing.

 2. Applications

Interior applications: ACP skin, door skin, wall cladding, ceilings, kitchen cabinet,  balconies, shutters...

Exterior applications: roller shutters, gutters, wall cladding, facades, roofing, canopies, tunnels, column covers renovations...

Advertisement and market applications: display platforms, signboards, fasciashop fronts...

Coating Characteristic table
Item Test Item Standard National standard DF Test Result
1 Color Difference ECCA T3 Δ E≤ 2.0 Δ E≤ 1.5
2 Gloss Difference ECCA T2 ≤ 10 ≤ 5
3 Coating Thickness ECCA T1 Two layers Min 23um ≥ 24um
      Three layers Min 30um ≥ 33um
4 Pencil Hardness ASTM D3363 ≥ HB HB
5 T-bend ASTM D4145 ≤ 2T ≤ 2T
6 Adhesion ASTM D3359 Grade 0 Grade 0
7 Impact ASTM D2794 ≥ 50 kg/cm ≥ 50 kg/cm
8 Boiling water Resistance GB/T17748 2h No Change 4h No Change
9 Solvent Resistance ASTM D2248 200 times paints remaining 500 times no break
10 Acidity Resistance ASTM D1308 5%HCL 24hrs no change No change
11 Alkali Resistance ASTM D1308 5%NaOH 24hrs no change color Δ E≤ 2.0 No change
12 Nitric acid Resistance AAMA620 Δ E≤ 5.0 Δ E≤ 5.0
13 Oil Resistance ASTM D1308 20# oil 24hrs no change No change
14 Salt Spray Resistance ASTM B117 4000hrs≤ Grade 1 No change
15 Abrasion resistance ASTM D968 ≥ 5L/um ≥ 5L/um
16 Dirt Resistance GB/T9780 ≤ 5% < 5%
17 Color retaining GB/T16259 4000 hrsΔ E≤ 4.0 4000 hrsΔ E≤ 3.0
18 Gloss weaken Level GB/T16259 4000 hrs ≤ Grade 2 4000 hrs ≤ Grade 2
