Data Sheet: Woodward 8444-1002 – UMT1 Multi-Function Measuring Transducer
Product Identity

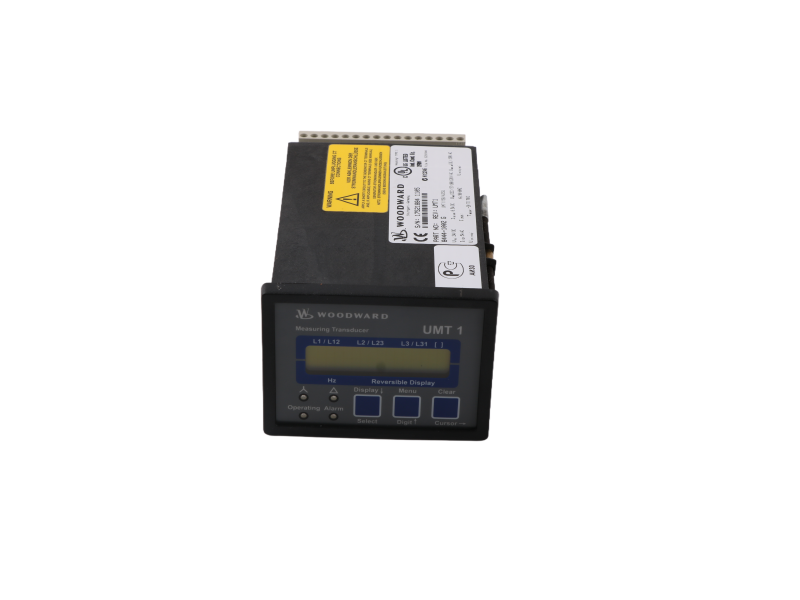

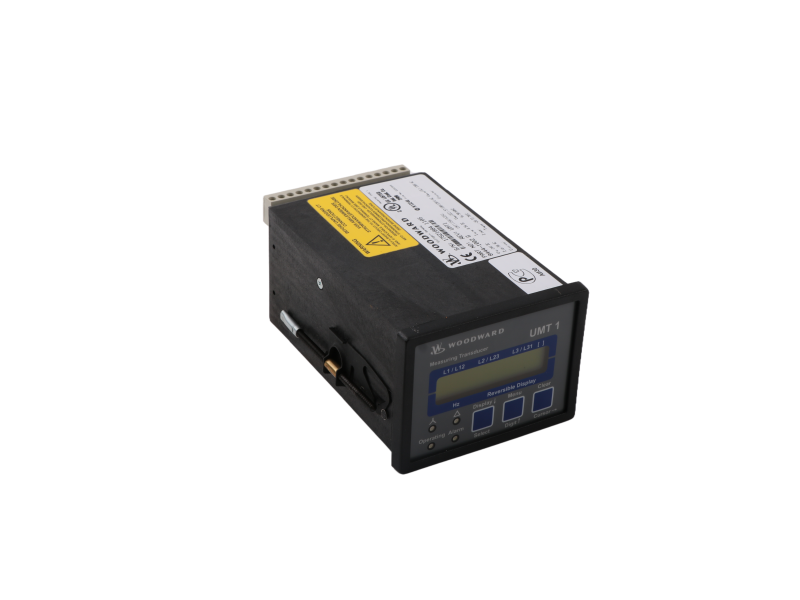

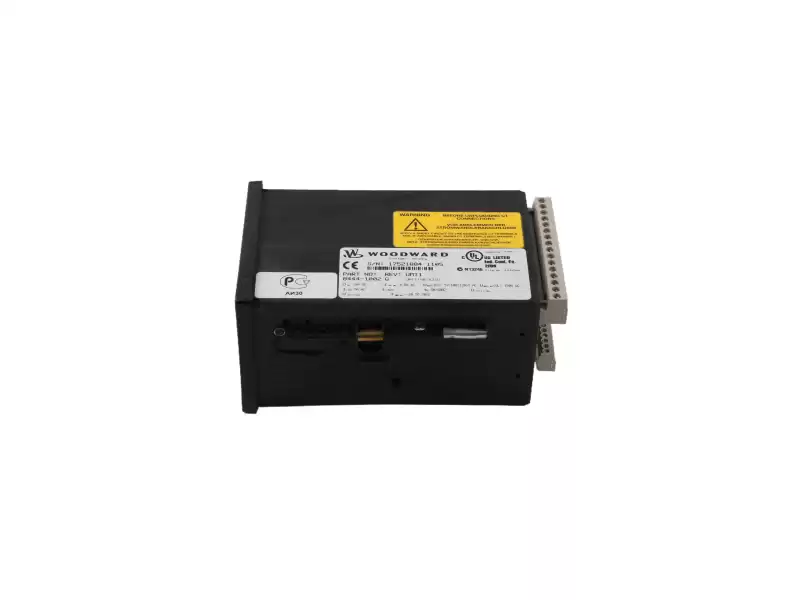

8444-1002 is a DIN-rail UMT1 transducer that converts ac voltage, current, frequency and power into isolated 4-20 mA / 0-10 V signals for PLC, DCS or governor loops. One hardware, multiple measurements—no need for separate VT, CT or frequency cards.
Key Points
• Inputs: 0-600 V ac, 0-5 A ac, 45-65 Hz (true-rms)
• Outputs: 3 × 4-20 mA + 2 × 0-10 V (user-configurable)
• Accuracy: ±0.05 % FS, response ≤1 ms
• Supply: 24 V dc (18-36 V), ≤1 W
• Temp: –40 …+85 °C, IP65 front, IP20 terminals
• Bus: optional RS-485/Modbus-RTU (rear plug)
• Cert: CE, UKCA, ABS marine, Class 1 Div 2 ready
Why PLC Autocontroller
• 20-year Woodward measuring specialist
• 7/24 online service
• Air-ship by DHL/FedEx/TNT/UPS within 24 h
• Brand-new factory-sealed boxes
Ex-Stock Woodward Measuring & Control Bundle
|
Part Number
|
Description
|
|
8444-1002
|
UMT1 multi-transducer
|
|
8444-1003
|
UMT1 3-phase power transducer
|
|
8444-1019
|
UMT1 3-phase + RS-485
|
|
9905-971
|
LinkNet 16-Ch DI
|
|
9905-969
|
LinkNet 6-Ch AI 4-20 mA
|
|
5413-933/934
|
CAN drop 0.5 m / 1 m
|
|
5413-555
|
Bus terminator M12
|
|
5413-932
|
24 Vdc power tap
|
|
9907-164
|
505 governor
|
|
9907-167
|
505E control
|
All factory-new, 12-month warranty, same-day dispatch.
