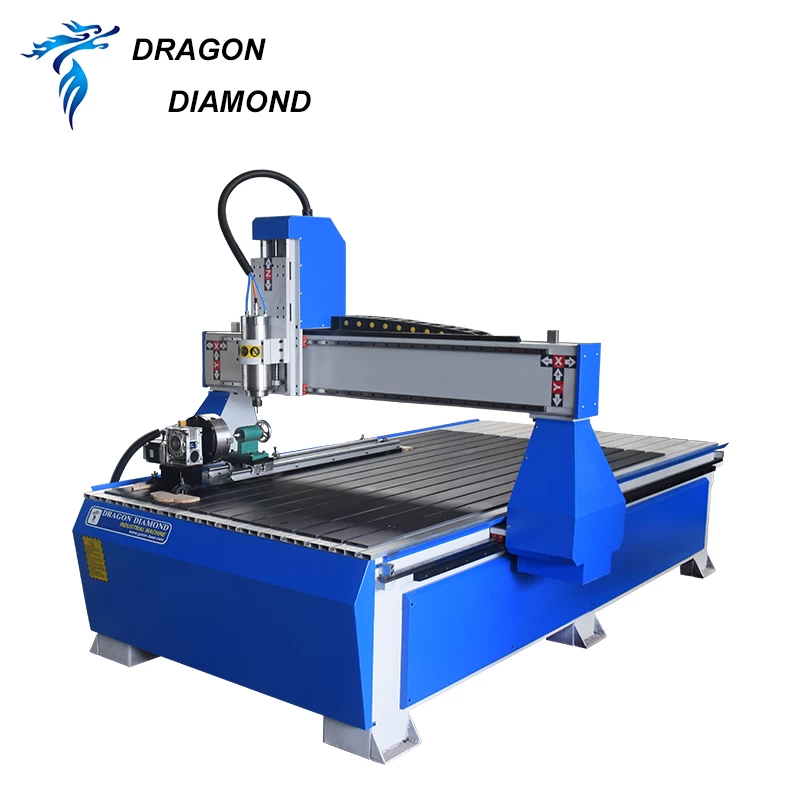

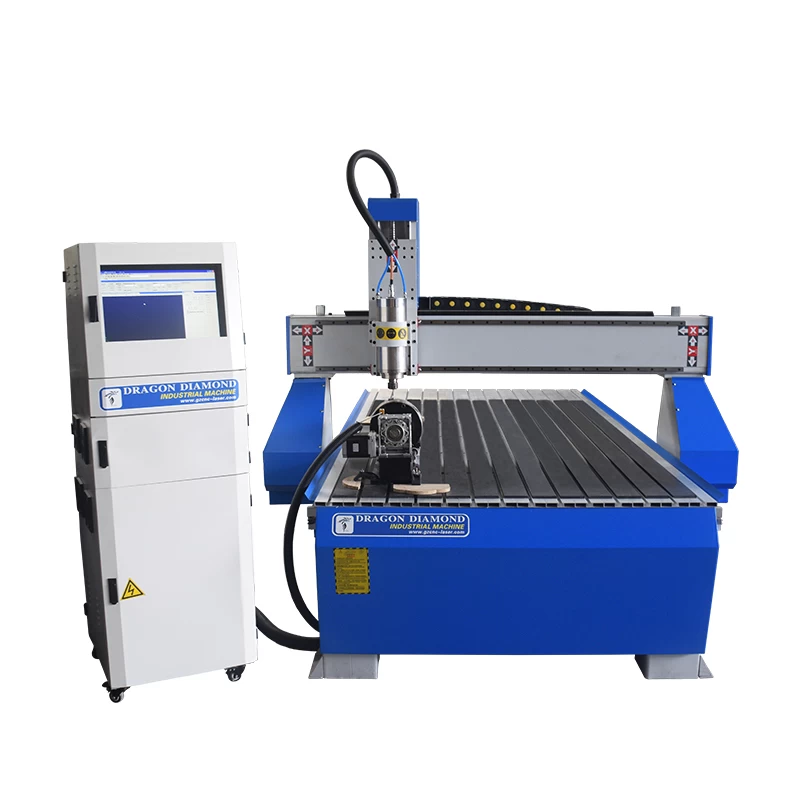

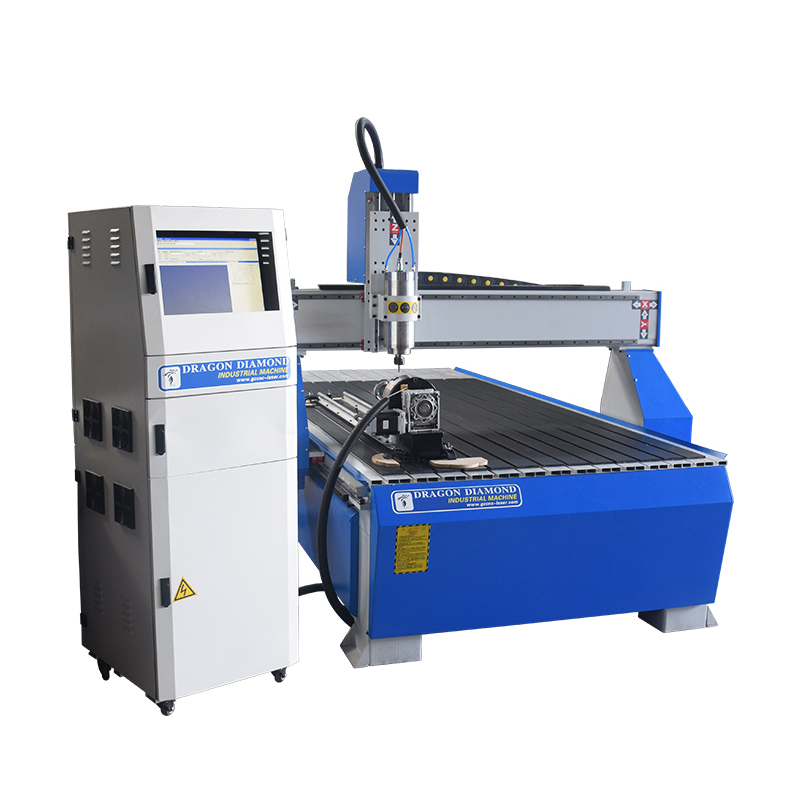

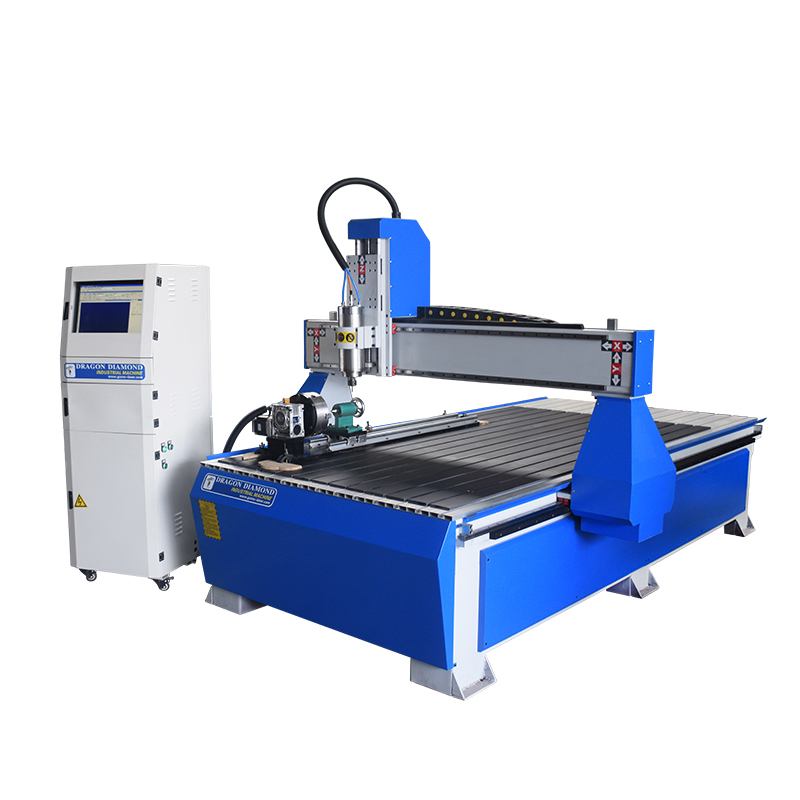

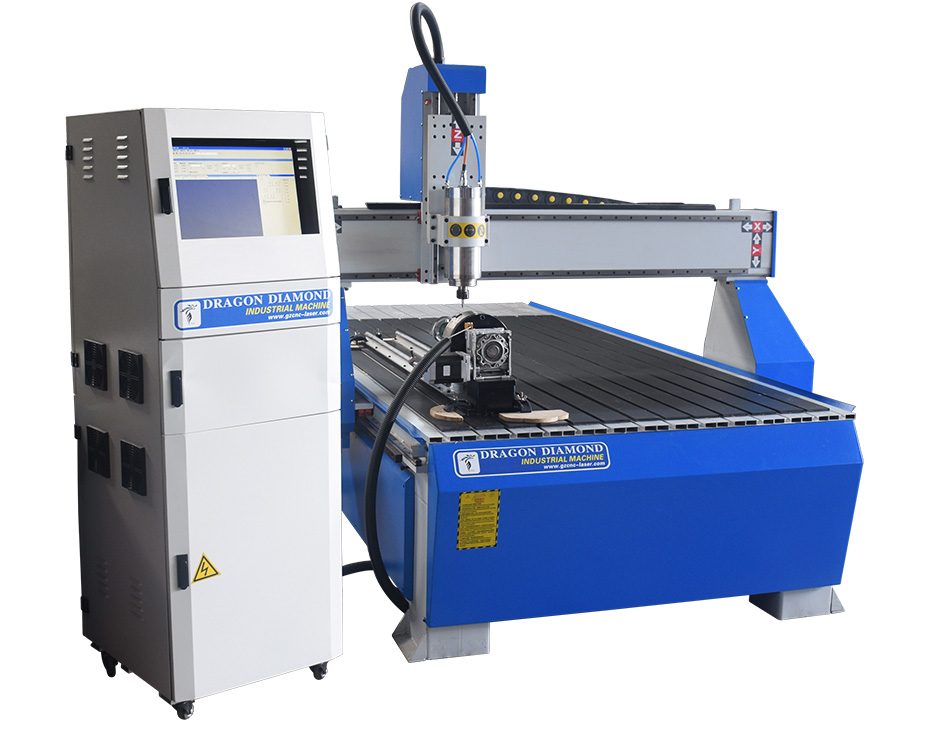

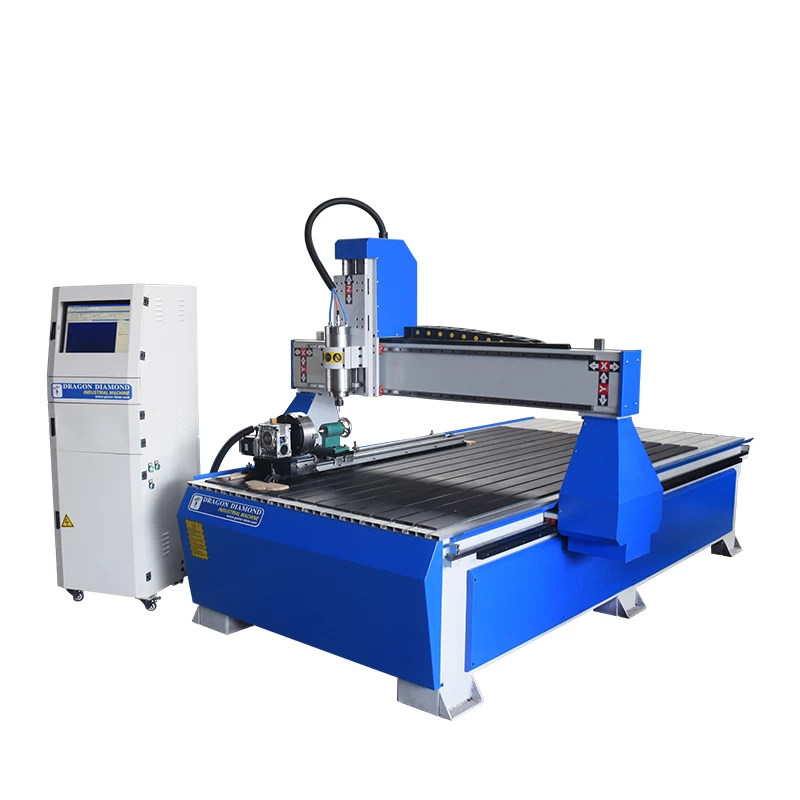

Woodworking Rotary Turning CNC Router Machine 1325

1300*2500mm CNC Router With Reduction Gear Type Rotary Axis.





Woodworking Rotary Turning CNC Router Machine 1325

4 Axis CNC Router

PRODUCT PARAMETER

NO.

Model

Lz-1325R

1

Working Area

1300x2500x200mm

2

Rotary Axis

Diameter 200mm, Working Length 1000mm
Reduction gear type rotary axis

3

Working Table

T-Slot Aluminum Table

4

Spindle

3KW Water Cooling Spindle

5

Cooling System

Water Cooling

6

Control System

NC Studio Controller

7

Inverter

Sunfar

8

Transmission

Helical rack &pinion for X Y-axis, Lead ball screw for Z-axis

9

Guide Rail

Taiwan Hiwin 25mm Linear Guider

10

Ball Screw

TBI ball screw from Taiwan

11

Drive System

Stepper motor

12

Machine Structure

More thickness steel pipe welded machine holder ber bed, cast iron gantry

13

Spindle Speed

24000RPM

14

Suitable Software

Artcam, Type3, Ucancam V9, etc

15

Traveling Speed

>25000mm/min

16

Engraving speed

≥12000mm/min

17

Reposition Accuracy

0.03mm

18

Command Code

G Code*.u00*.mmg*.plt

19

Voltage

AC 220V±10%, 50/60Hz, Single Phase,

AC 380V±10%, 50/60Hz, Single Phase




PRODUCT FEATURES

1.Stronger Structure
Welded steel T type structures as a whole,8mm thickness,six-legged heavy-duty boday ,large bearing capacity with vibration Temper aging treatment ensures no deformation for long time,avoid broken knife,more stable,durable.

2.Aluminum +PVC Slot Table
3mm Thickness aluminum T-Slot working table, more stable and longer life time than normal T-Slot table.

3.Water Cooling Spindle
Large power 3kw water cooling spindle which is with stable performance, lower noise, powerful and high torque, matched with high-performance frequency inverter.


4.Square Guide Rail
Imported Hiwin,Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity, high precision, smooth and steady running.Adopt imported precision ball screws , tools feeded with more accuracy.


5.Transmission Type

Gear pinion and Rack gear transmission for X and Y axis, higer running speed and efficiency, saving cost.Z axis with precision ball screw, high precision and more durable.


6.Motor And Driver
China famous 86BYGH450B Stepper Motor and Leadshine stepper motor and driver for XYZ Axis, high precision, fast speed and more stable, dual motor driven Y axis with traveling speed up to more than 15000mm per min.

7.Independent Rotary Axis
Extended gantry & independent removable rotary axis holder ,with diameter 200mm 4 chucks, working length 1000mm totary axis,cylinder processing is in a special zone,each time,no need put the heavy rotary axis on the working table,saving labor and improving working effeciency.


8.NC Studio Control System and Software Compatibility
Favorable compatibility with various CAM software such as Type3/Artcam/Mastercam/Caxa.With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.

9.More Helpful Features
With the function of break-point memory ,power failure resuming and automatic home/origin correction function.The working can be resumed after unexpected situations or next day.
Effectively ensure long time working precision.
